SCX24 MEUS-Racing Isokinetic Sliders

Here is another option for adding some diff sliders to your MEUS-Racing Isokinetic axles for your scx24.

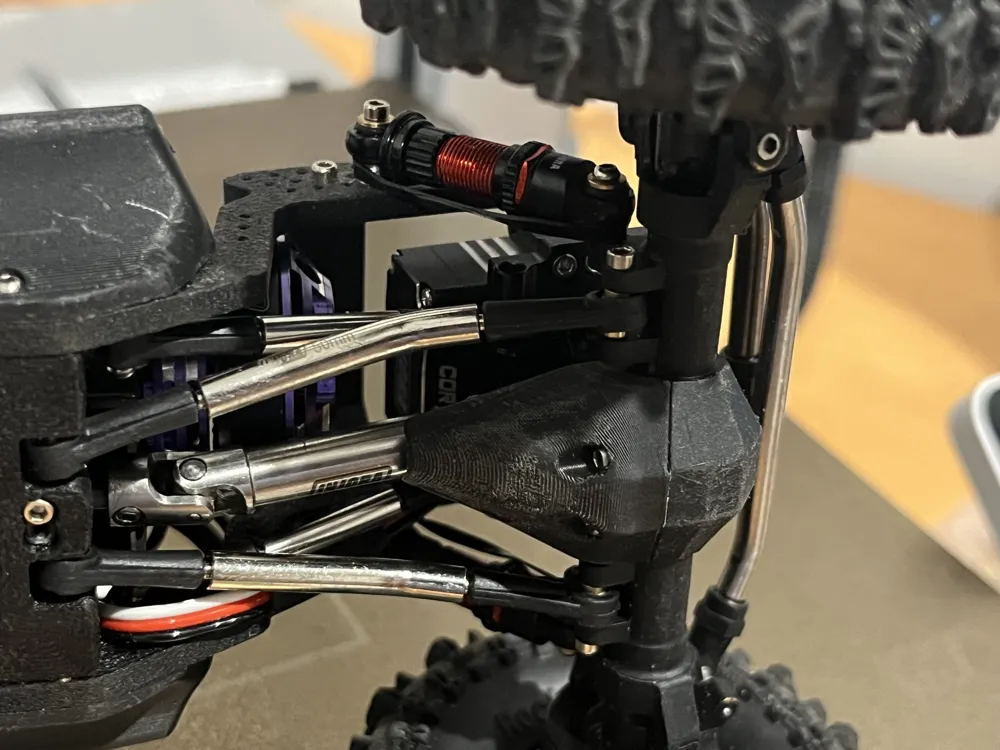

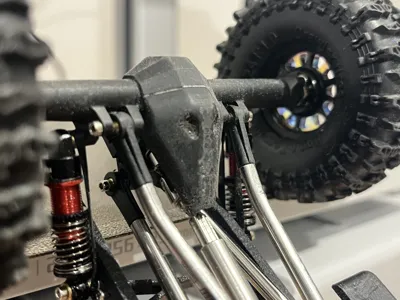

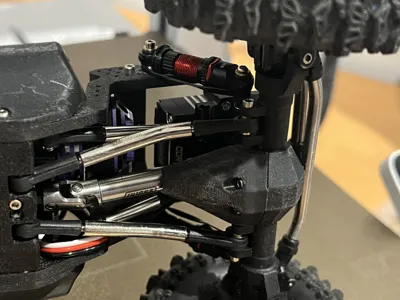

I have these fitted to both front and rear diffs.

There are two models included, the difference being one is tucked up an extra 2mm on what I would call the ‘Leading’ edge of the slider, the aim is to hopefully match some of the high clearance you get from double bend links leading to less snagging on rocks. In turn this places the slider closer to the drive shaft which may be too close for some setups depending on your drive shaft angles.

Both models fit on my rigs. But let me know if there is any fitment issues and I can edit up another to suit.

Printed in PLA standing on the plate to allow for a neater fit. This did not cause me any issues but I have added some manual supports in the .12 profile for any adhesion issues. You could also try rotate the models on the build plate if required.

Fitting - Remove lower 6mm long screws and fit slider with some 8mm screws.

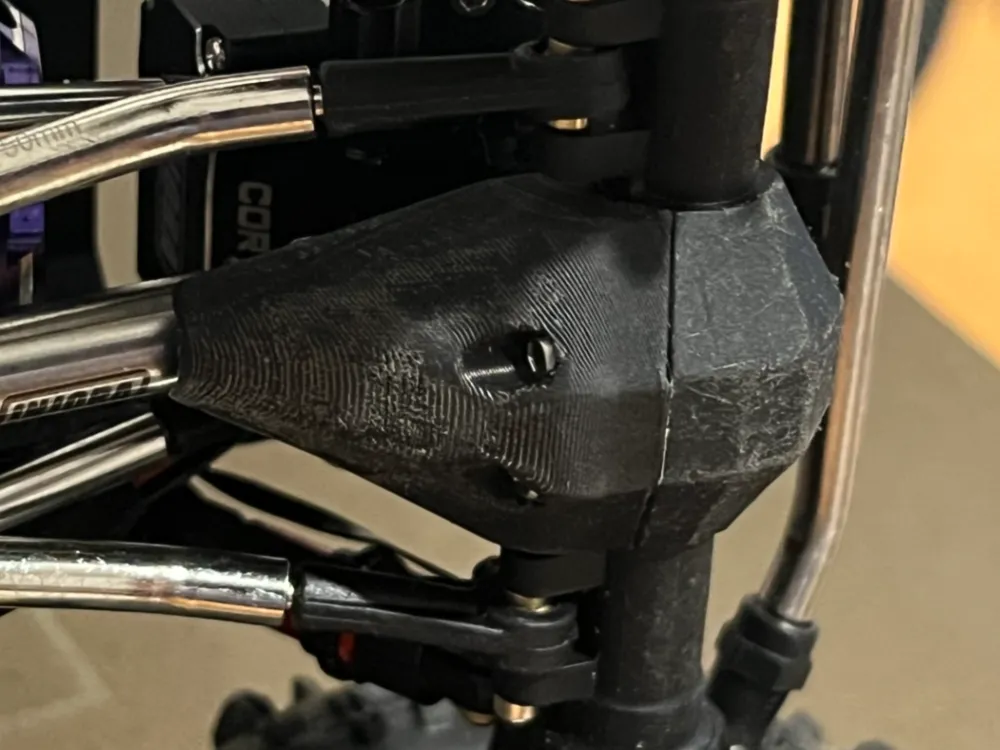

After fitting I give the sliders a sand for the smoothest finish possible to hopefully allow the best chance to slide. You could also try rubbing some candle wax on them.
