Modular Model Rocket For A/B/C motors
IP Report
GIF
GIF
GIF
Print Profile(4)
Standard, Adaptive Layer, 15% infill, 2 Plates
Designer
5 h
2 plates
Expansion Pack - More Body Tubes and Couplers
Designer
1.5 h
1 plate
A1 MINI, Adaptive Layer, 15% infill, 2 Plates
Designer
6.6 h
2 plates
Expansion Pack - Payload Bay
Designer
1.5 h
1 plate
Open in Bambu Studio
Boost
234
578
56
34
602
325
Released
Bill of Materials
List other parts
- Parachute x 1: https://tinyurl.com/22than3f
- Shock-Cord x 1: https://tinyurl.com/4ubvcdyw
Description

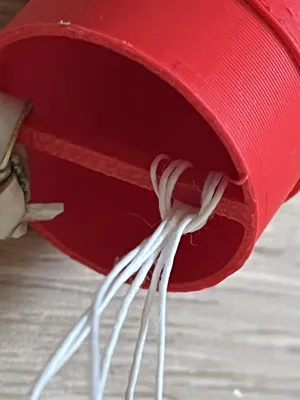

Modular model rocket for A/B/C rocket motors. Weighs ≤58g, depending if you print the body tube (not recommended). You will need a parachute, shock cord and some glue. NO SCREWS!

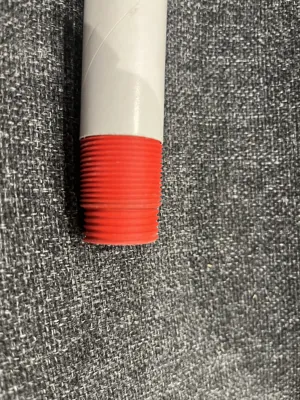

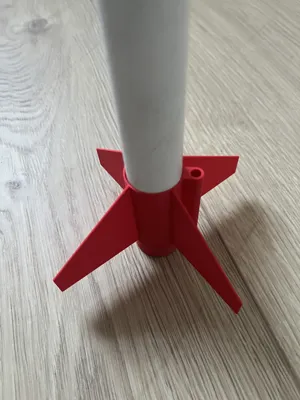

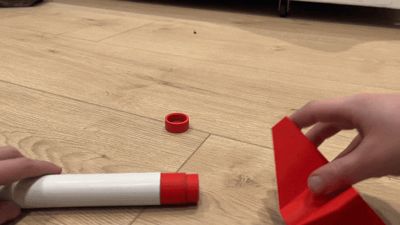

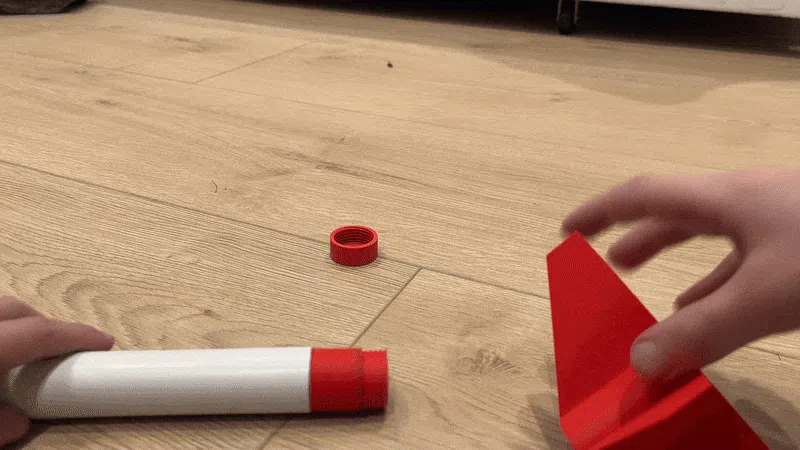

This rocket is designed to be easy to customize and prototype. The fins can hot swap, you just need to unscrew the old fins and screw the new fins on. Also, you can customize the length and width of the rocket, too.
It is recommended to NOT print plate 2, the body tube but rather but one with a outside diameter of 26mm, and inside of 25mm, like this. I have had success using printed body tubes though.
I recommend using B4-5 or C6-8 engines, use A class only for wind tests.
Boost Me (for free)
Did you rocket work? Did you enjoy it? Did you like my designs? If so, PLEASE give me a boost. One boost is the equivalent to ~45g of filament, enough to print a rocket. A boost really helps.
Documentation (1)
Assembly Guide (1)
Modular Model Rocket.pdf
