Rainwater Collector - Rainwater Gutter - Roof Gutter

I designed this Rainwater Collector, cause the other Designs I found unfortunately didn't meet my requirements.

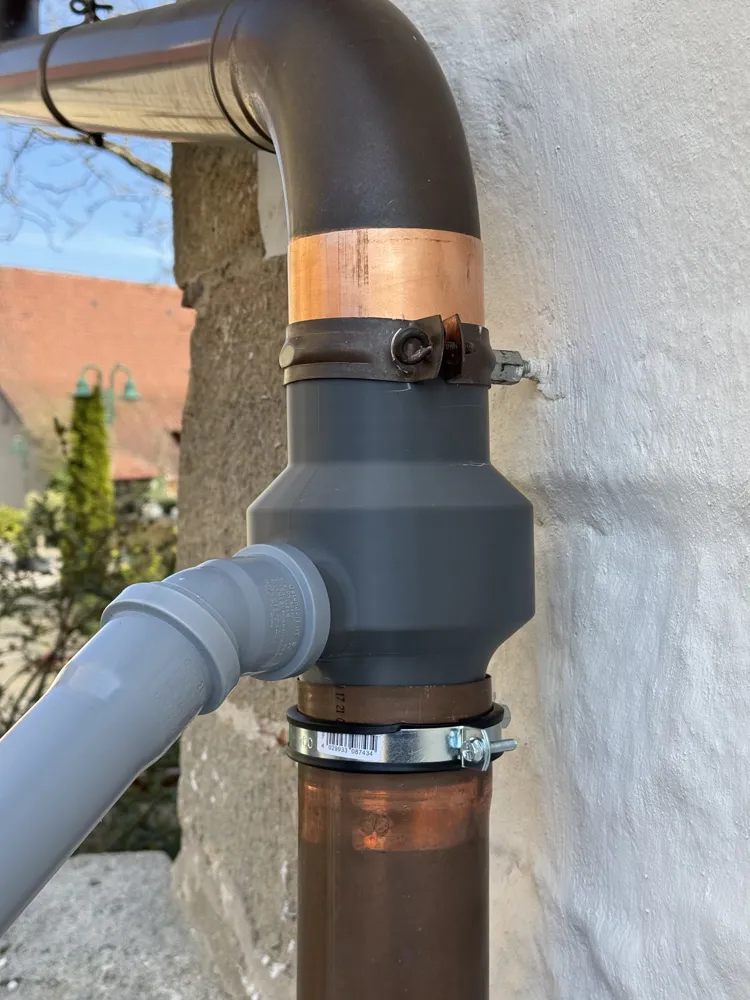

Most of them didn't fit in terms of diameter - this rainwater collector is designed for 100m gutter / downpipe diameter)

It was important to me to have a connection for a 50mm HT pipe, as this allows a lot of water to be drained away, which is not possible with the hose connections that are often used.

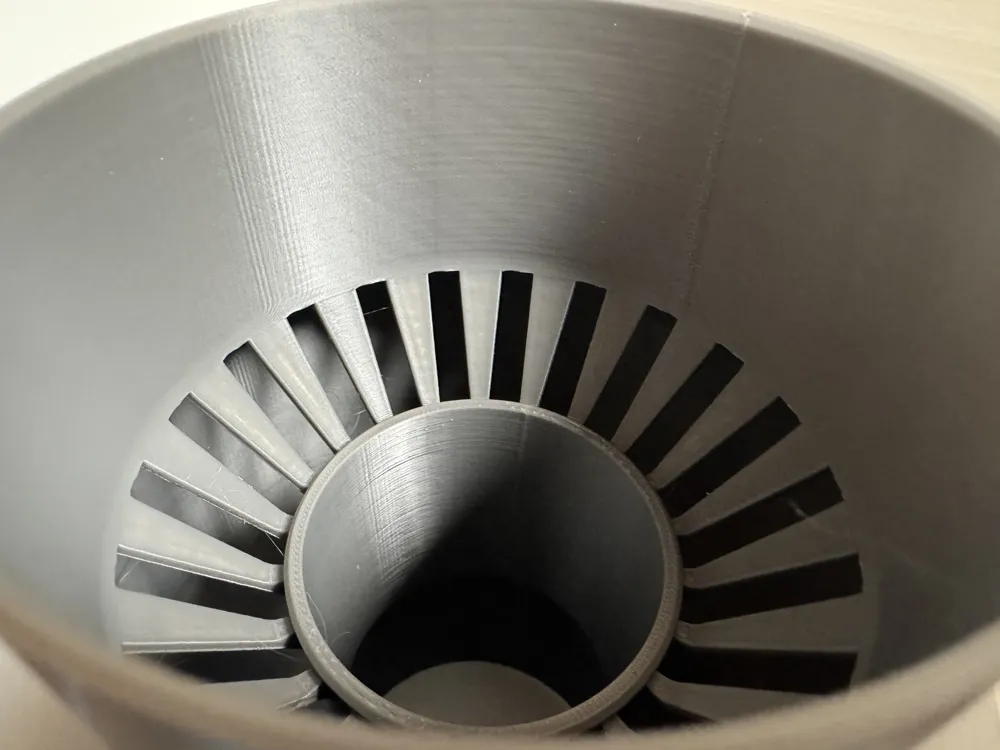

I tinkered for a long time to adapt the design so that as much water as possible could be collected. This is ensured by the large collection area.

Also the Design is Flow optimized, all relevant Edges are rounded carefully and the Lip at the Top of the collection area is made to make sure the water goes into the collector.

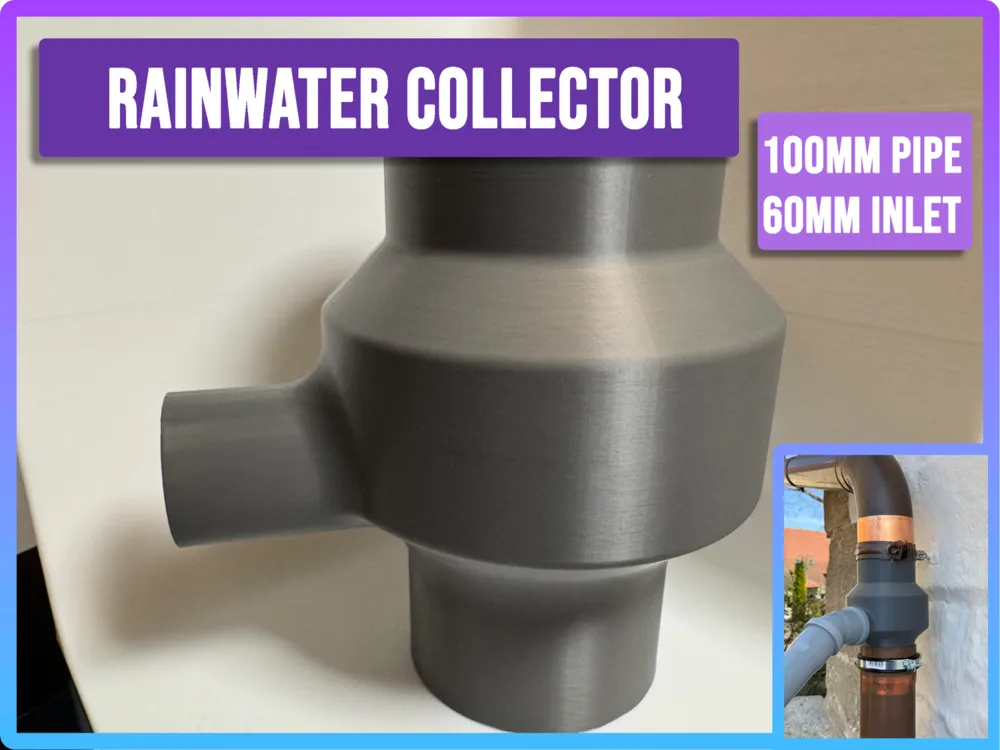

The Inlet diameter is 60mm - This makes the model well suited if dirt and leaves still need to be discharged through the inside of the pipe.

If you don´t have much dirt or leaves running through your pipes, you could use my new V2 Version - the Inlet diameter in this Version is 50mm - so the collection process is a bit more efficient. you can find the V2 Version here:

https://makerworld.com/de/models/1358309-rainwater-collector-rainwater-gutter-v2#profileId-1402418

Key Features

• Very efficent design
• 50mm HT Pipe Connector
• 100mm Downpipe Size

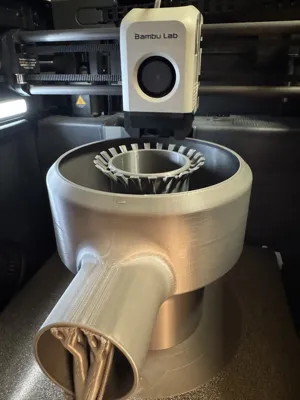

Print Settings:

Recommended Material: PETG

Layer Height: 0,16 mm High Quality

Wallgenerator: Arachne

Wall Lines: 5 (needed to be waterproof)

Upper and Lower Shell: 6

Infill: 15% Gyroid infill

Support: Support is needed - use my Profile
