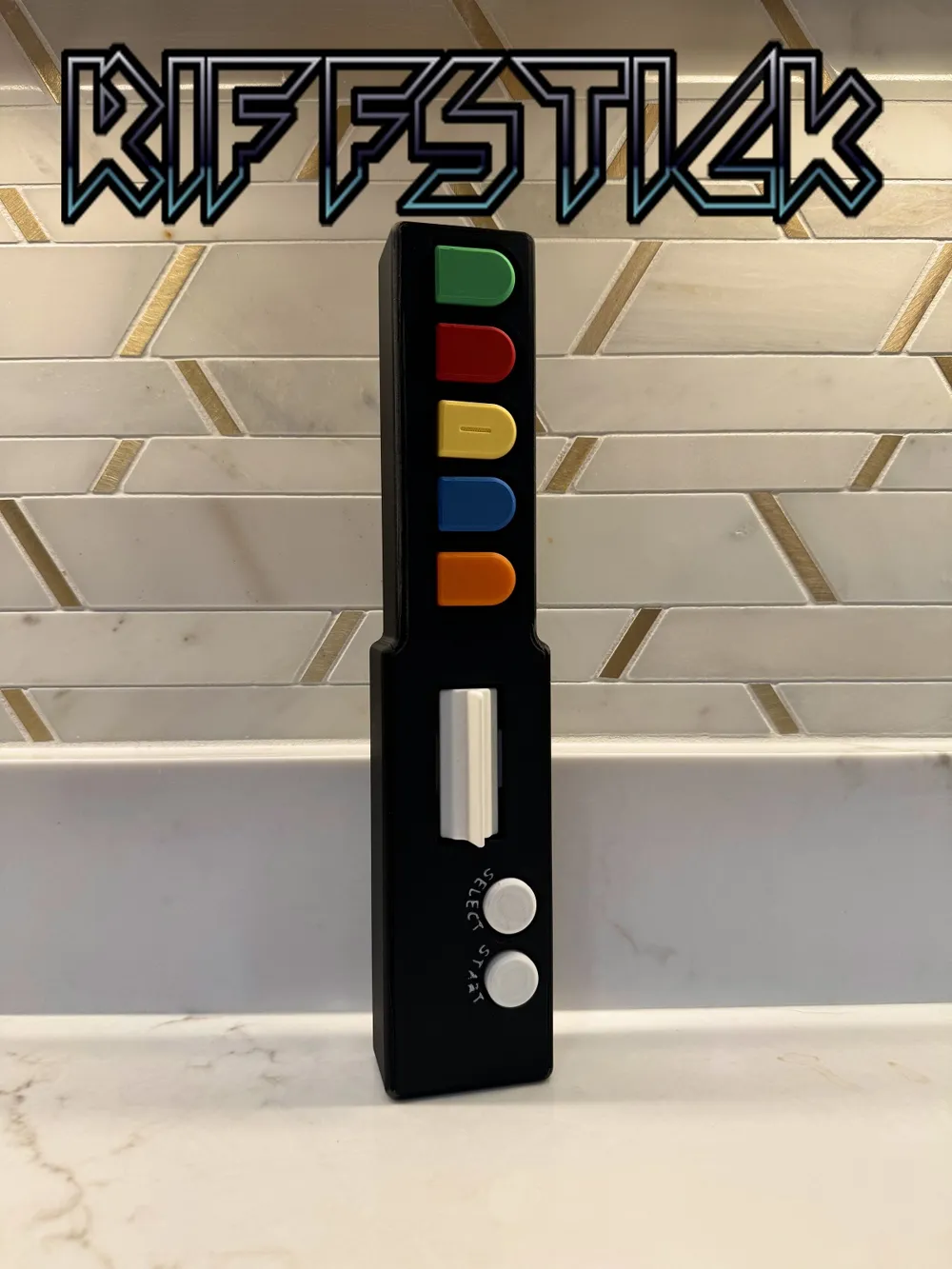

RIFFSTICK—A Portable Clone Hero and YARG Controller

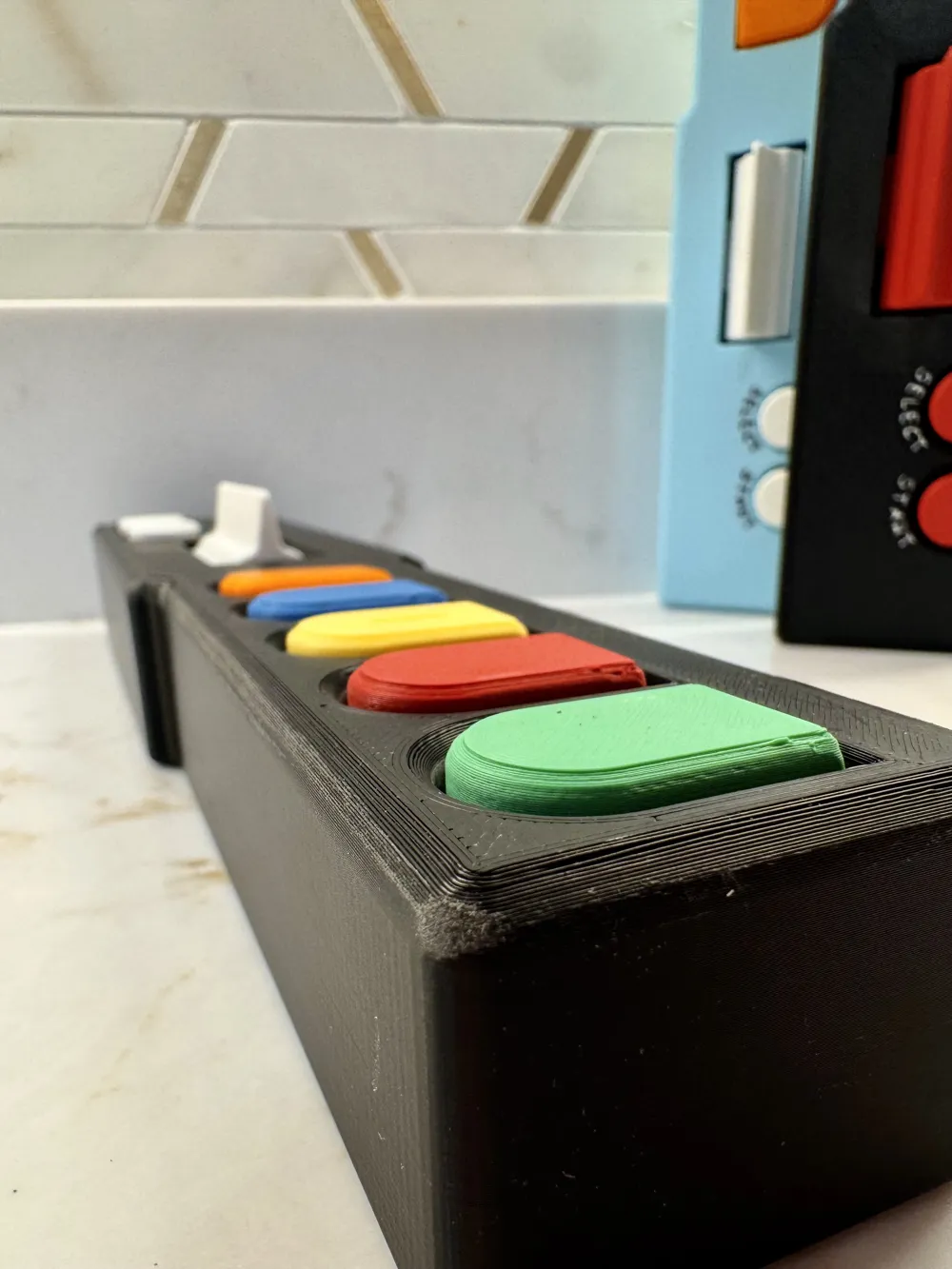

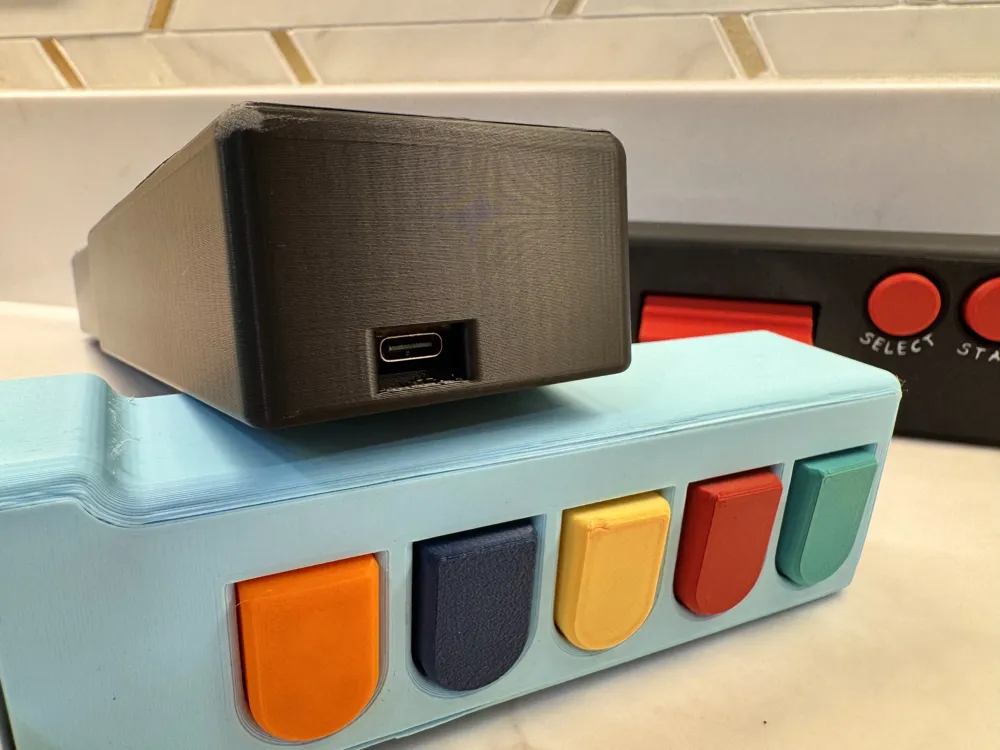

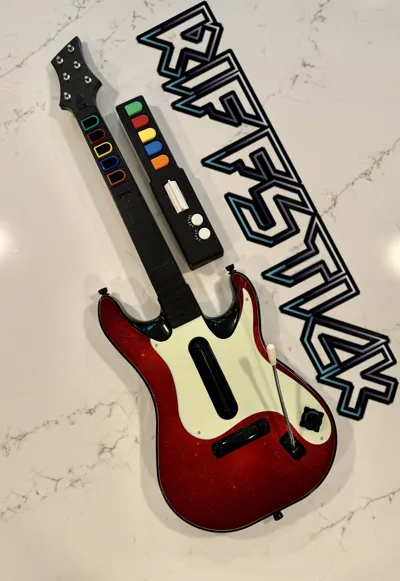

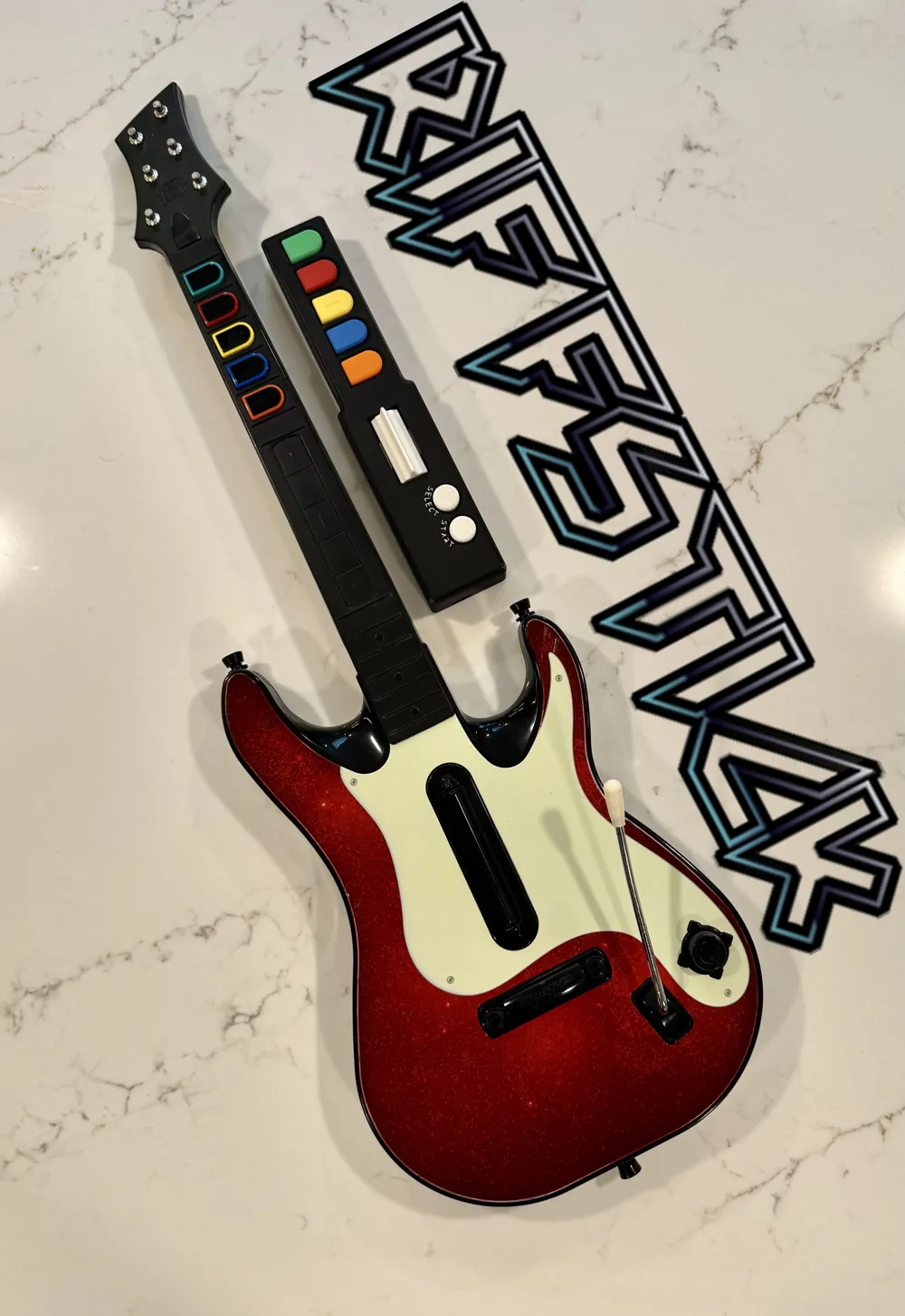

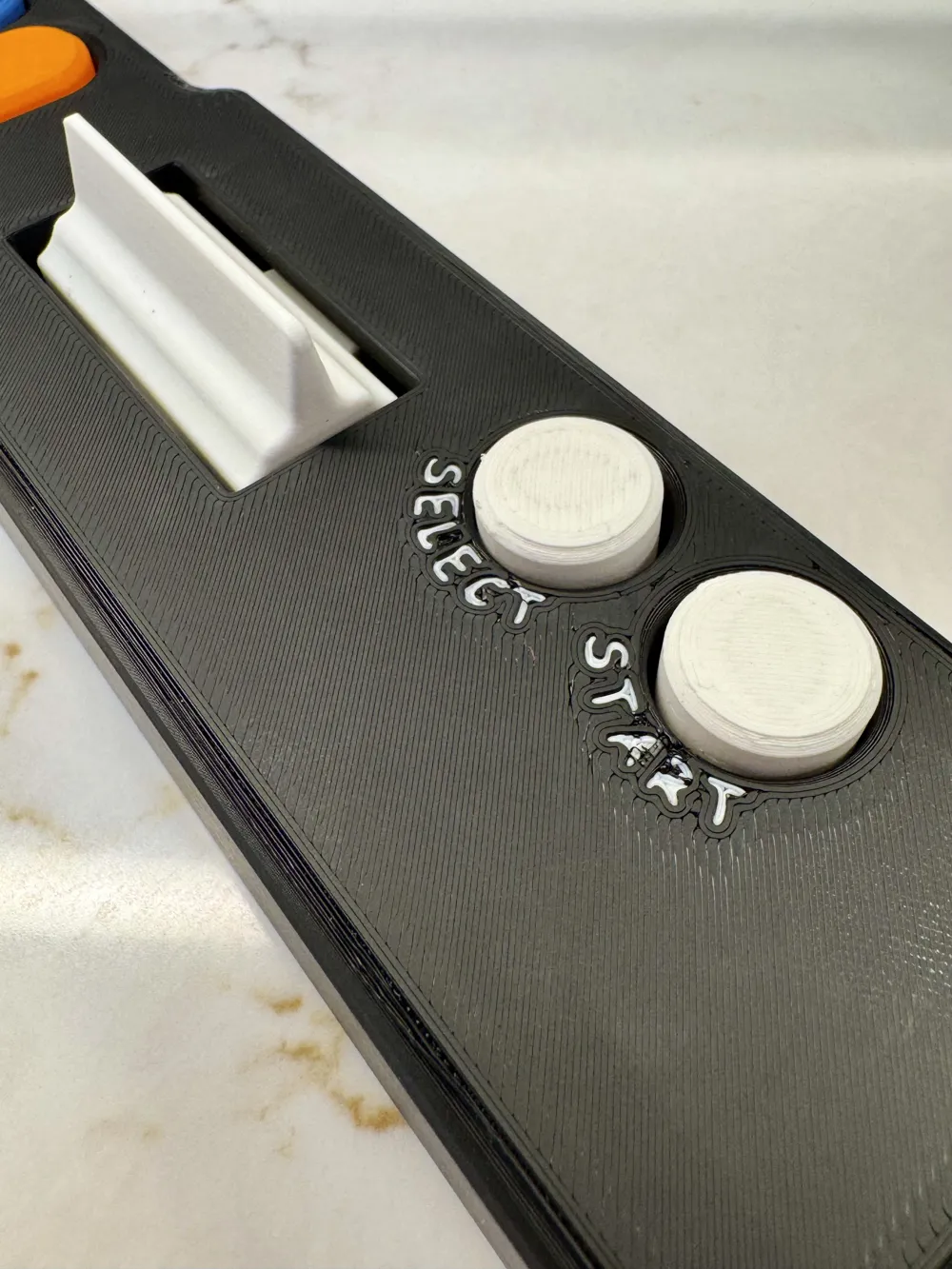

Designed for Clone Hero & YARG on PC, this custom Riffstick guitar controller measures in at only 11" tall! Featuring a USB C port, Frets and Strumbar, as well as Start and Select Buttons. The RiffStick does NOT have a whammy bar function, and there are no DPad controls. The keybinds match those of an Xbox Guitar controller. It is a custom-made XInput device using Gateron Blue clicky keyswitches and a Rasberry Pi Pico.


If you like this controller, please check out my website: lovettcustoms.com

Full links to all parts in part list are in Model Documentation below the description.

Assembly Video Instructions on Youtube:

Link to Assembly PDF: PDF COMING SOON MAYBE!

Link to GP2040-CE Software: https://gp2040-ce.info/downloads

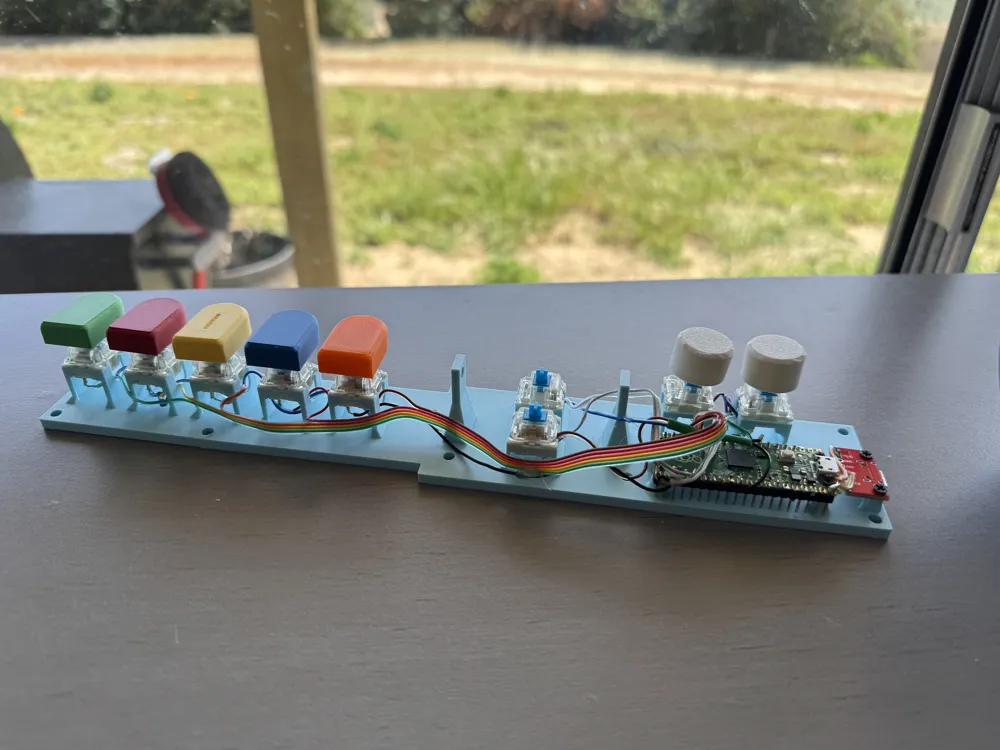

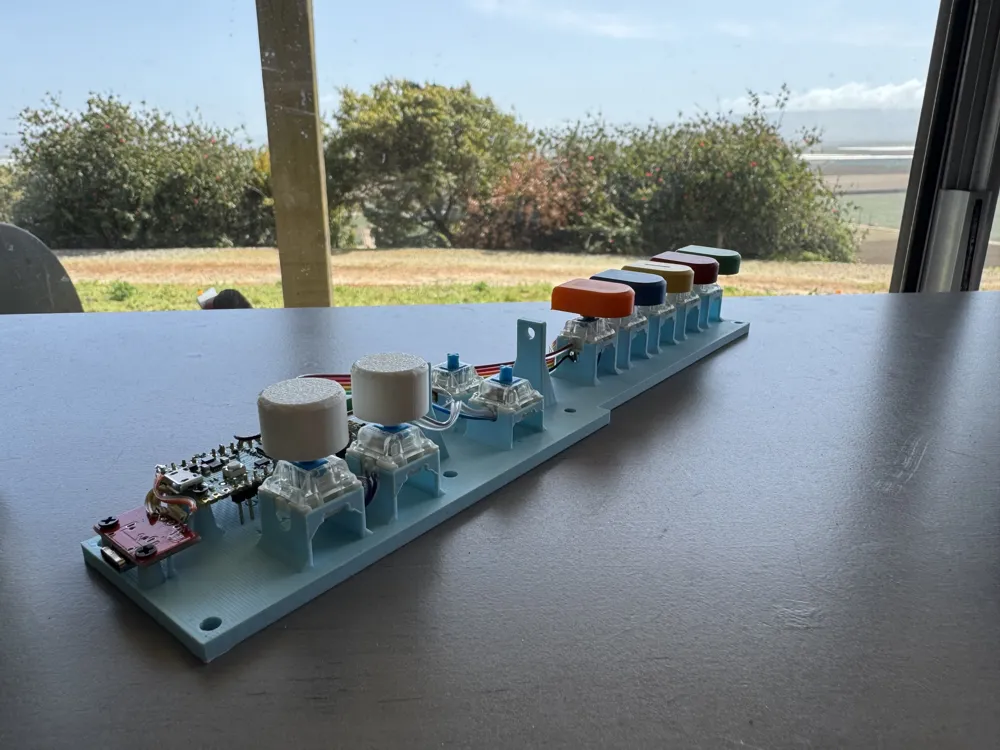

Parts Required:
- 9 Gateron PRO 3.0 Keyswitches (or similar)
- Wire. I use 28AWG Ribbon cable
    - Longest wire is only 265mm
    - 22 Wires Total will be soldered
- 2 Strumbar Screws (#6-32 * 3/8" or 1/2")
- 9 Threaded Body Screws (#6 * 3/4")
- 1 Raspberry Pi Pico
- USB C (or other port) breakout board
- 4 Screws: M2.5 * 4mm
- 2 Screws: M2.5 * 4mm

THIS CONTROLLER IS INTENDED FOR PC CLONE HERO OR YARG. It may require you to bind controls manually in CH or YARG. It is possible to use this controller on Xbox versions of Guitar Hero and RB if you have the USBDSecPatch & a Sandtroller USB Host. It may be possible to use this controller on CH Android, but this is untested.
