AMD Wraith Cooler mod to 92mm fan
Print Profile(1)
Description
Boost Me (for free)

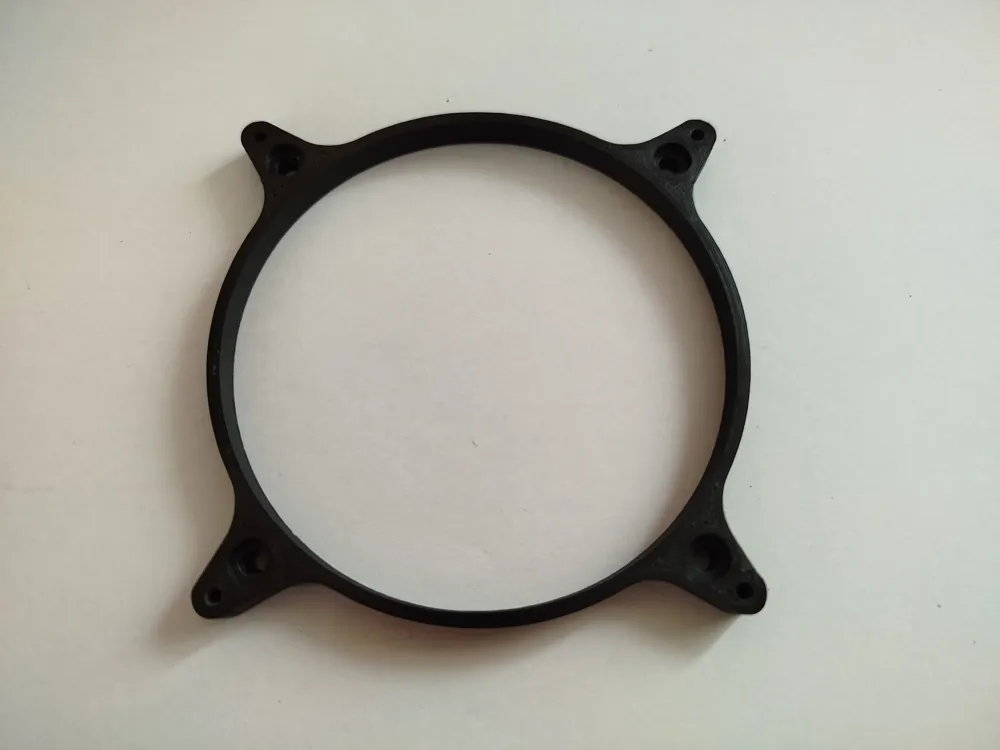

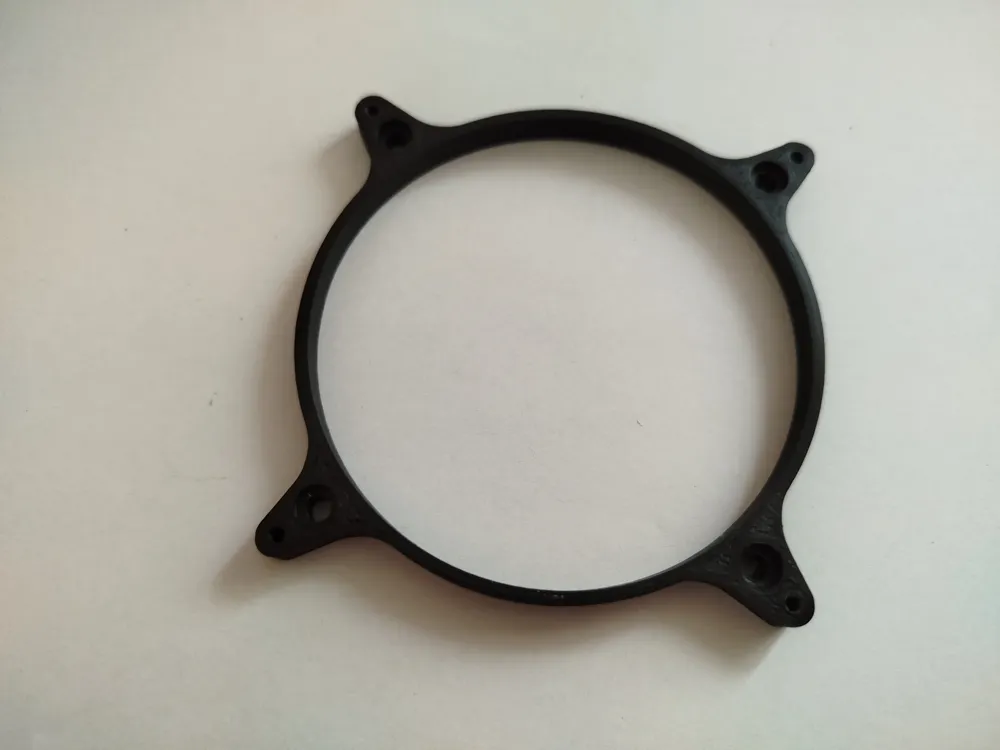

Modification for ADM Wraith BOX cooler. With this adapter you can replace the original fan with a standard 92x92mm fan.
Important:
Print the adapter with ABS or ASA filament. Standard PLA may melt.
Assembly:

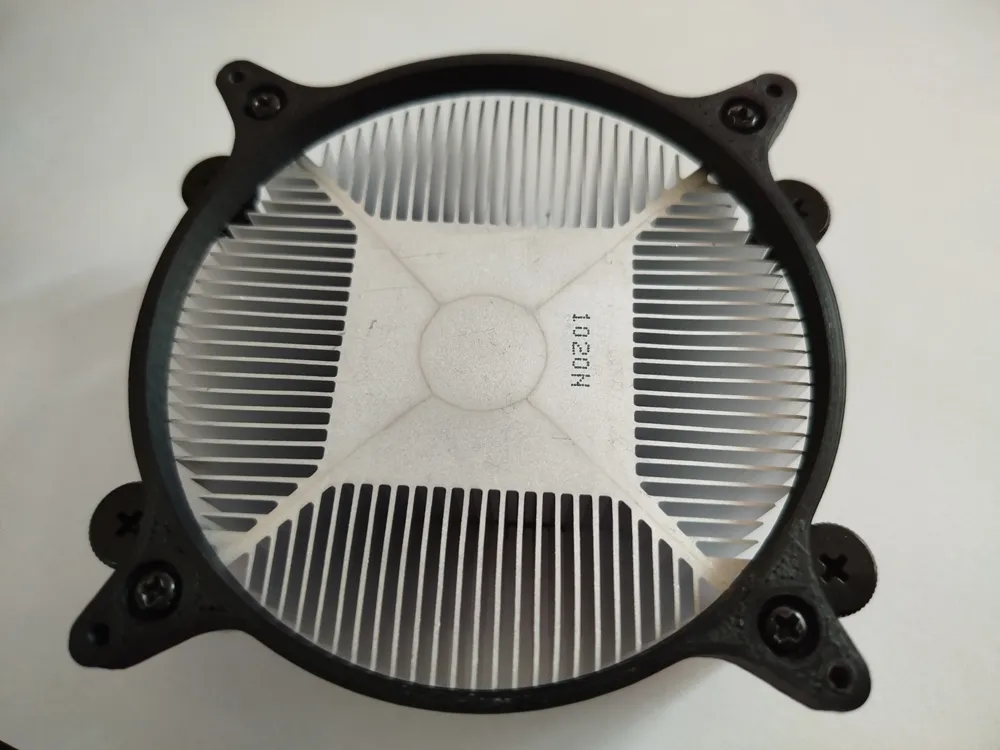

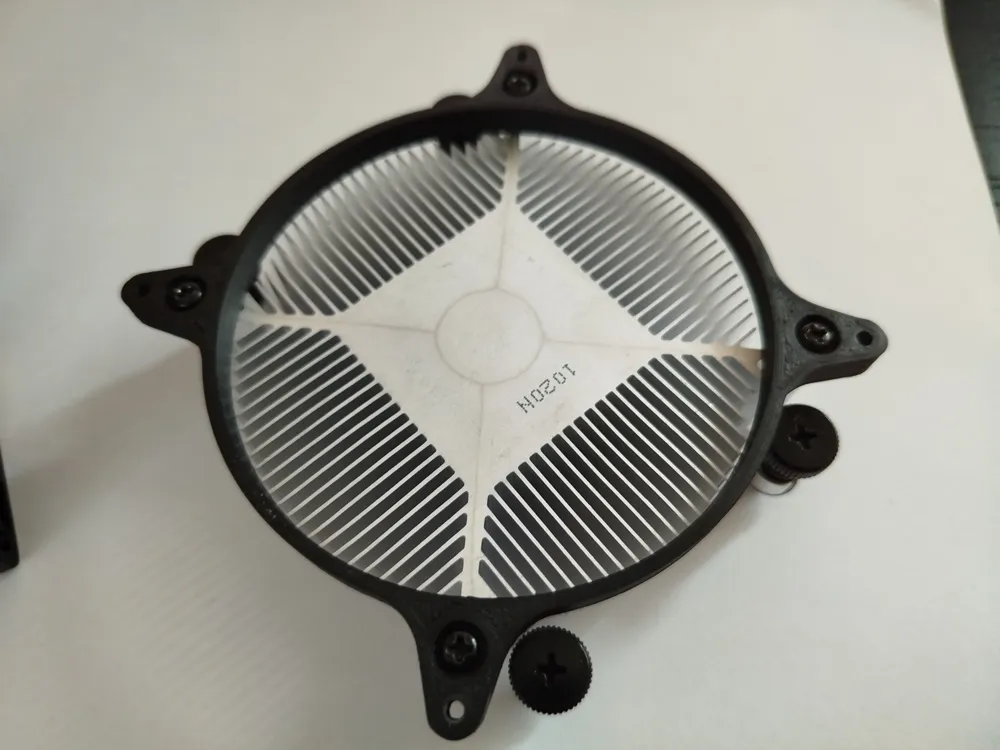

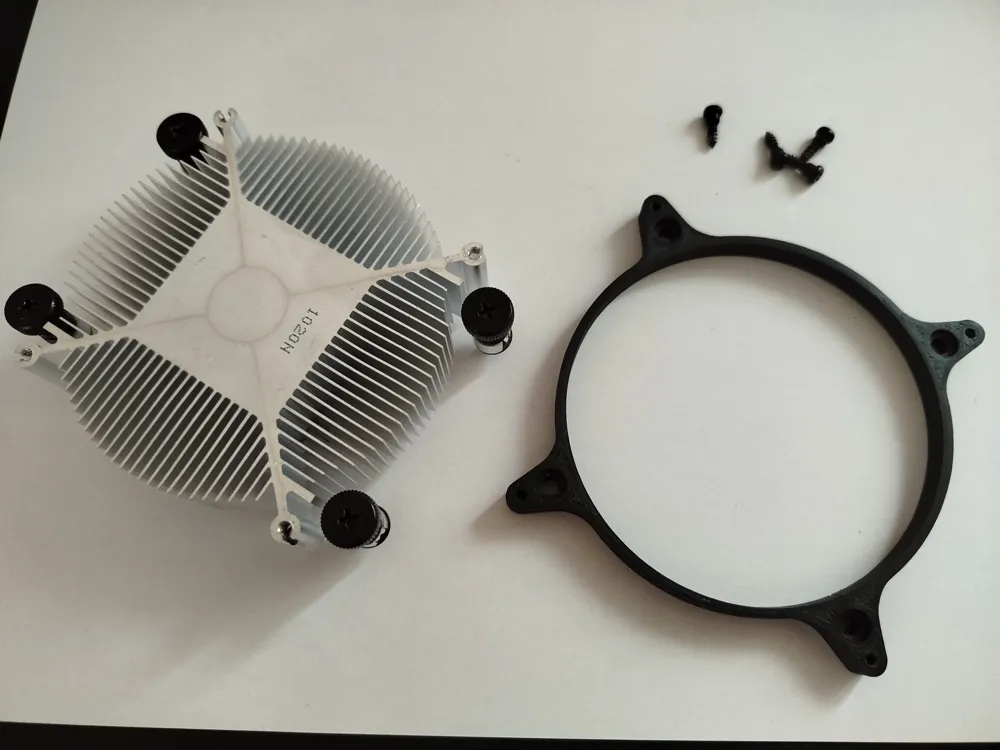

1. screw the adapter to the cooler with the original screws,

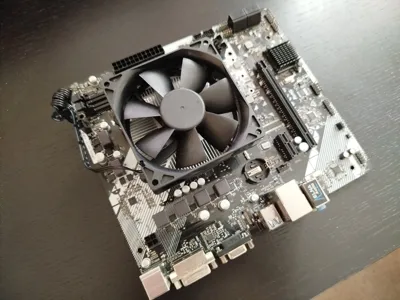

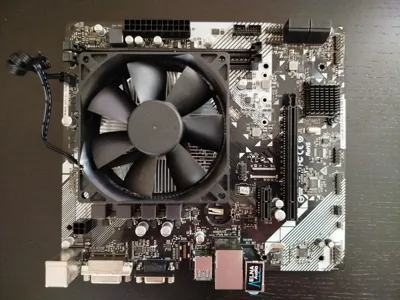

2. mount the cooler on the motherboard

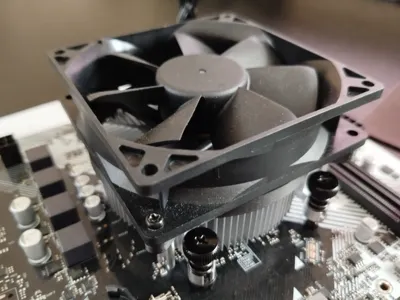

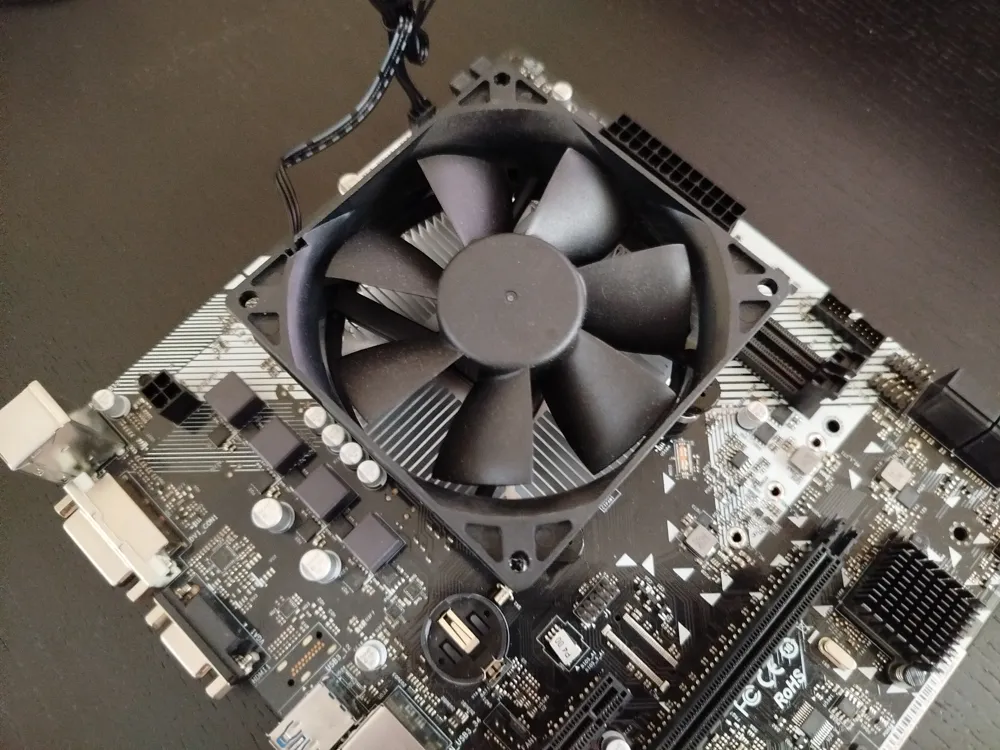

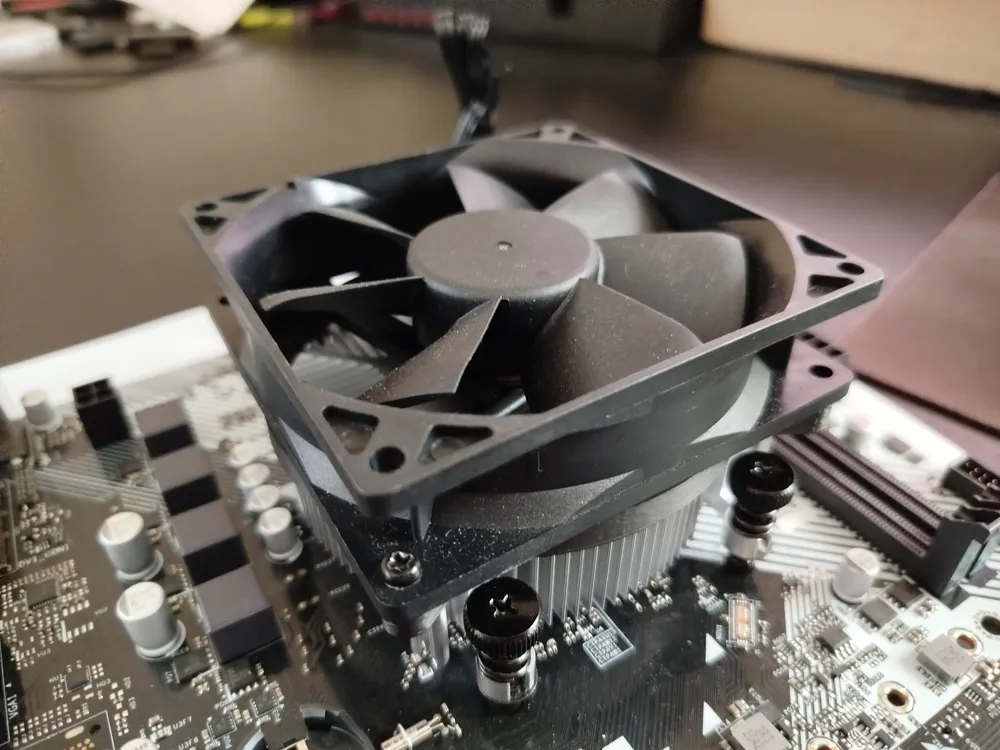

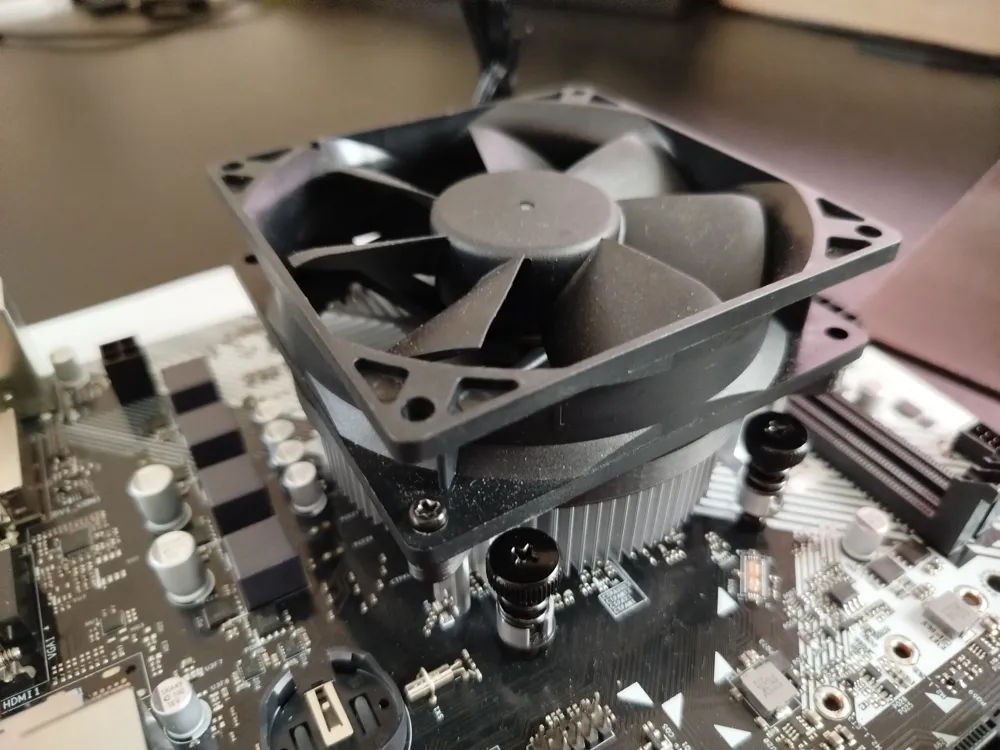

3. screw the fan to the adapter with 3x10mm plastic screws
Tips:
1. You can use only four original screws and screw the adapter with two and the fan with two.

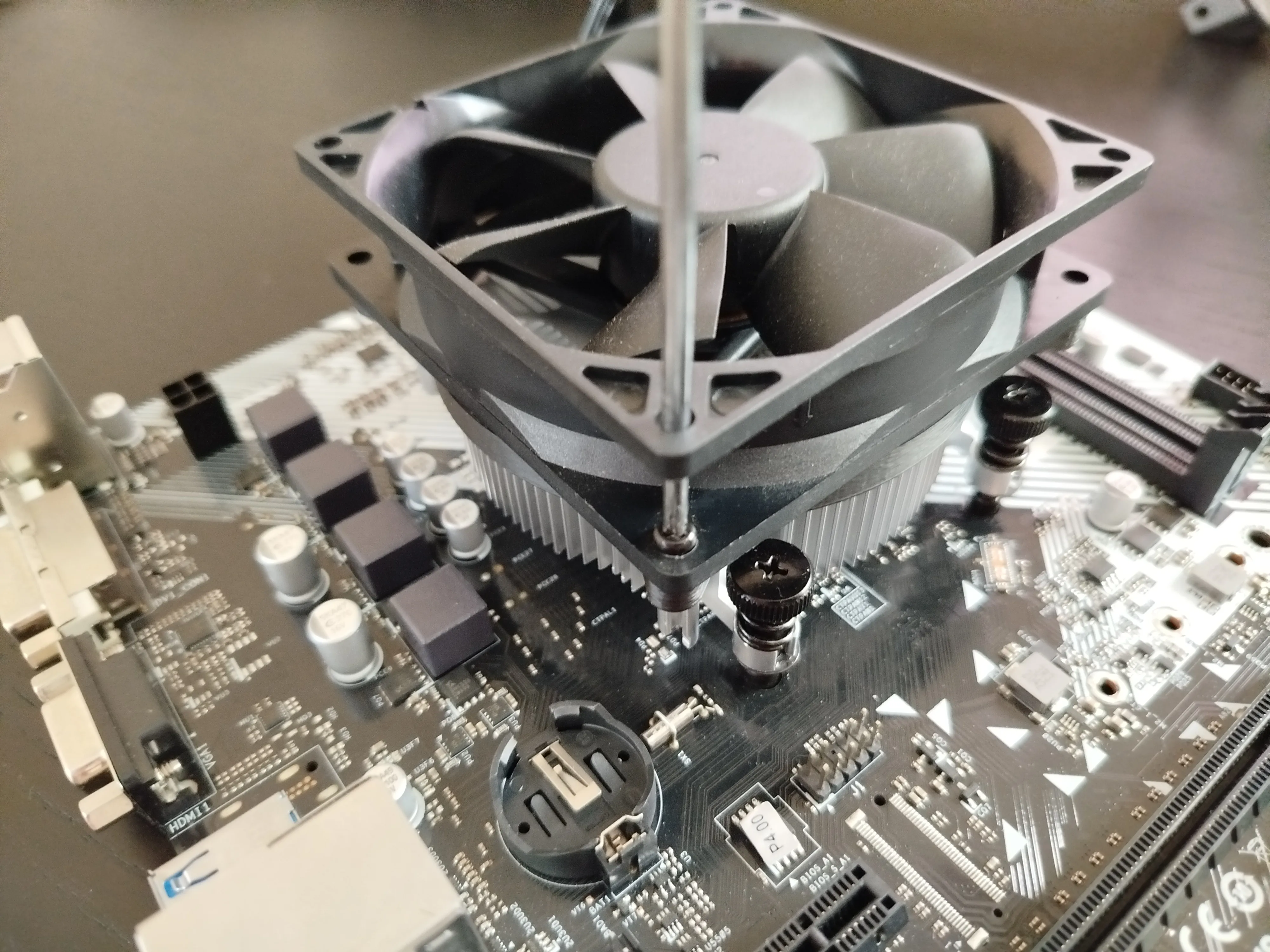

2. thin screwdriver is needed to mount the fan
