Description
rift · laptop stand

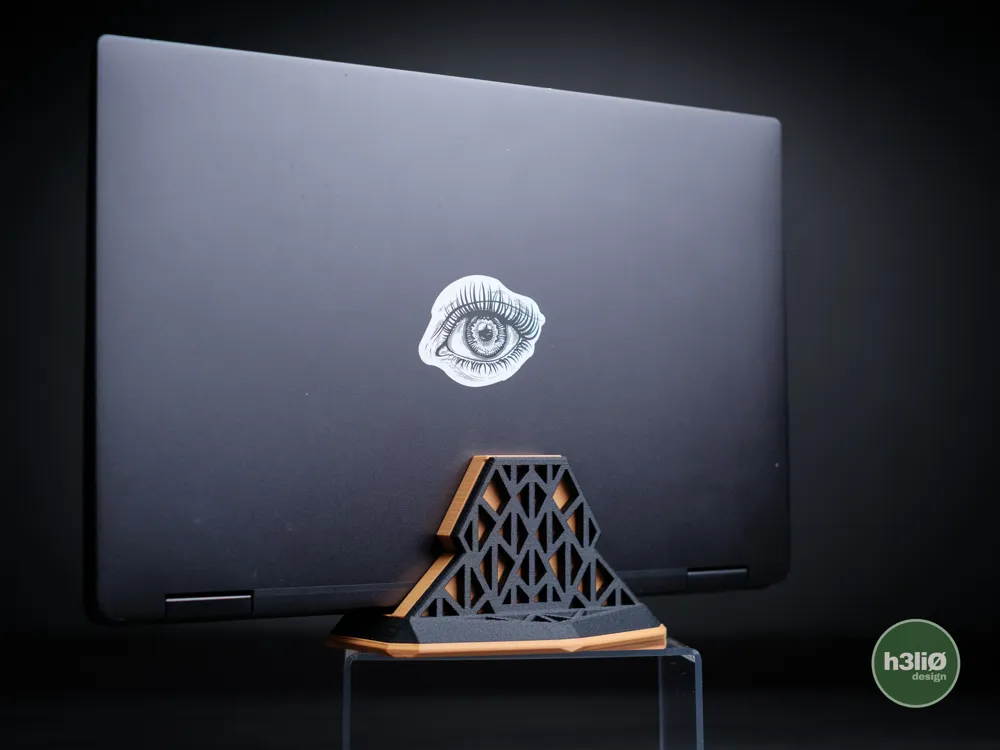

modern minimalist vertical laptop stand, with modular approach to be able to have different gap widths.
update · added 15mm gap insert as STL
dimensions in mm:
- stand ~ x:153 · y:123 · z:81
- available insert gaps: 12, 13, 15, 16, 17, 18, 20, 22, 25, 27, 29
important:
- maker sure that your filament is dry and calibrated so that it deals appropriately with the tolerances, which are tight in order to minimise any play
- there is an optional “foot”, depending on your filament choices for the stand and foot, it can be a nice fit, or if it's a bit too loose you can apply a few drops of super glue in the corners to have it stay permanently attached

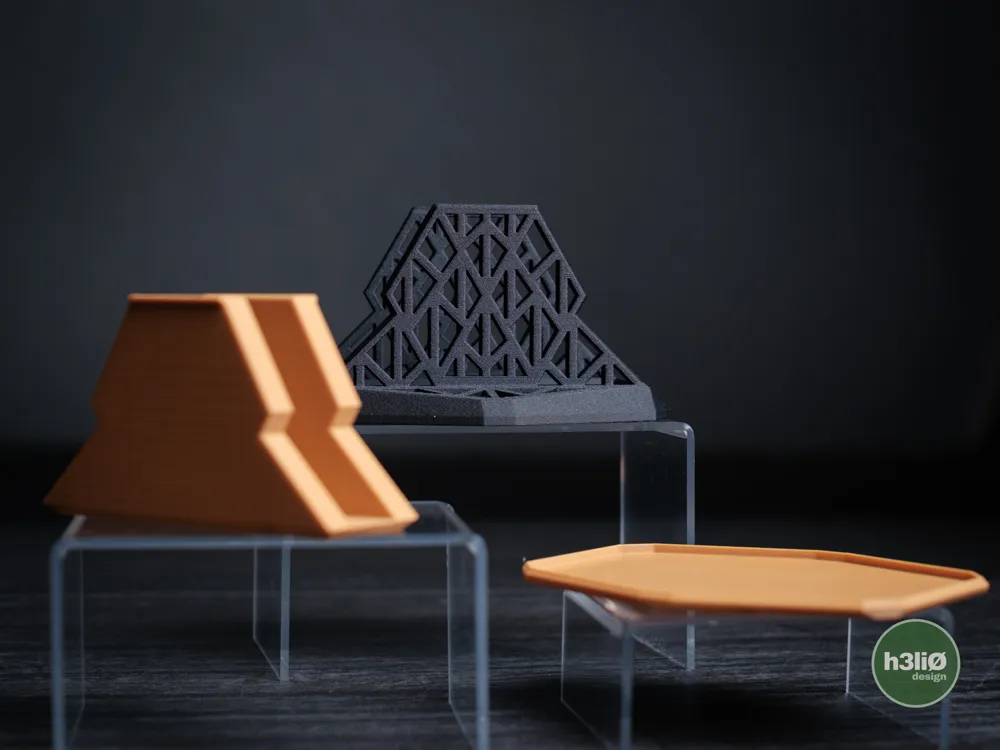

design is divided in two 3mfs, one is the stand itself, and the other has all the different gaps available, as well as the optional “foot”, you only need to print the plate(s) that you need, and the files are also available as STLs

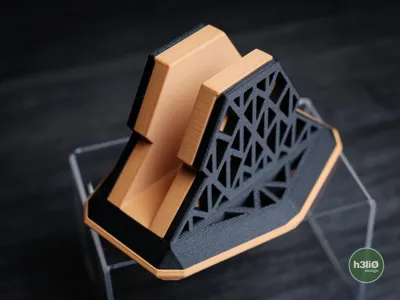

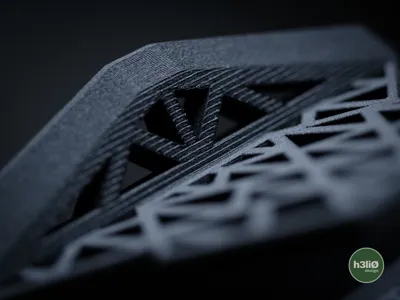

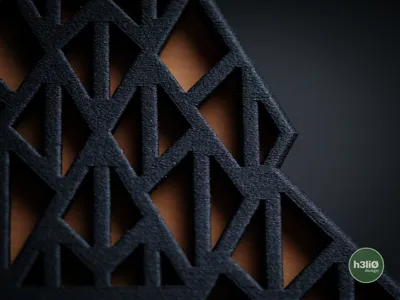

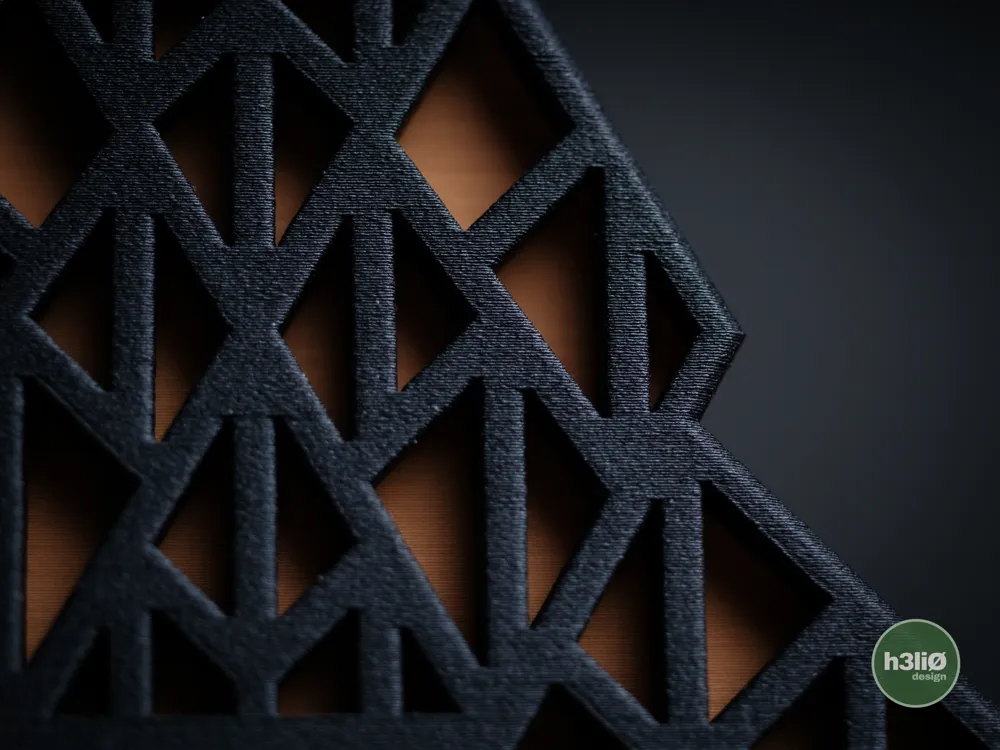

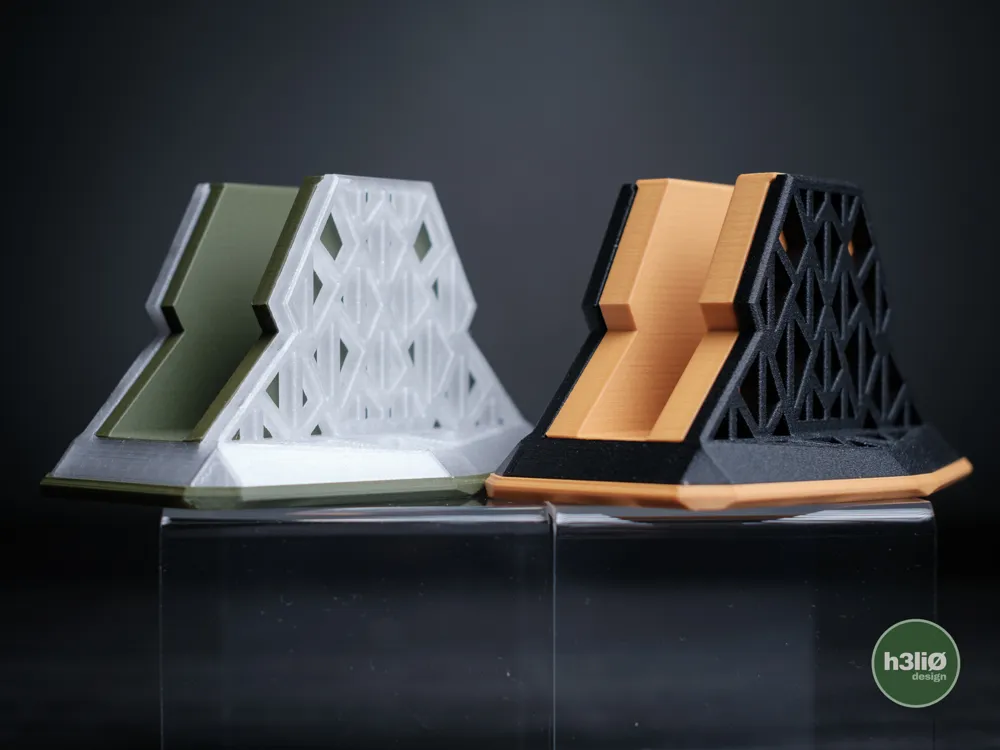

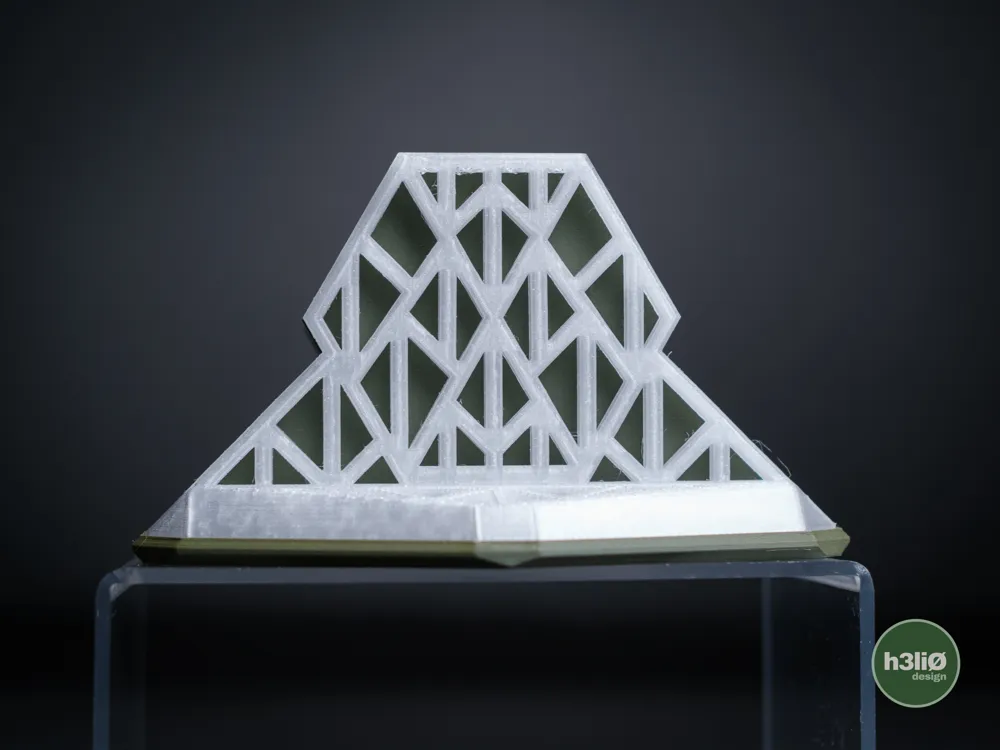

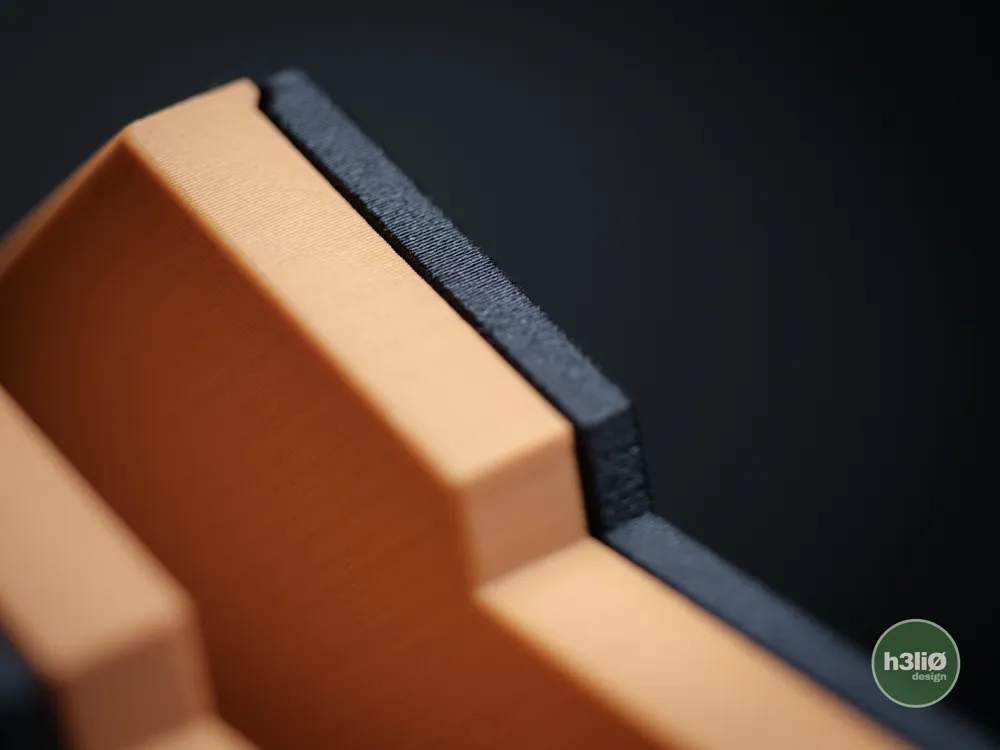

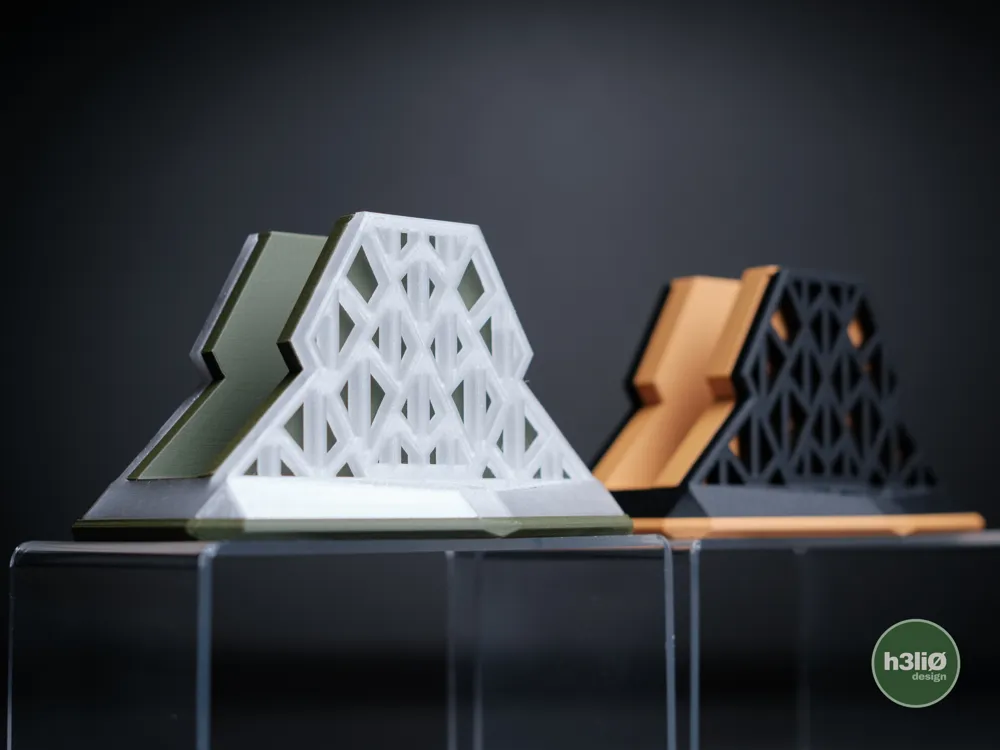

photos show printed versions in ASA-CF , PCTG and matte PLA
stand settings (ASA-CF or PCTG)
- .40mm nozzle
- .20 layer height
- 3 walls
- 20% gyroid infill
- no supports
inserts / foot settings (PLA)
- .40mm nozzle
- .20 layer height
- 2 walls
- 15% gyroid infill
- no supports
notes
- includes bambu studio 3mf files and STLs
- all photos uploaded are of the actual printed model, and are copyright protected
- if you enjoy this model please consider to buy me a coffee
- commercial licence membership available through the link below or on my patreon
Boost Me (for free)
if you enjoy the design, please consider giving it a boost :)
