PO_109_1a on Canon RF

Summary

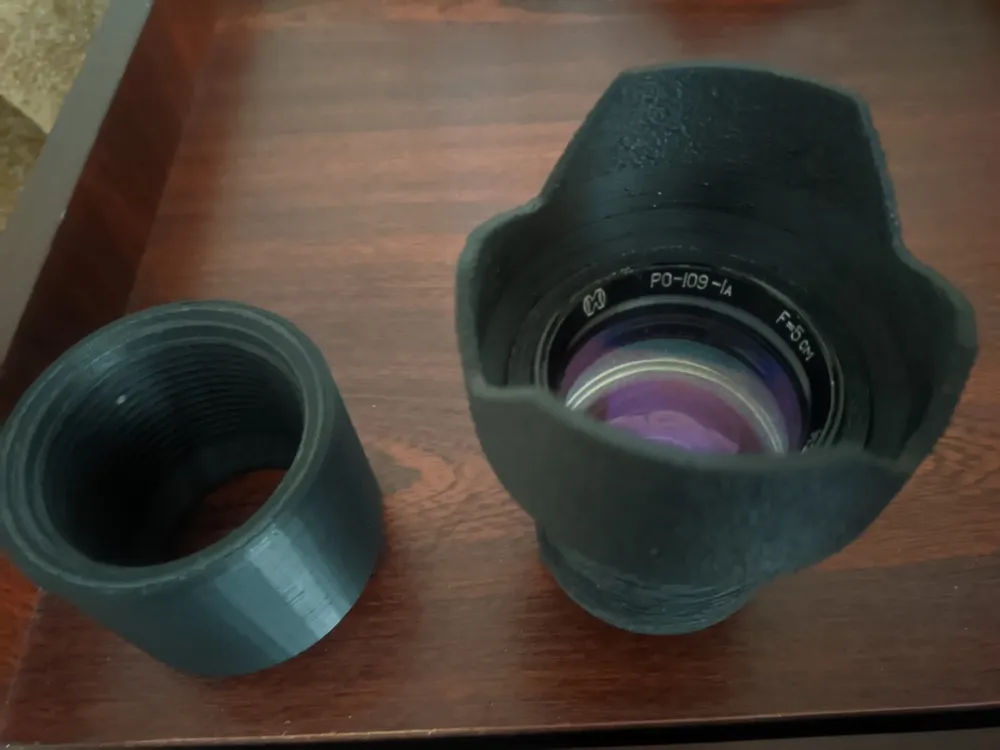

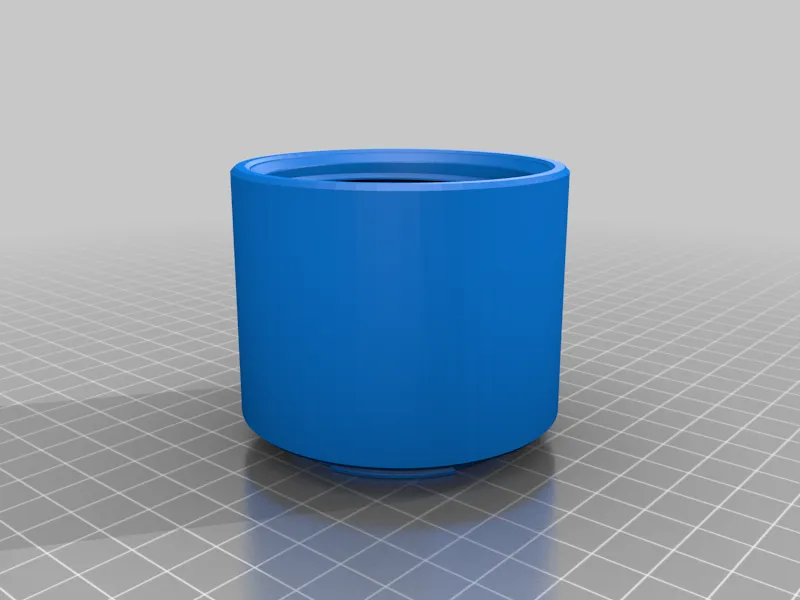

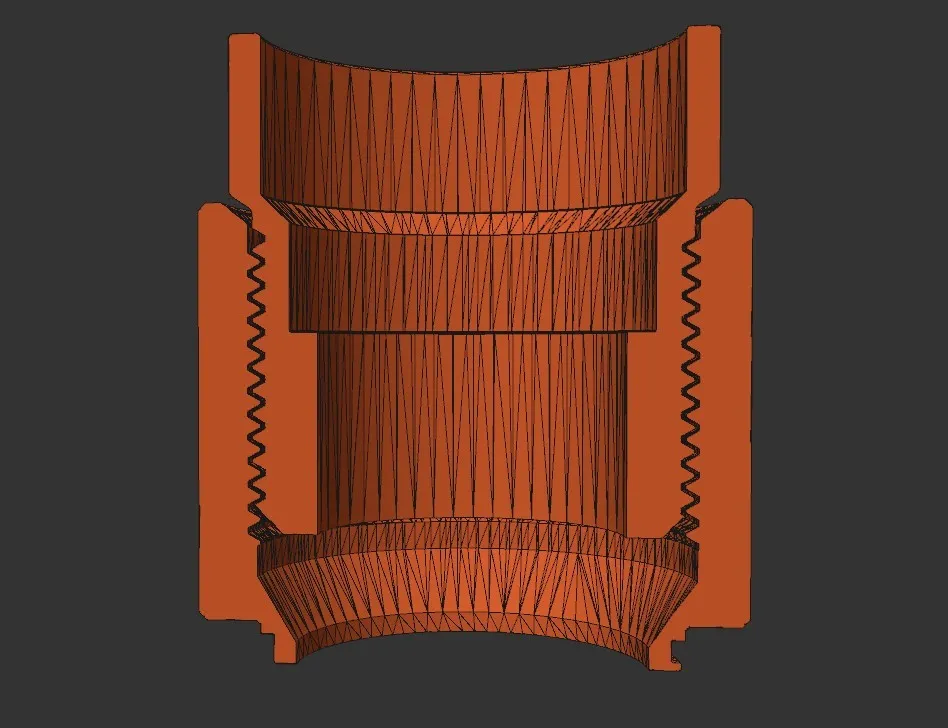

Adapter for Canon mirrorless cameras RF system to projection lens PO_109_1a.

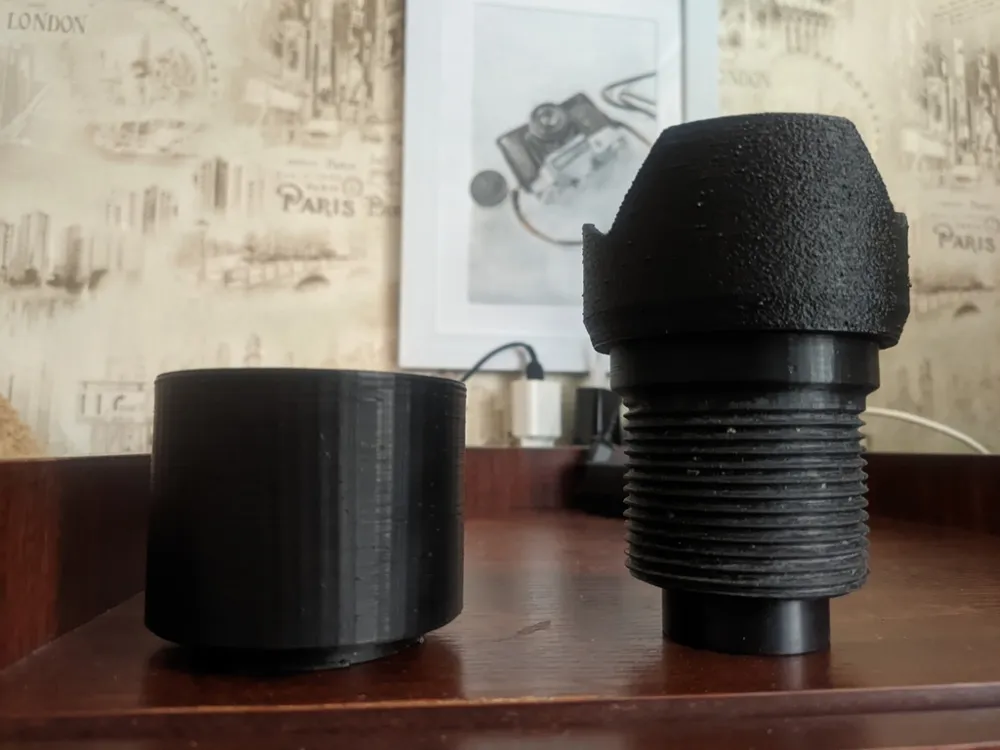

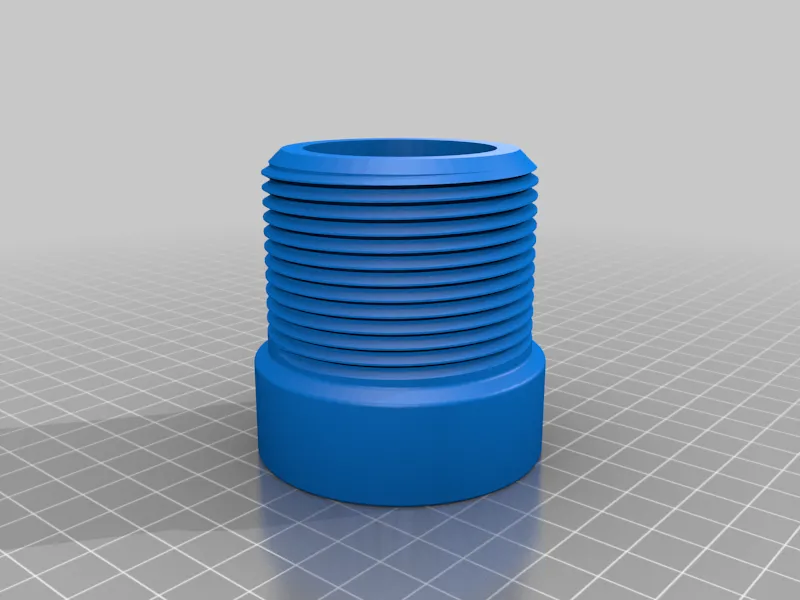

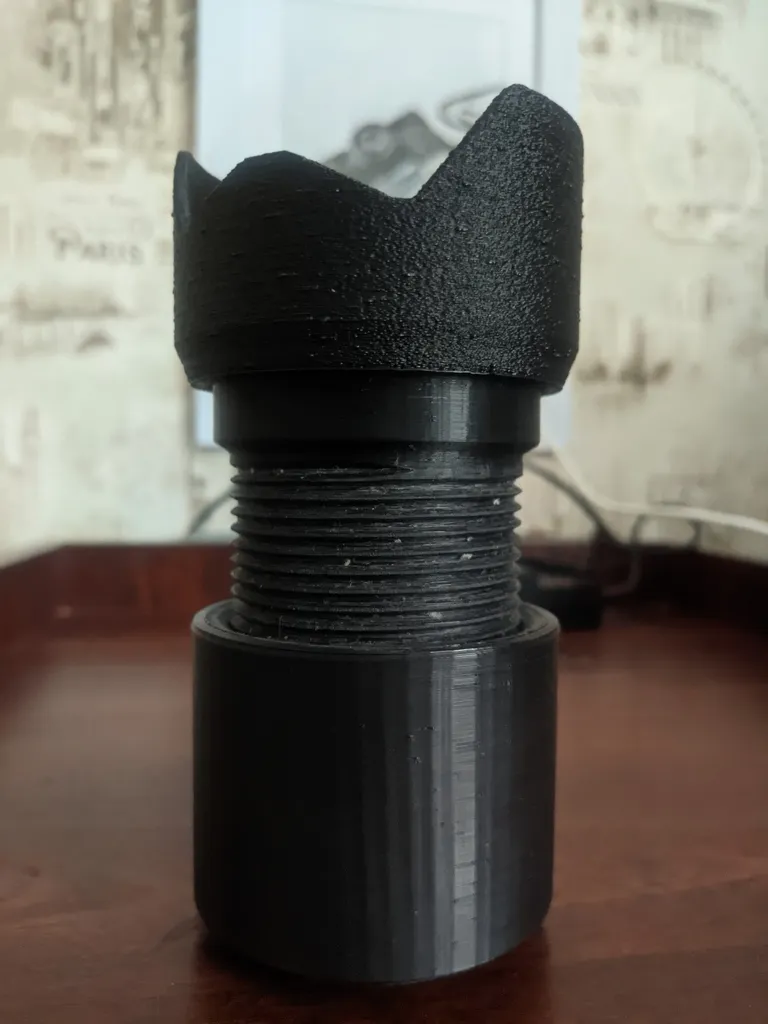

The helicoid has gaps for smooth movement, but it may be necessary to eliminate the seam on its own.
The lens enters very tightly and does not require additional fixation.
It is possible to crossing over infinity, but you can shift the lens inside the frame to achieve the right position.

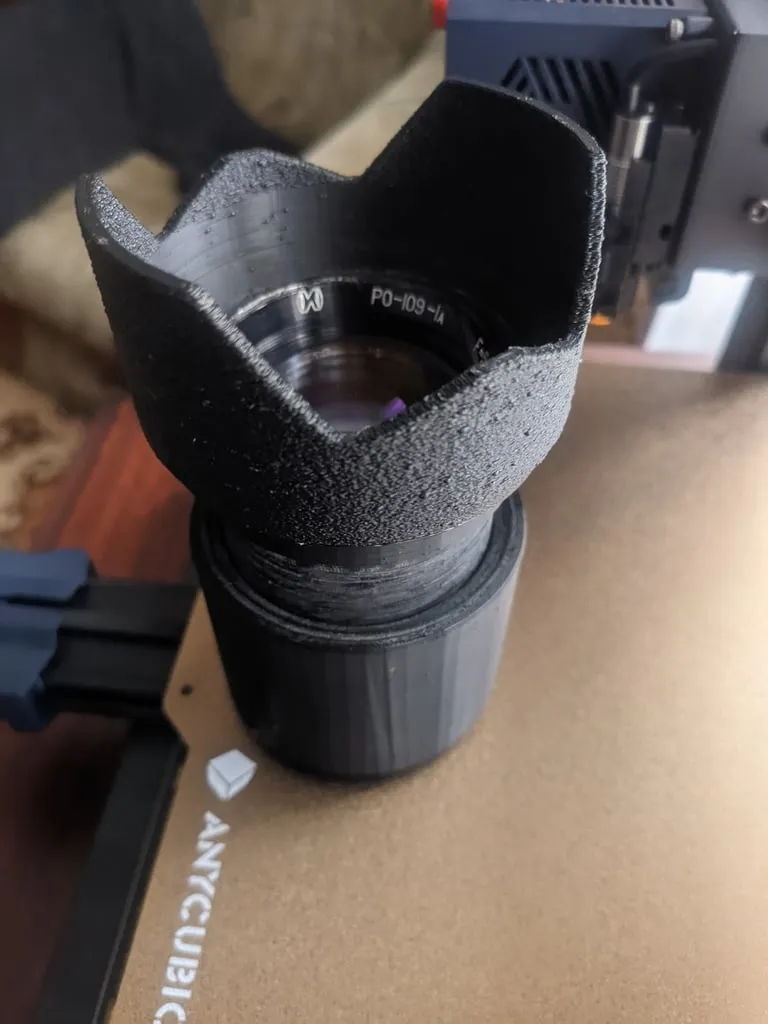

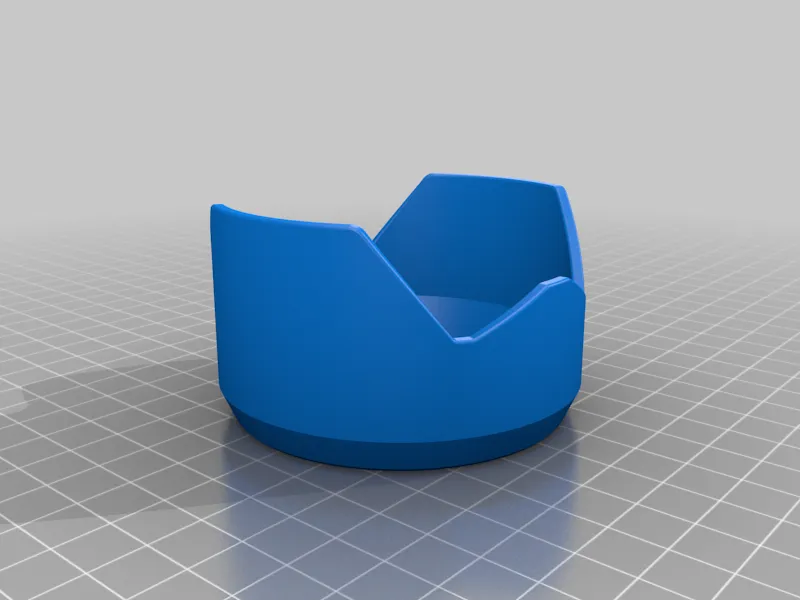

If desired, you can print the lens hood.

P.S. Lens does not cover full frame.

Print Settings

Printer Brand:

BambuLab

Printer:

A1

Rafts:

No

Supports:

No

Resolution:

0.2

Infill:

15

Filament: PETG Black
