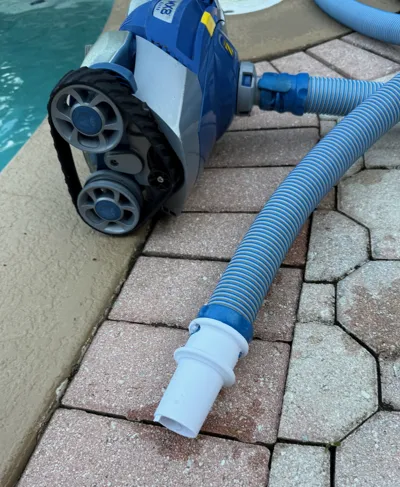

This is a wall mount adapter for the Zodiac MX8 pool cleaner.

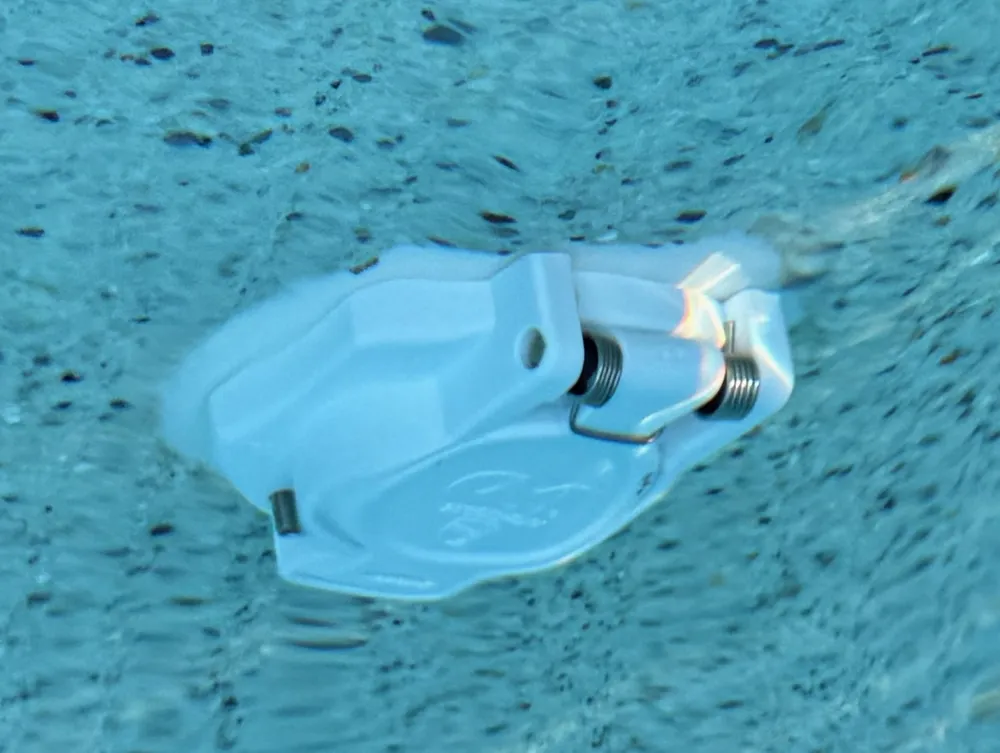

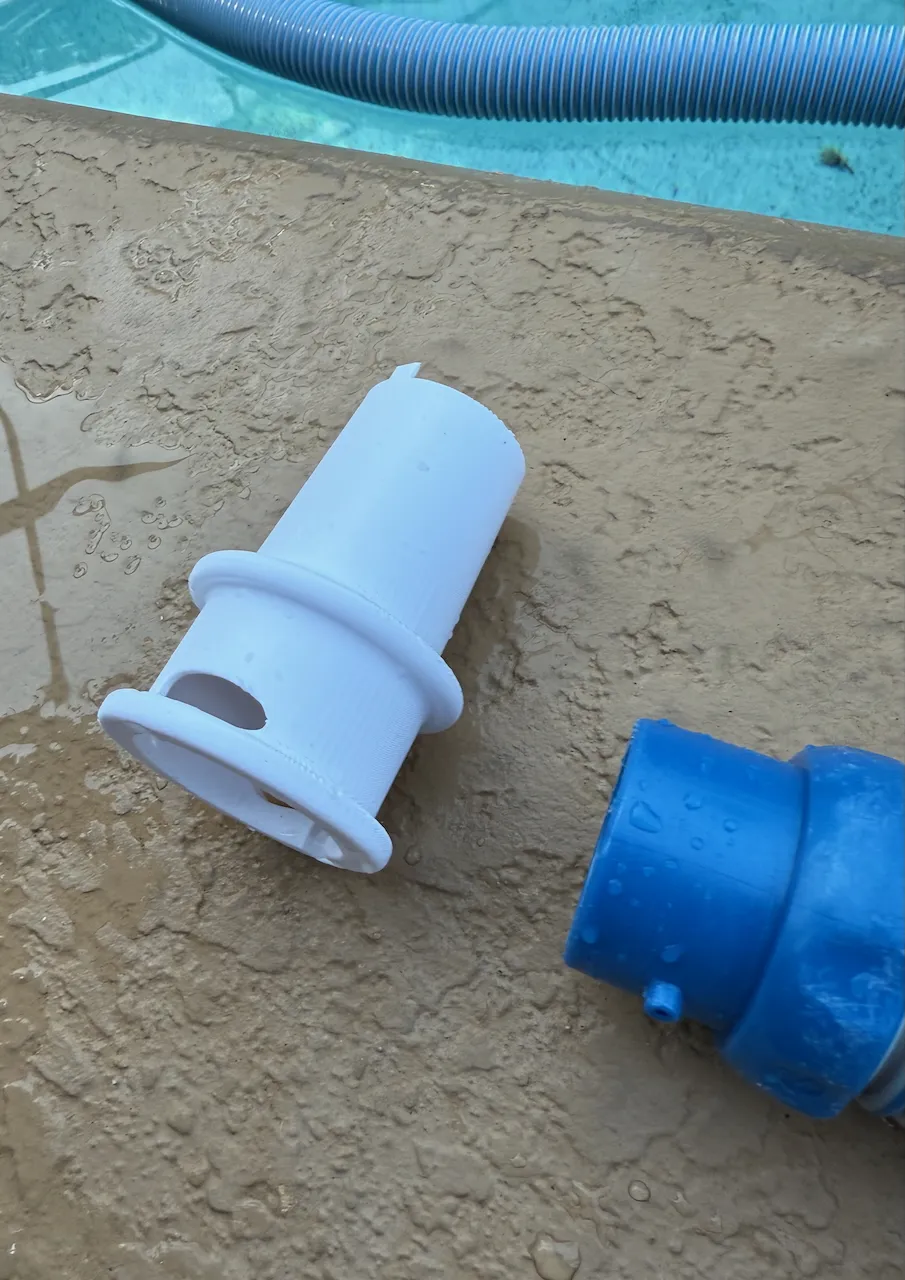

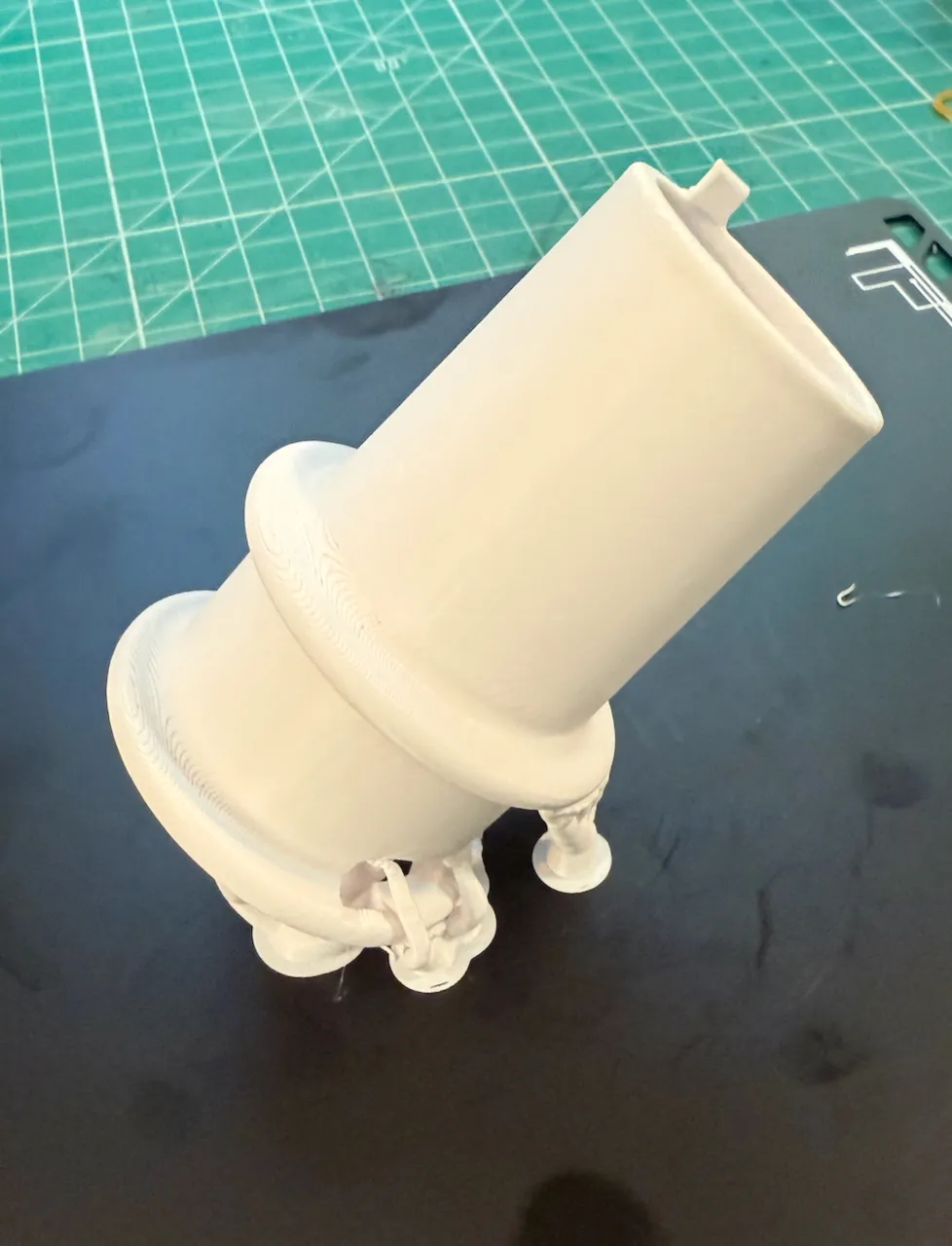

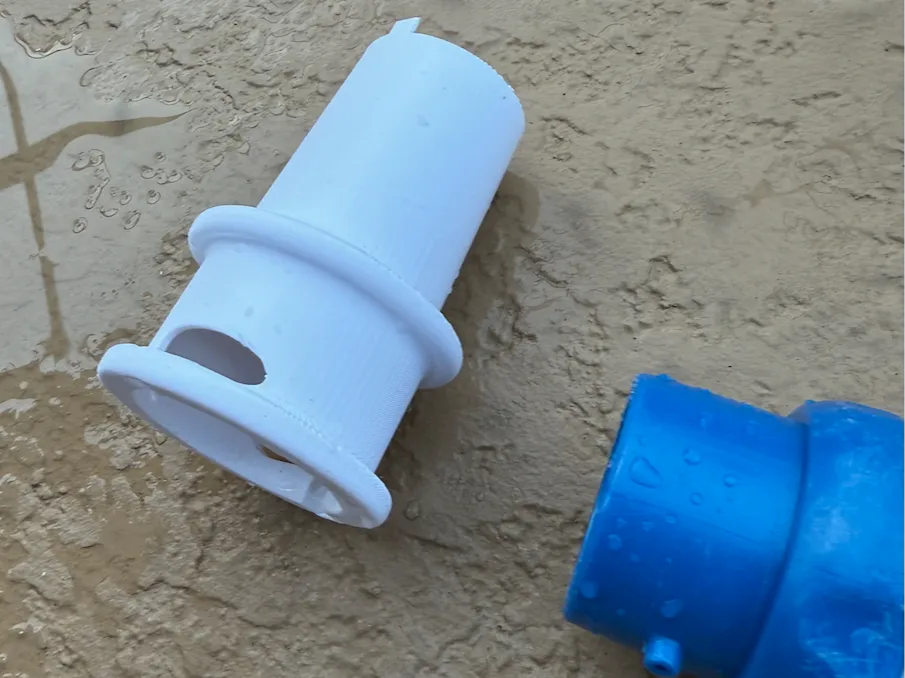

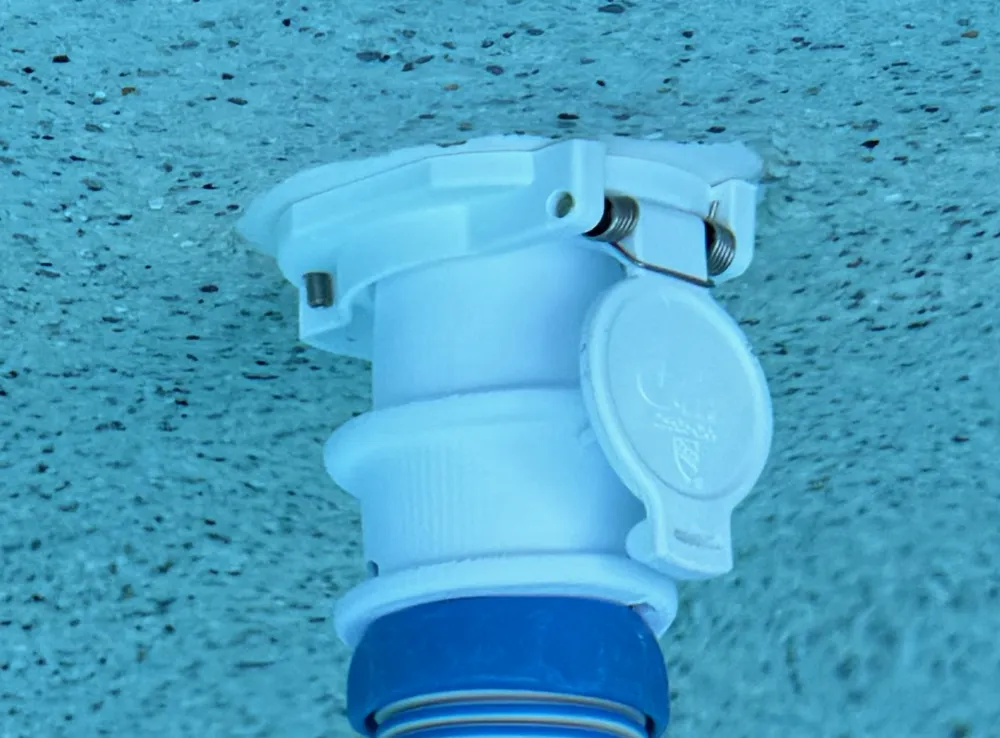

The adapter that came with the cleaner was soft plastic a friction fit only and would frequently fall out when the pool pump stopped. This model locks both ends. It locks to the hose with a tight fit and slots for the pins on the hose end. It locks to the wall fitting with the raised ridge and the spring mechanism on the wall cover. It also has a small screwdriver bit printed on the end to open the cover on the pool wall. This feature is a bit delicate and it is the reason I print the model at 45 degrees.


It compares to a similar part on Amazon the sells for $12.   But my model has the screwdriver tip and prints for $1 of filament.
I printed mine with PETG HF to help it hold up better in the sun.



Zodiac Pool Systems R0532400 Twist Lock for Swimming Pool

https://a.co/d/5b9EPdg
