Heavy-Duty Collapsible Stool – Print-in-Place 40cm

📏 Dimensions (Metric / Imperial):

• Seat & base diameter: 25 cm / 9.84 in
• Seat & base thickness: 2 cm / 0.79 in

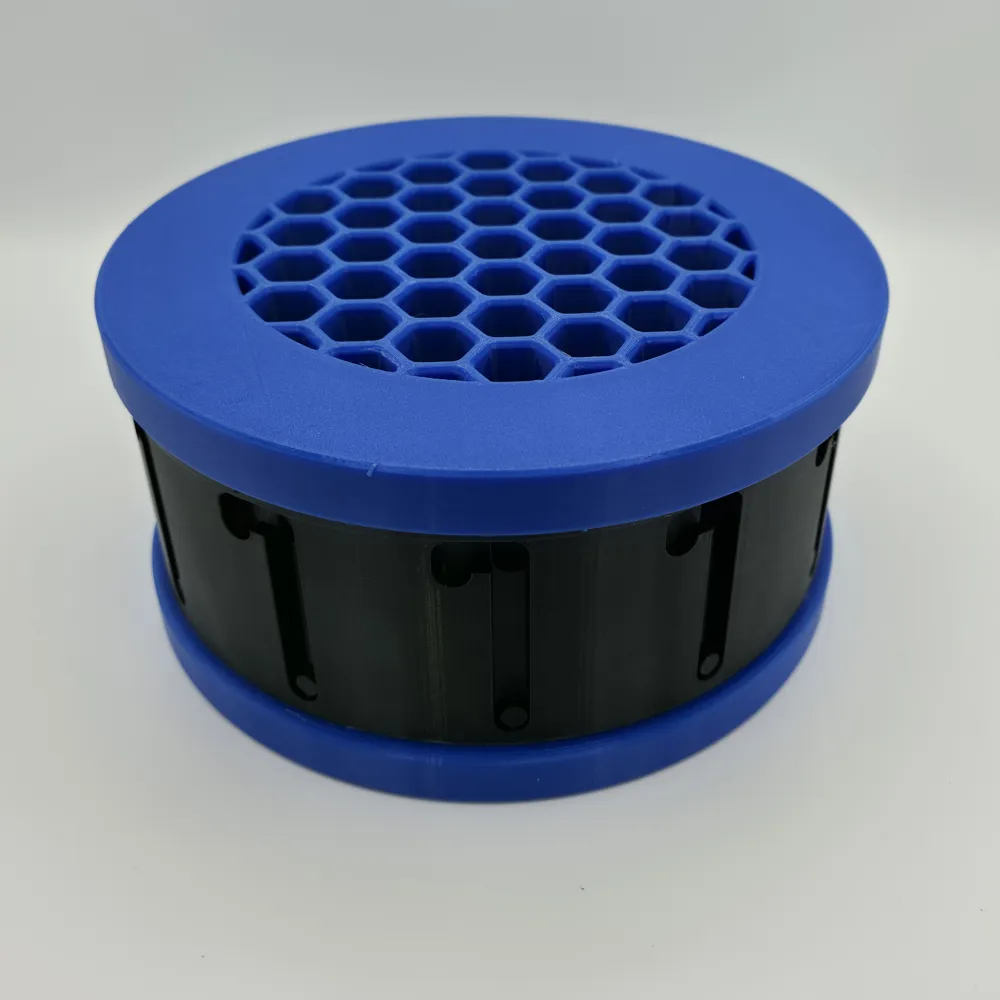

• Height collapsed: 12 cm / 4.72 in

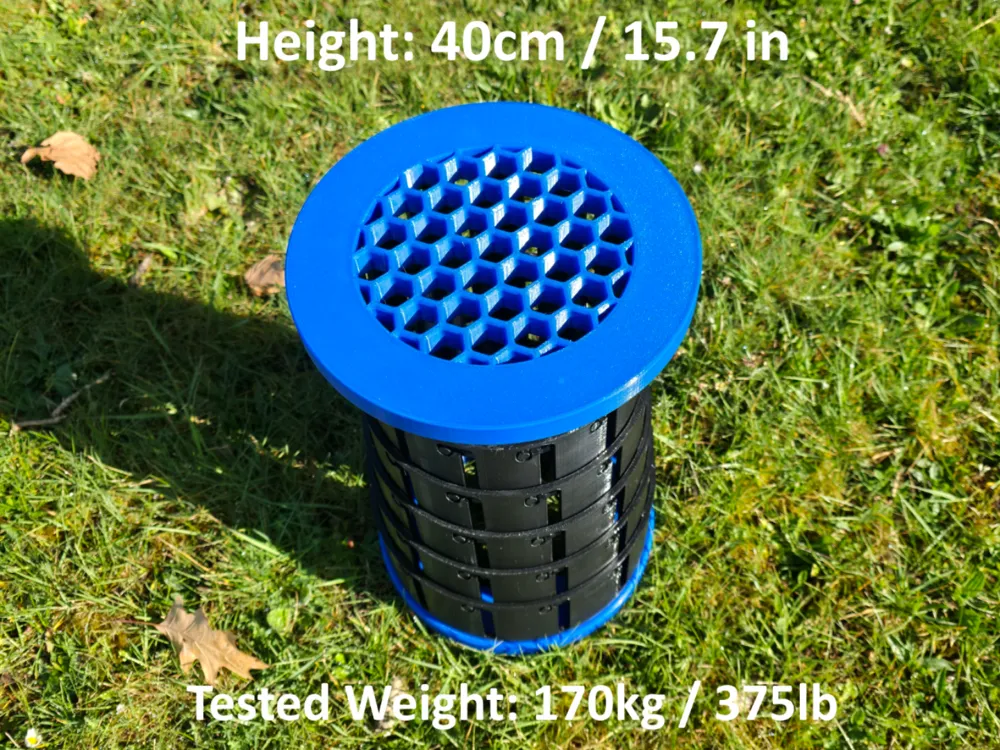

• Height fully extended: 40 cm / 15.7 in

🧩 Assembly:

• The middle section is printed in one piece (Print-in-Place) – no supports needed
• Includes small breakaway bridges, easily removed with a screwdriver
• Seat and base feature slots and tongues for precise alignment – simply glue them with superglue for maximum strength
• Honeycomb pattern in the seat adds strength and reduces weight
• Handle in the base for easy transport and setup

🛠️ Print Settings:

• Material: PETG recommended
• Layer height: 0.2 mm
• Wall lines: 3
• Top/bottom layers: 5
• Infill: 10% grid
• No supports required

💪 Strength & Use:

• Designed as a Heavy Duty model
• Successfully tested with 170 kg / 375 lbs
• Should hold up to 250 kg / 550 lbs with strong material and proper print settings
• Ideal for camping, workshops, or portable seating

🧠 Notes:

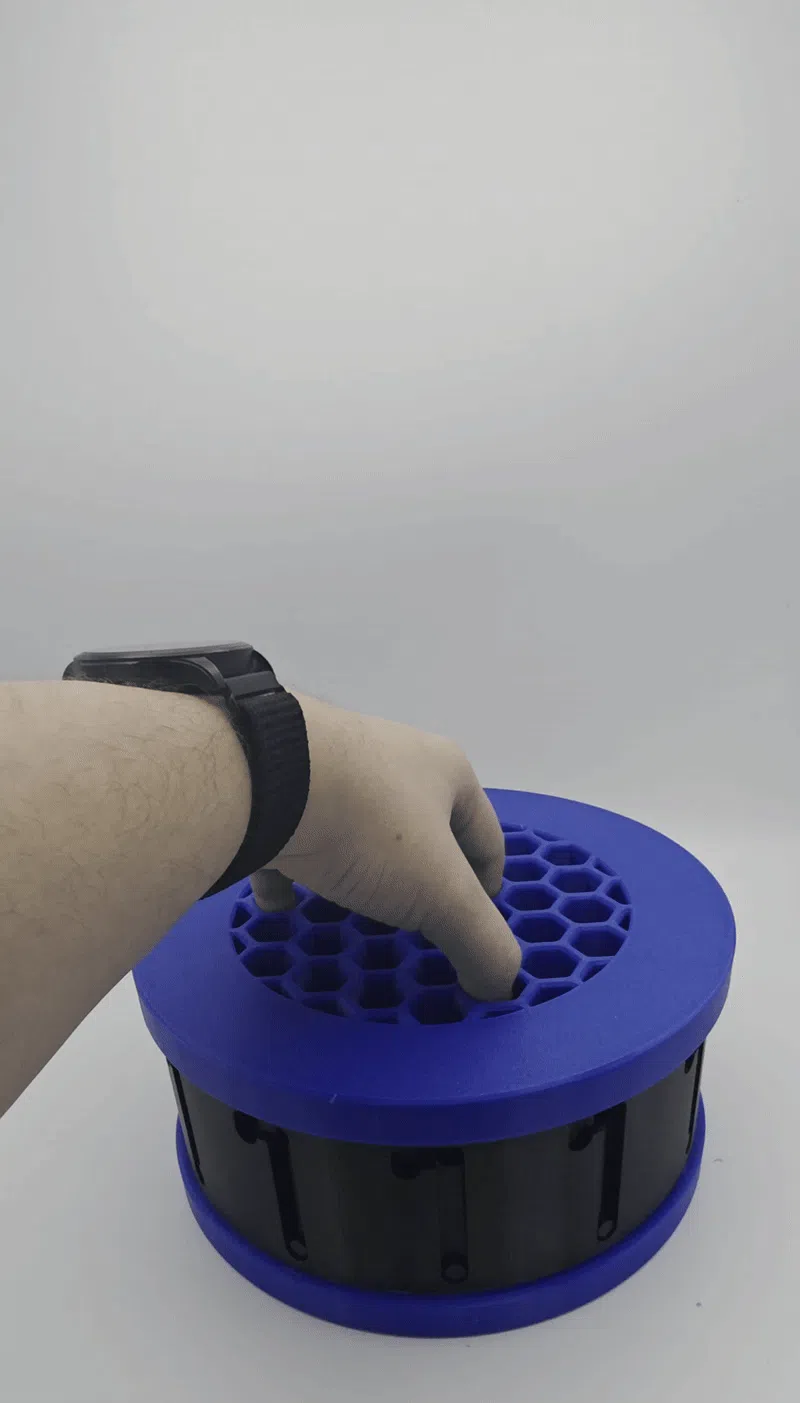

This stool combines functionality and strength with an intuitive print-in-place mechanism. It folds down to just 12 cm high but extends to a full 50 cm seat height. With the modular system, you can scale it up or down easily. A practical and satisfying print for anyone who appreciates smart, compact design!
