TYT MD-UV380 Battery
Print Profile(2)
Description

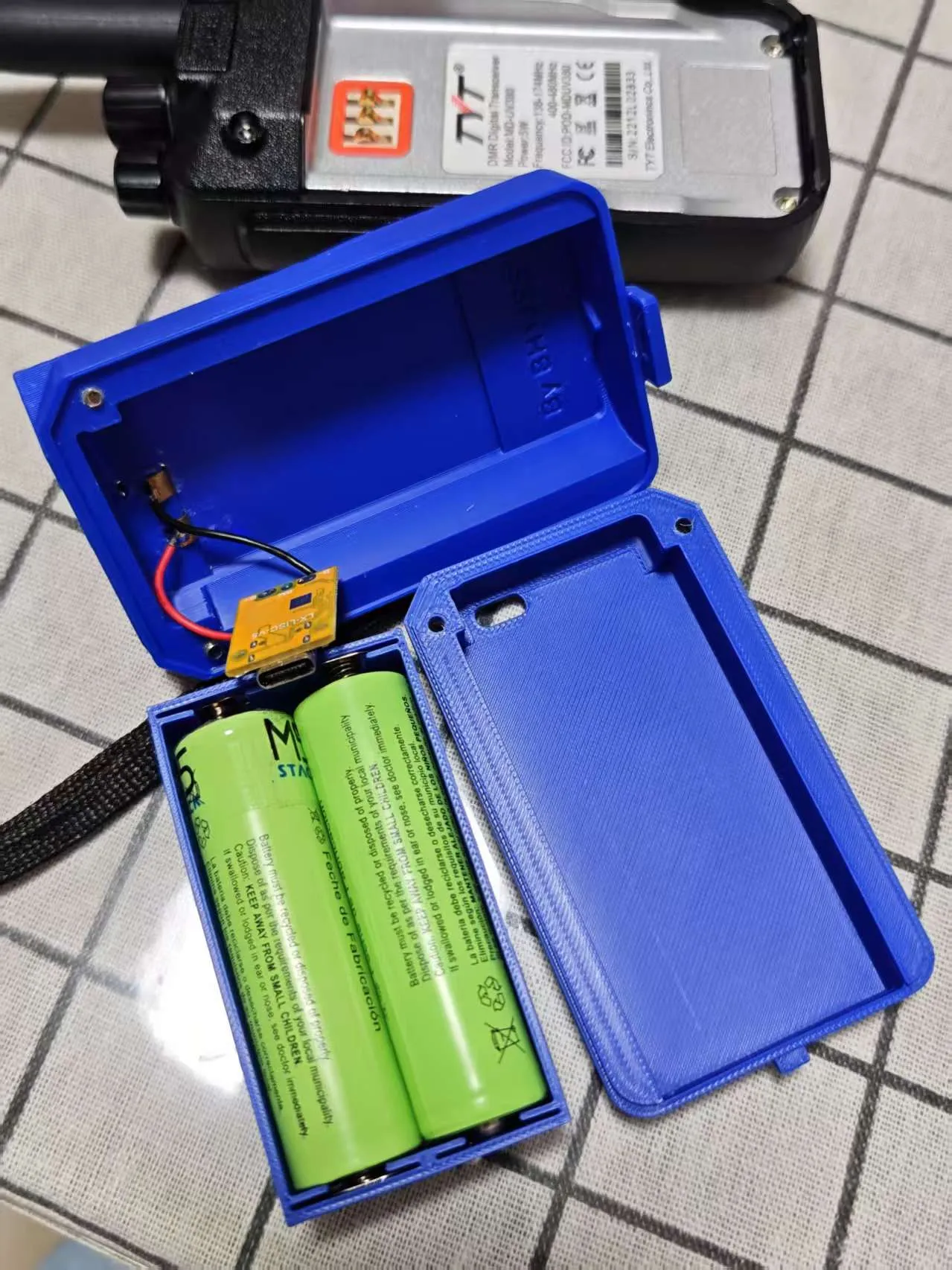

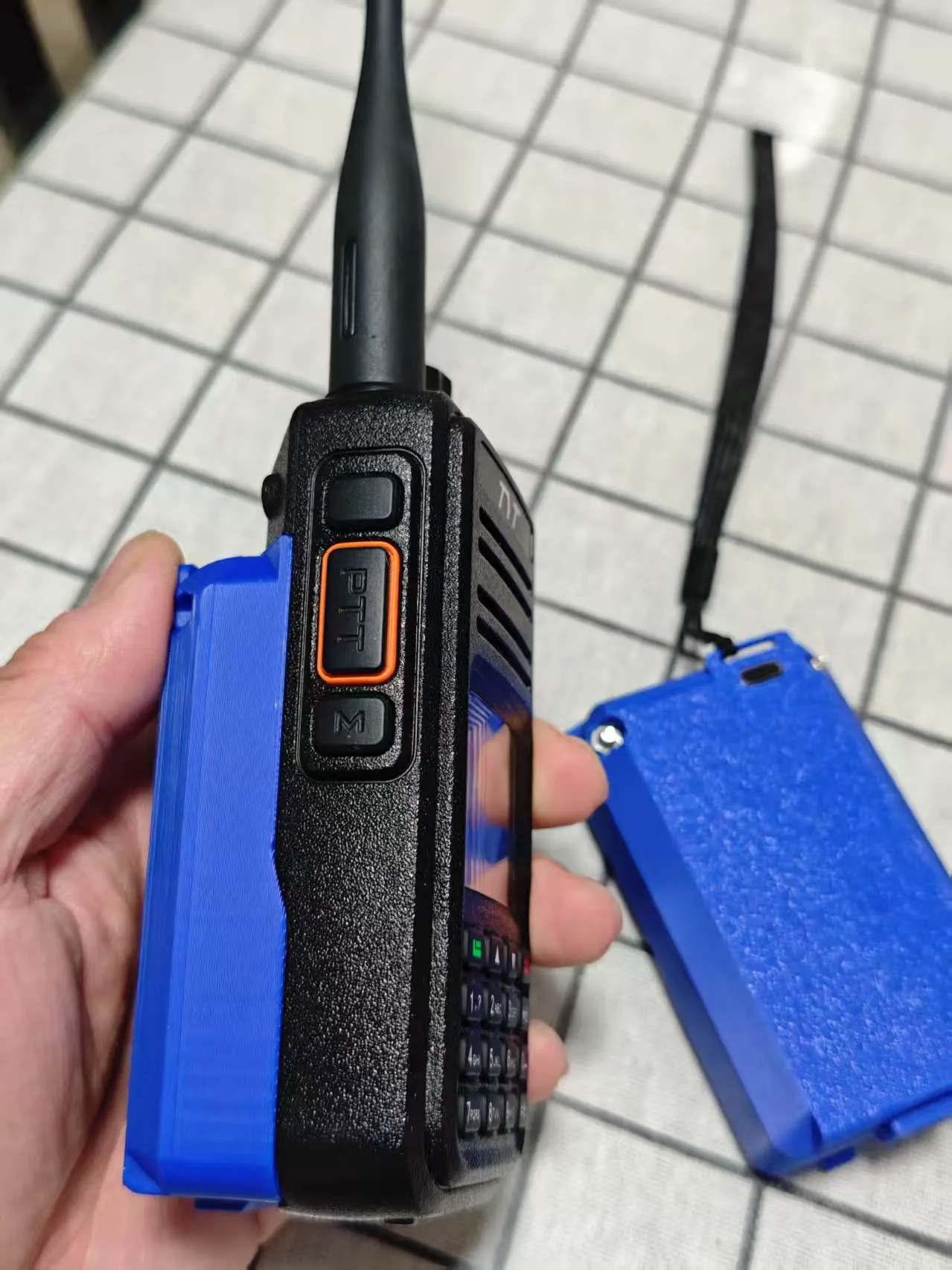

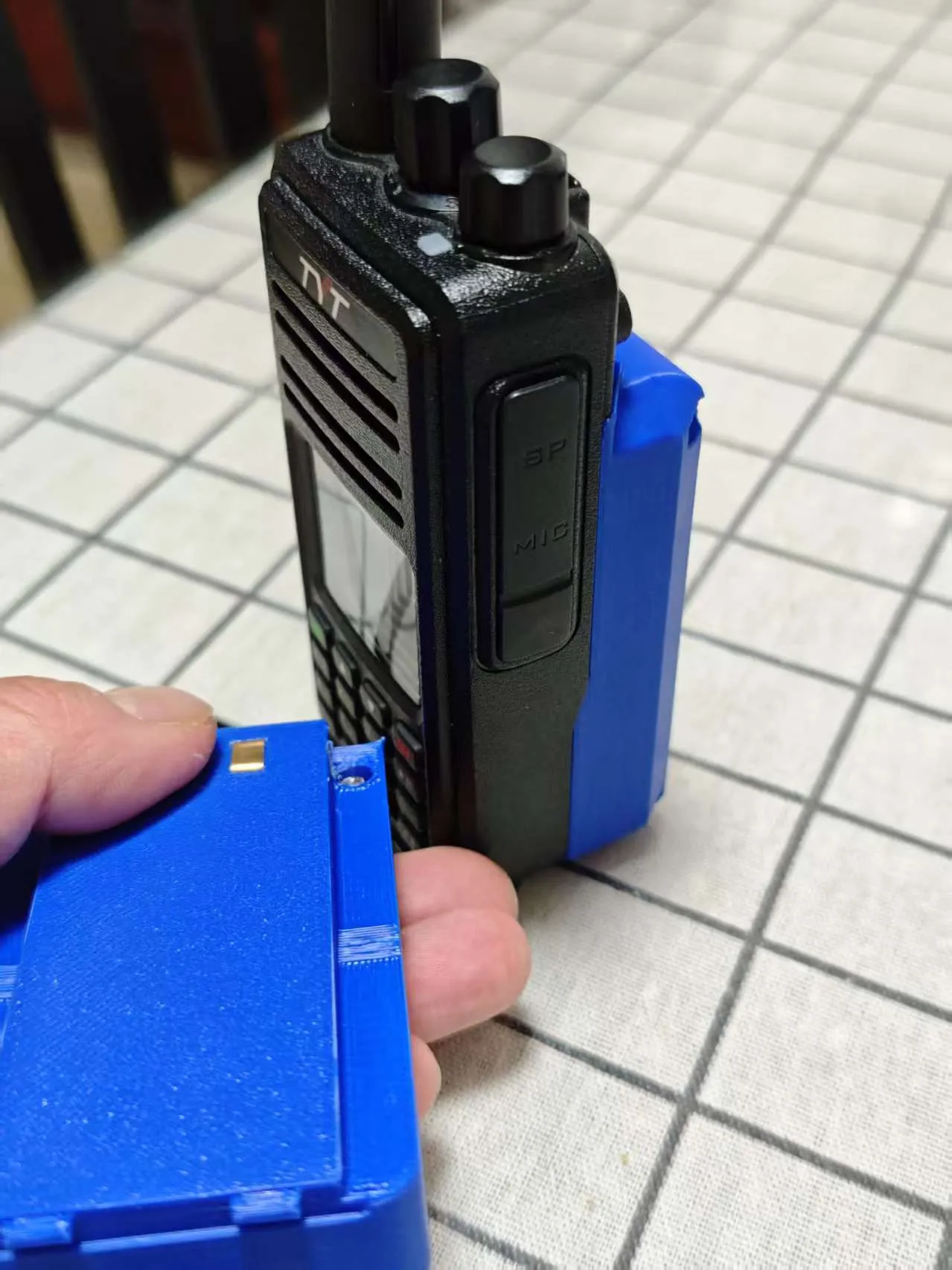

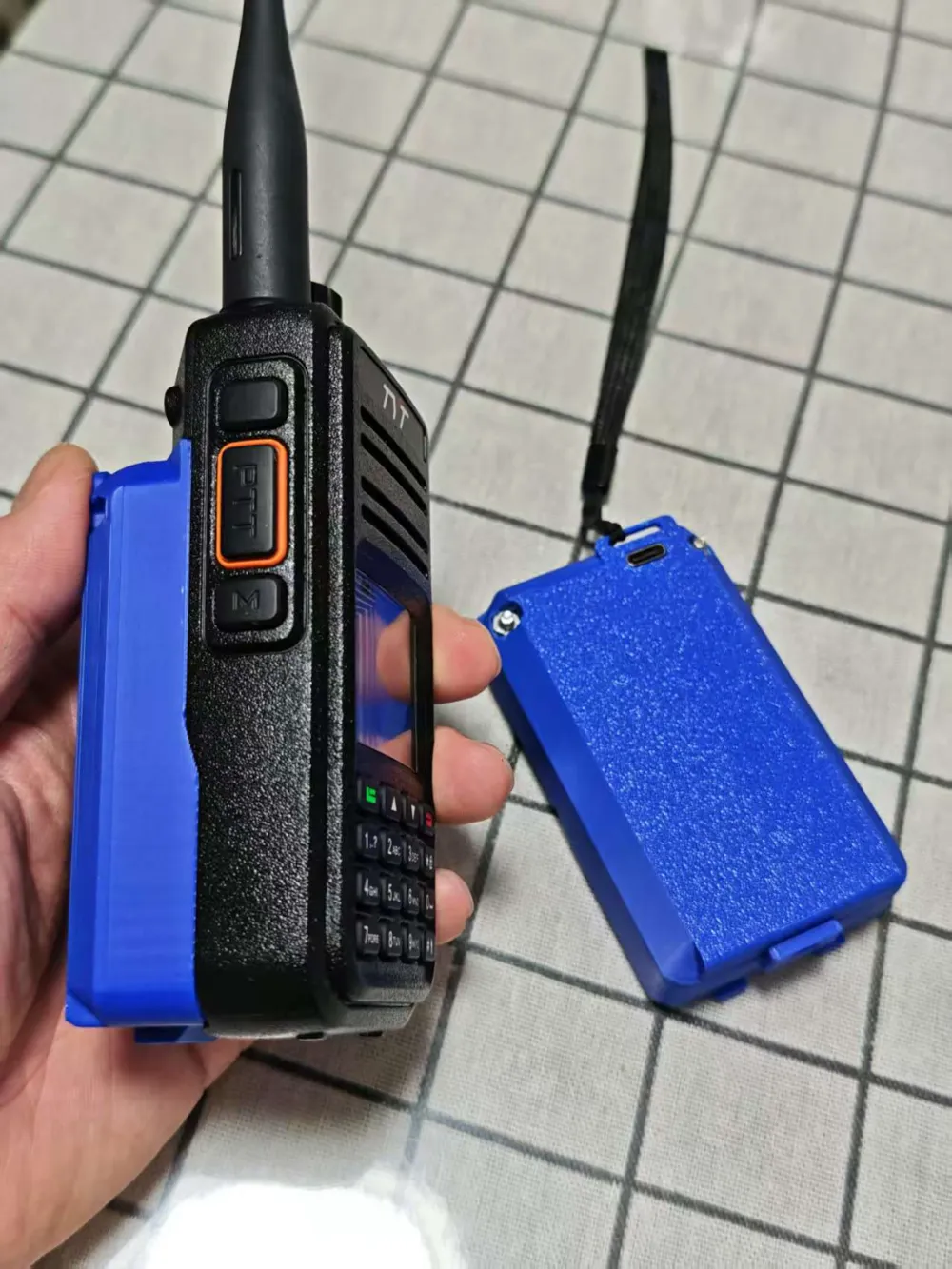

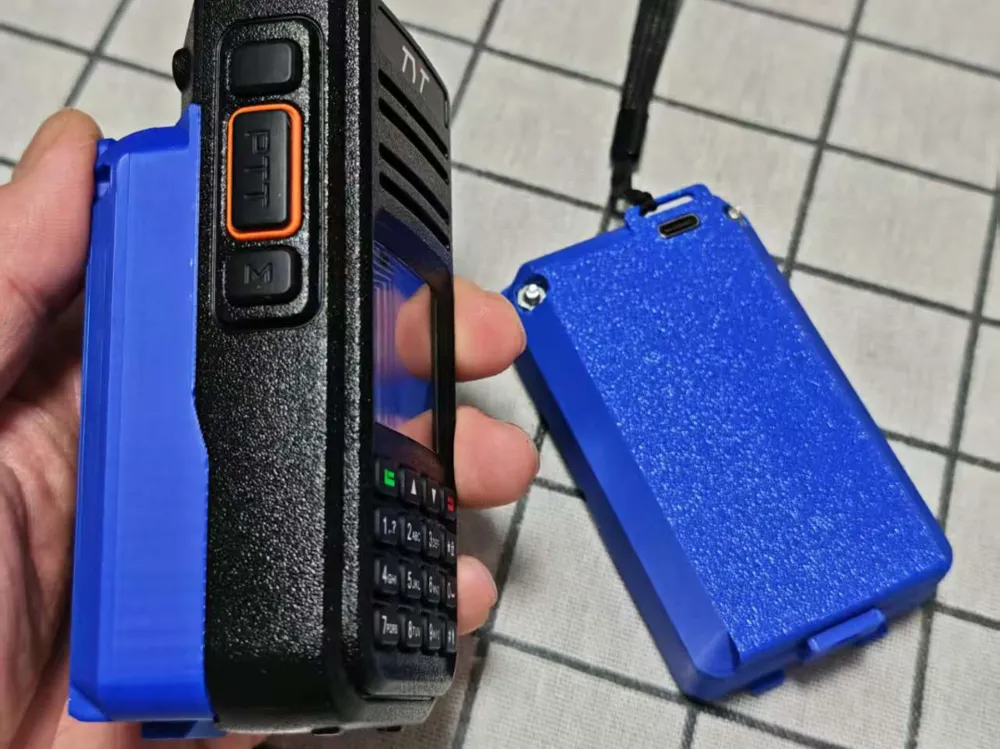

TYT MD-UV380 Battery Enclosure

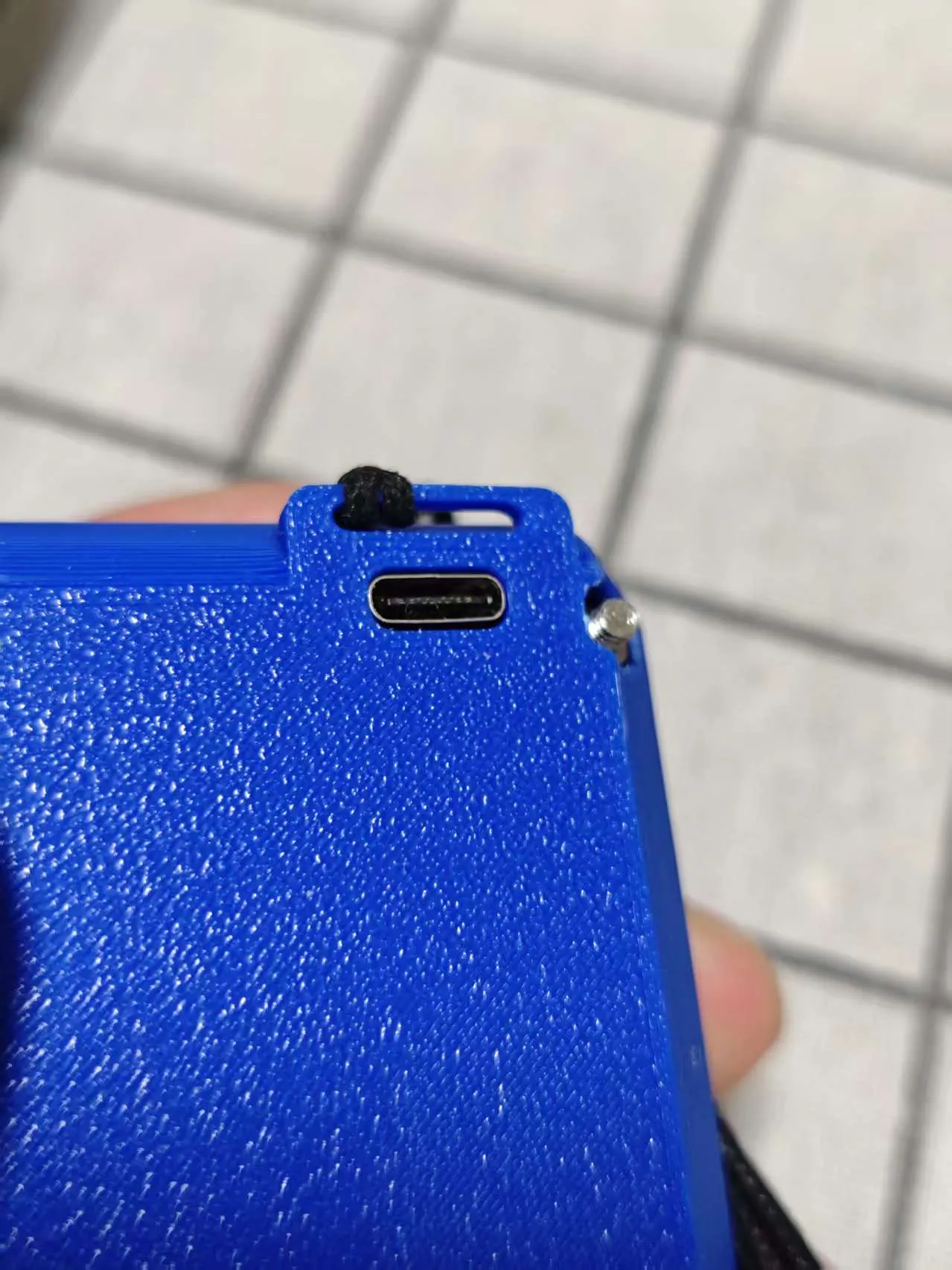

USB Type-C port with QC fast charging support,

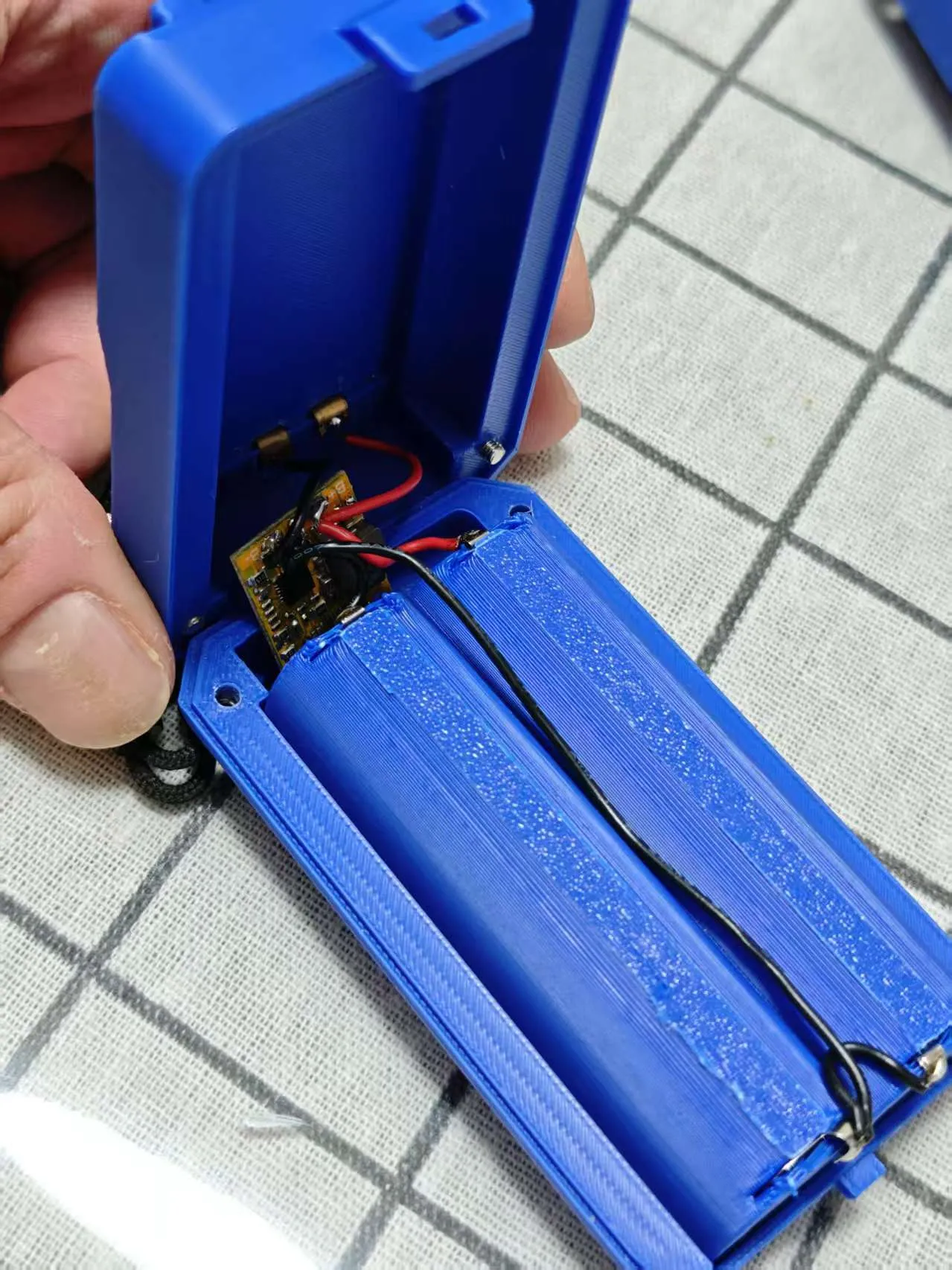

Independent internal battery compartment, replaceable battery core.
Included:
Battery base,
Battery top cover,
18650 internal battery compartment,
Requires additional components:

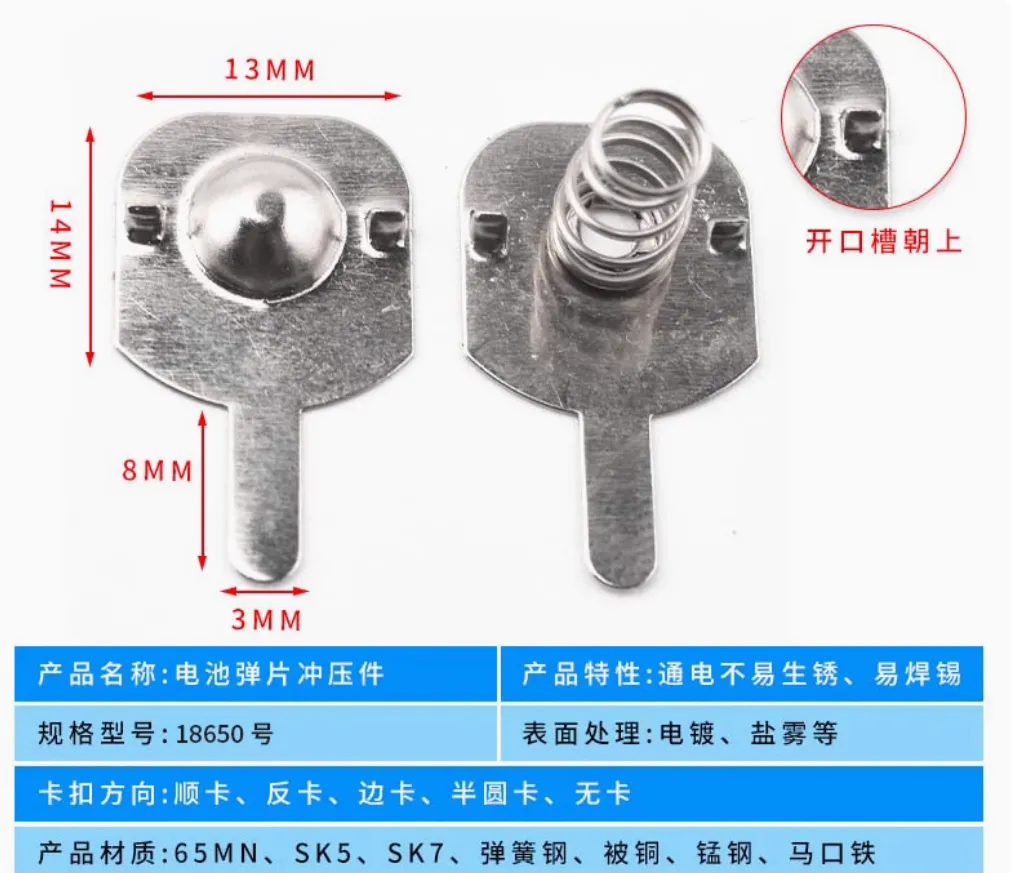

18650 battery spring

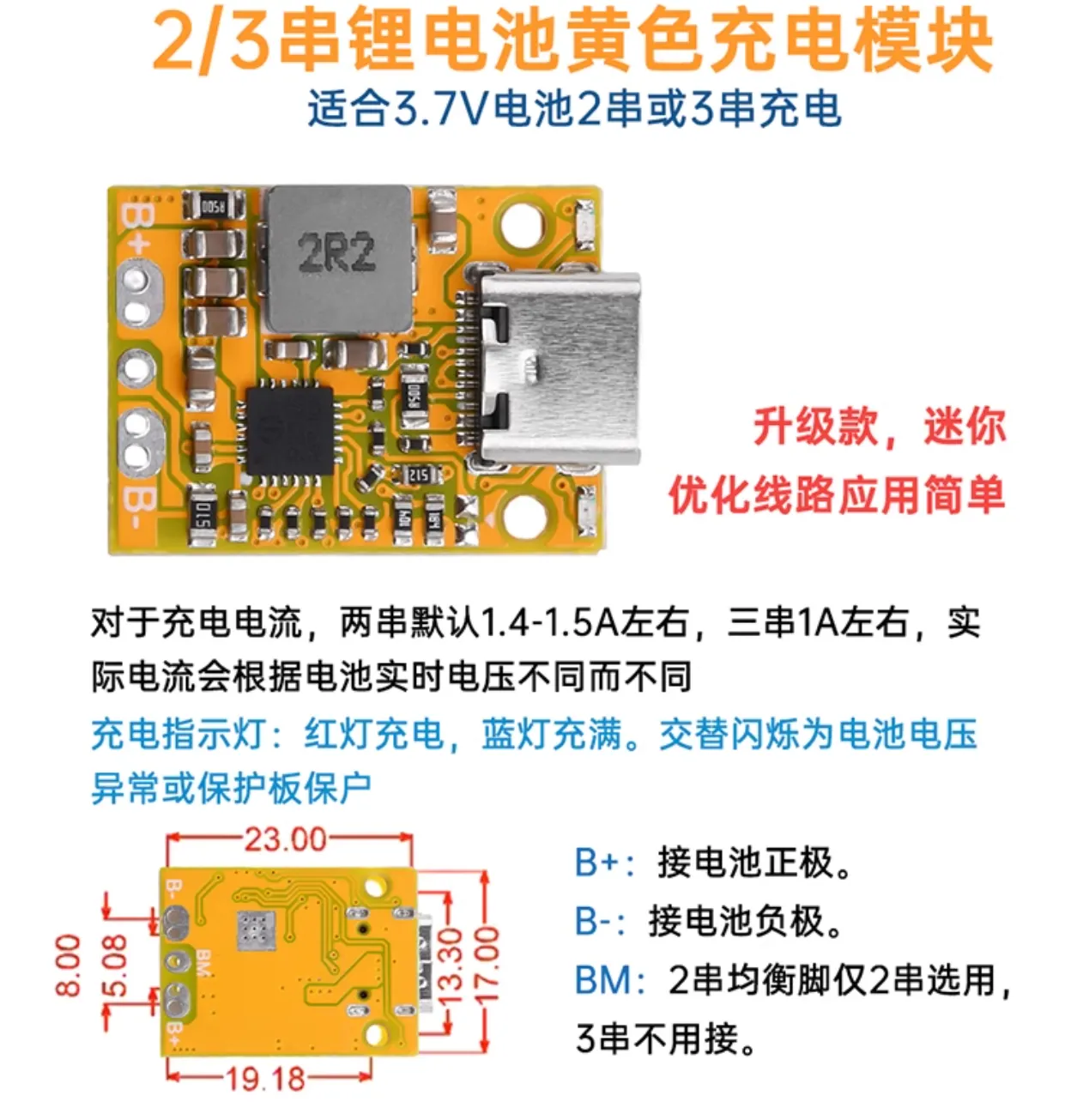

QC charging module: (design only suitable for this model)
Battery contacts (5mm wide copper strip)
Two sets of M3*20 screws and nuts
Several lengths of 22AWG wire
