Olight I1R 2 Pro watchband case
Print Profile(1)
Description

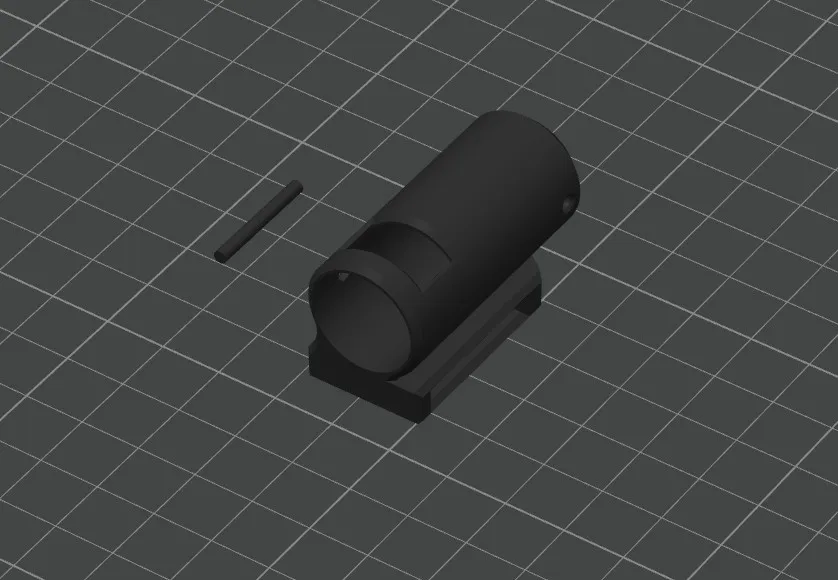

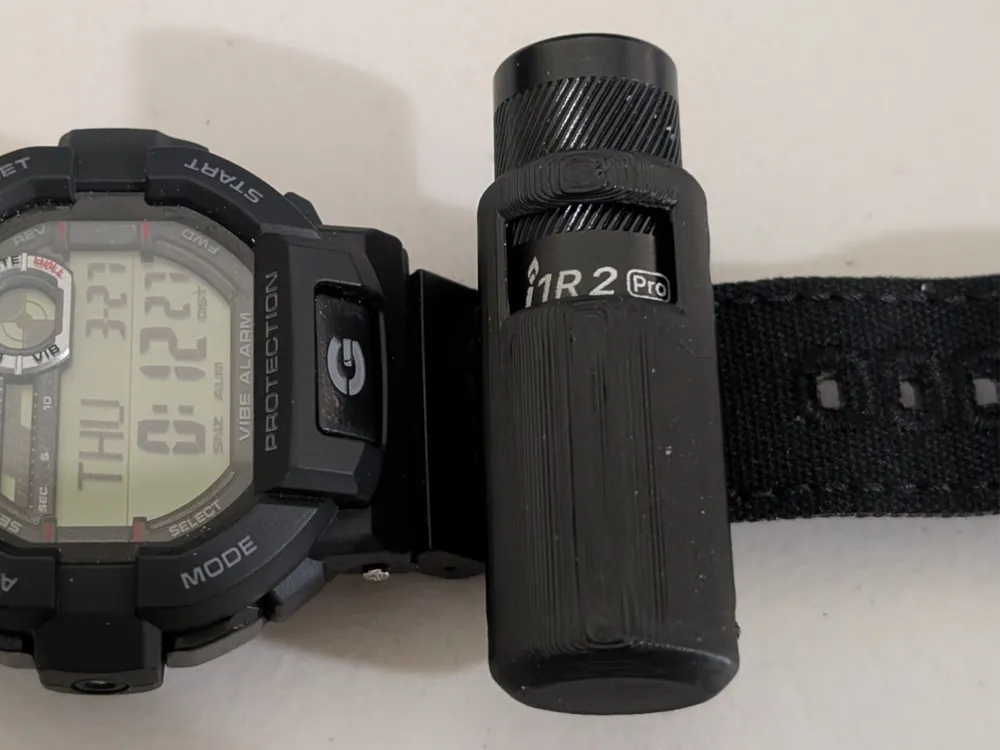

This is a case for Olight I1R 2 Pro that is designed to be put on a watch strap.
To install the flashlight into the case, start by taking the little split ring from the end of the flashlight off. Then unscrew the flashlight to reveal the USB-C port, and insert it with the port directly centered in the large hole of the case. That should align the little hole where the split ring was in. Then carefully insert the little retaining pin to secure it. That retaining pin may not seem much, but it'll hold the flashlight securely.
To get the best results, there are some settings that should be followed. Print the case with the flat part on the print bed, in concentric top, bottom and infill pattern. That should provide maximum strength so the bridge won't break off. The retaining pin should also be printed lying on its side for maximum strength.
The watchband should be no thicker than 2mm and no wider than 24mm, perfect for NATO-style watch straps.
