Description:

While casually browsing Thingiverse, I discovered this handcuff design by li593776469.

My love for Death Stranding ignited an immediate fascination, prompting me to undertake this project.

Clearly, this creation is impeccably suited to my tastes.

Thus, in the spirit of community, I've refined this model and uploaded it to MakerWorld, inviting others to share in the enjoyment.

I hope you like it!

Preparation:

To complete this 3D printed project, you will need the following:

Ample super glue
A small file set
Four D5x3mm magnets
A 20mm long, 3mm diameter compression spring
Black filament
Gold filament
Cyan filament

Furthermore, conduct a rigorous XY hole compensation test on your printer and adjust the corresponding parameters in your print profile. This significantly impacts assembly ease.

Modifications:

Generated *.3mf files for A1/A1 Mini/P1/X1 printers
Consolidated several unnecessary parts
Compiled more comprehensive instructions

Warning:

Using Bambu Handy to initiate the print job is discouraged!

Open the *.3mf file with Bambu Studio and modify print settings to suit your printer.

Boost Me (for free)

Recreating this model demanded considerable time and effort. If inclined, please consider boosting me. Thank you!

Update Log:

2025-03-27:

Initial release

2025-04-12:

Replatformed the print profiles to ensure compatibility with the X1 series printers
Organized the pins and connecting shafts onto a separate plate
Replaced D5x2.5mm magnets with more readily available D5x3mm magnets
Updated assembly instructions and removed the English version due to unreliable machine translation
Removed the “Print me if you need cable” plate after reassessing its practicality
Resolved an issue where the hole in Part 34 was incorrectly sealed
Sealed the hole in Part 33 to prevent the pin from being overlooked during slicing with the new Bambu Studio version

Death Stranding

Handcuffs

Documentation (1)

Assembly Guide (1)

Tutorial_Chinese.pdf

Comment & Rating (10)

@Godarck

Print Profile

An alternative printing method for specific parts

I had to drill out the holes. I also modified one part to accommodate a battery and a square control board from a flashlight. I also simplified the chain for easier assembly. Most of the screws were replaced with self-tapping screws and M2.5 screws, and a couple of M4 screws

Show original

@Godarck

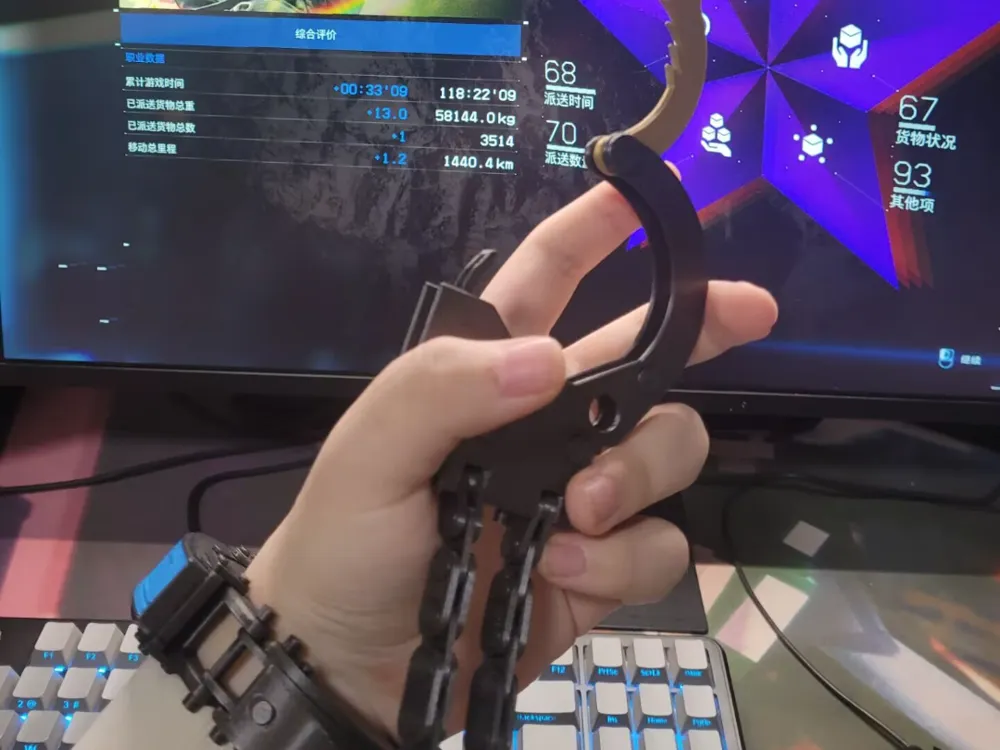

I added a battery and a control board for the flashlight. assembled with screws

Show original

@Doctor_kolektor

Boosted

hey man love the print 5 stars it’s amazing, just wondering tho where did the model go for the a1 and all the other models ?

(Edited)

The designer has replied

@hrenact

Because this model was synchronized from the China region but my model was not correctly updated there, I tried consulting customer service but did not receive an effective response😐 If you need it, here is the link: https://makerworld.com.cn/zh/models/1073540-si-wang-ge-qian-shou-kao#profileId-1115892

Show original

@minimax_75

Print Profile

for the A1 mini

Rating: 2.5 stars Unfortunately, the model has no tolerances whatsoever, meaning every hole has to be re-drilled or filed, a rather annoying task. In some places, I had to shorten pins or give them a small tip, while in others I omitted them entirely and glued them. It's advisable to pre-print at least 15 spare pins, as they break very easily (this also applies to many other parts, by the way). However, after about 1.5 hours of fiddly work (without glue drying time), you still end up holding a really cool model. (An English instruction manual would help and make assembly a bit easier :) )
