Eco Turbo Fan - FLSUN V400

Eco Turbo Fan - FLSUN V400

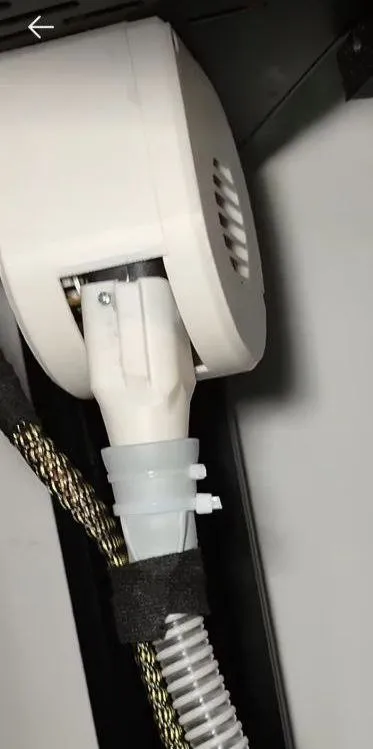

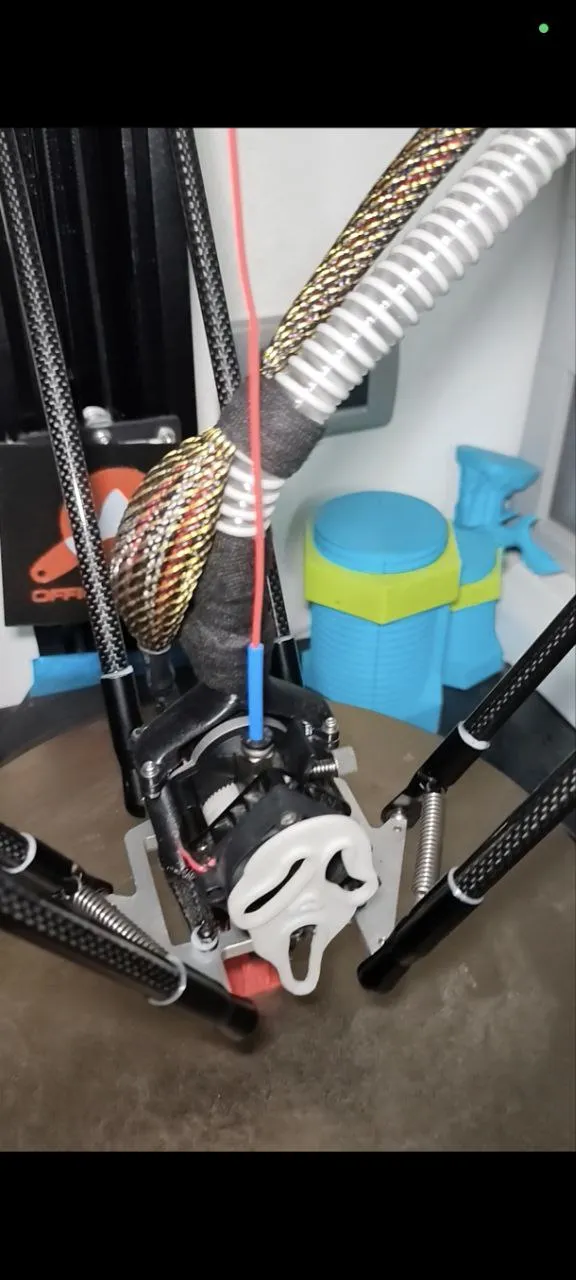

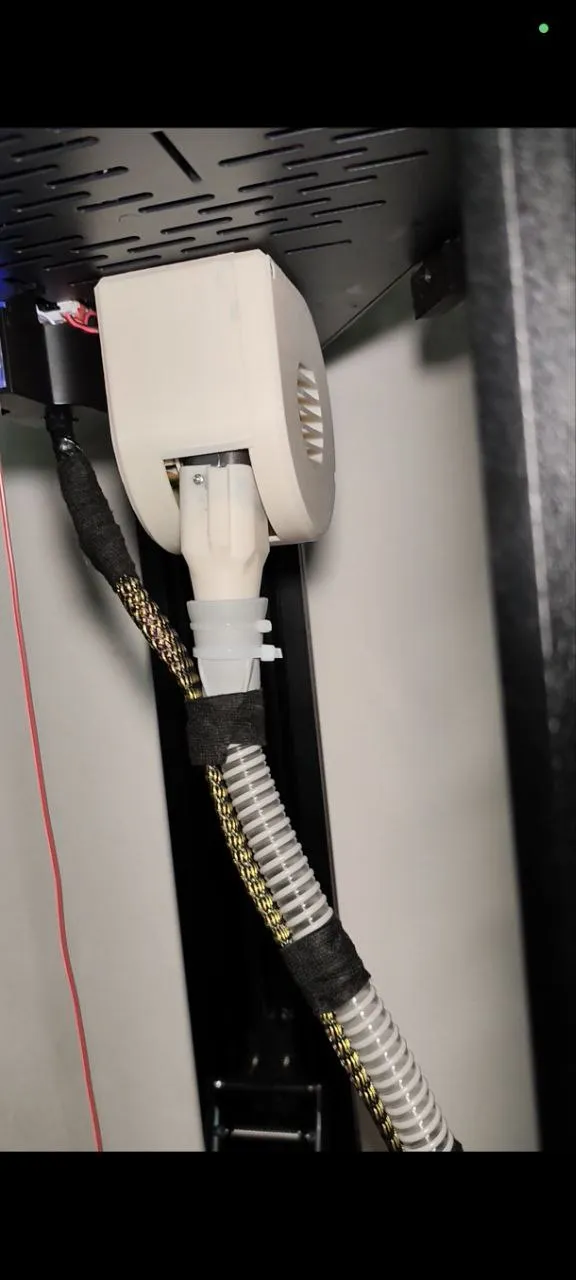

I designed a kit to mount the BIQU eco turbo fan kit on the FLSUN V400. I started from the fun duct by Robert_Klotz (https://www.printables.com/model/725525-flsun-v400-cpap-duct) modifying it and improving some of the more fragile points and adapting it to the tube that needs to be cut in the lower part and screwed onto the Upper_Duct when I drew the screw joint. Then attach the upper tube to the Turbine adapter that needs to be fitted onto the mouth of the turbine which in turn the Turbine adapter can be fixed with two small screws. The turbine needs to be powered with the supplied cables connected to the motherboard terminal block in the 24V connector. The other cable needs to be connected to the PWN connector of the original fans which needs to be disconnected beforehand.
I printed everything with APOLLO X by Form Futura as it is an ASA modified to be printed without a closed chamber.
