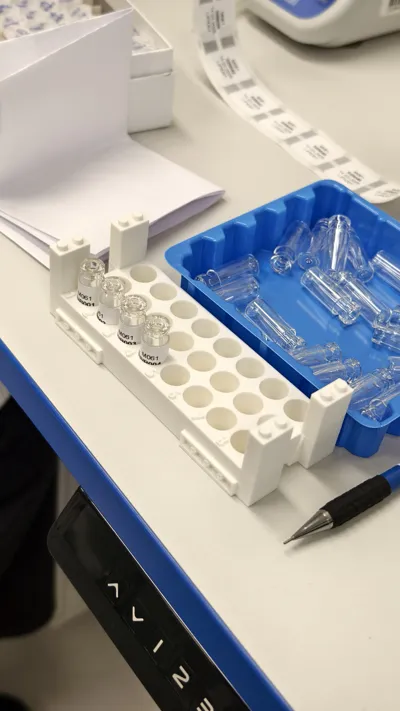

Vial racks, efficiently hold and organize chromatography, scintillation, COD, cryo, serum, or general-purpose vials for everyday use or for storage. Vial Rack for HPLC Sample Bottles. Vial rack for drug vials with different sizes.

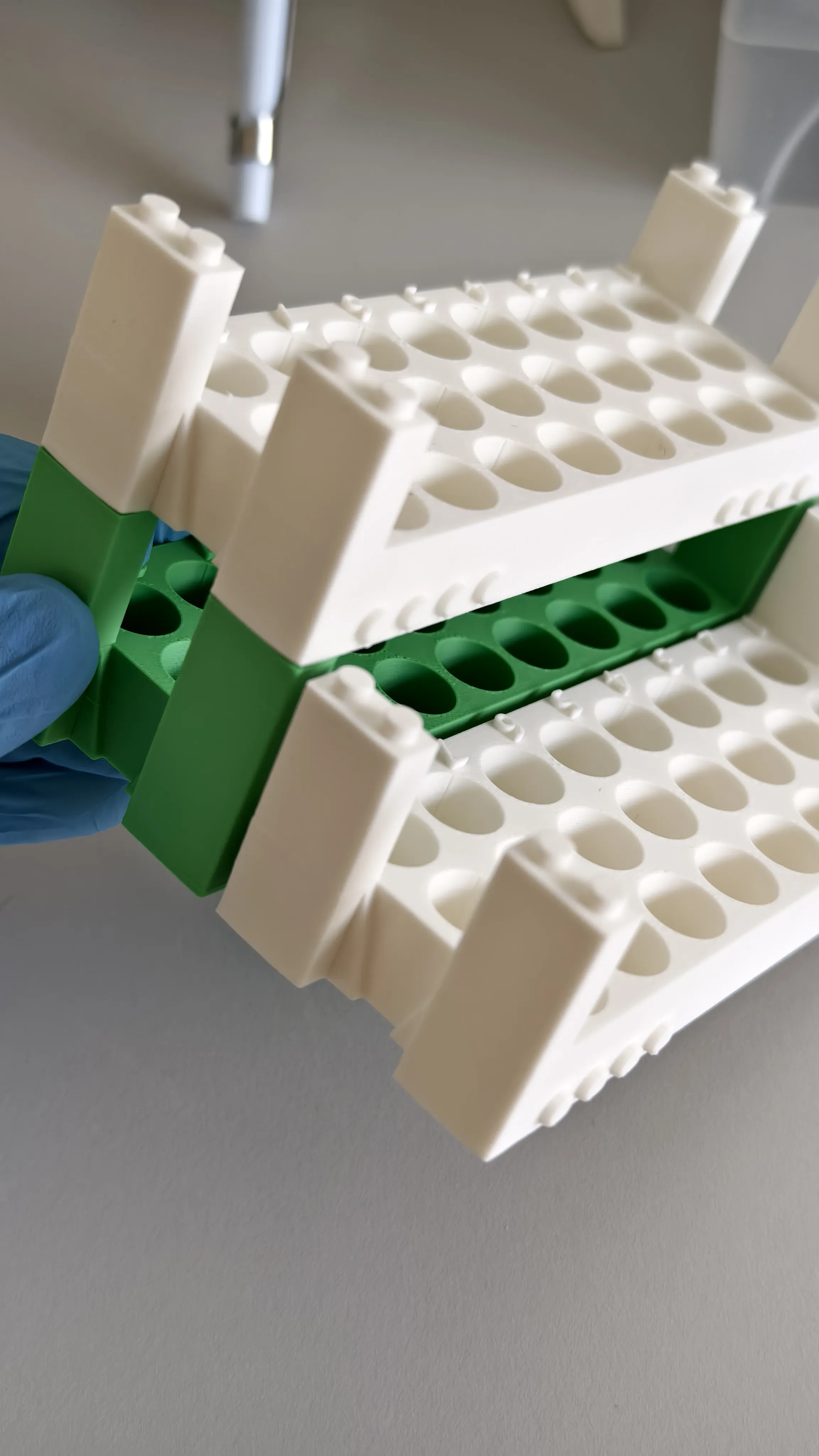

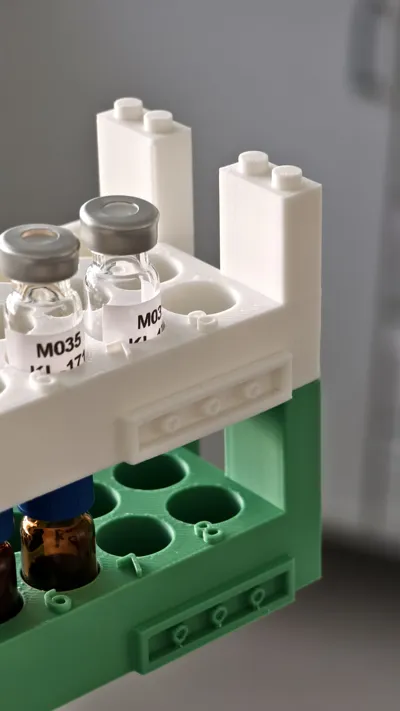

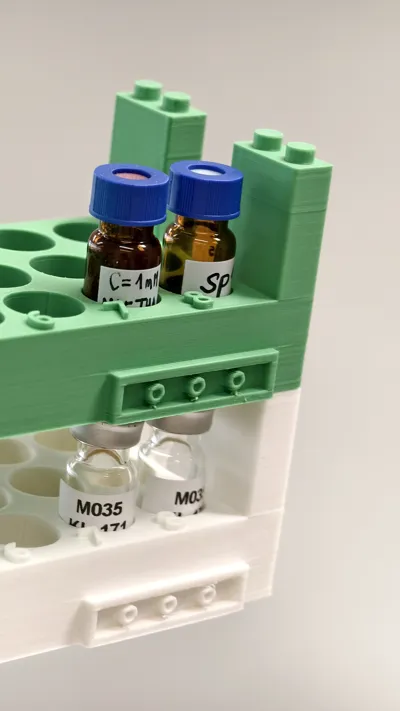

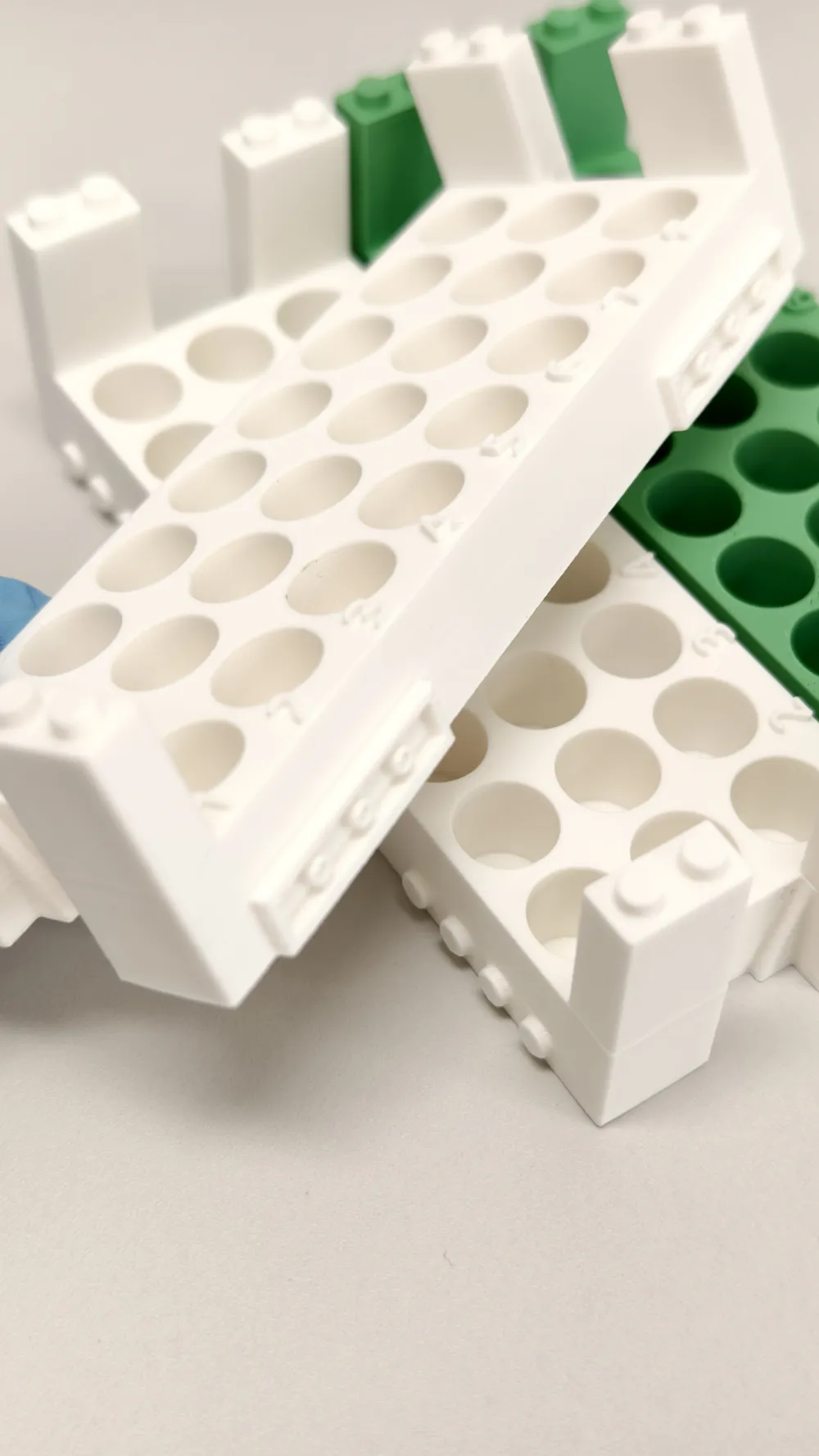

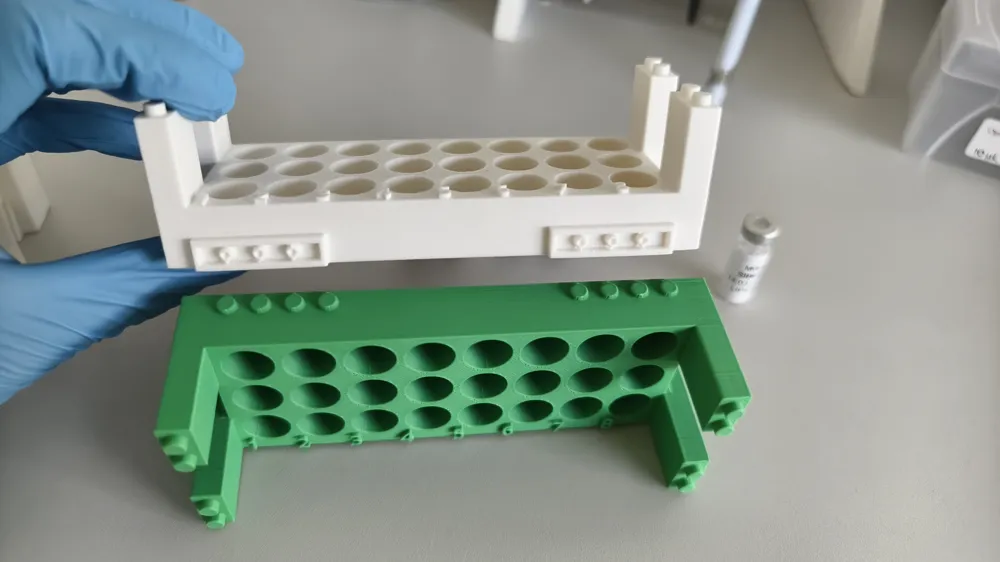

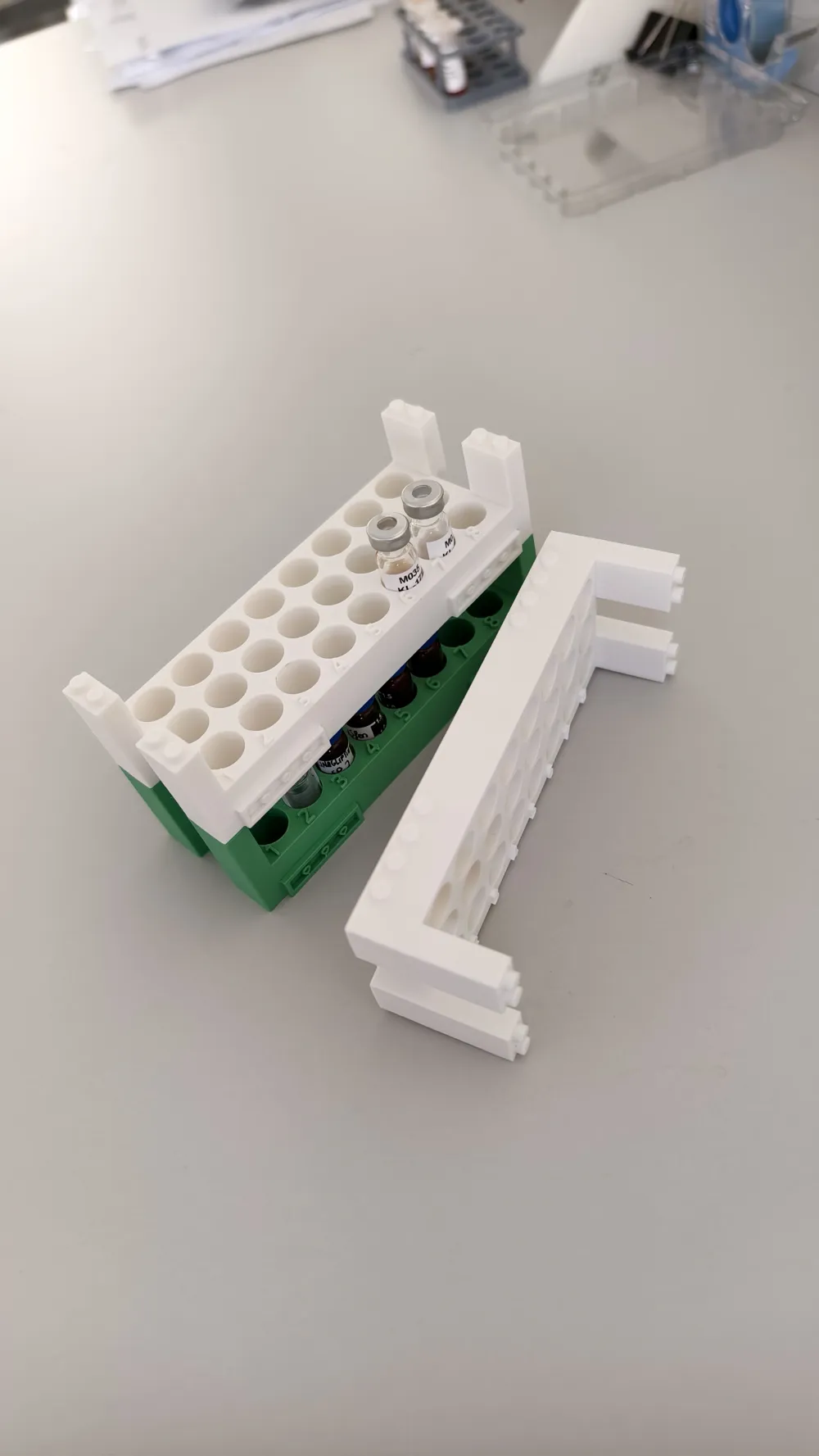

Racks can be connected together for storage.

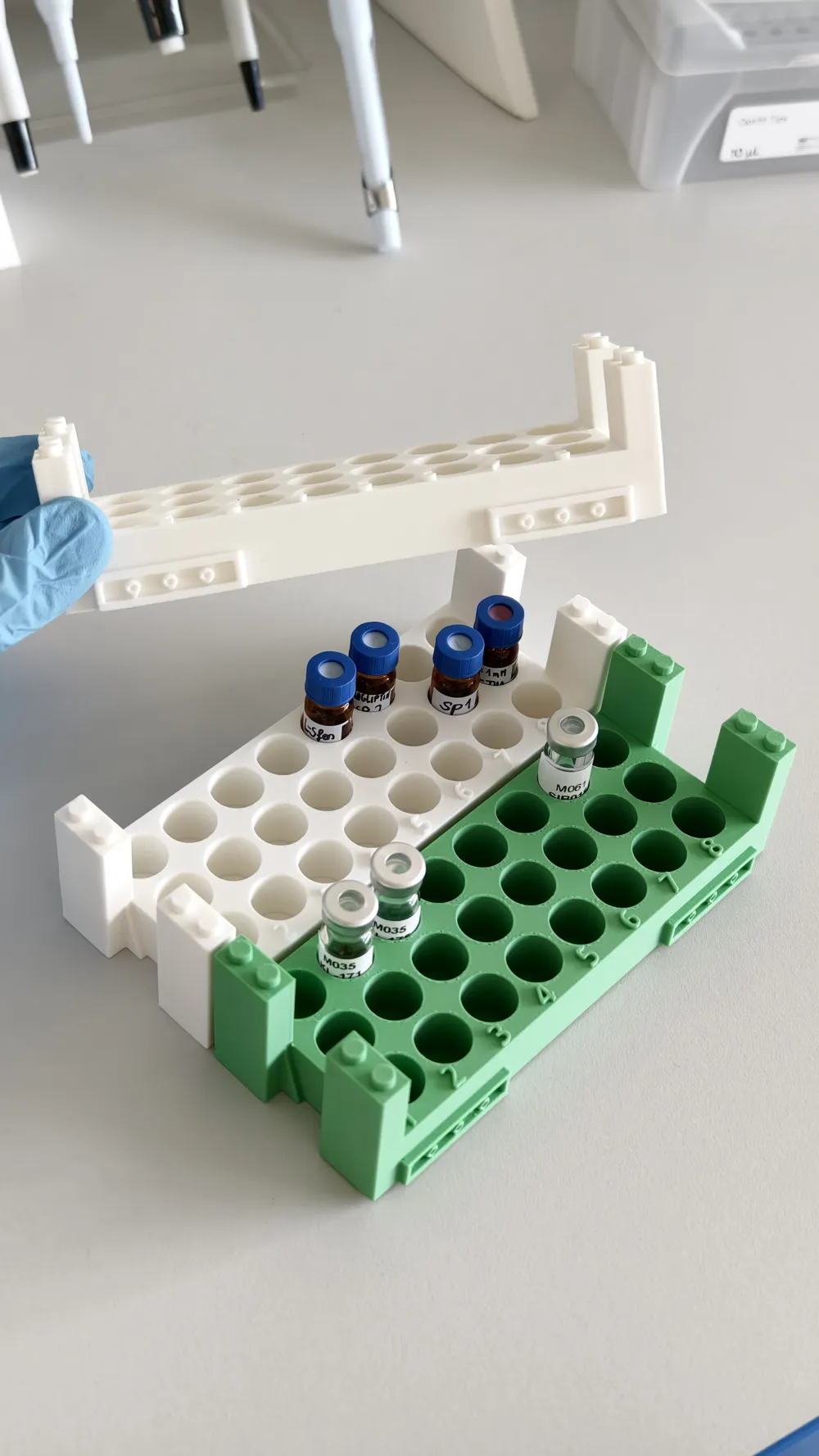

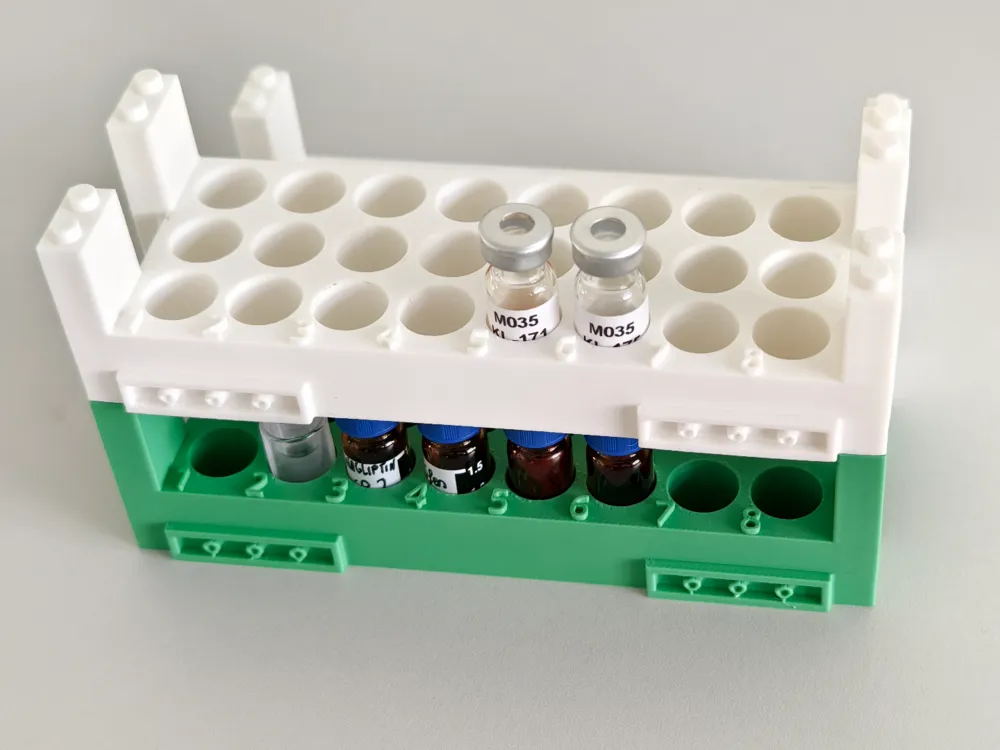

3*8 holes, with number labelled.

Boost Me (for free)

Hope your experiments goes well, please boost me if it bring some fun! Thank you!!!

Update Dec. 2025:

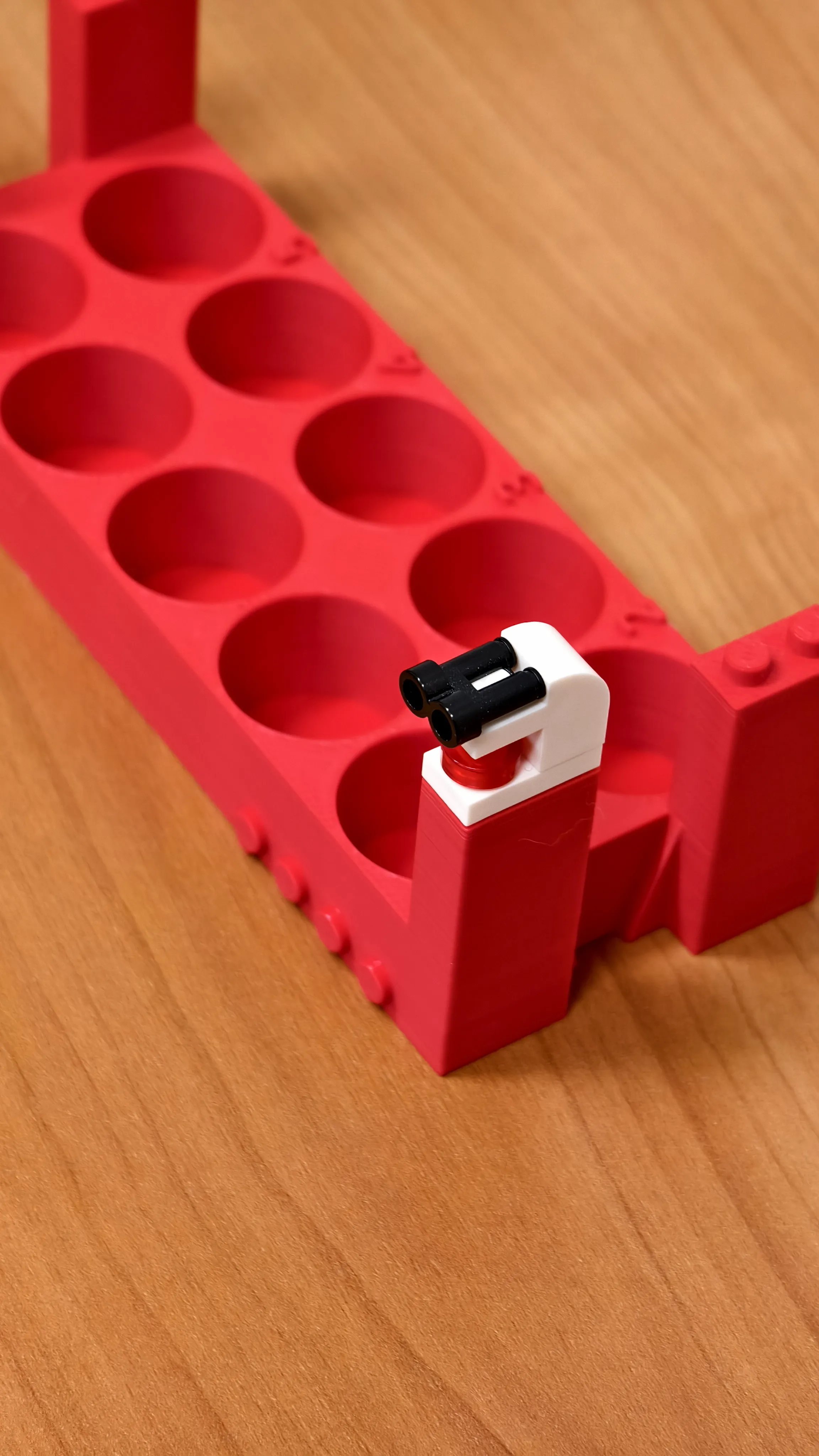

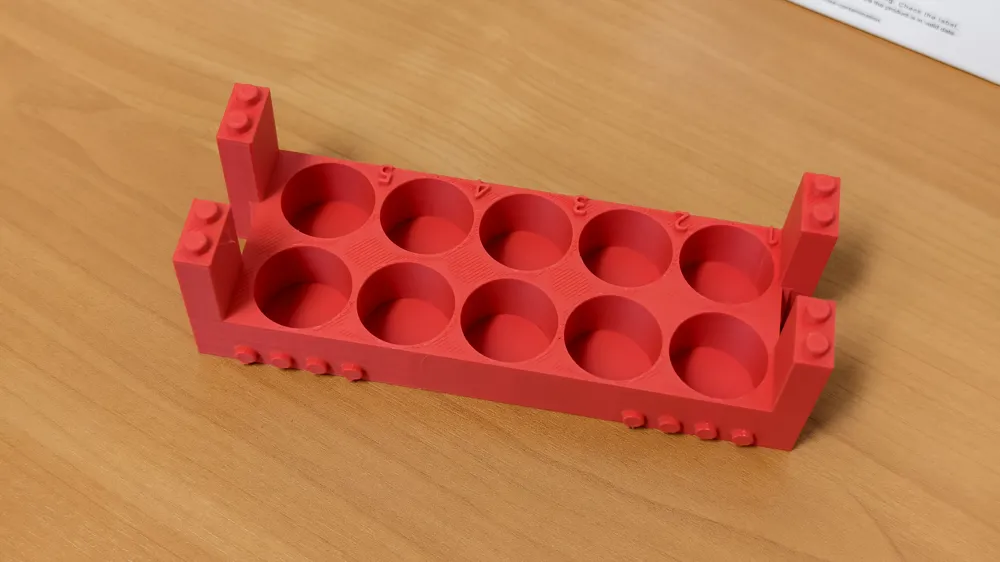

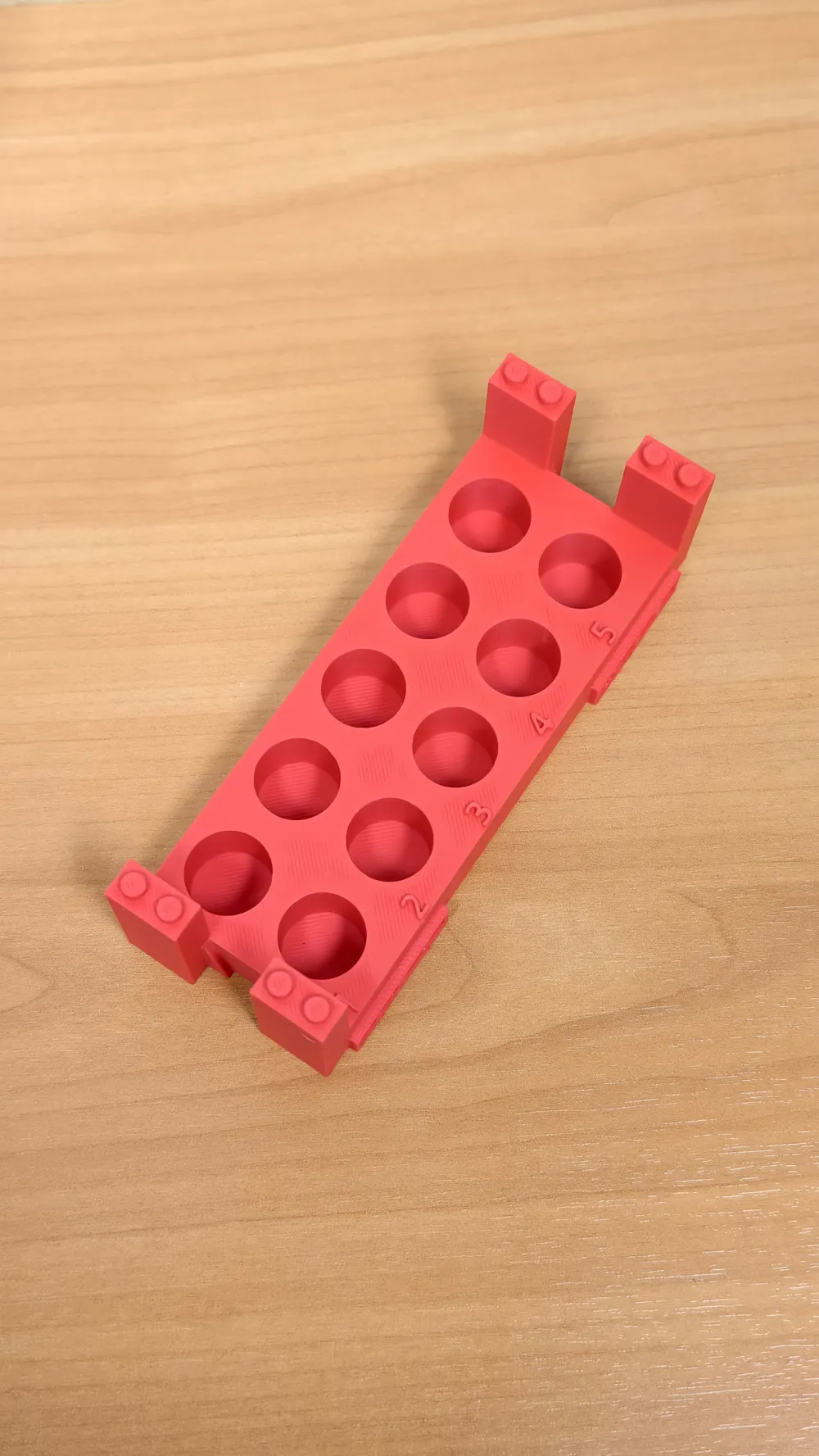

3 new sizes were added: for 16mm diameter 3ml vial, and for 21mm diameter 10ml vial. for medical glass vial, storage and usage.
