Dowelling Jig w/ Adjustable Fence
Print Profile(1)
Description
Version 2 (with Imperial scale): https://makerworld.com/en/models/1692690-adjustable-dowelling-jig-imperial-metric#profileId-1794383

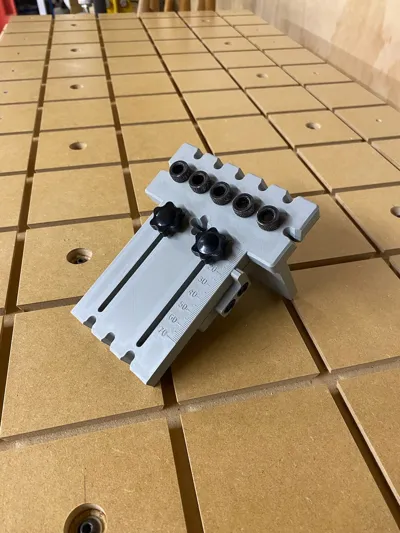

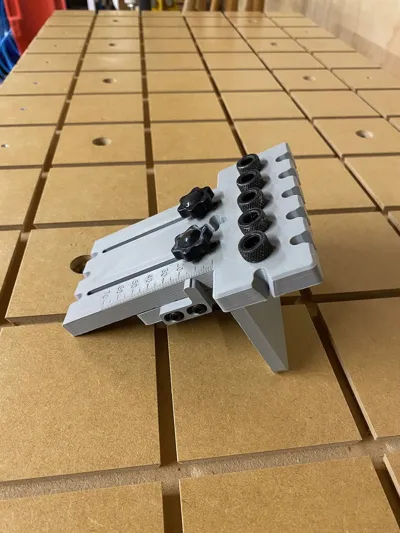

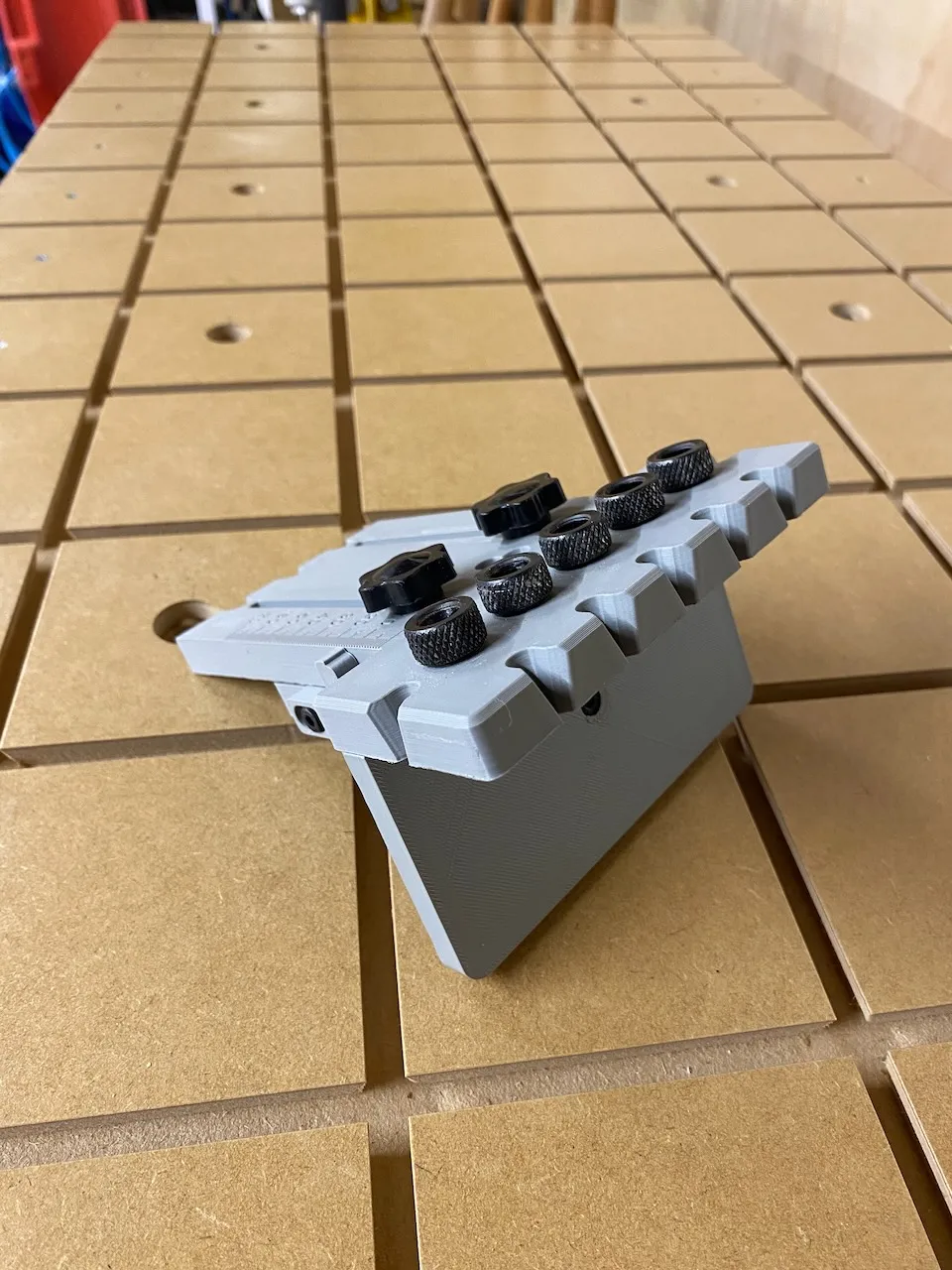

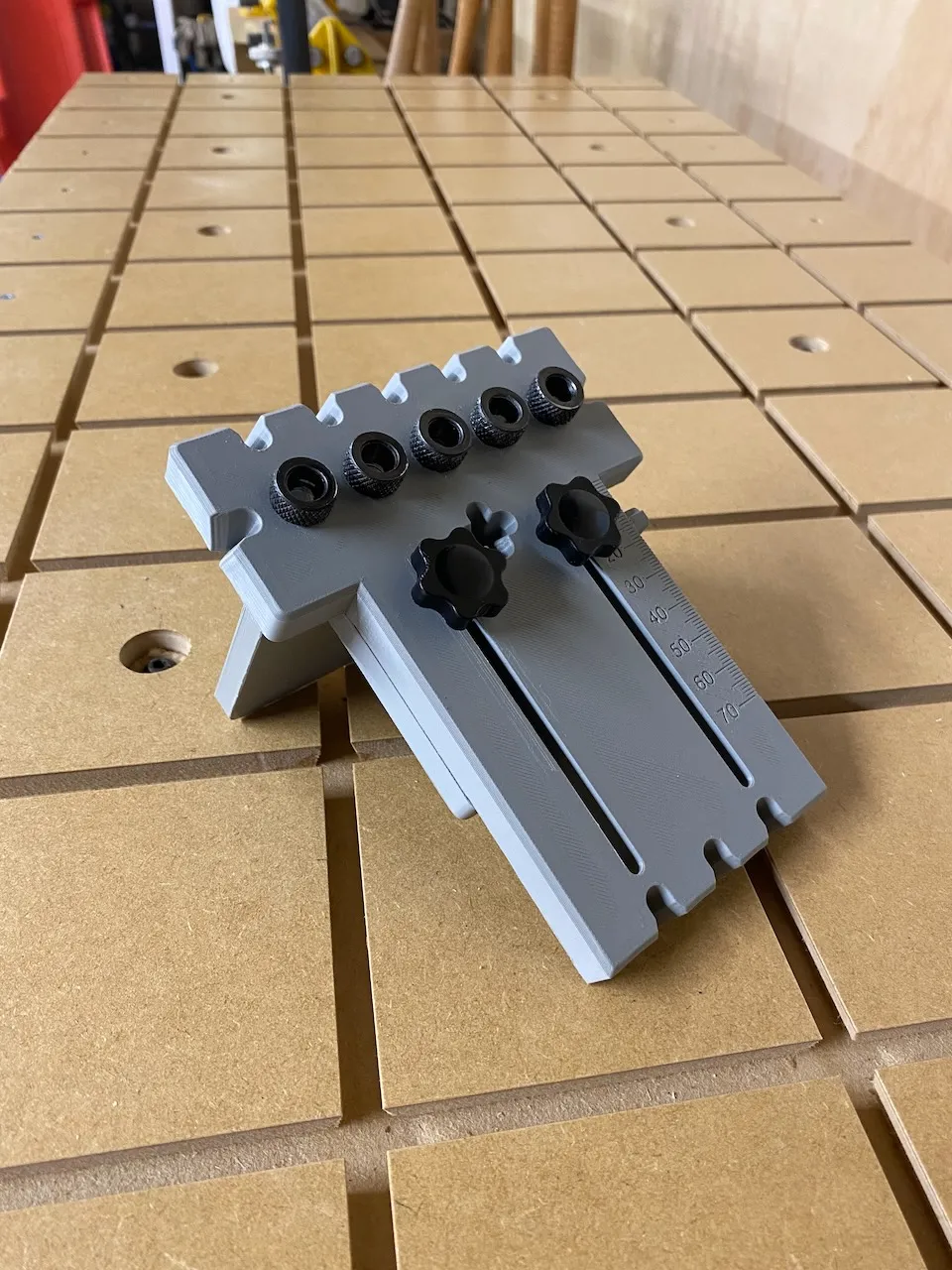

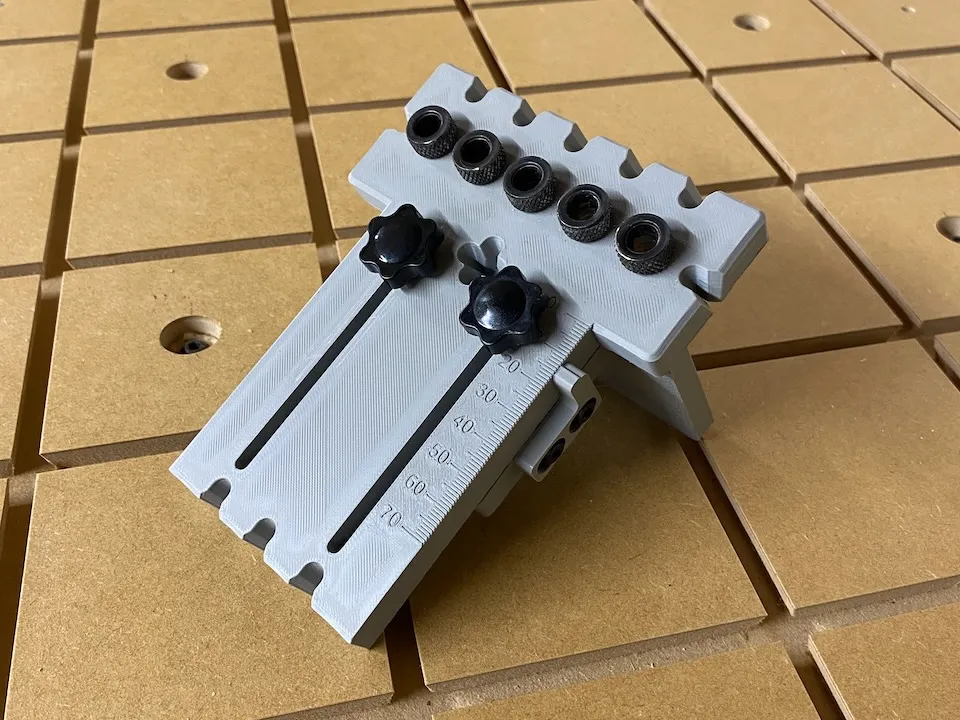

Based a little bit on the Jessem Dowel Jig, this is a fully functional printable dowelling jig. I spent over 50 hours designing and prototyping this so I appreciate any support, even just a comment.
Features:
Metric measurements

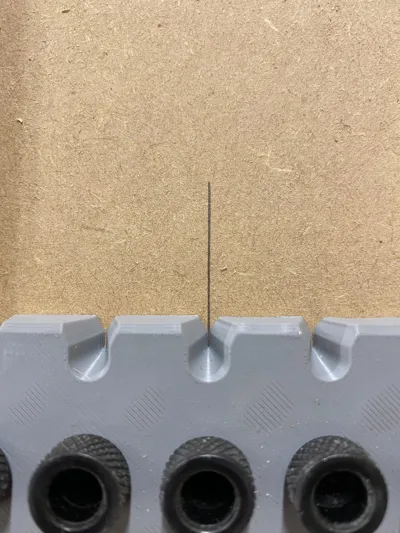

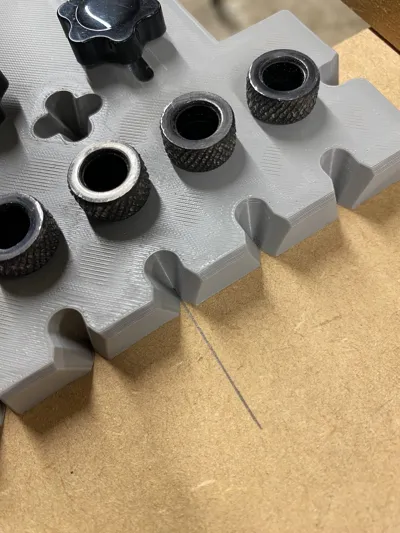

All marking lines and holes are on 20mm centers.
Steel drill guides
Adjustable fence.
Full detailed guide here:
https://alexbridger.com/3d-printed-dowel-jig/
Hardware List
Tools Needed
- 2.5mm allen key
- 4mm allen key
- Pliers for turning in the drill guides
- 6 x M4x12 allen cap screws
- 2 x M4 knobs
- Vernier caliper (optional)
Printing
Dowel Jig Head
Infill: 80%
Colour: Grey (better visibility of markings)
Print using variable layer height, all layers at 0.2mm, the top 3 or 4 layers are better if printed at 0.08mm or similar. This makes the measuring lines and text far more visible.
Fence Vertical
Infill: 100%
Fence Interface
Infill: 80%*
Fence Support
Infill: 80%*
Fence Indicator
Infill: 100%
