Minion Stuart

https://www.printables.com/@keybl_2030253/models - printables

https://www.thingiverse.com/keybl1/designs - thingiverse

https://cults3d.com/@keybl - cults3d

if you want to support me financially - https://boosty.to/keybl1

This project was made based on the first minion - https://www.printables.com/model/1065225-minion-donny

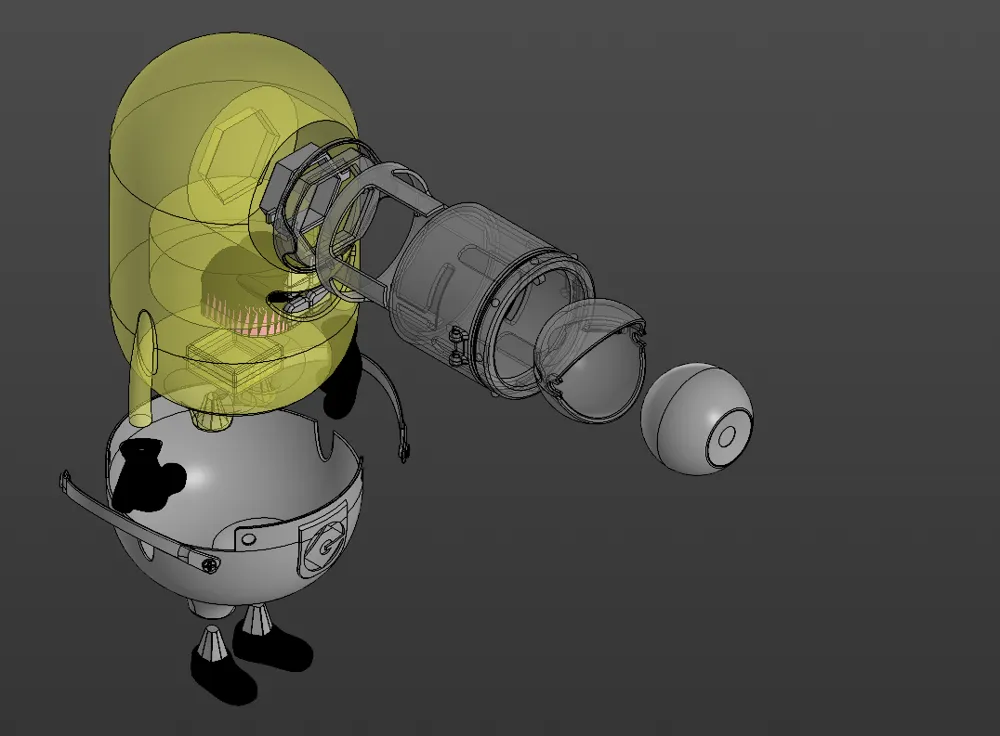

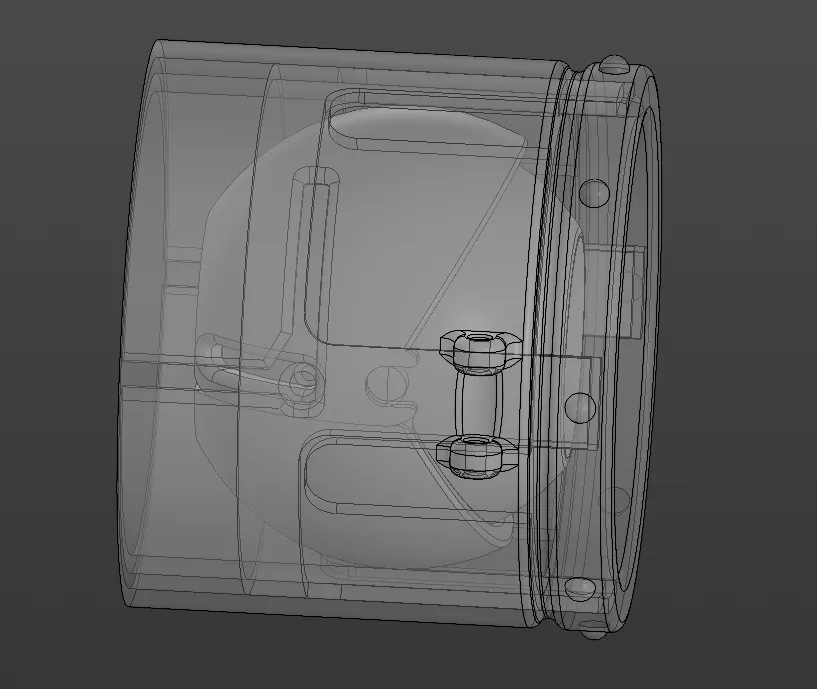

Glasses were developed and tested (a lot of plastic was used), the mechanism which was taken as the basis of these glasses - https://www.printables.com/model/302666-cats-eye-iris-box

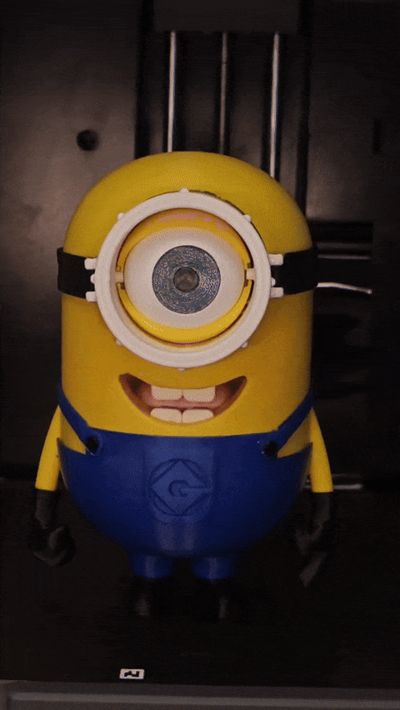

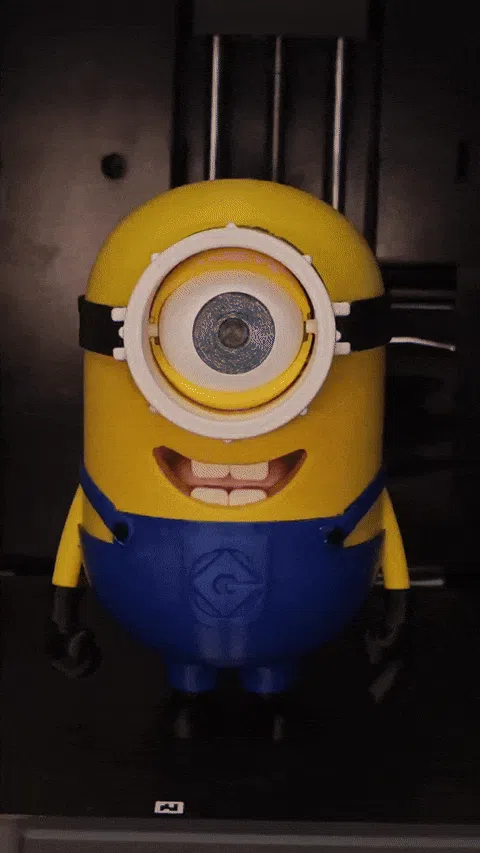

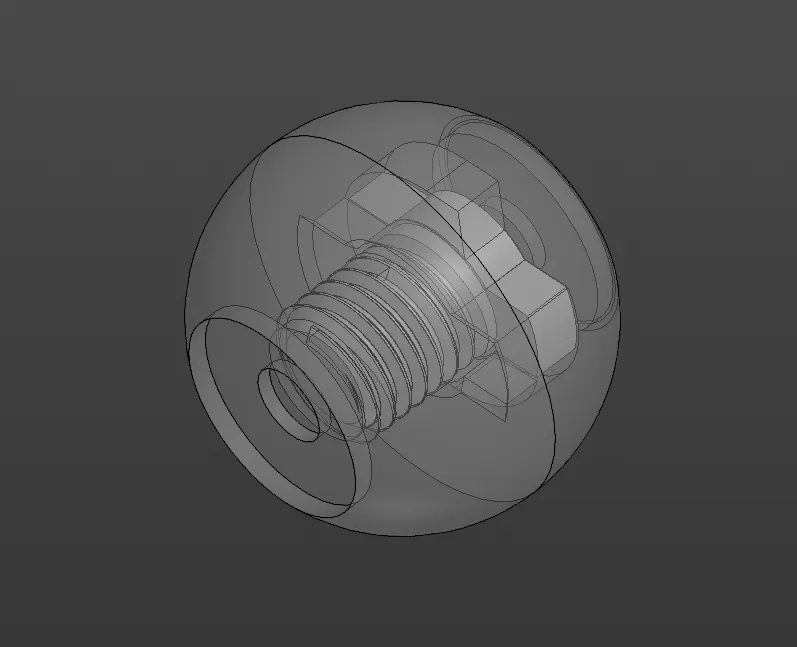

Now he looks amazing with this eyelid mechanism and double sided eye\

Everything was printed with PLA, printer - Flashforge Adventurer 5m (no modifications, only a leveled table)

All print settings you can see inside 3mf files, you can achieve better quality by experimenting and improving the print

Key points for printing and assembly:

1.  At first printed tongue! You will need to insert it into the Base during printing when there is a pause (the pause g-code is different on different printers, find out and test it on your printer in advance)

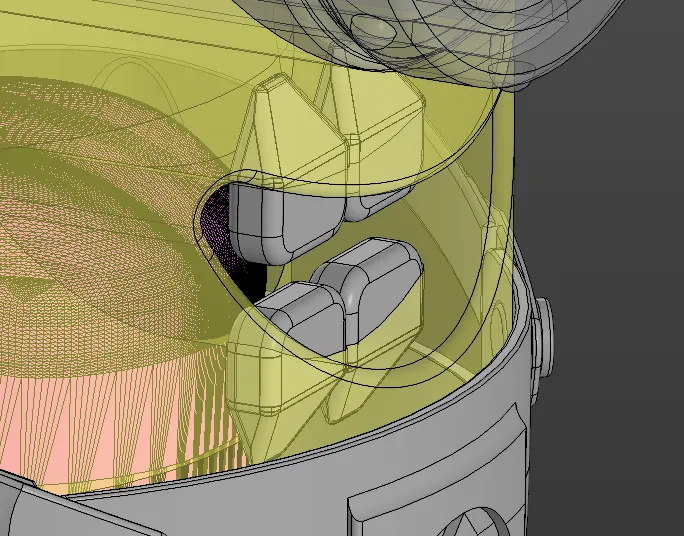

2. The teeth have been redesigned so that they no longer need to be inserted during a pause, insert them after printing the base, I got the lower descendants first, the upper ones

3. Attached a video on assembling the glasses - (the details may differ externally, but the essence is clear)

   Pay attention to how the teeth are attached! (Flat side inward) (First the lower ones, then the upper ones), if they do not fit, change the scale of the teeth model by XY to 98-99% in the slicer

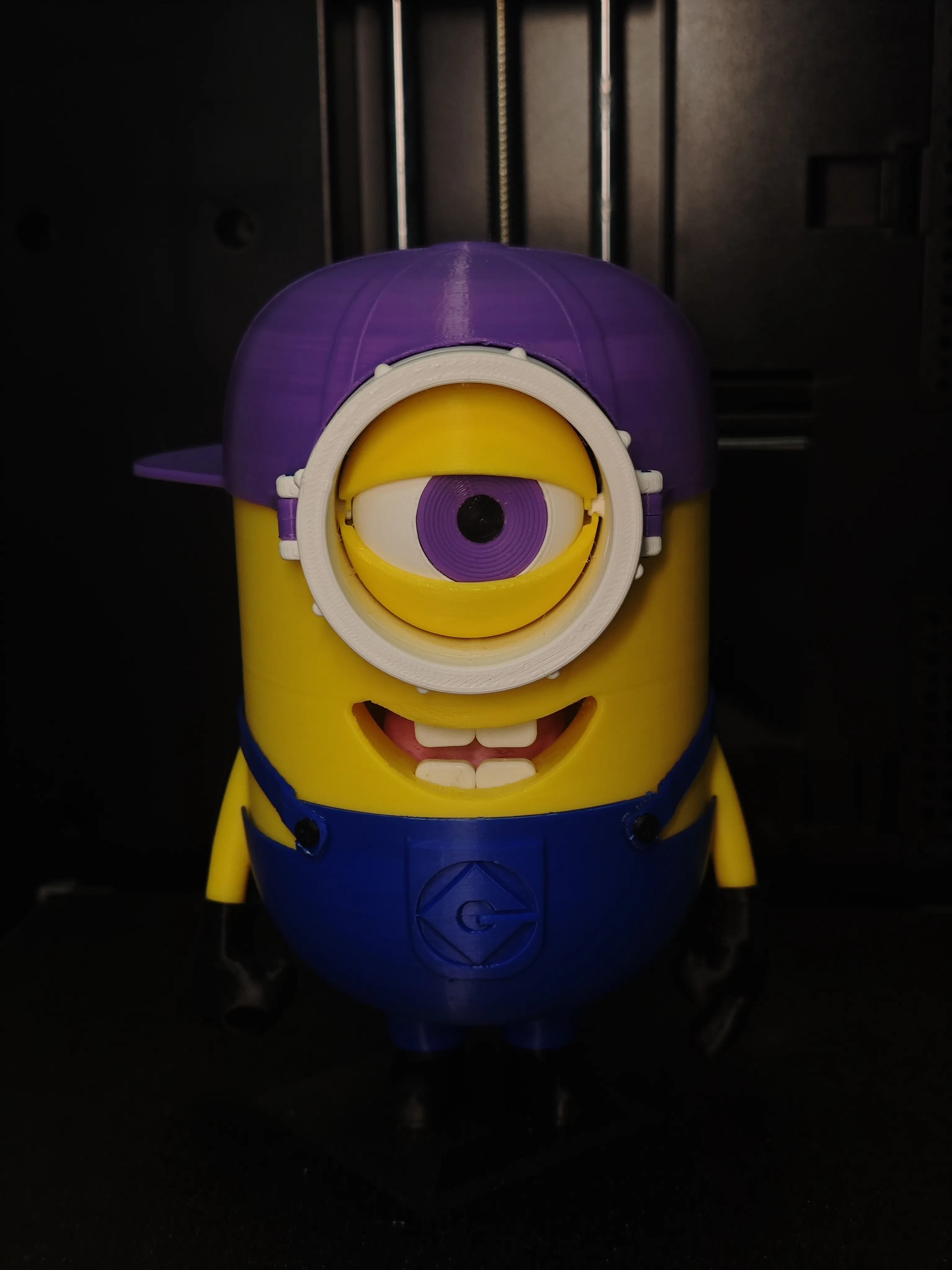

   Update 26.04.2025 - Added cap model for Stuart. Download:

   https://makerworld.com/en/models/1357981-cap-minion-stuart
