PCB Test Fixture - 6P/2.0 Pitch
IP Report
Print Profile(1)
Fits 6P/2.0mm pitch/21.7*13.2mm circuit boards
Designer
1.1 h
1 plate
Open in Bambu Studio
Boost
8
13
0
0
5
2
Released
Description
Content has been automatically translated.

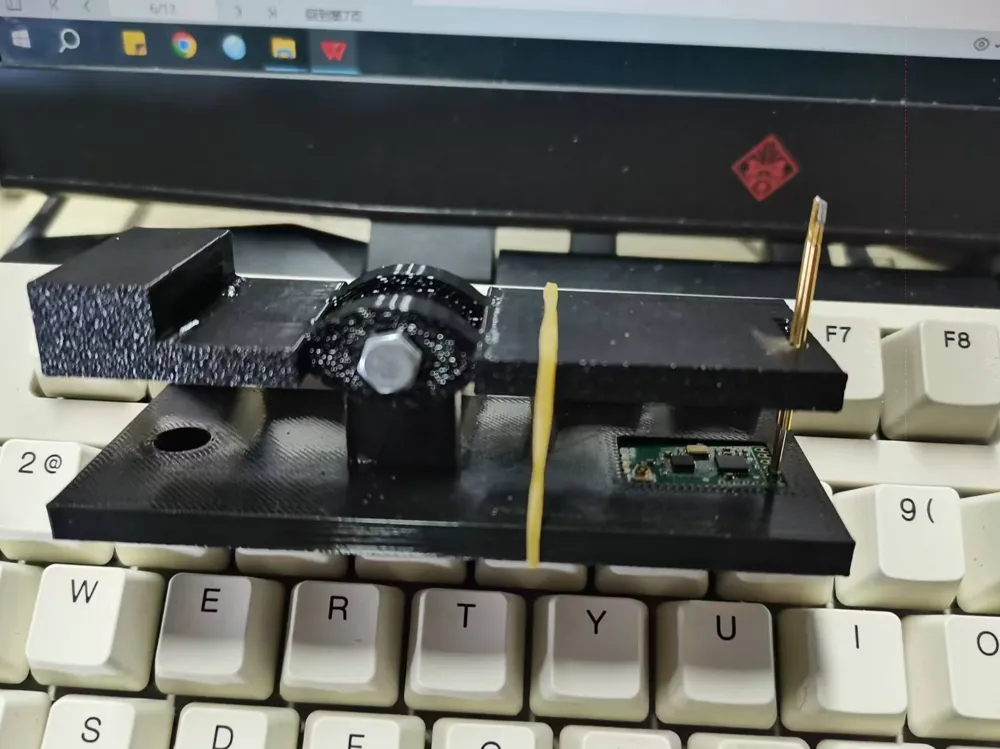

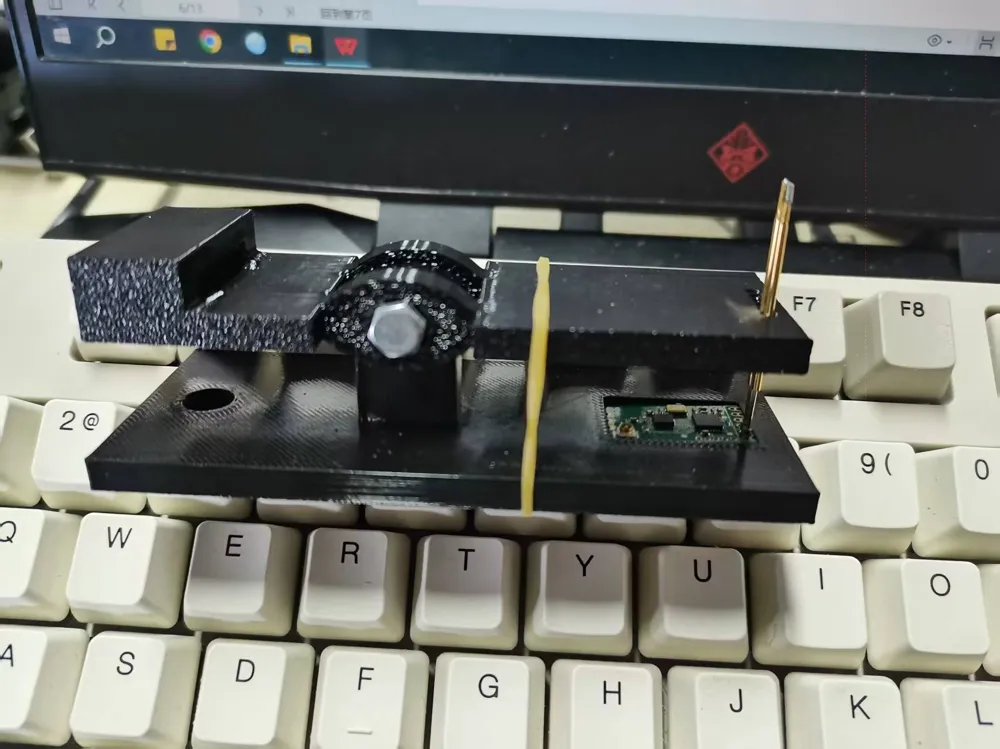

This is a PCB test fixture.
Specifications: 6P/2.0 pitch
Printing material: PETG
Suitable PCB size is 21.7*13.2mm

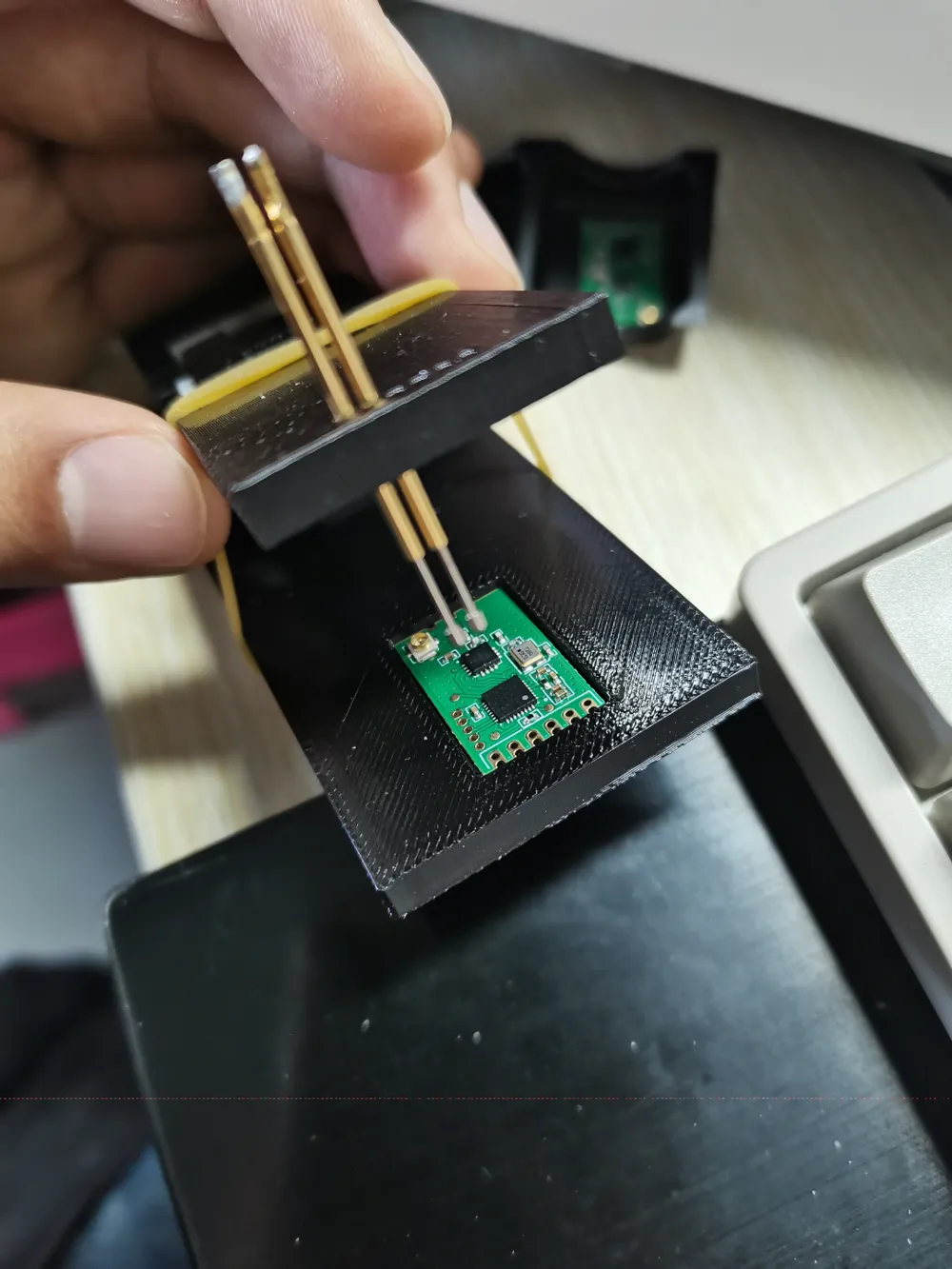

You need to purchase 1.2mm diameter probes yourself, the probe specifications can be arbitrary.
For special size models, please leave me a message~
