GMKtec K6 10-inch Rack Mount 1.5U

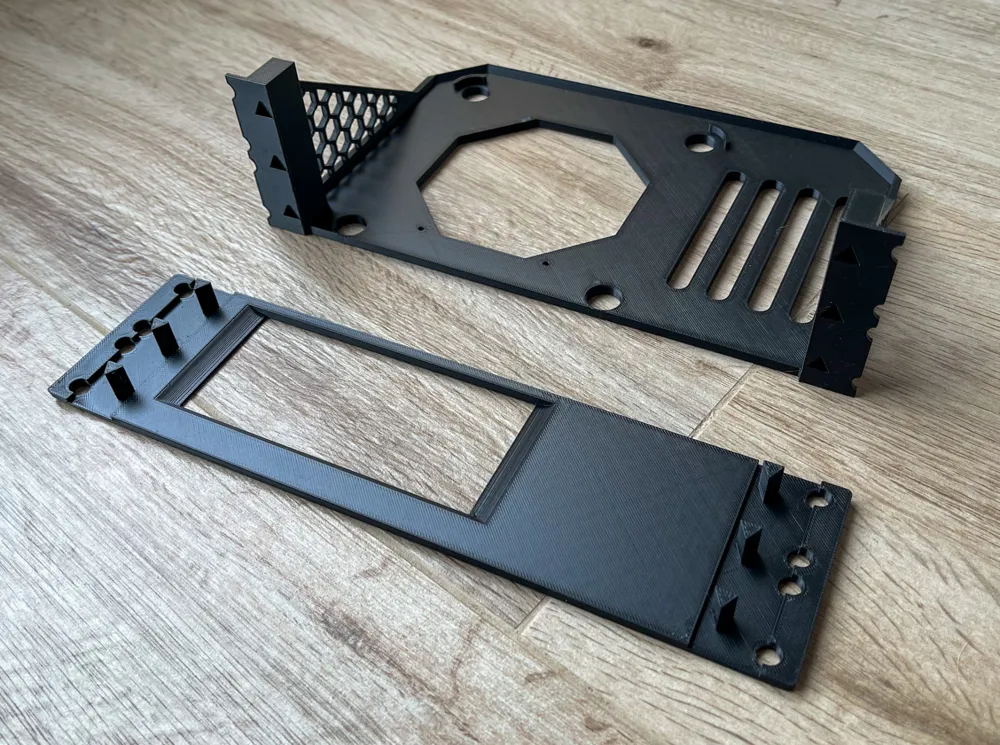

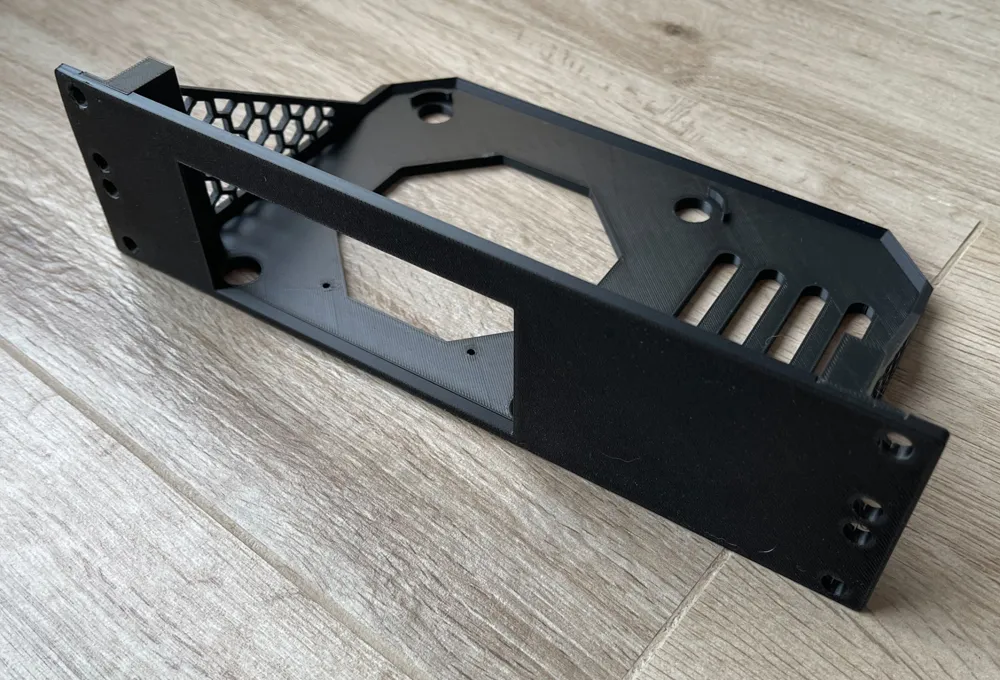

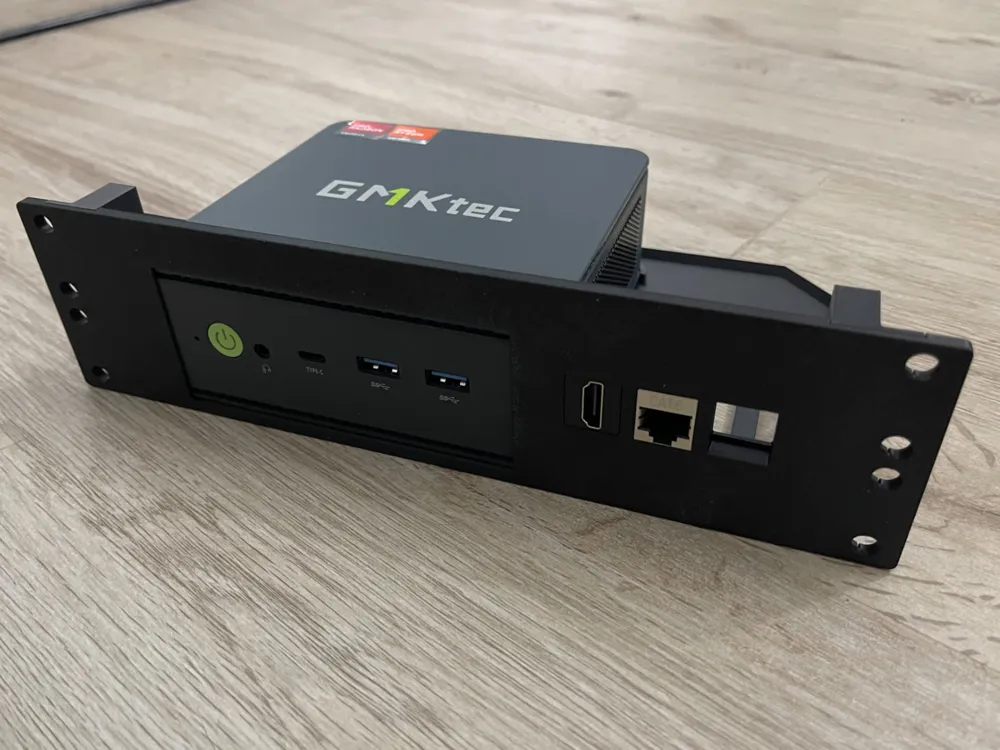

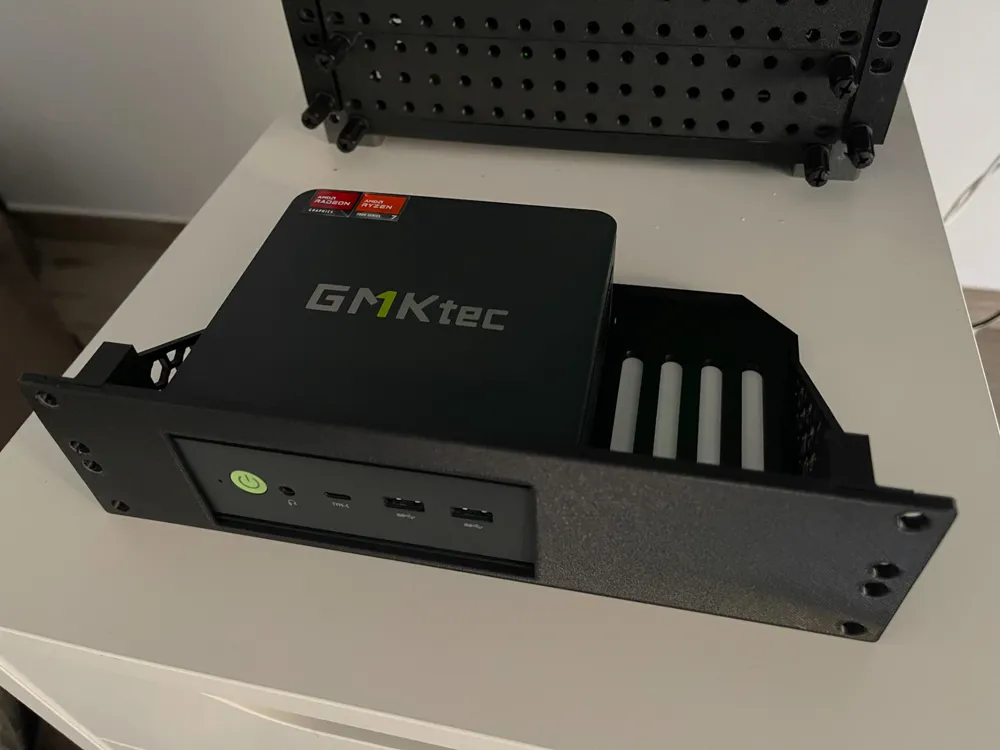

10-inch 1.5U Rack Mount designed specifically for the GMKtec K6 mini PC. This rack mount includes three interchangeable front panels: one equipped with three keystone jacks for versatile connectivity, one with a slot for a JetKVM, and another panel without any extras for a streamlined look.

It is possible that other similarly sized mini PCs from GMKtec, such as the GMKtec M6, will fit, although this has not been tested.

Confirmed compatible with:

• GMKtec M5 plus
• GMKtec K7 plus

Recommended settings:

• No support
• No brim
• 3 walls
• 3 bottom layers
• 4-5 top layers
• 15% infill; gyroid or crosshatch
• Filament: PETG or better

Updates

May 15th, 2025

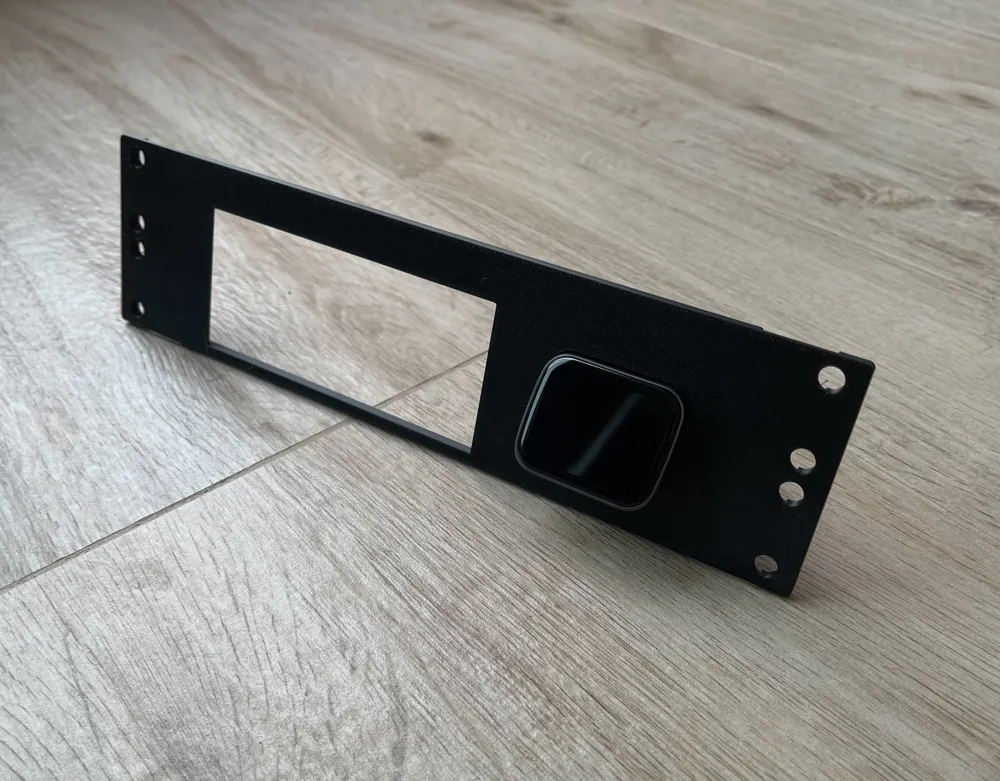

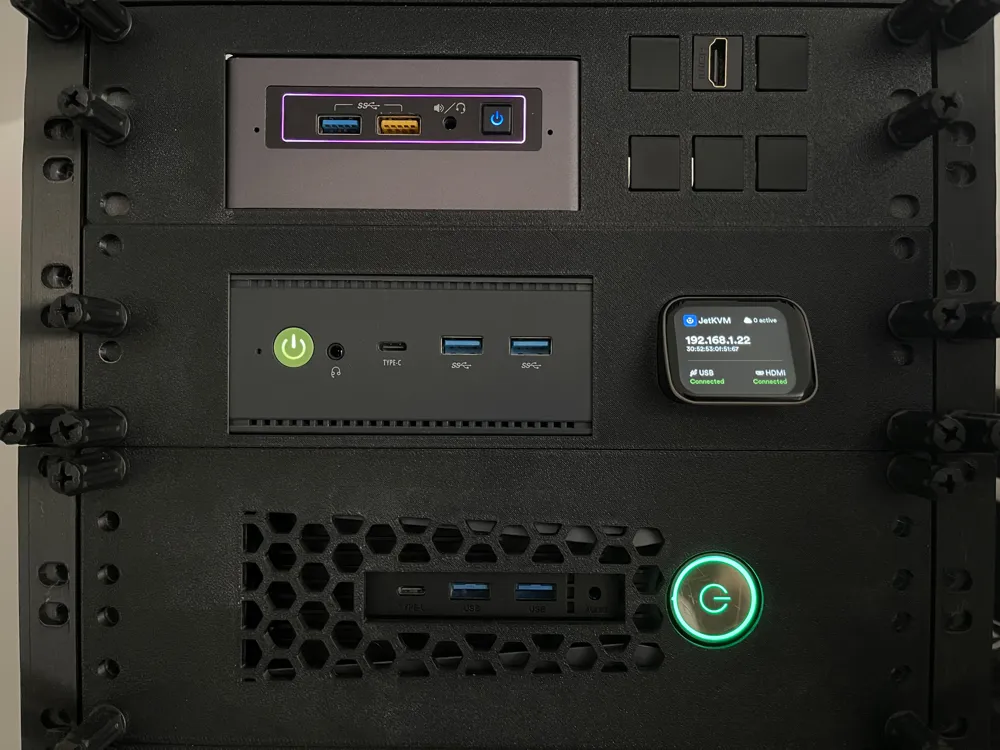

Introducing a new front panel featuring a JetKVM slot. Two versions are available: one with a snug fit, ideal for non-shrinking materials like PLA and PETG, which securely holds the JetKVM in place through friction—no screws required. The second version offers a slightly looser fit, making it more suitable for materials that tend to shrink. Both versions include screw holes, if preferred, but you will need slightly longer screws to replace the two that secure the top plate of the JetKVM.

A special thanks to the user Flow on Printables for inspiring my design based on their Intel NUC mounts. While my design shares many similarities, I've enhanced this design to allow for vertical printing of the rack mount with minimal support required, should you choose to do so. This is not a remix; it has been entirely designed from the ground up.
