Door Stopper with Floor Mount (over-engineered)
Print Profile(2)
Bill of Materials
Description
Here is a over-engineered door stopper with a minimalist style.

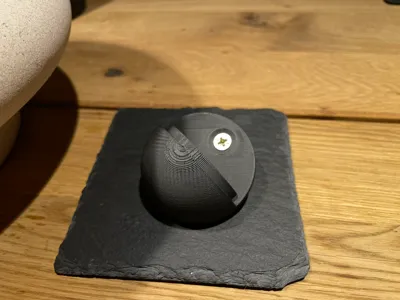

The model has received an update and now contains holes so it can be screwed to the floor.

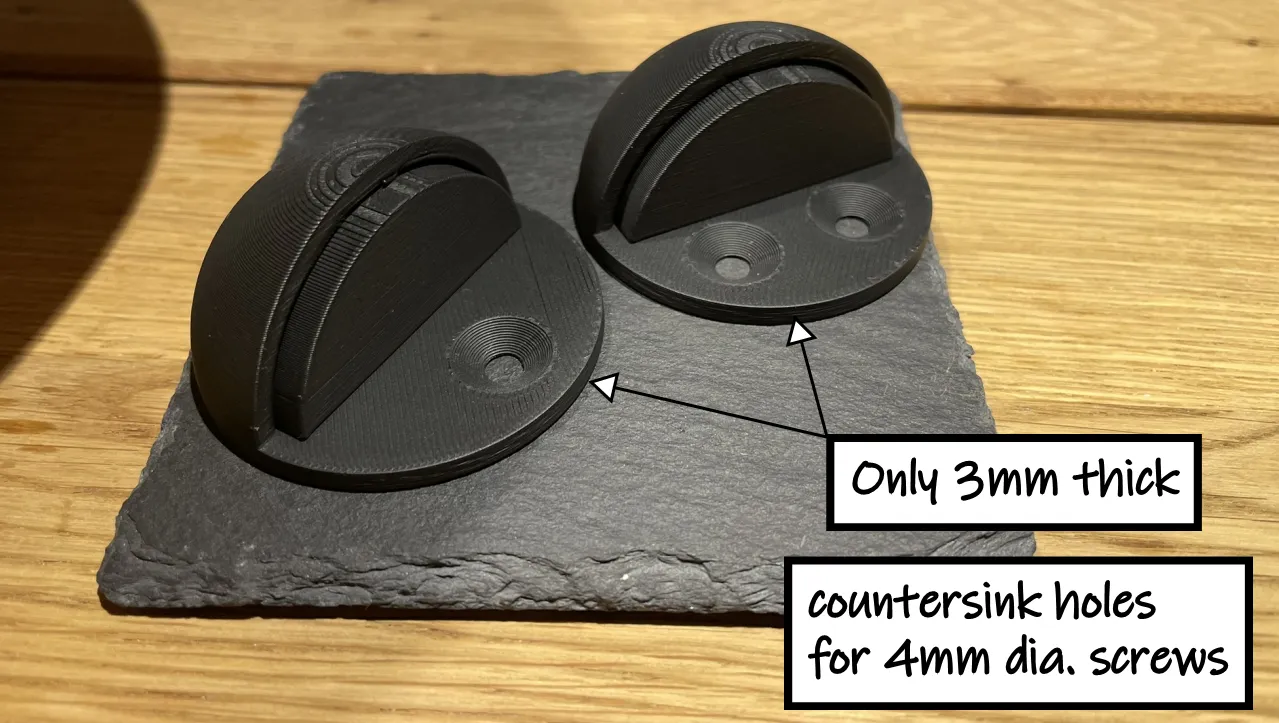

The part that the door passes over is only 3mm which means it fits most doors.

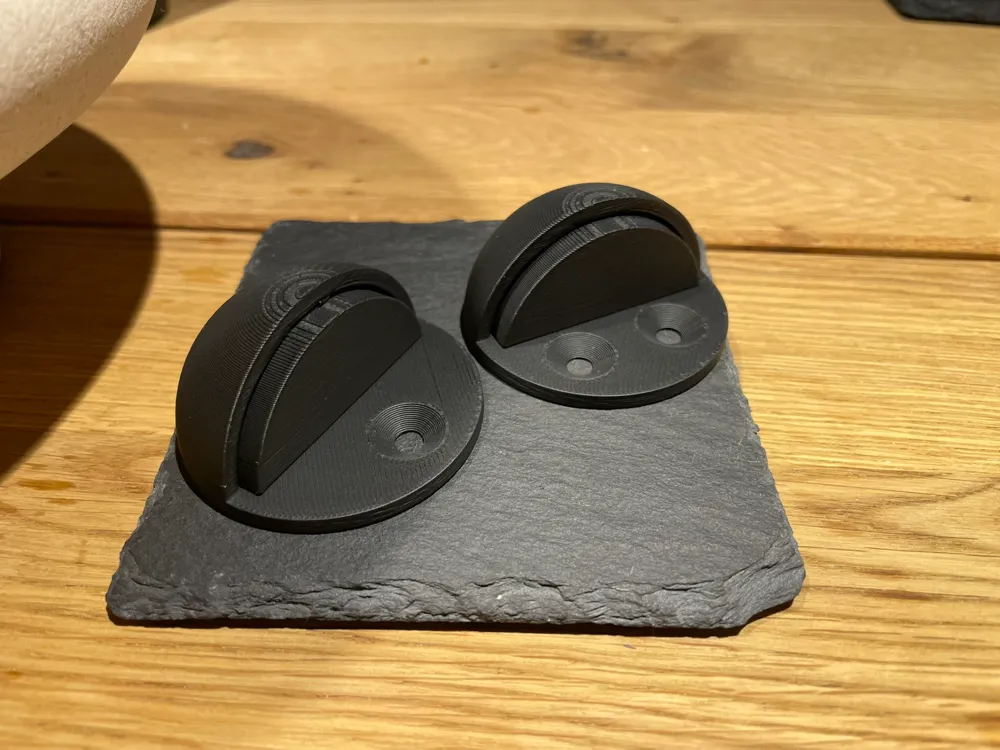

There are 2 print profiles available:

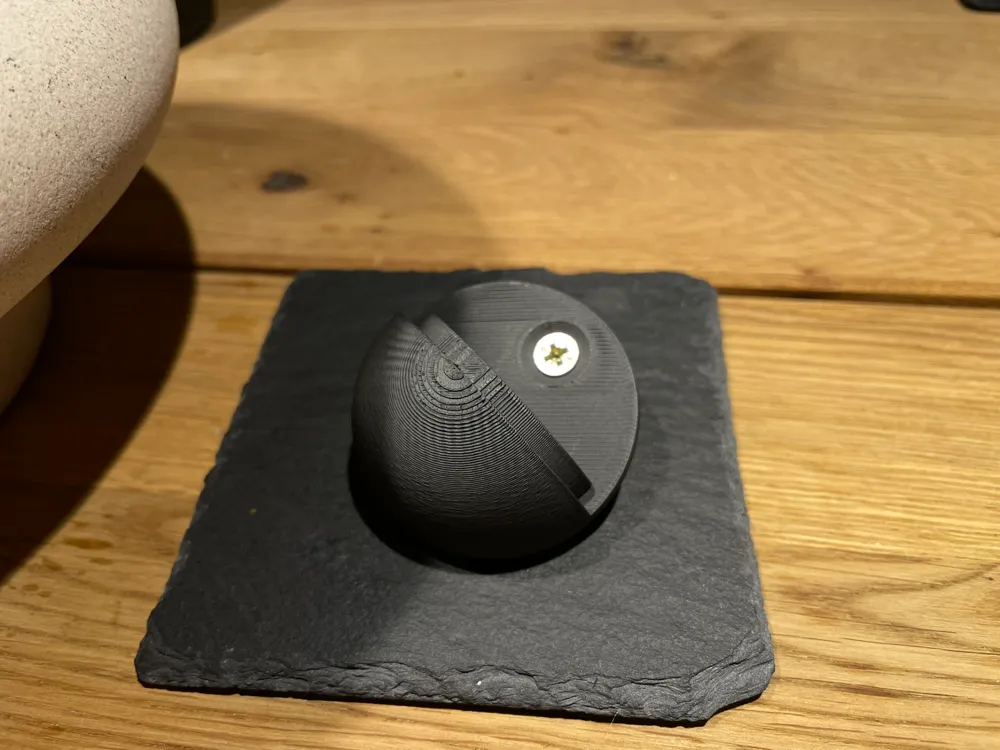

- With one hole - the advantage of this model is that you don't have to calculate the angle at which the door opens.

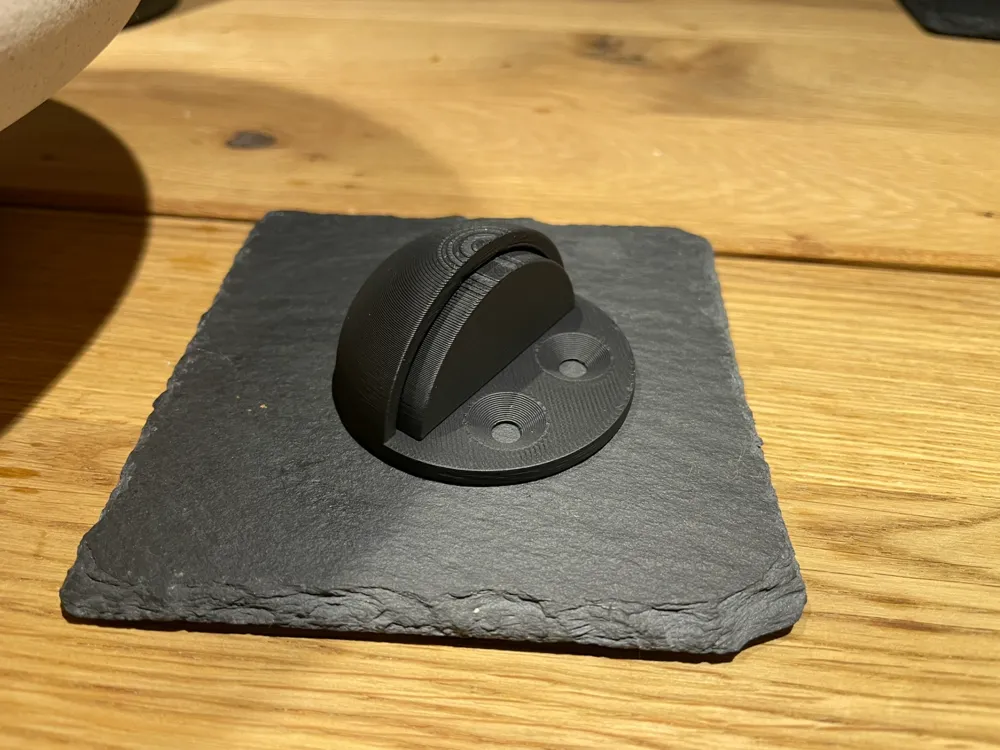

- With two holes - the advantage of this model is that it offers a strong fastener.
For the model with mounting using double-sided adhesive tape, see the link below
Door Stopper (over-engineered)

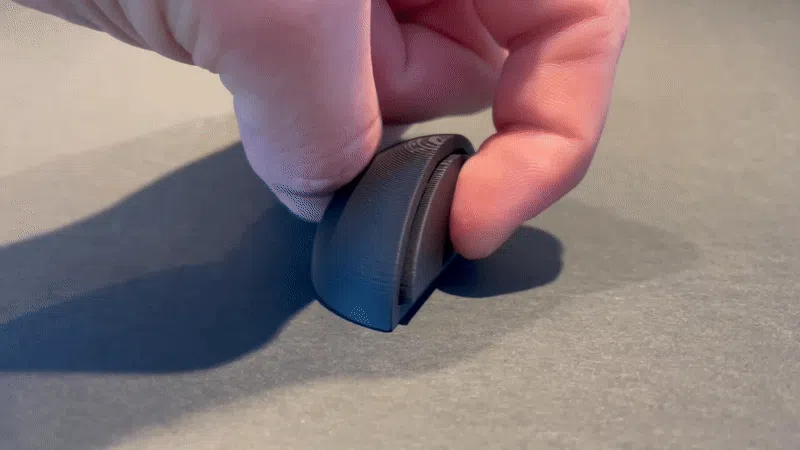

The design concept is based on a spring to absorb the impact with the door.
For installation please follow the below steps:

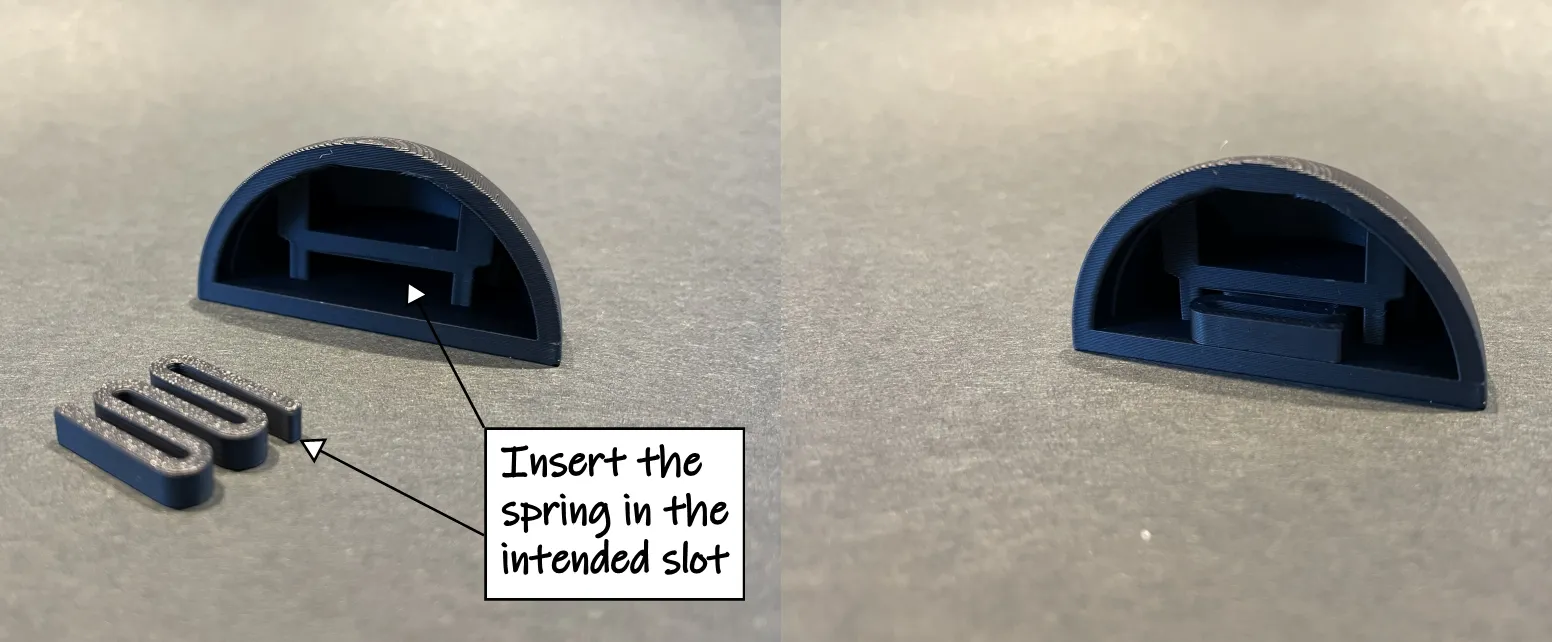

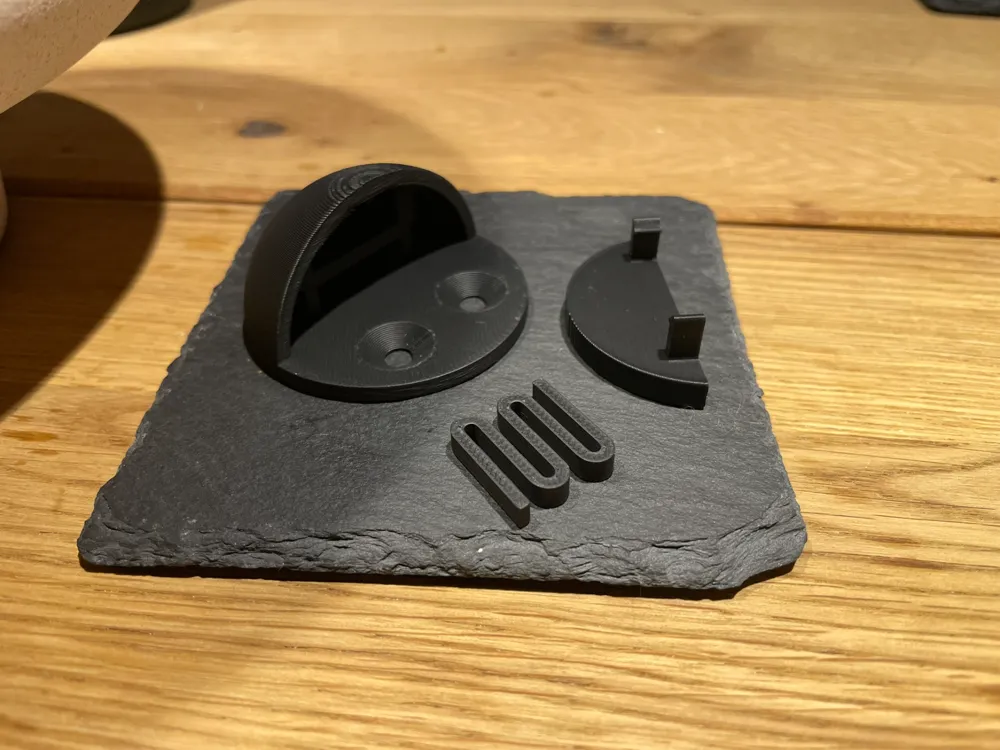

Insert the spring in the intended slot.

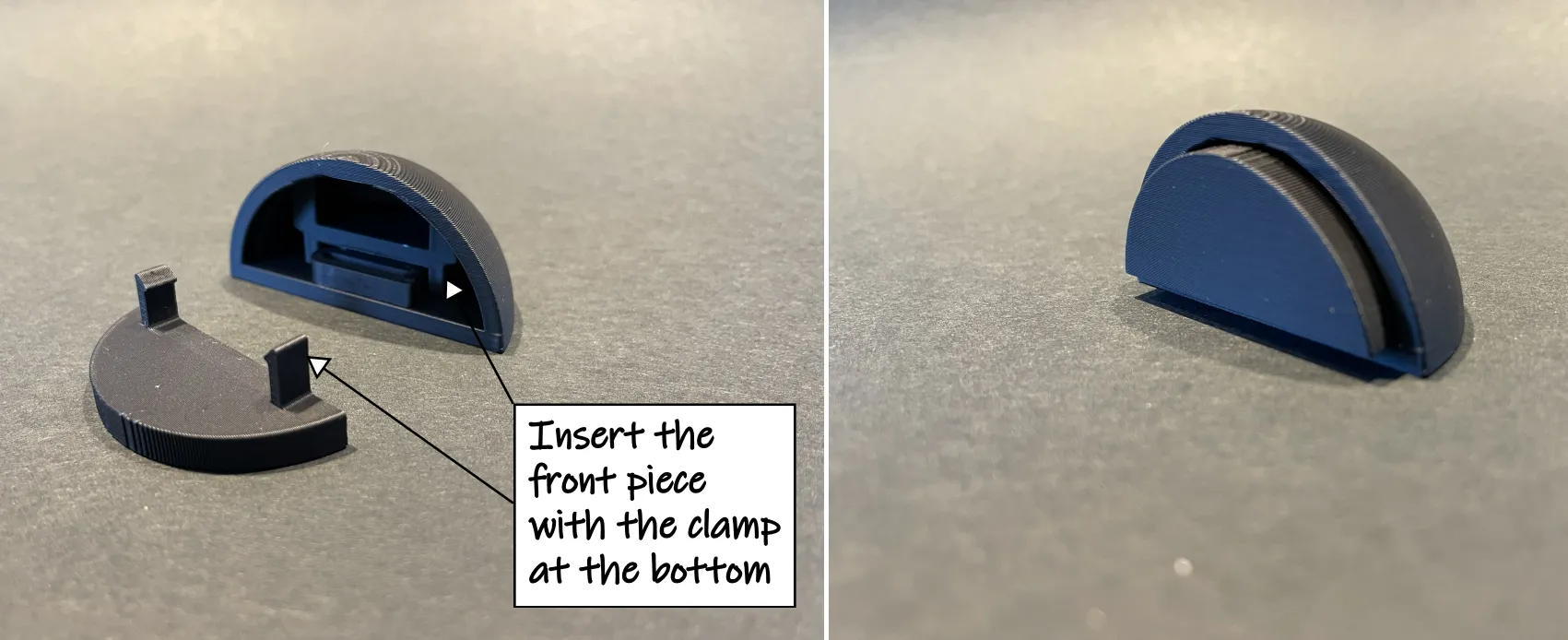

Insert the front piece with the clamps at the bottom.

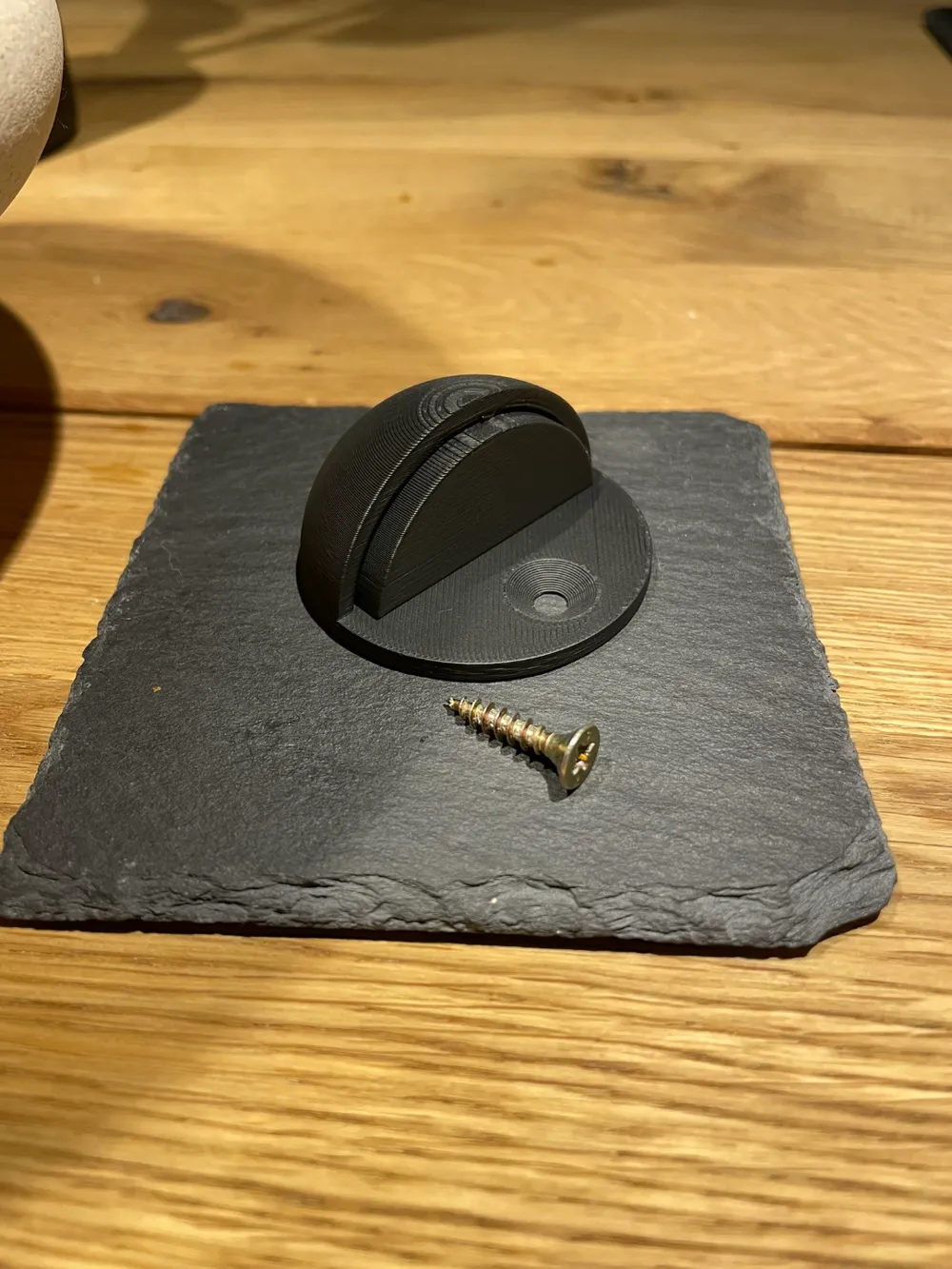

Updated for floor mounting. Use 4mm Dia. screw for fixing to the floor.
