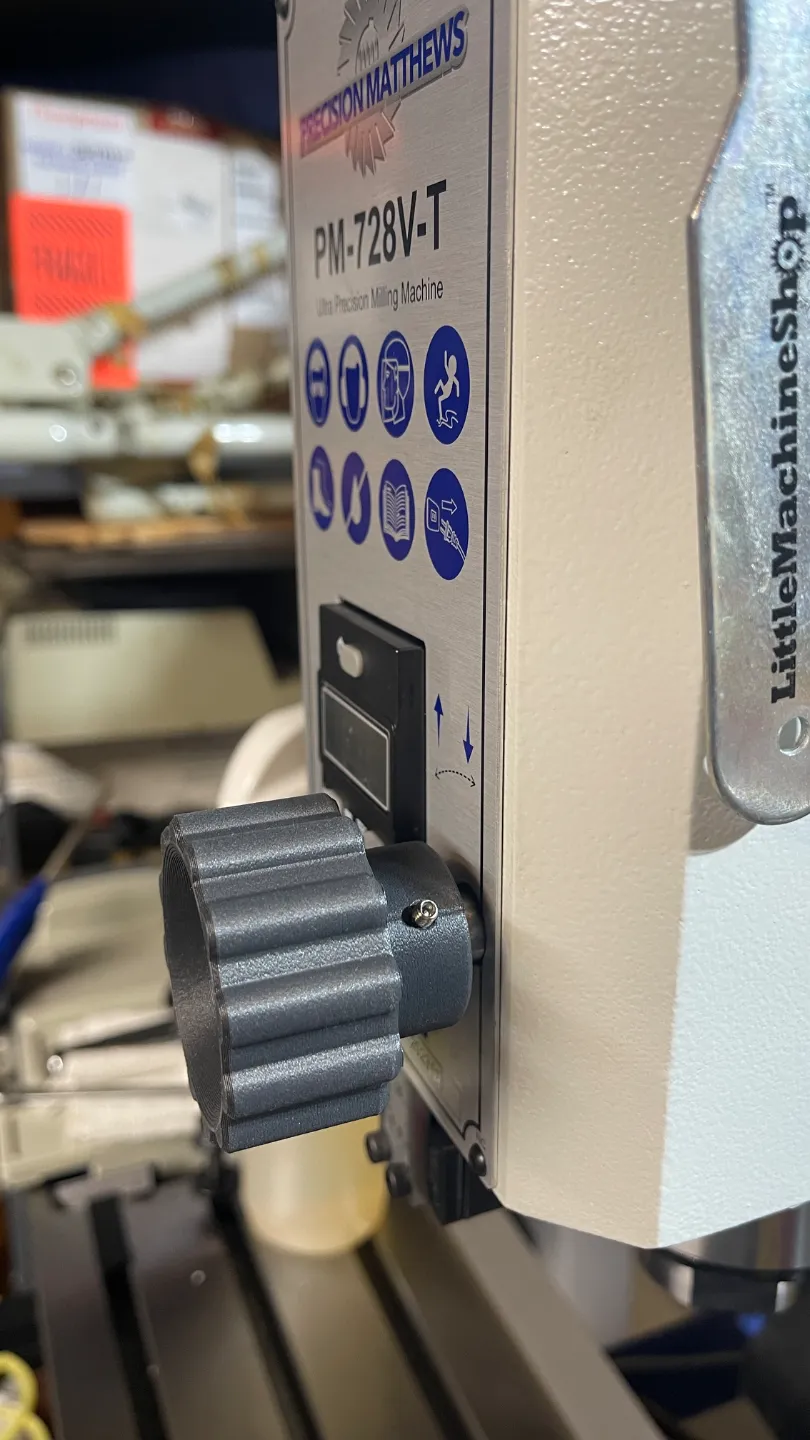

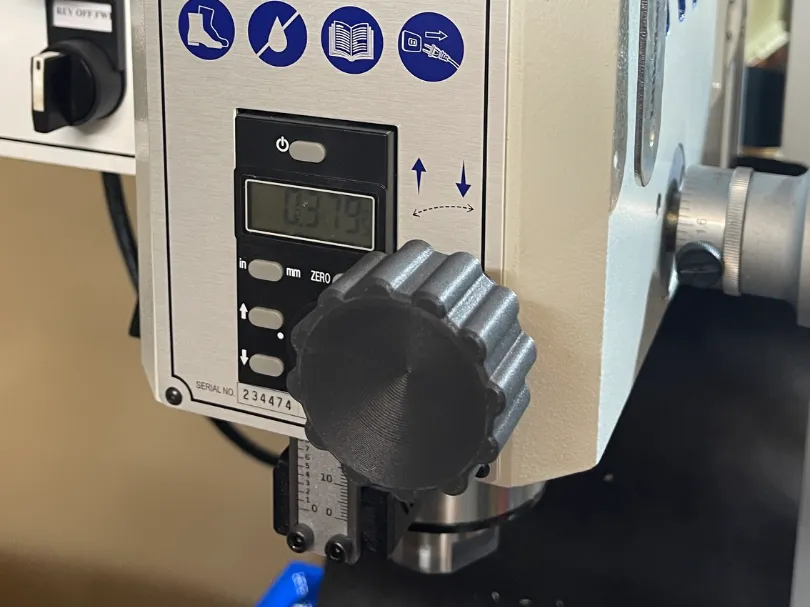

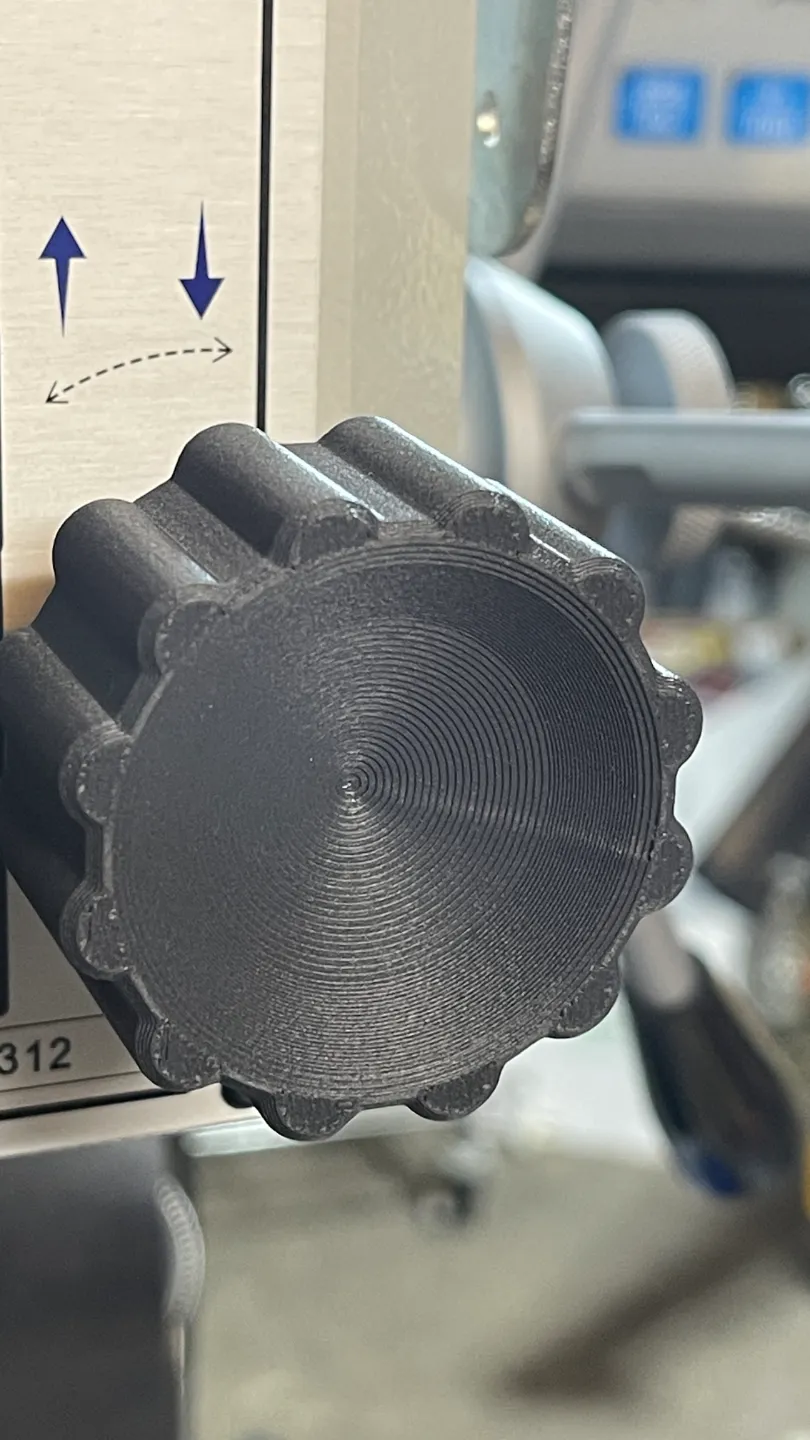

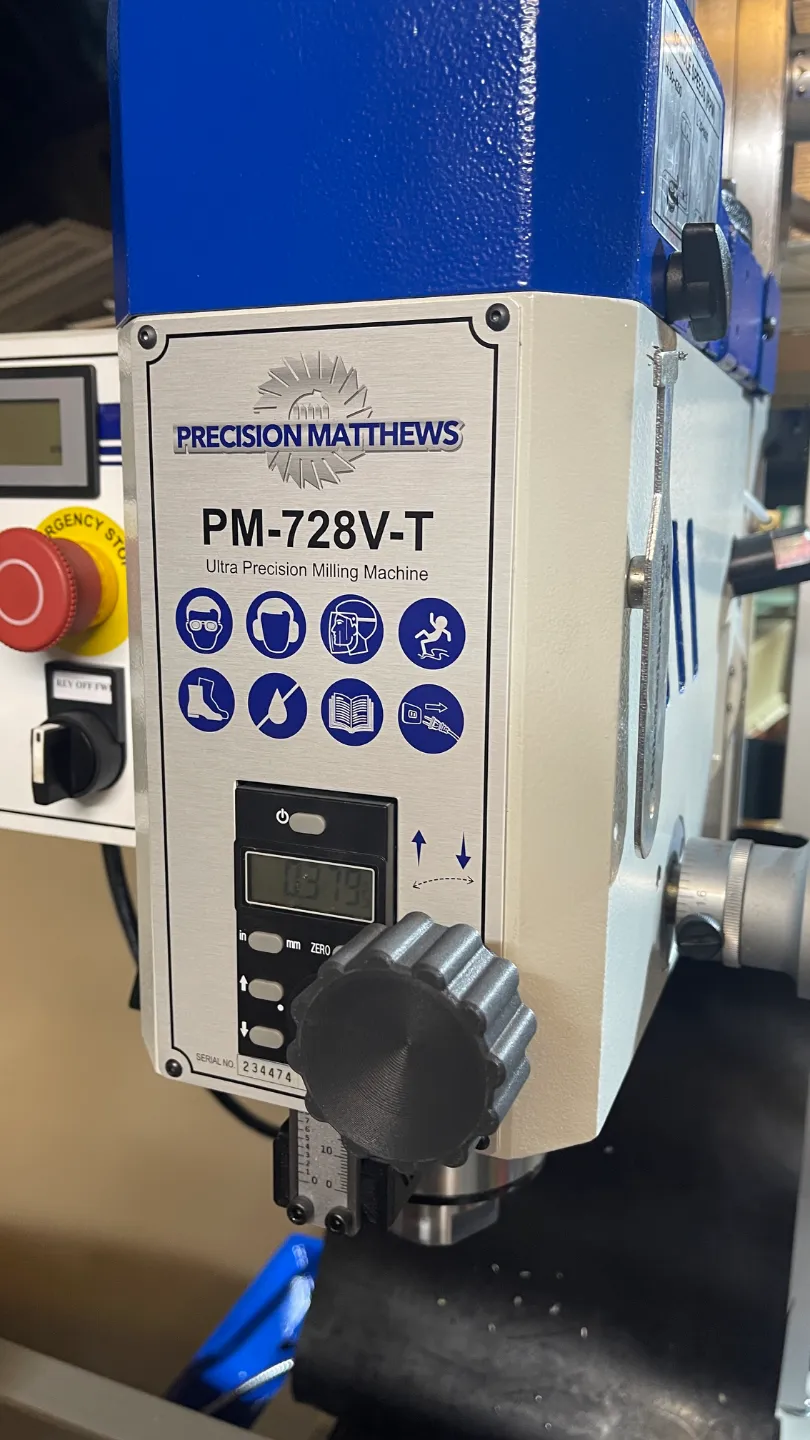

Here is a Quill fine feed knob for a Precision Matthews PM-728VT.

The model has a tapped 6-32 hole for a set screw. If you need another thread type, let me know.

I just had a lot of 6-32s hanging around so i chose that.

I would recommend printing the smaller diameter on the bed and using tree supports.

It gives a much better finish.

I used PETG-CF since is has a tapped hole. Speaking of, you will need to chase the threads with a tap.
