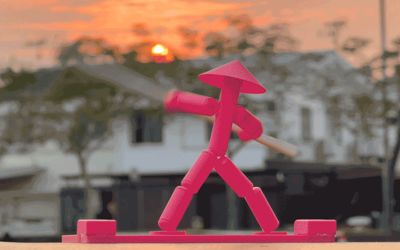

Bambu Man 3D Print Stick Fighter Toy

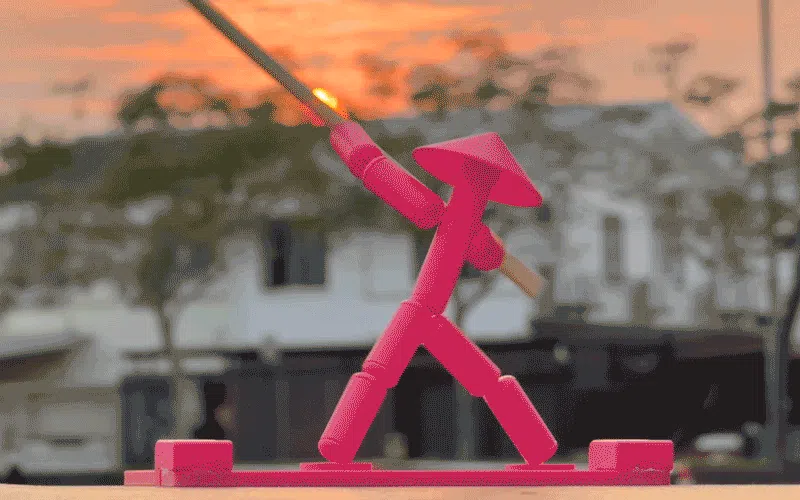

"Long time ago, our ancestor shaped the Kung Fu master using Bamboo stick, now we have the Bambu Lab 3D printer to re-create the Kung Fu master!" Welcome to download this project in Bambu Lab Makeworld community

 I used Bambu Lab A1 Mini and PLA-Basic for the job, tested with PLA Silk+ and PLA-Matt, all works fine.

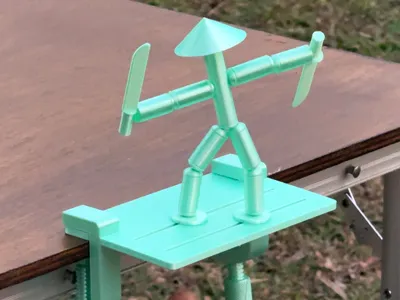

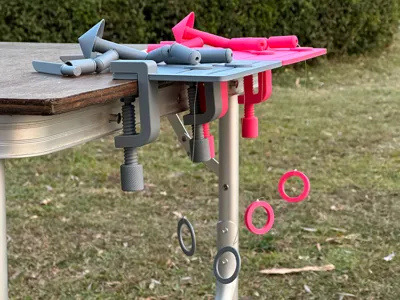

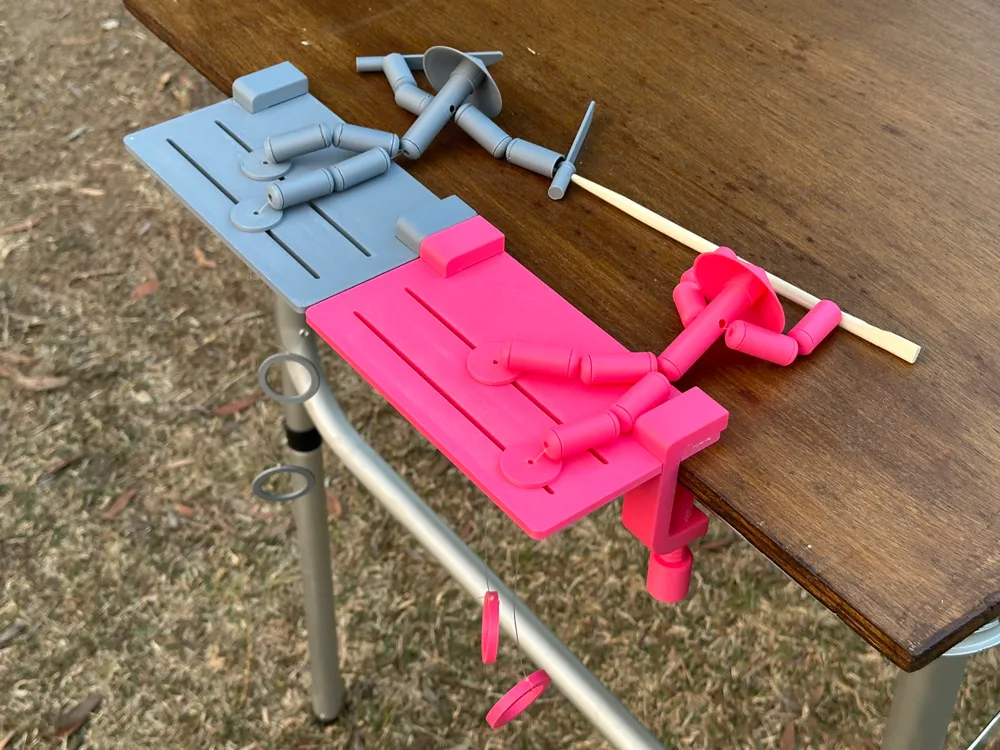

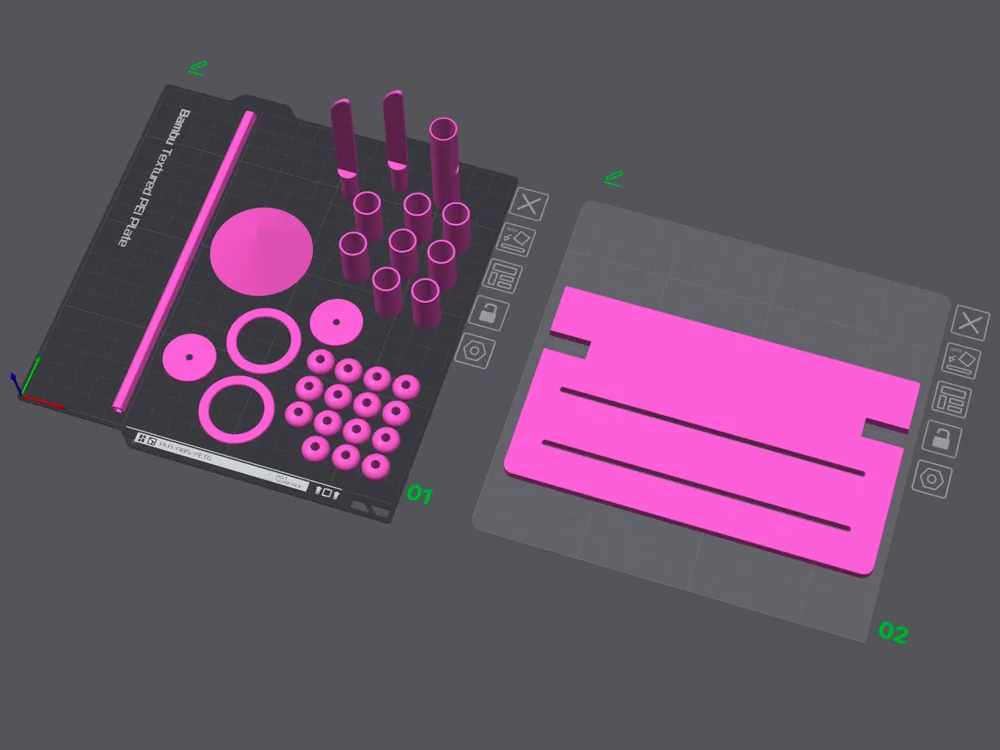

There are Two plates to print, one is the Bambu man, one is the stage with two clamps, each takes about 3 hours to print on my A1 mini using PLA-Basic material. The clamp os good for table of max. 35mm thick.

Things you need to prepare :

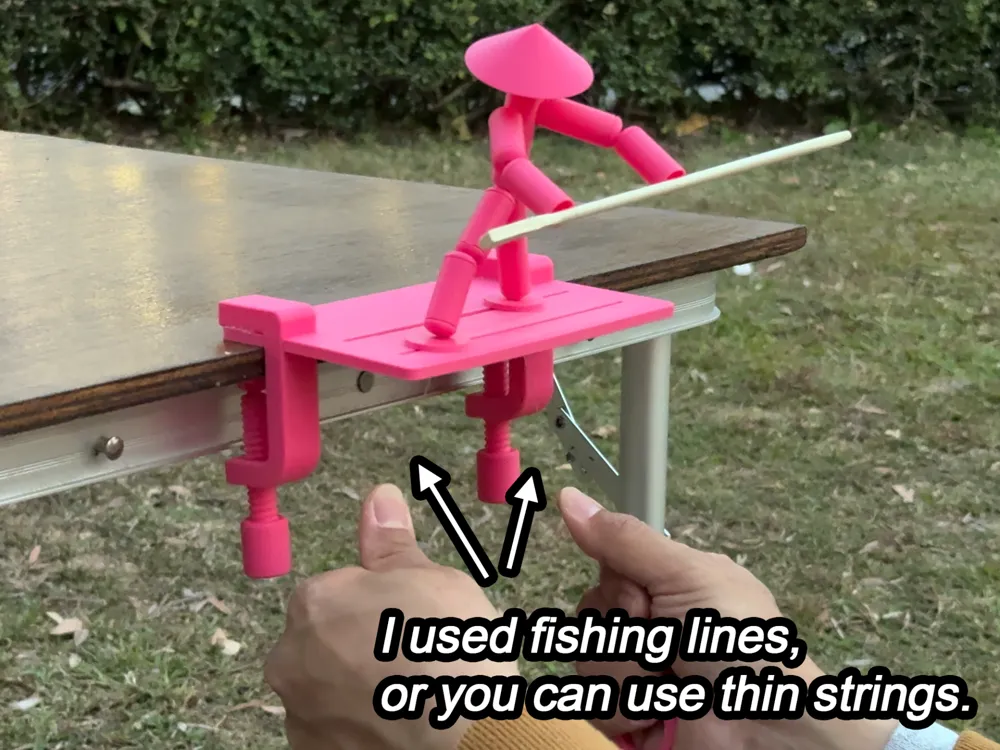

1. 2 x Thin strings, each 35-40cm (about 1 foot 2 inches), I used fishing lines for mine. The shorter the line the better the control.

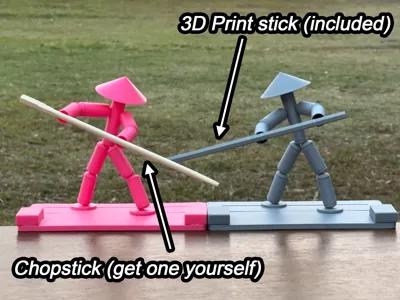

2. Maybe one disposable chopstick, because it's lightweight. But you don't really need it, I have a 3D print stick included.

How to Assemble?

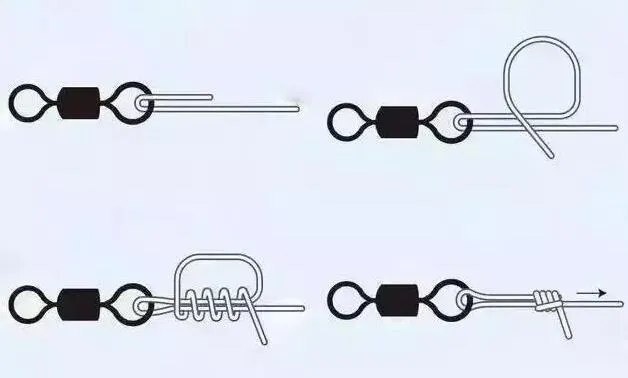

1. It's very simple, just make sure you know how to tie a knot, this is an example :

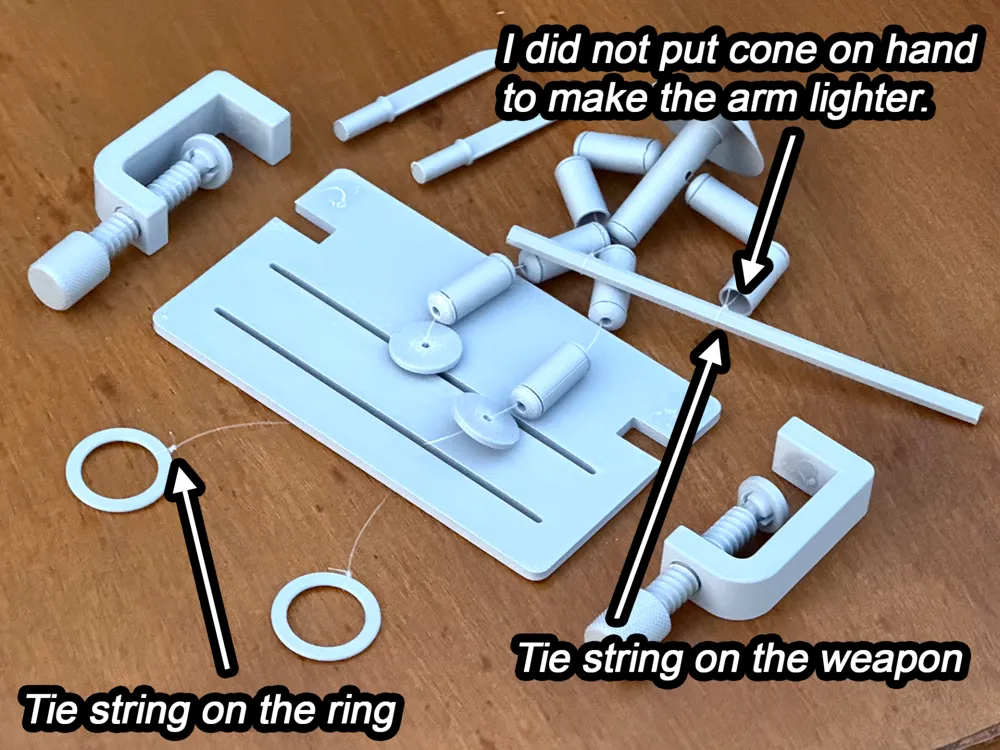

2.  Tie the string on the weapon first, then go thru two limp tubes, then the body side hole, then the  body lower hole, then two limp tubes again, and then the foot plate, thru the slots on the stage, finally tie to the ring. Remember, different leg, different slot.
