PM 728VT Spindle Lock
Print Profile(1)
Description
This is a spindle lock for the Precision Matthews PM 728 VT Mill.
Removes the need to have 3 hands and the C wrench.

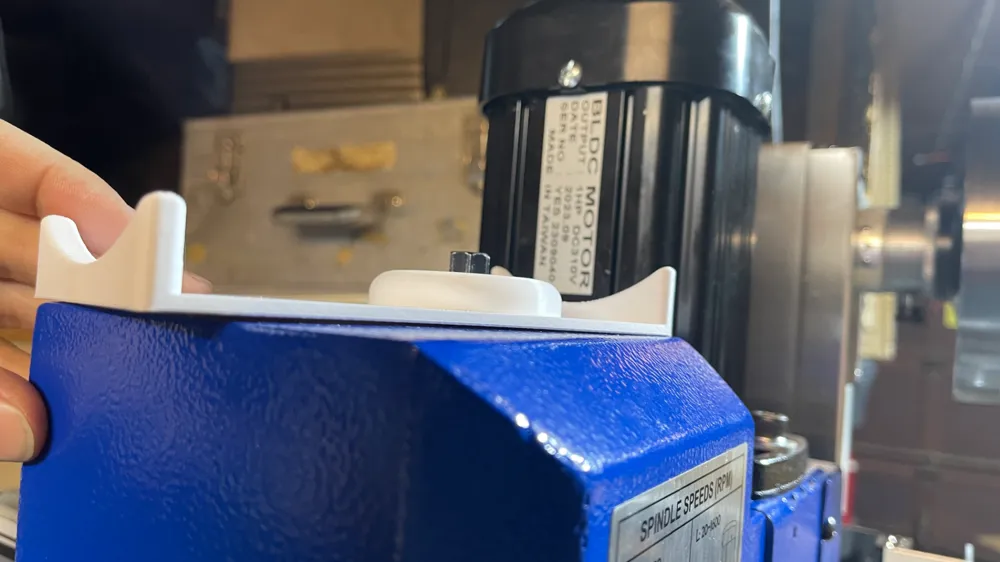

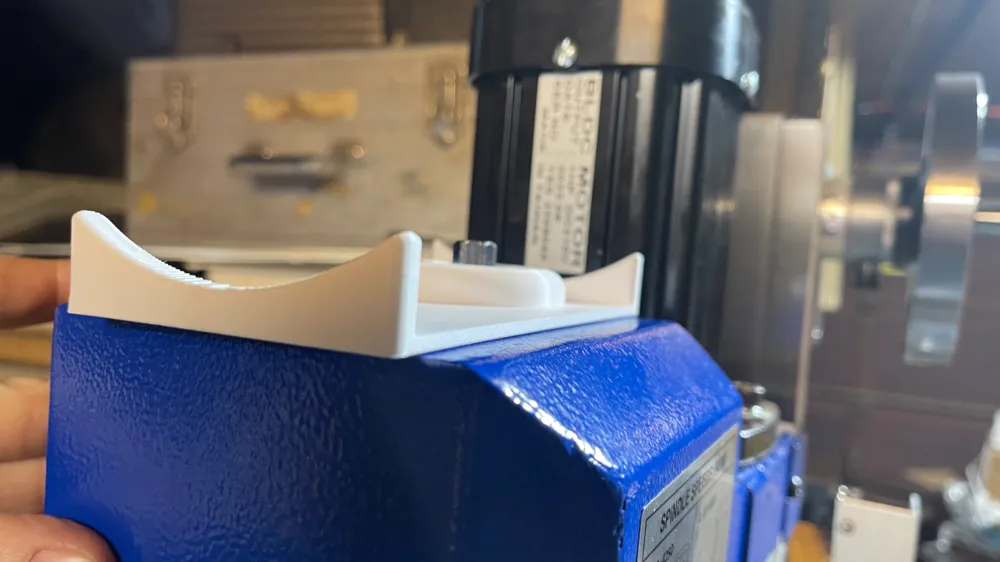

First use the top to rotate the spindle so that’s it straight.

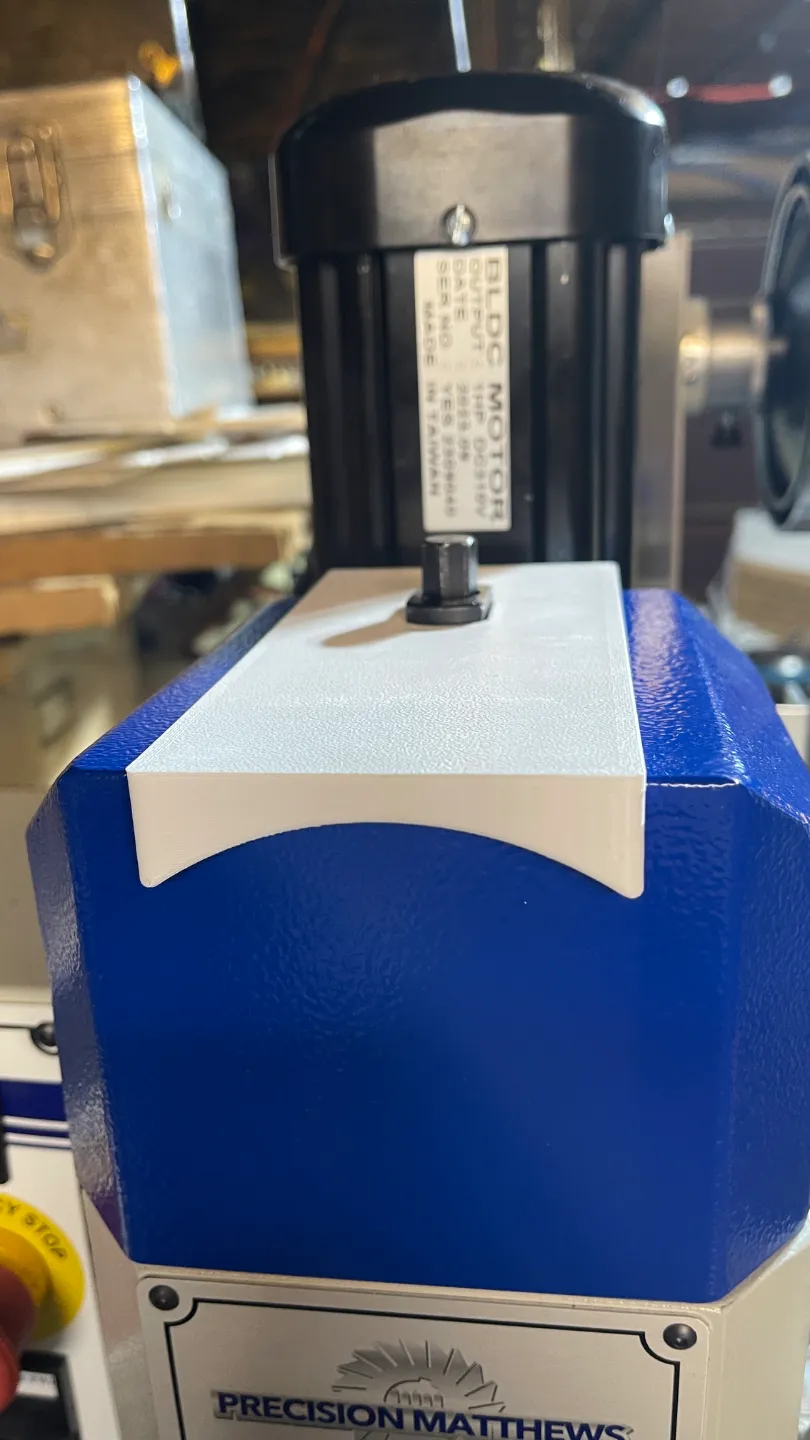

Then turn it over and place it on the spindle cap flats. Push it all the way down.

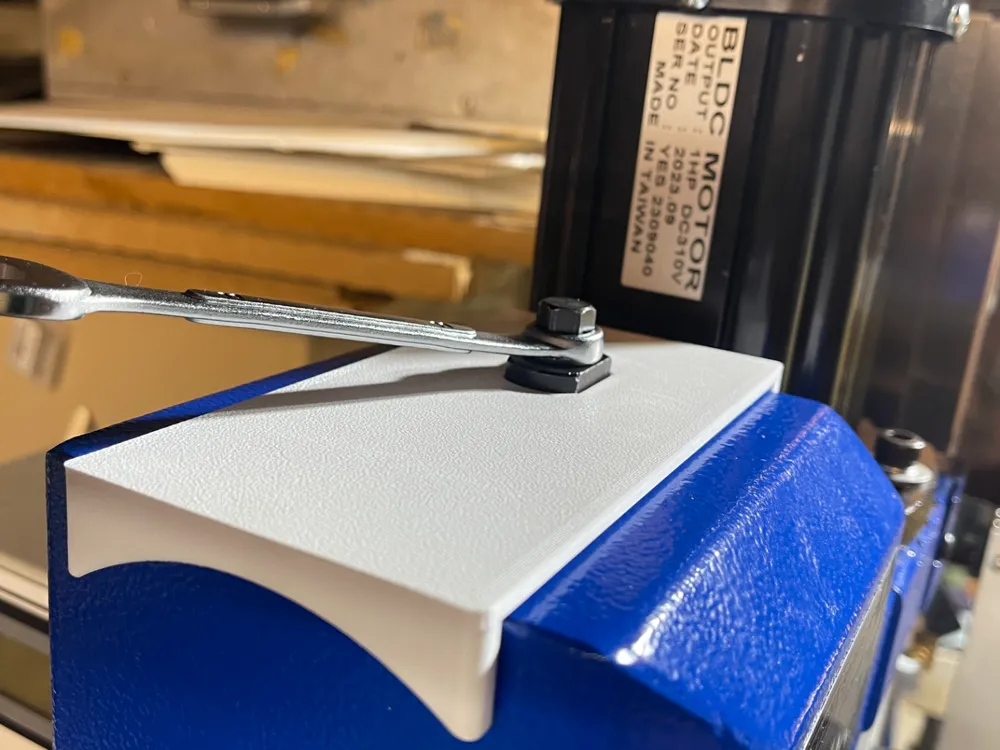

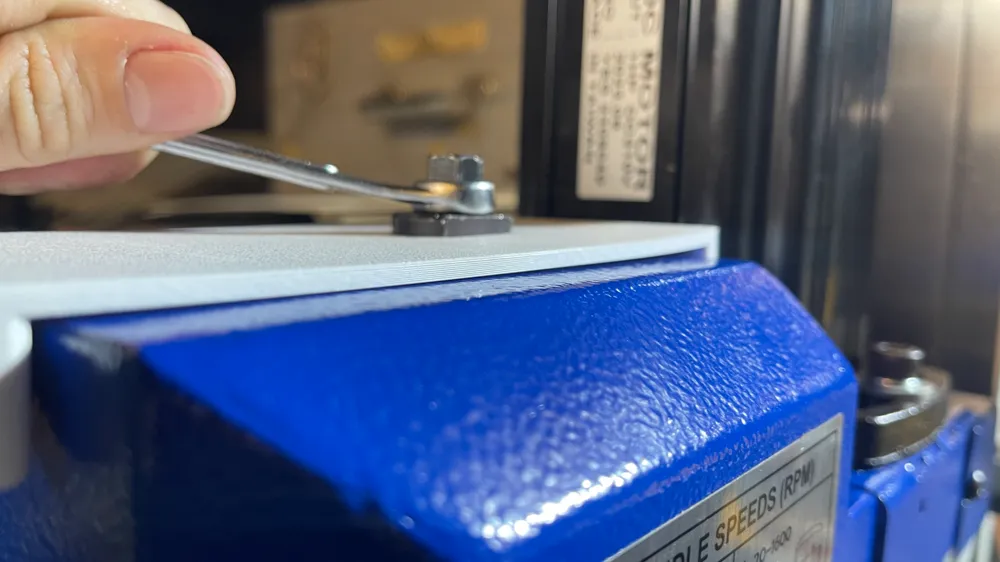

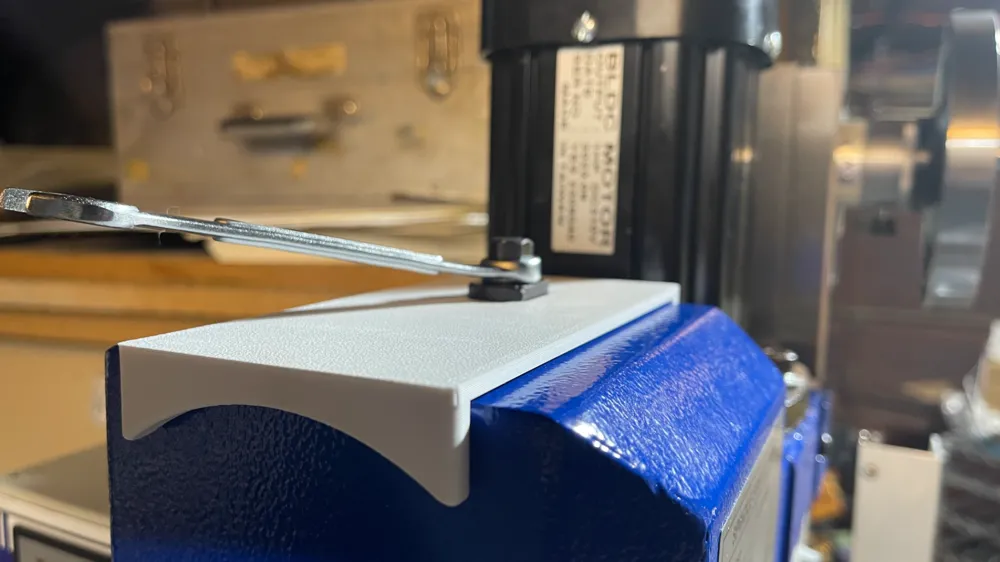

Use an 11mm wrench to loosen or tighten the draw bar. Keep a hand on your tool/collet so it doesn't fall out.
The print will flex when you have tightened it enough. Happy accident but it’s a good gauge to not over-tightening the draw bar.
PETG or similar filament that has some resistance to oil.
