Side spool holder (For P1S and X1C)
Print Profile(1)
Bill of Materials
- M3-14 Step Screws x 4:
Description
-2 Bearing (608ZZ, 608 2RS or 608OPEN)
-4 M3-14 Step Screws
-About 20 cm of PTFE tubing
-No ams
-Minimalist
-Solid
-No gap
For this spool holder, you need 2 bearings (608ZZ, 608 2RS, or 608OPEN). Personally, I used my old 608 2RS bearings that I had and it works very well.
You also need 4 (M3-14 Step Screws). These are the spare screws that come with the hotends of P1S and X1C.
For the PTFE tube, I cut the spare one that comes with the printer. You need about 20 cm of PTFE tube.

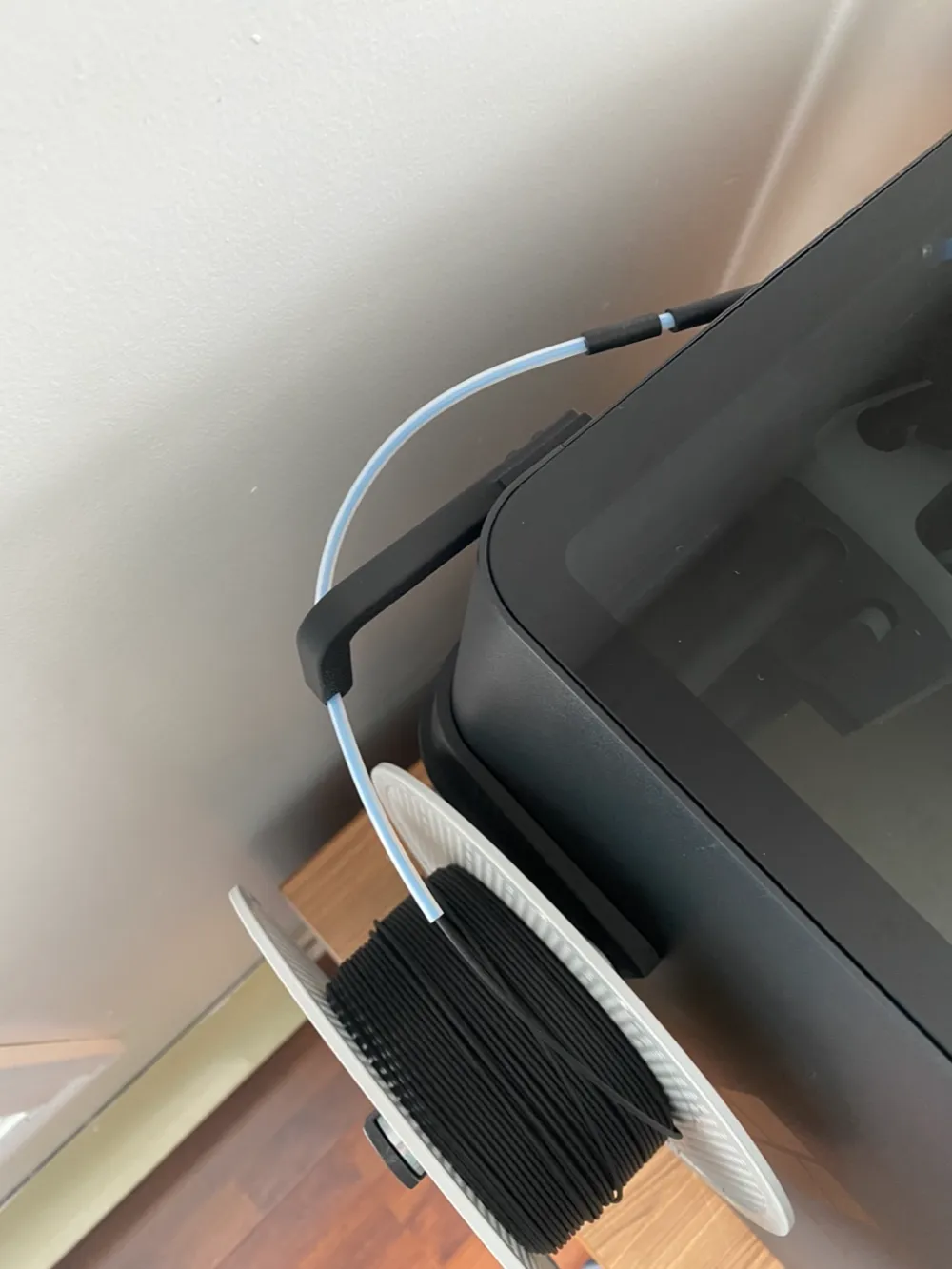

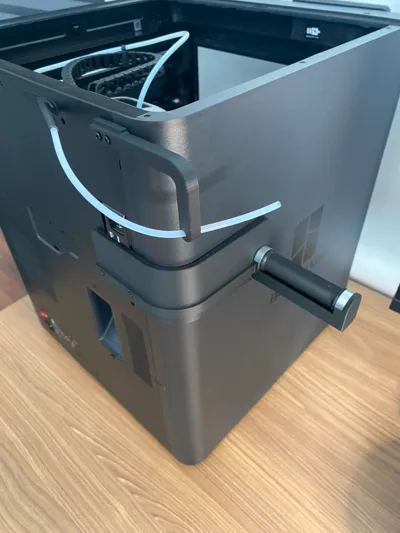

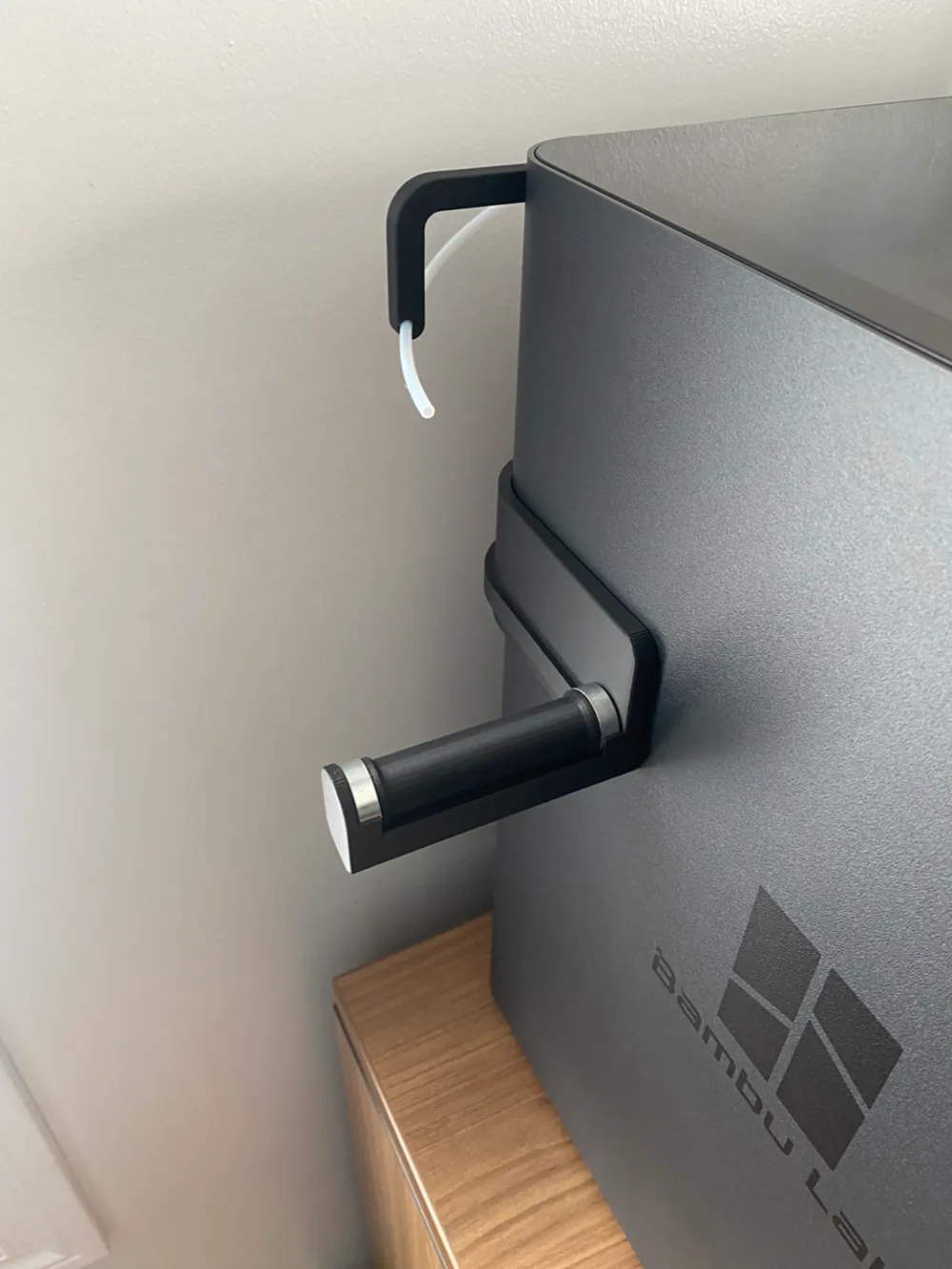

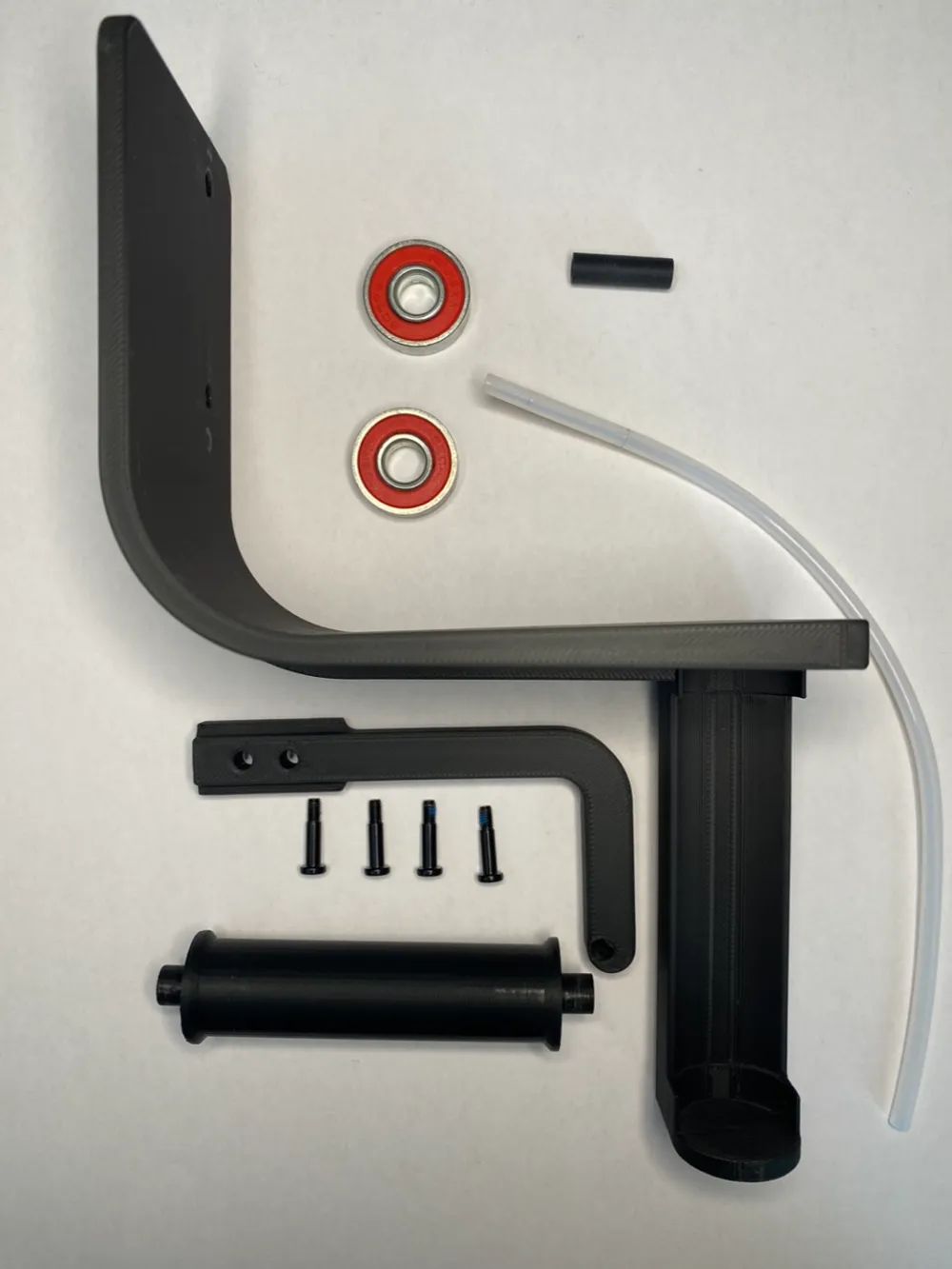

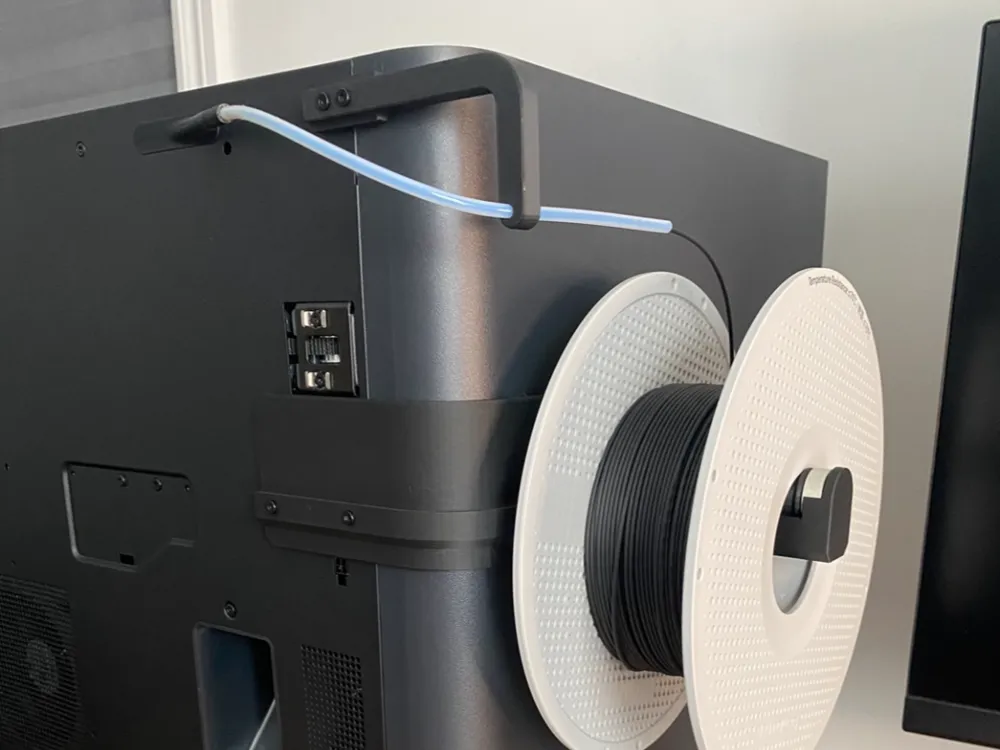

The print includes 4 parts: the holder, the roller, the tube guide, and the PTFE tube coupler. This spool holder is very sturdy and has a minimalist design. Even though there are already several spool holder models on Makerworld, I still created my own, as none of them satisfied me. That's why I created this simple holder that only requires accessible parts. I also designed this model so that there is no space between the holder and the printer.
For the PTFE tube coupler, you can buy those from Bambu Lab or use the one I made. It can be difficult to install, but it works well.
