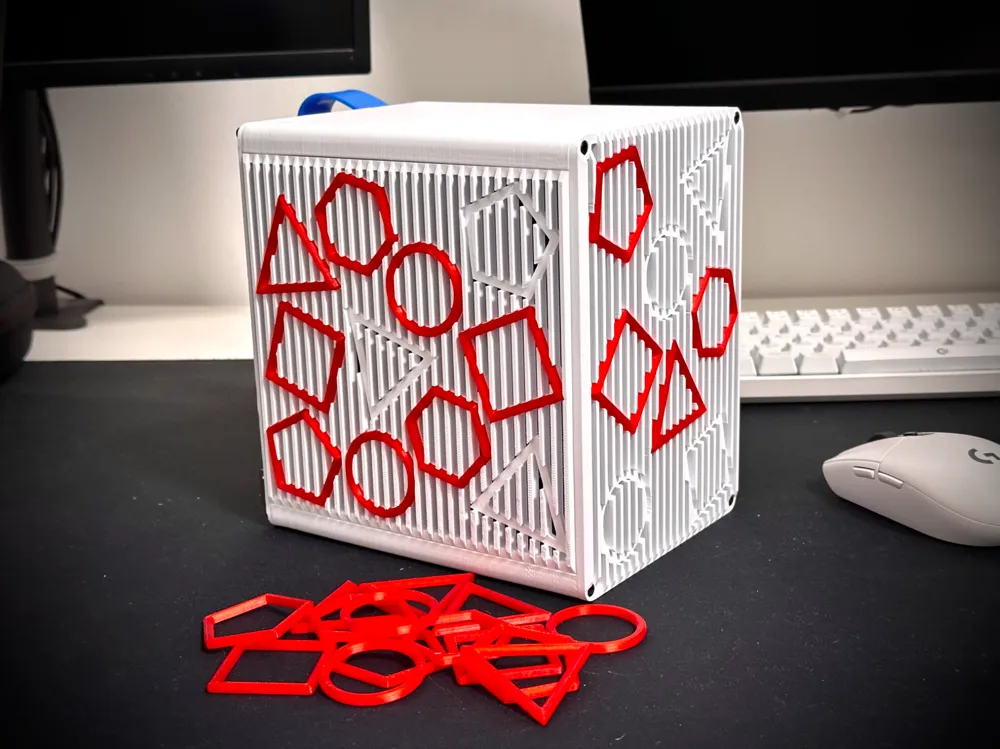

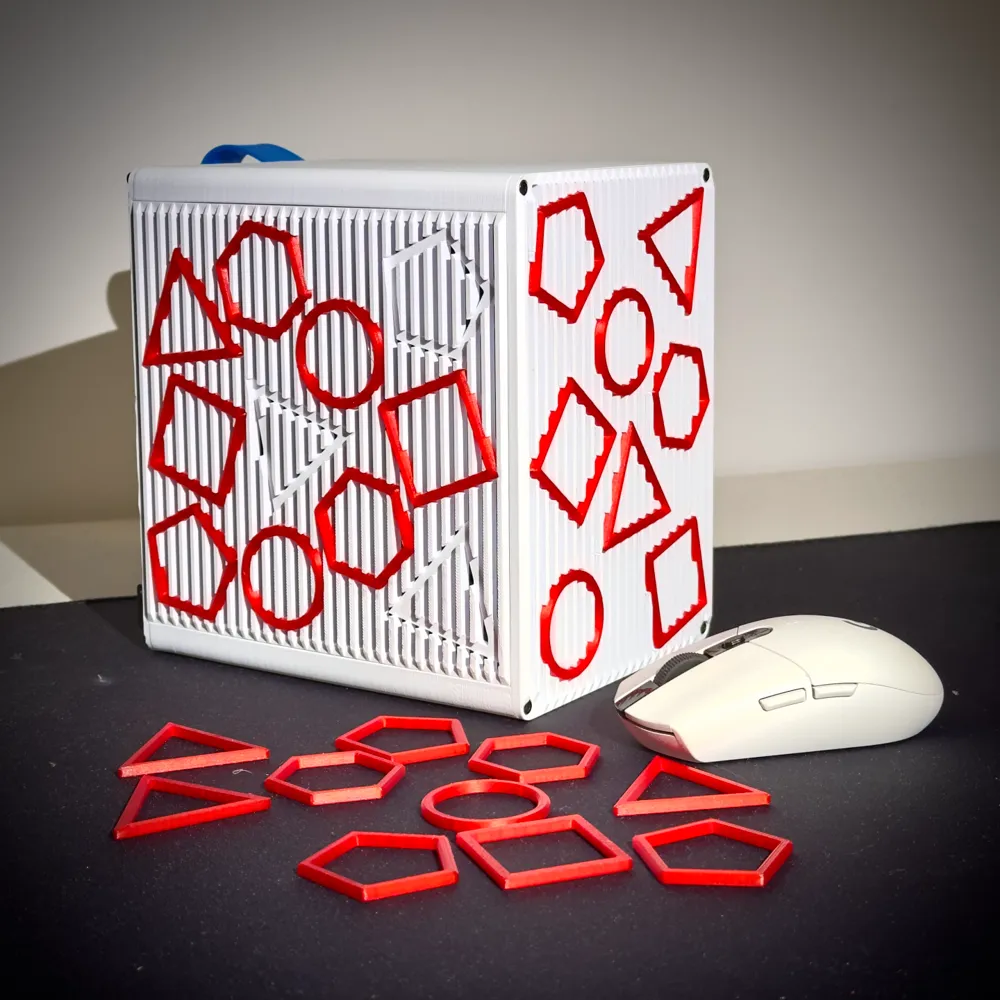

ITX PC CASE 4.5L - SFFPC - HTPC - with handle
Print Profile(1)
Description

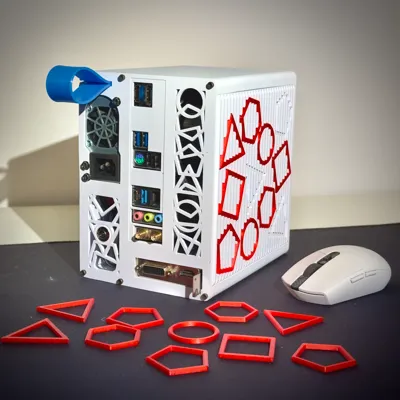

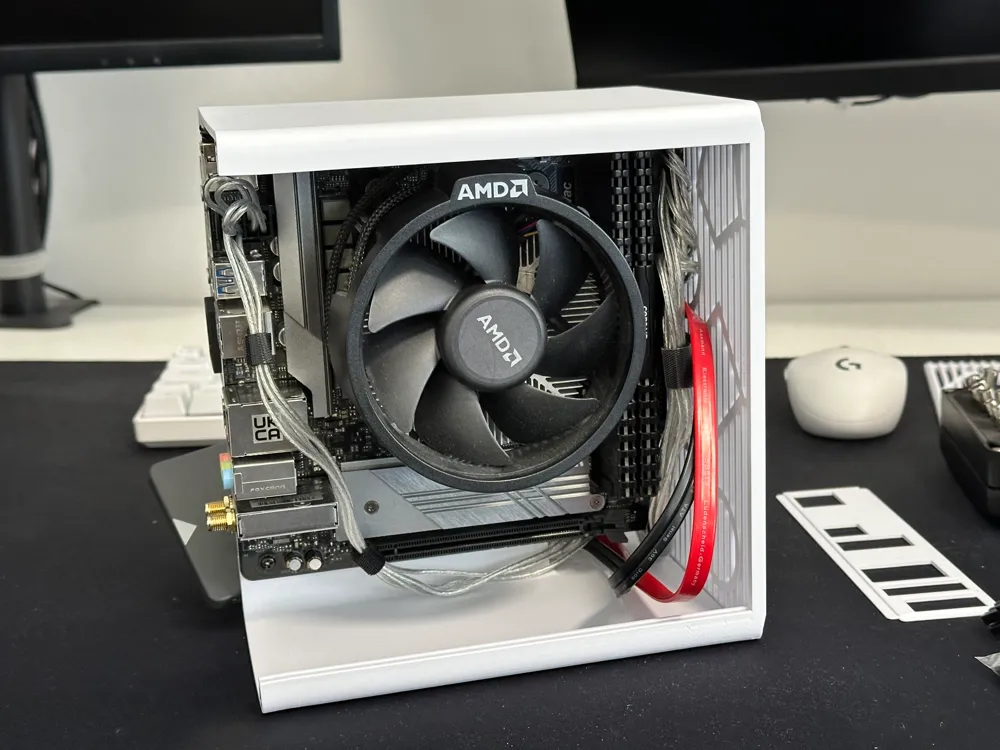

Compact ITX PC Case with optional handle
Requirements:

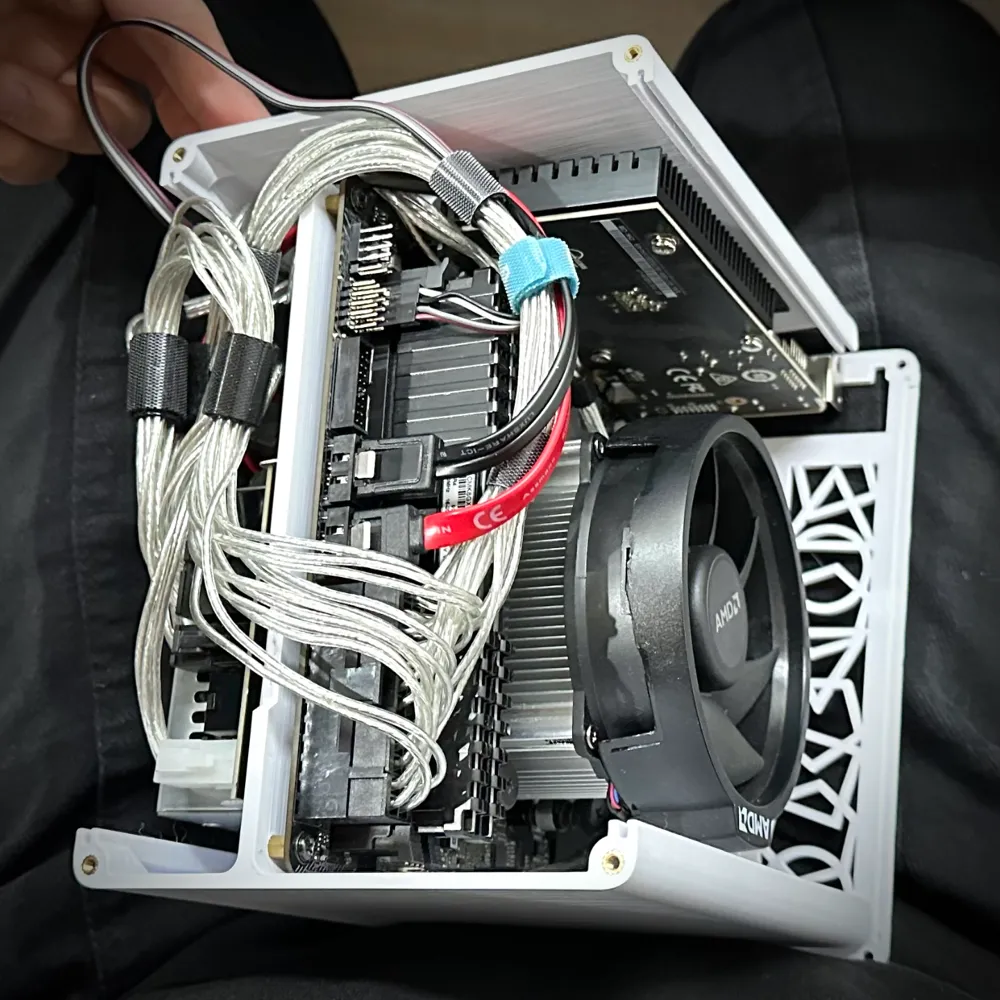

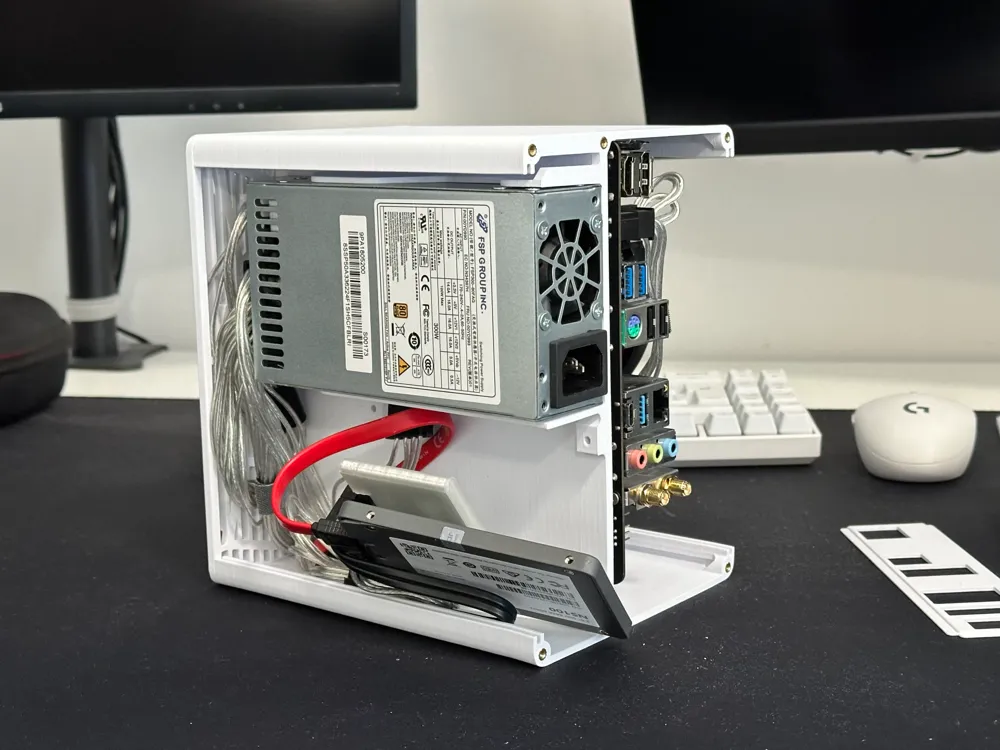

- ITX Motherboard

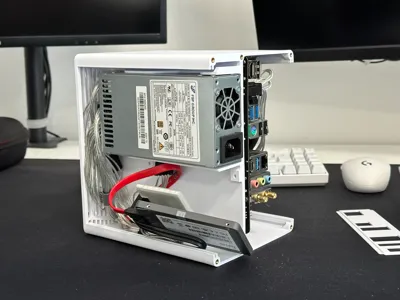

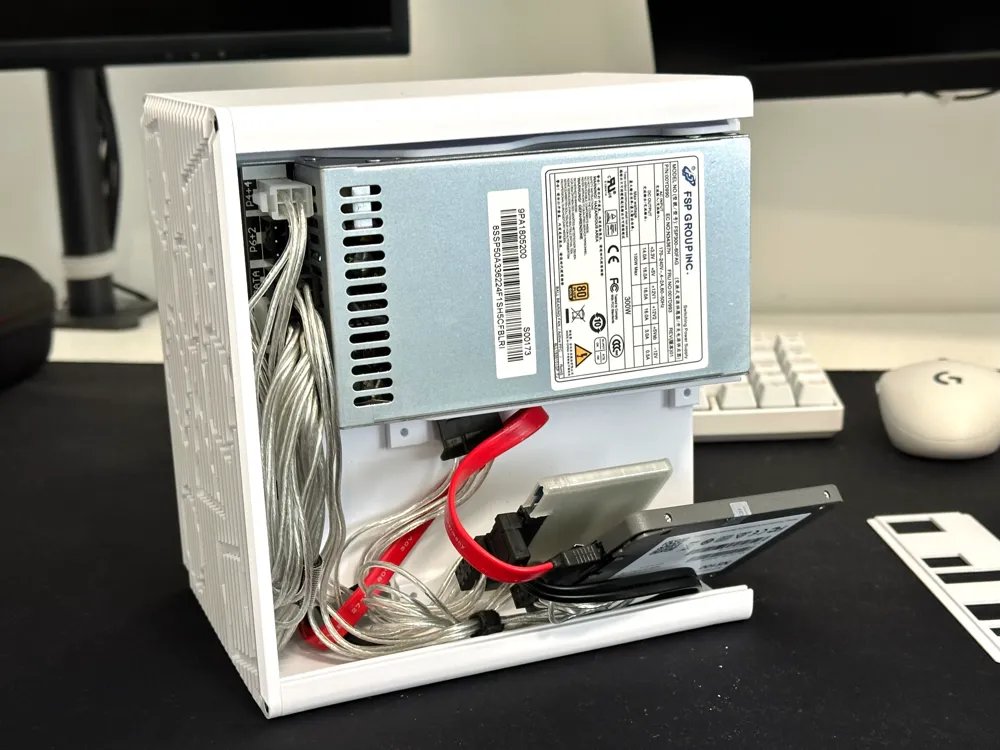

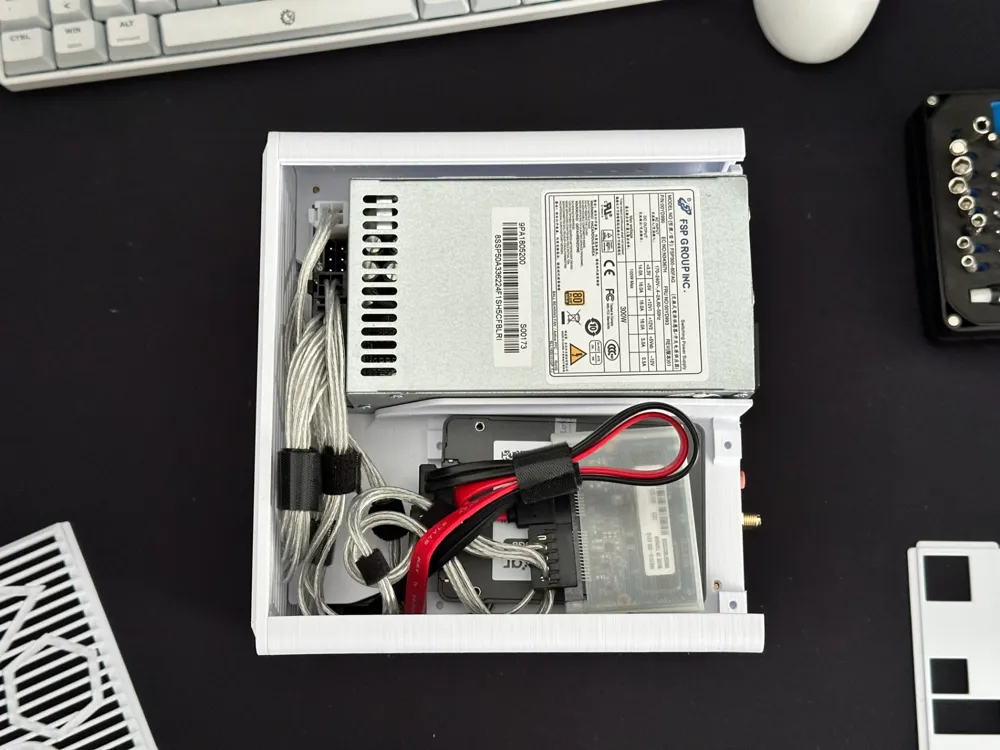

- Flex ATX psu
- Low profile 1 slot GPU
- x2 (or more) 2.5 inch SSD
- 12mm round metal power button (Optional with lights)
CLEAN THE PRINTER BED BEFORE PRINTING
you will need good bed adhesion before printing these large pieces without warping
Screws needed:
- x10 M3 screw 8-10mm (body panels)
- x6 M3 screw 10-12mm + M3 washers (Optional handle)

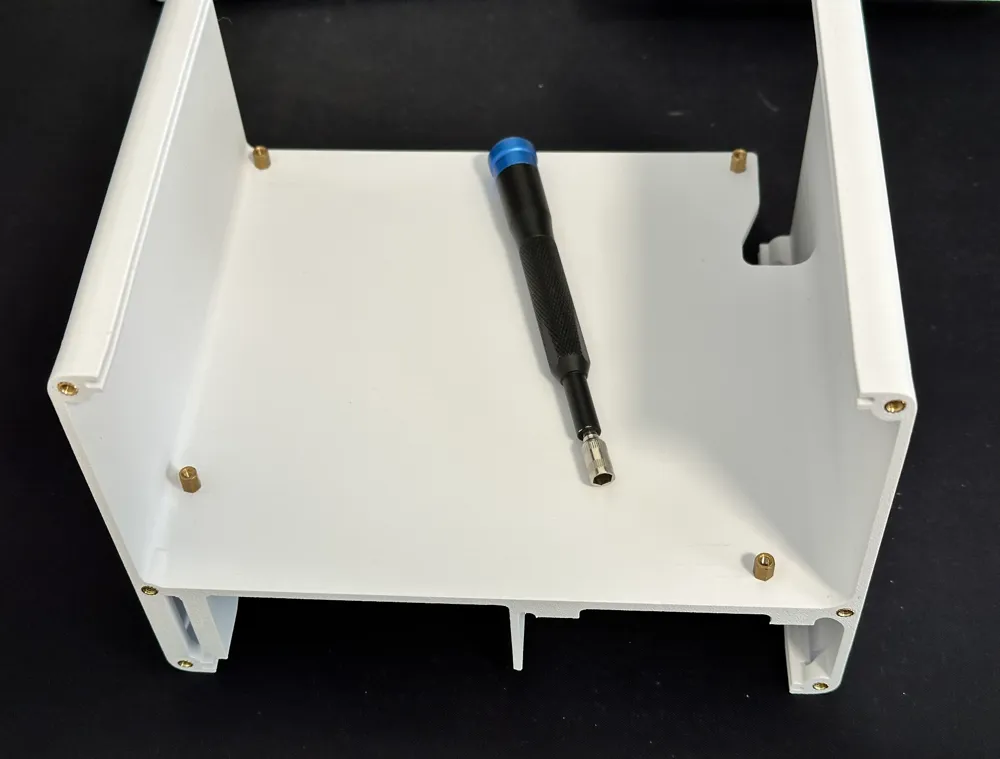

x14 M3 Heat Insert
- x4 UNC 6-32 screw (PSU screw)
- x4 motherboard standoff
- x4 motherboard screw

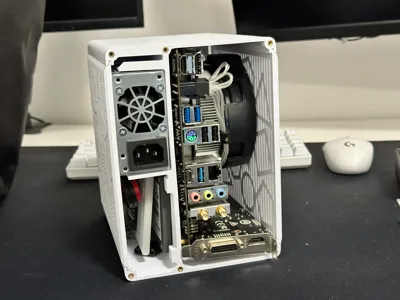

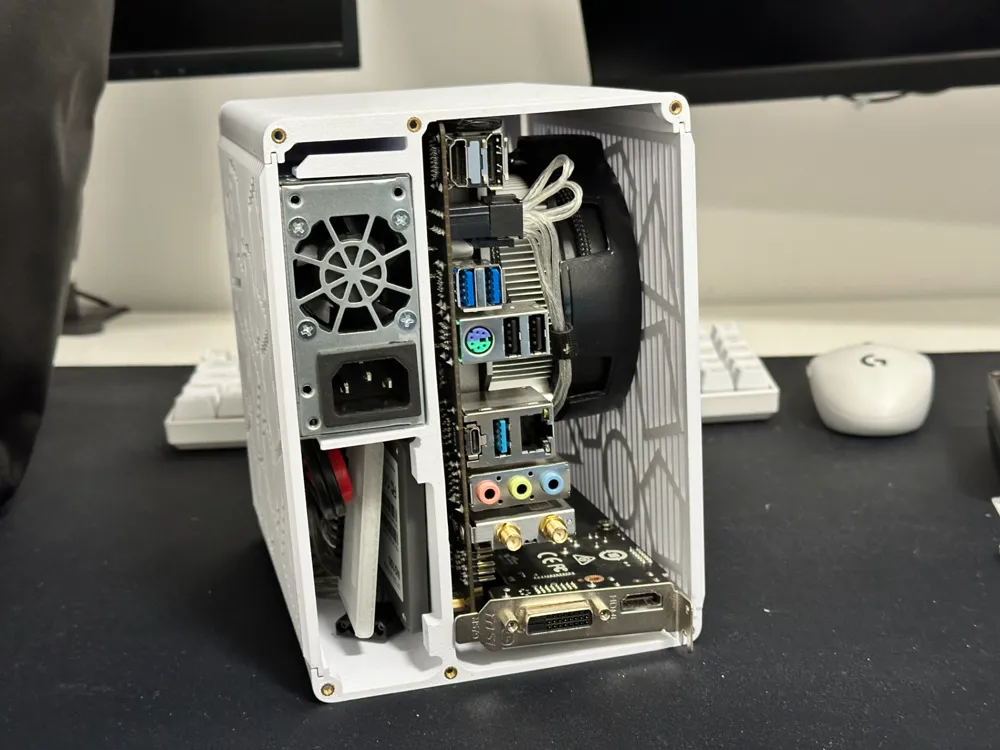

BLANK IO SHIELD PROVIDED
you need to carve out the port position
also provided the asrock a520m-itx/ac io shield if you happen to have the same motherboard

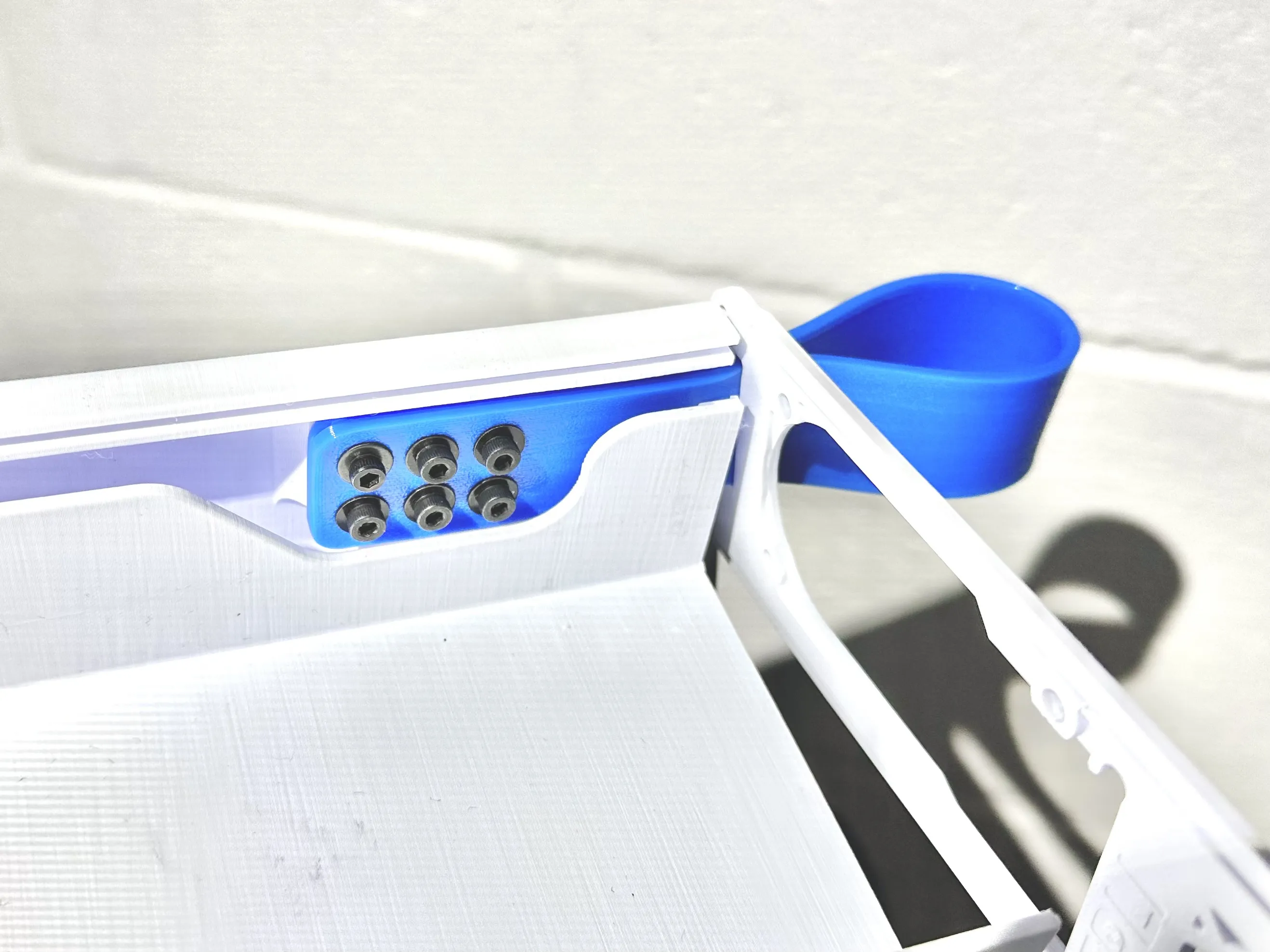

PRINT HANDLE USING T P U
x6 M3 screws with washers

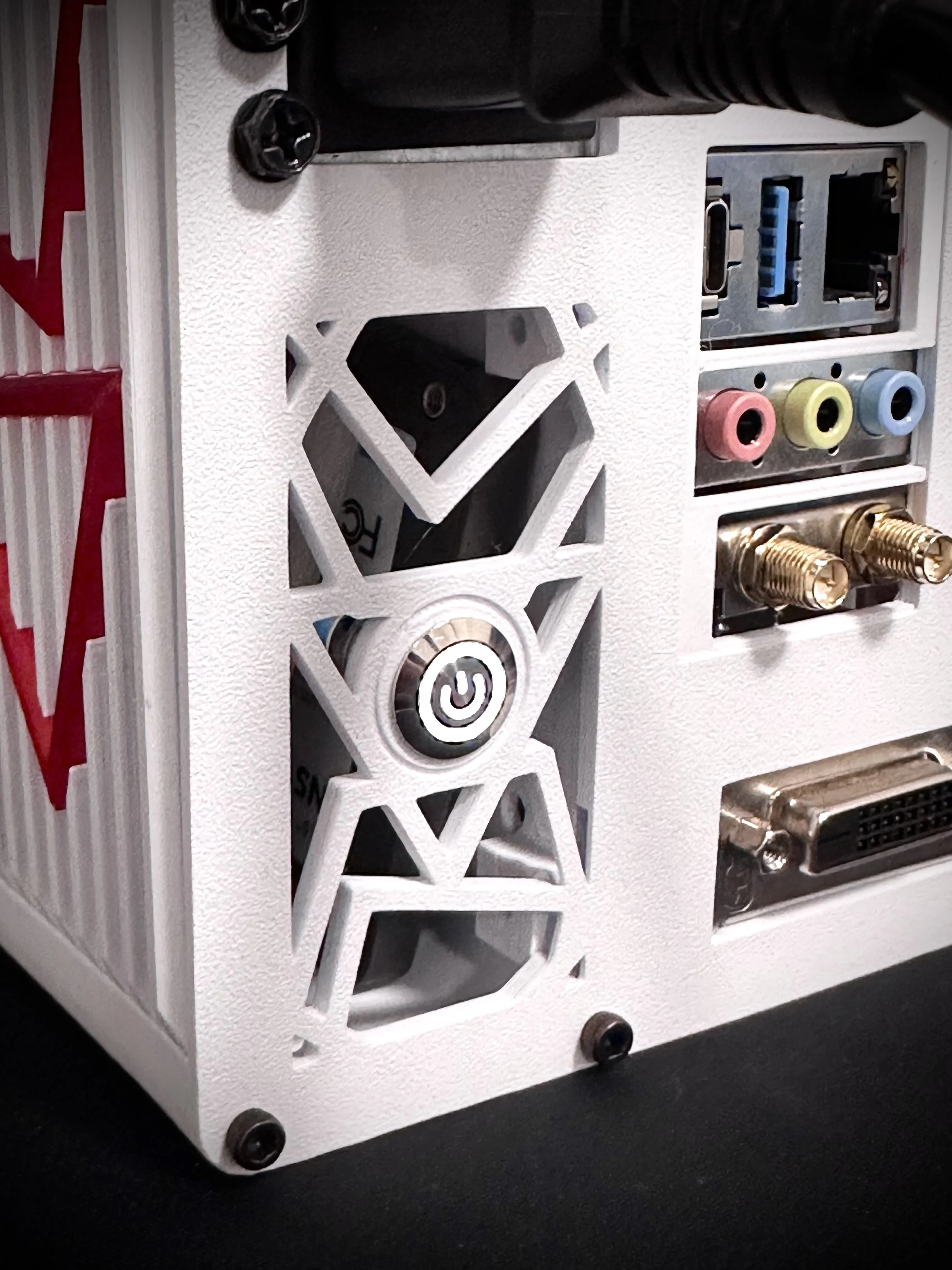

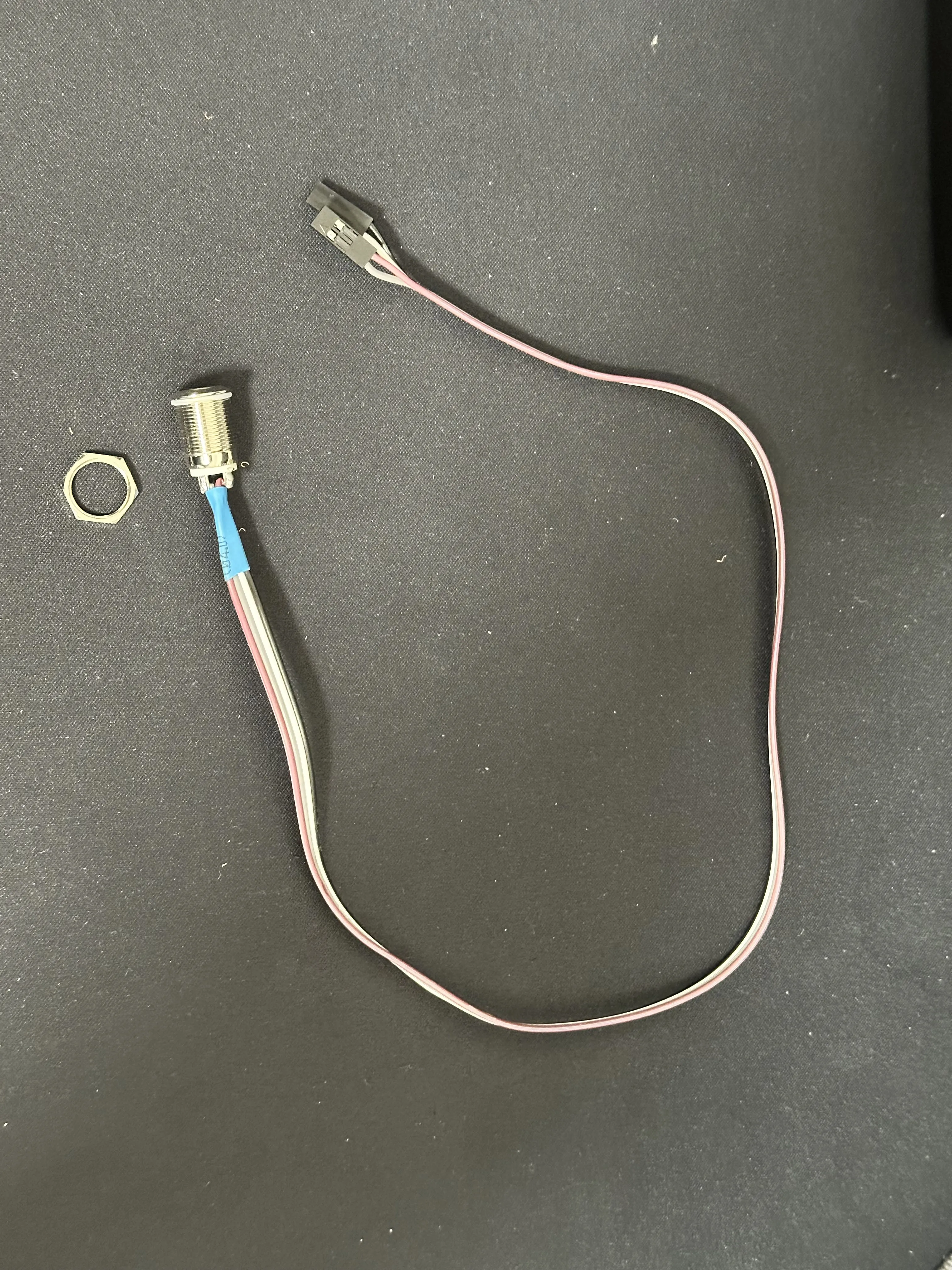

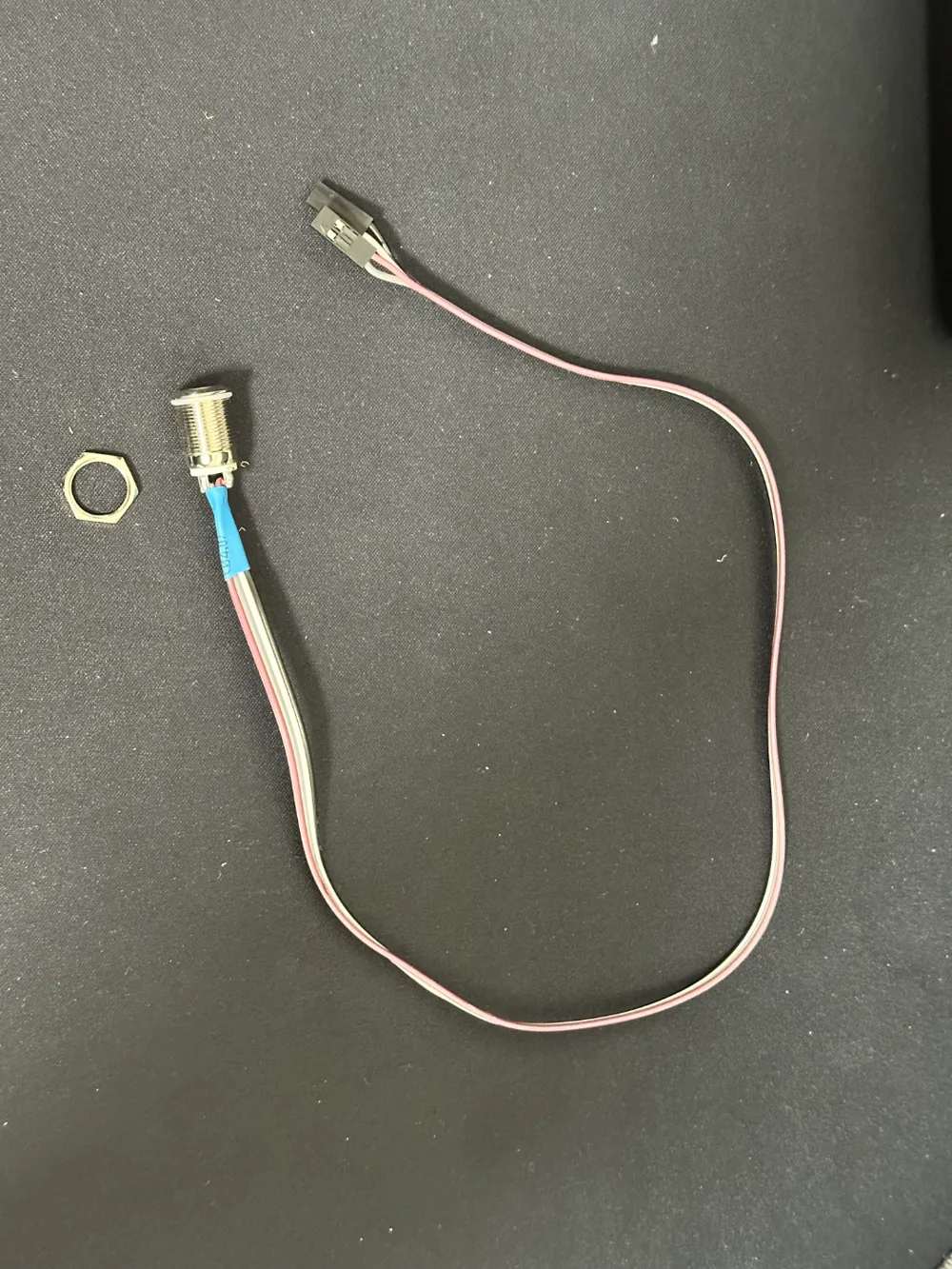

12mm metal round push button
