Description

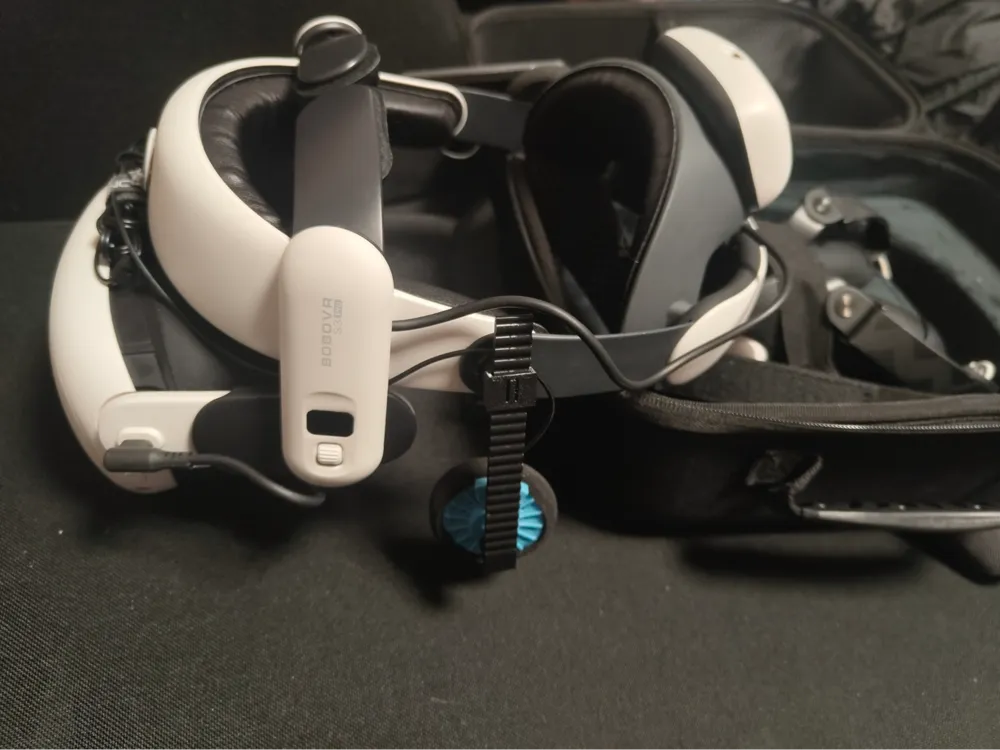

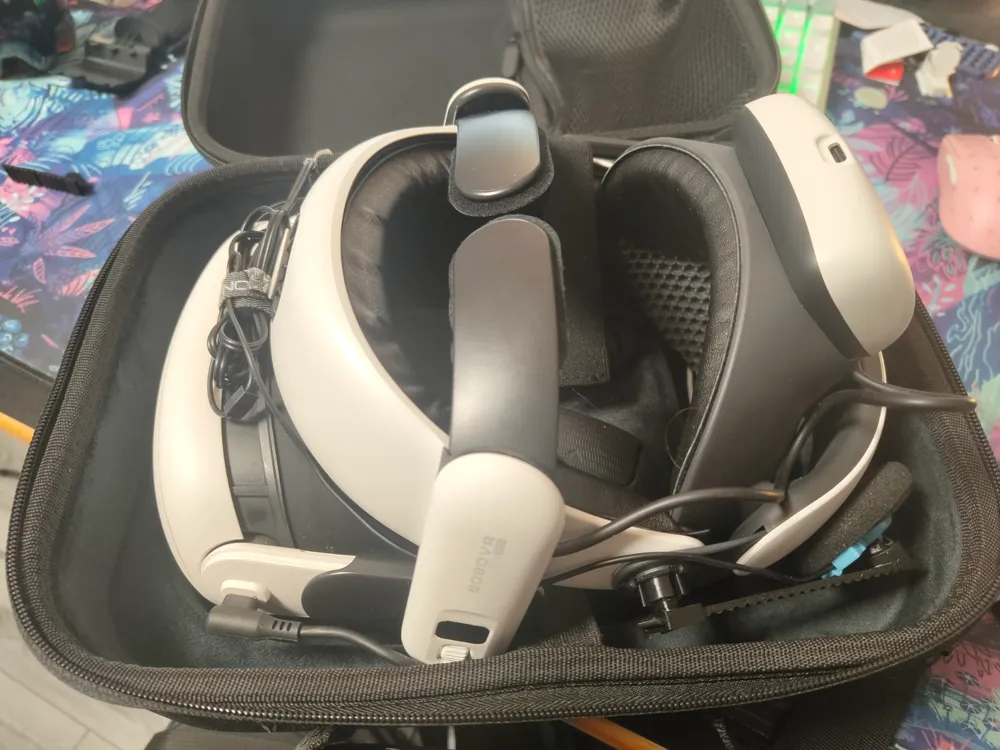

My new Version of the S3 Pro Soundmod, this time way smaller to fit in Travel Cases for the Quest 3.
I could not reuse the existing screw of the S3 Pro as it would've increased the height of the mod.
There are 5 different sizes for the Balljoint in the files for a tighter fit - beware that the everything above M could break the clip and you need to reprint it. It really depends on your printer so just try them out :)
BoM
- 2 x M2*4 Screw
- 2 x M2 Nut
Instructions
- Print your parts, I printed in 0.2mm without support

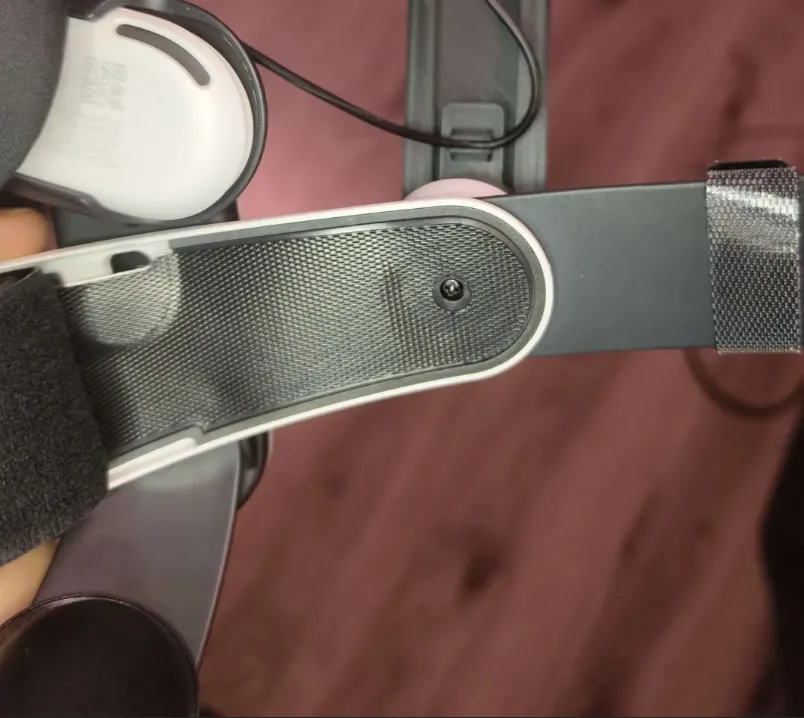

- Unscrew the cover as seen on the picture
- At the Hexnut to the Ball Joint bases - they're a tight fit
- Screw in the base where the cover was
- Assemble

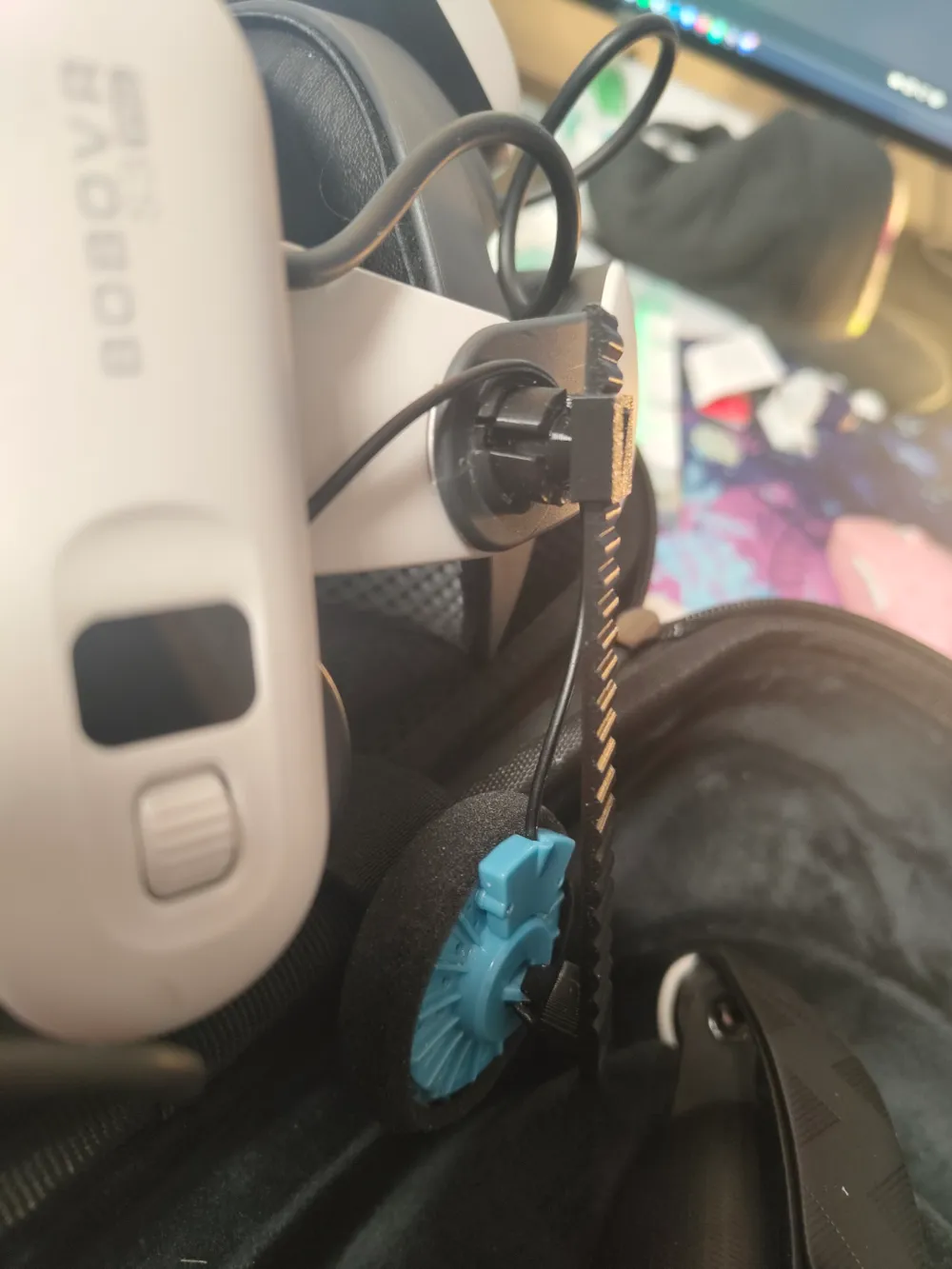

- Height adjustment is stiff at first so I moved it a bit up and down
