Filament Spool Storage Box

A nice box to safely store your filament, I store eSun, JanBex, and Bambu Lab 1KG spools in it

For assembly, per box, I used 8X M3x40mm screws and these heat-set inserts

Originally a TPU seal is provided, but I designed the remix so that a 2.5 mm foam rubber hose fits, then they close tightly and are properly sealed. I also tried the 2mm ones, these are too thin. Here is the link to the 2.5 mm hose

V2

#The groove for the seal has been deepened
#A rim was added to the box so it doesn't wobble when standing upright
#The screw head hole on the box has been deepened so MY screws ( M3x40 ) fit better+

V3

#The groove has been further deepened so the seal may hold even without glue

#The label has been made 3mm wider so it slips less and sits more firmly

If you are interested in the shelving system, it's all from Obi

https://www.obi.de/p/4820163/metall-wandschiene-2-reihig-100-cm-schwarz

Profile Carrier 170mm

https://www.obi.de/p/4028445/stahlrohr-200-cm-2-7-cm-schwarz-matt-zum-moebelbau

https://makerworld.com/en/models/957949-filament-spool-storage-box-mounting-bracket#profileId-927239

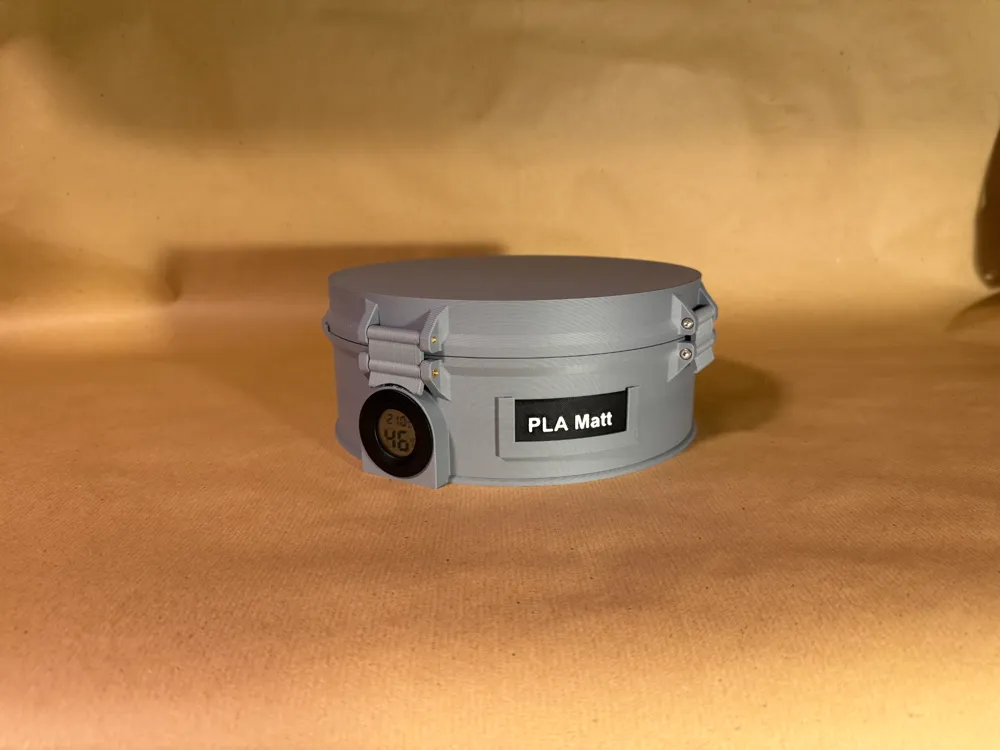

By request, there is a version with a hygrometer, HERE is the link to the hygrometers used

***************************************************************************************************

V3 with a hole, please read: At the request of users, I'm adding a profile where the box has a hole, since it uses a lot of material and I can't use it this way, I'm not doing a test print. Cut analysis and collision were okay. The groove for the seal is also present in the middle
