Display box (customizable)

Since the collection of model engines is growing and the next model is already on it's way, i decided to make a display case, since cleaning dust from the models can be a pain. It also add's a bit of premium look :D

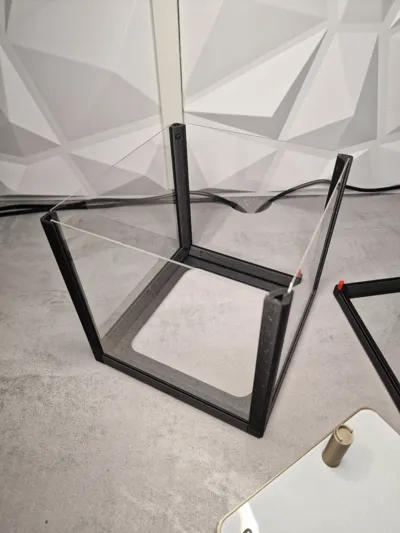

I designed it to be as economic as possible in case of needed materials and print time. It's also designed for use with 1mm acrylic sheets, which was the cheapest alternative i could find and its easy to cut. The bottom should be stronger, so you can use any plate of 3mm thikness or print the base plate. Before you print, it's important to know that the bottom plate is not solid. For material saving purpose, there's a hole in the middle.

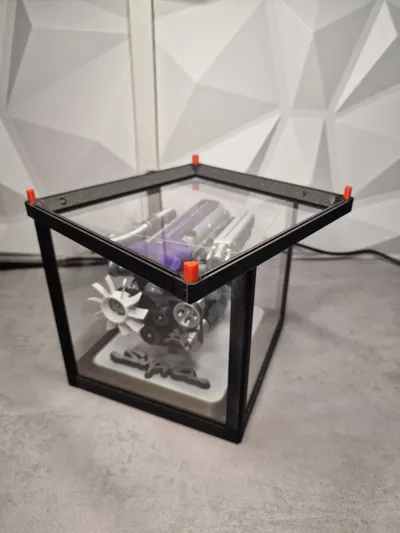

No screws need, just glue to keep the pins/connectors in place. To see what i mean, i added a pdf as an assembly guide, even that it's probably self explaining.

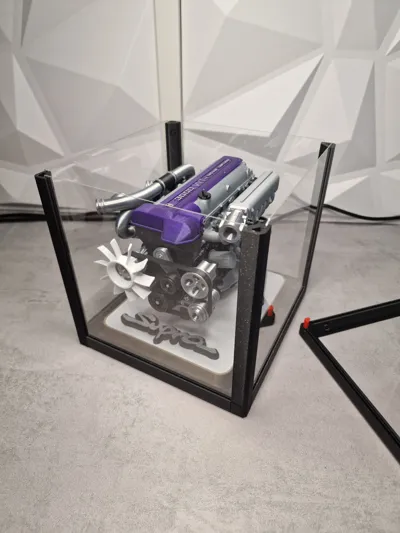

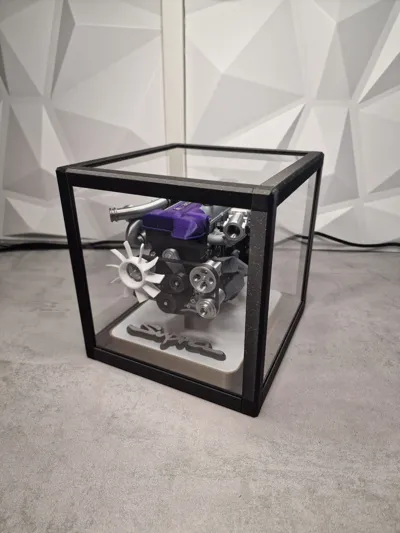

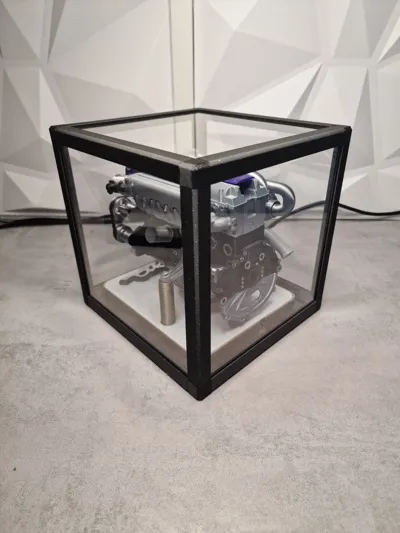

In my case, i made “medium” boxes for the RB26, SR20, 2JZ a “big” box for the VG63. I've also added the parts in different lenghts and extension pins, if you need a custom size.

the dimensions of the acrylic sheets i've used for the medium box:

2pcs 175mm x 181mm

2pcs 186mm x 181mm

1pc 175mm x 186mm

the dimensions of the acrylic sheets i've used for the big box:

2pcs 204mm x 181mm

2pcs 217mm x 181mm

1pc 204mm x 217mm

If you have further questions, let me know.
