Streat Lamp Sadovka

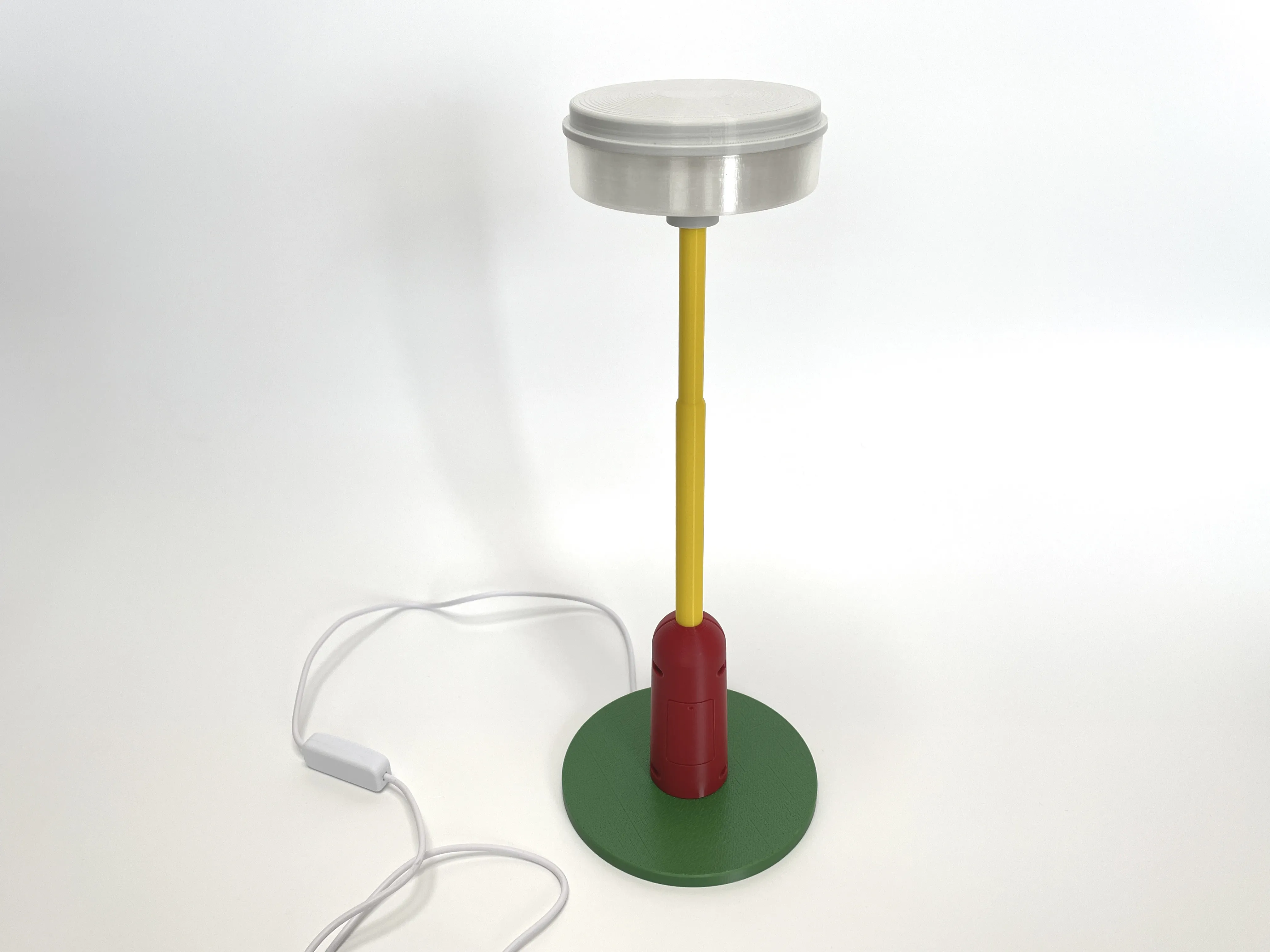

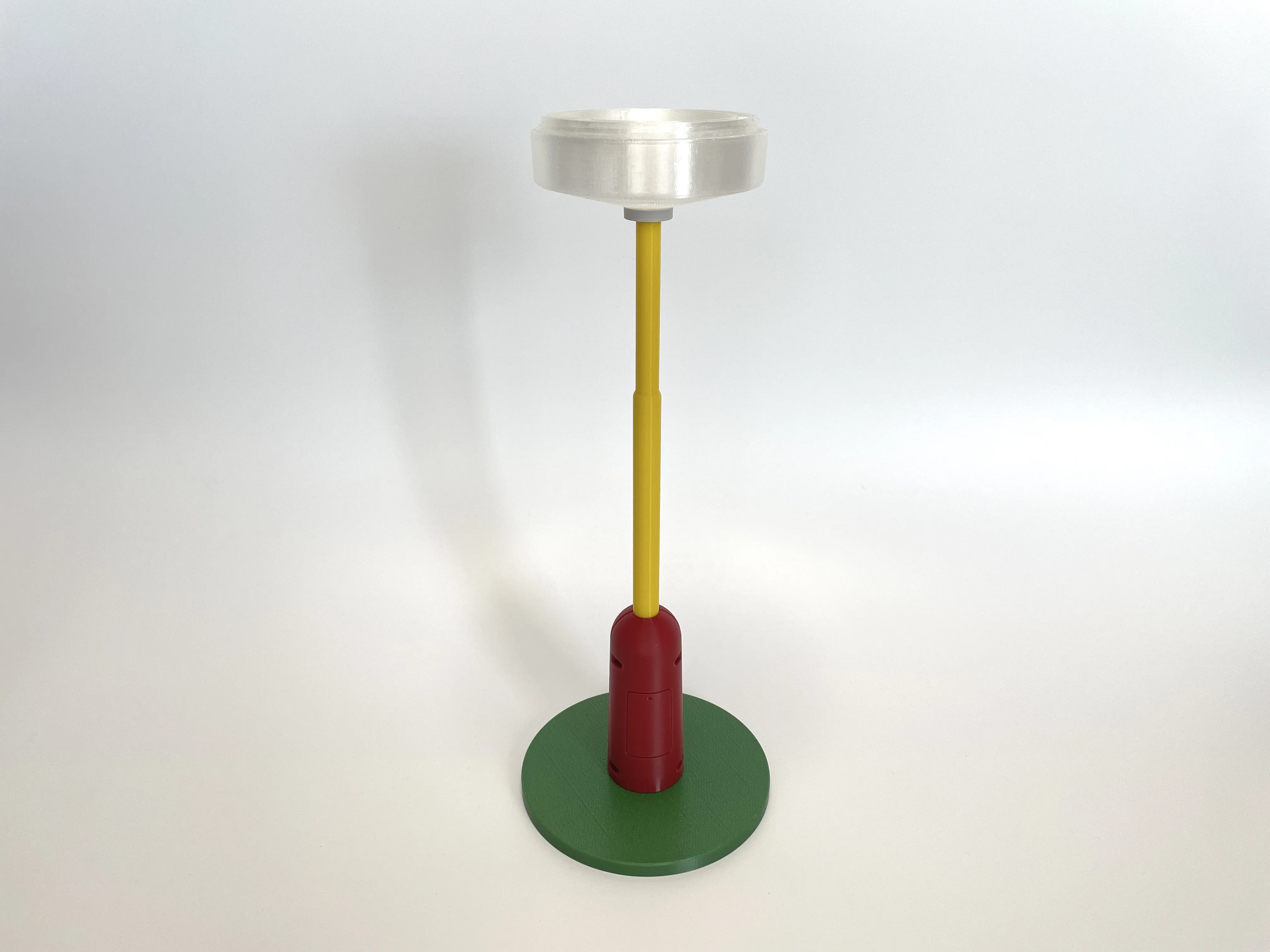

This is a desk lamp shaped like the famous Czech streetlight called Sadovka.

I like retro things, so I had the idea to create a desk lamp shaped like an old streetlight called Sadovka, which was everywhere in the housing estate when I was a child. They are still in use in some places, and there is even a modern version of this iconic design still in production.

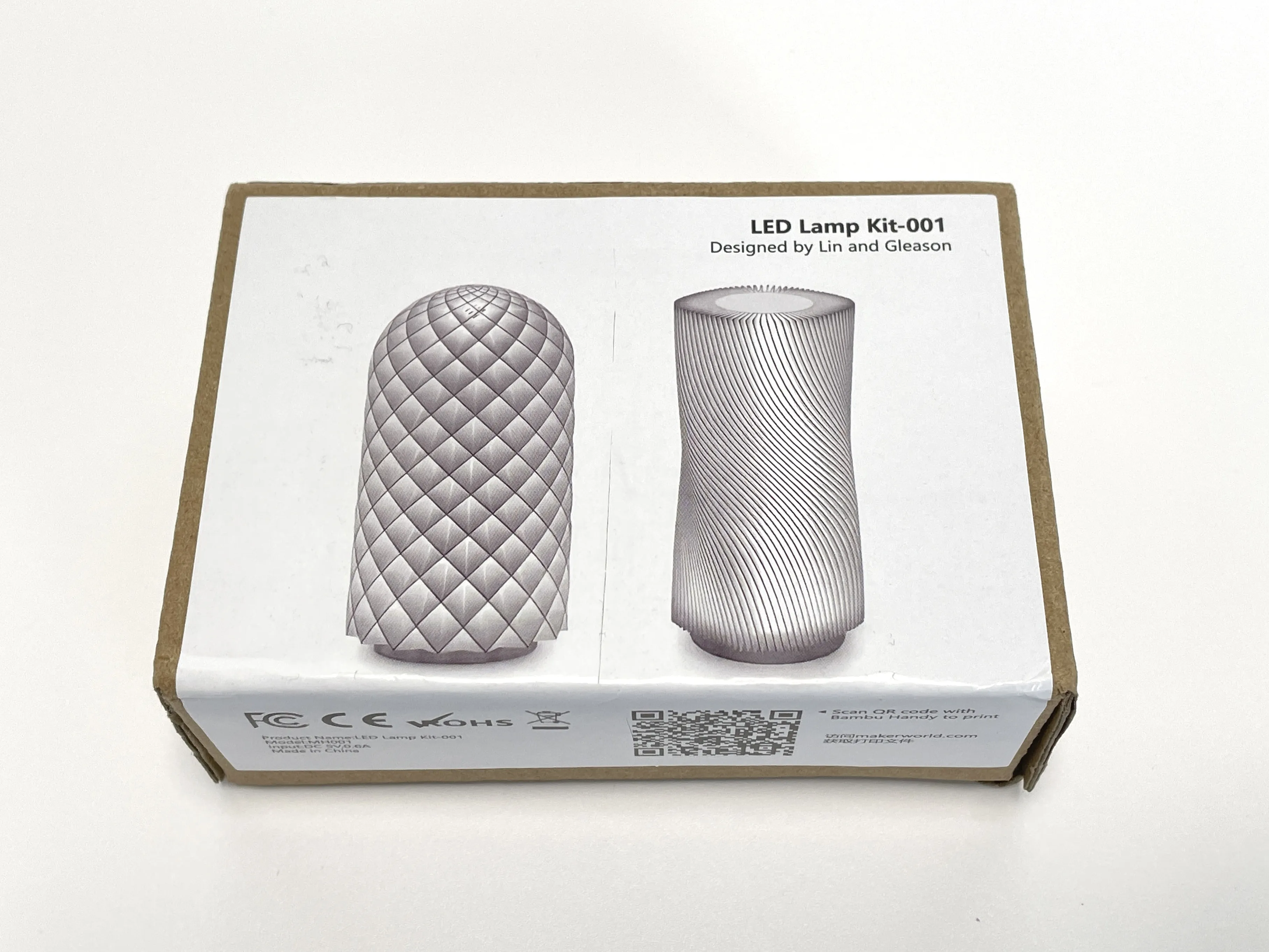

It utilizes an LED lamp kit.

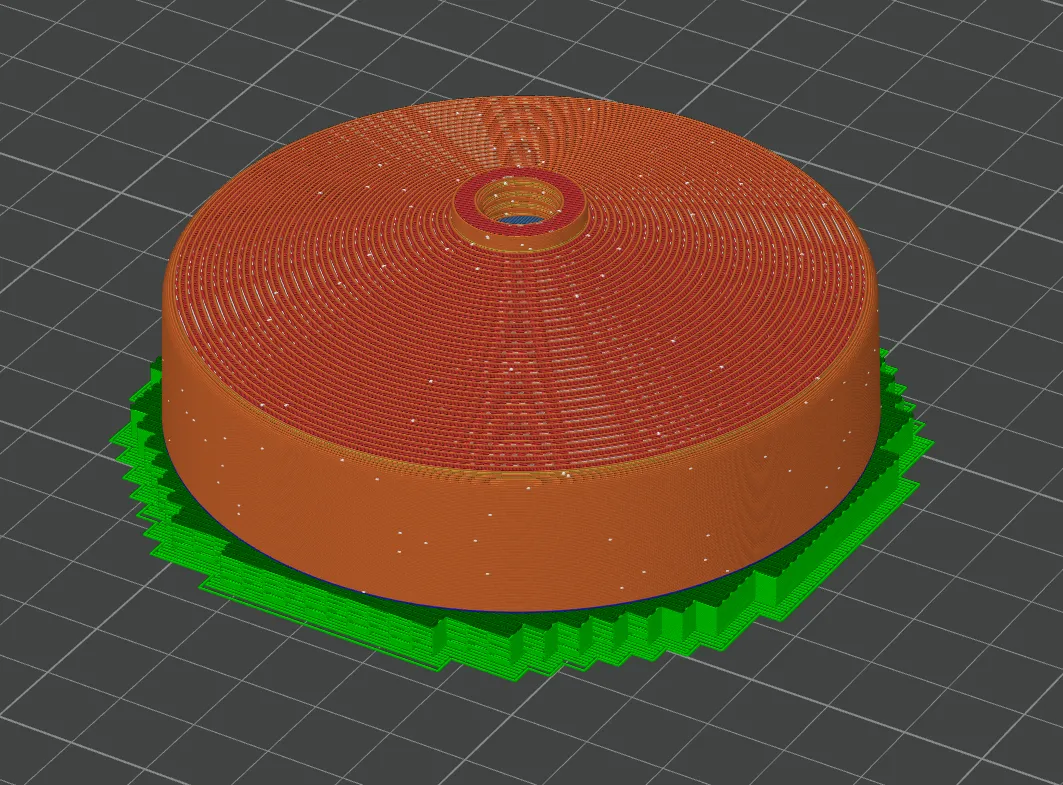

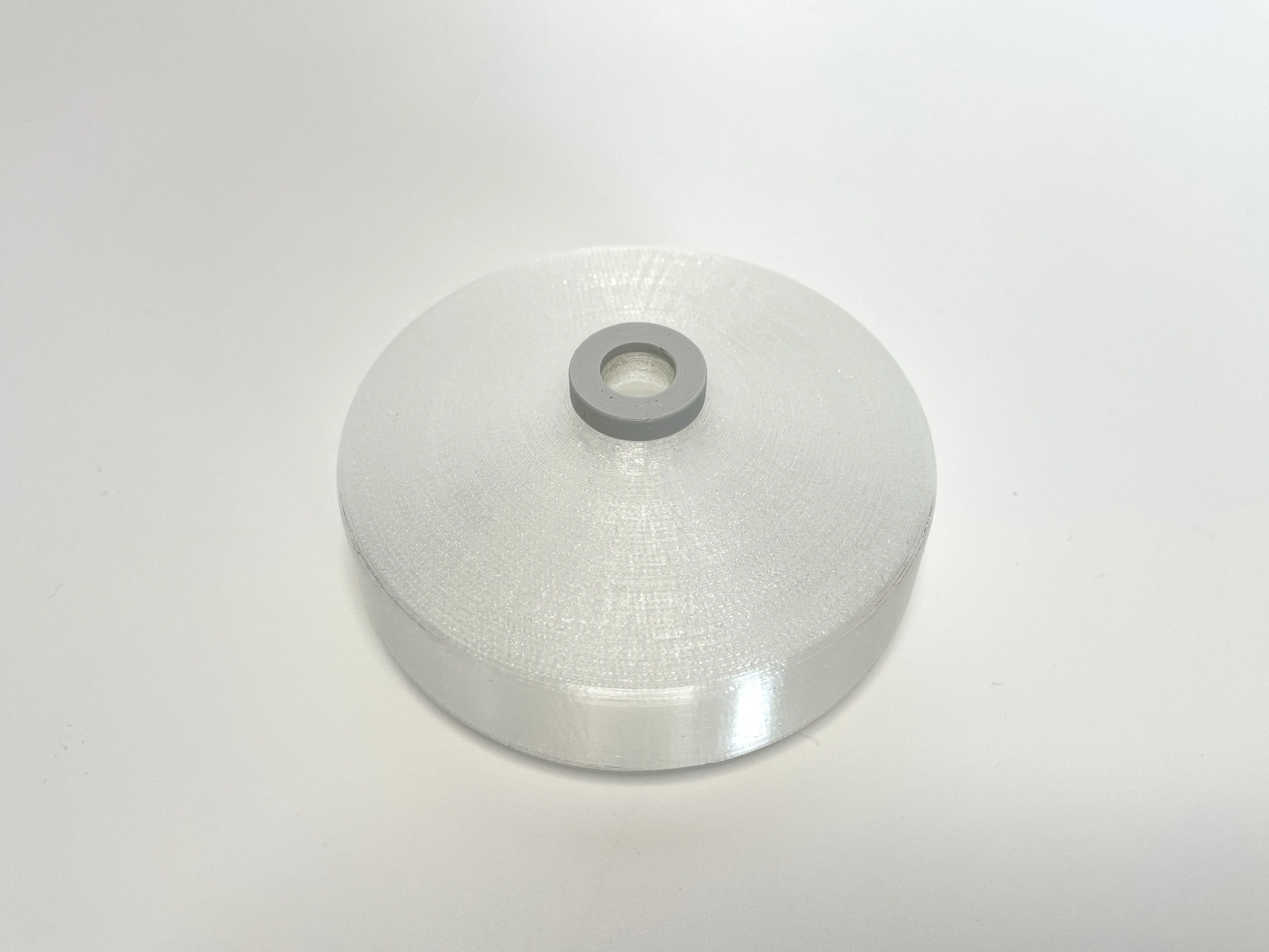

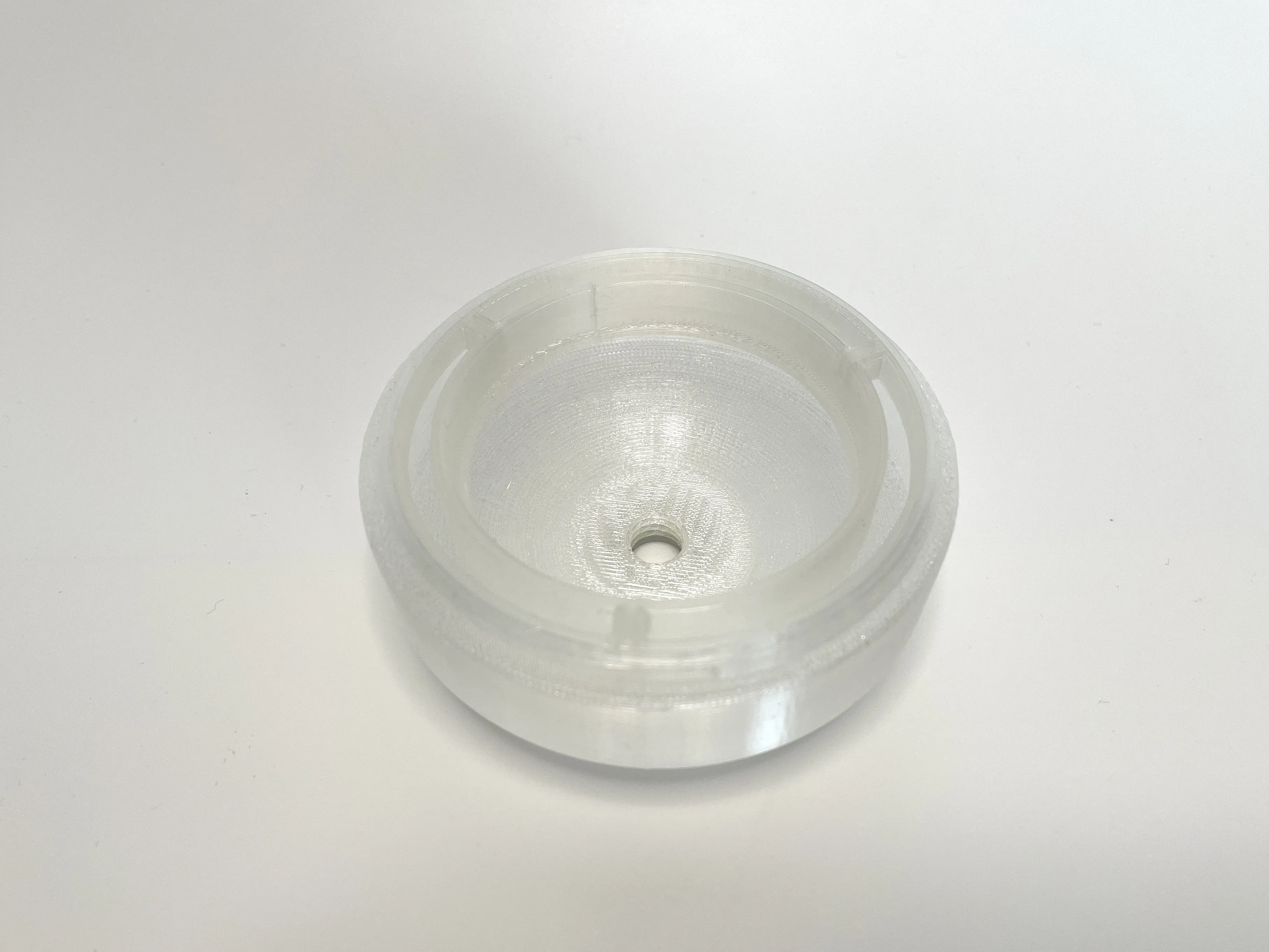

Most of the parts are easy to print, but the shade is more difficult. It requires dense support, which is also harder to remove. I have prepared a version with built-in support for the chamfered inside part, but you still need to add support for the perimeter in your slicer. The built-in support can be broken off using a flat screwdriver.

Assembly instructions:

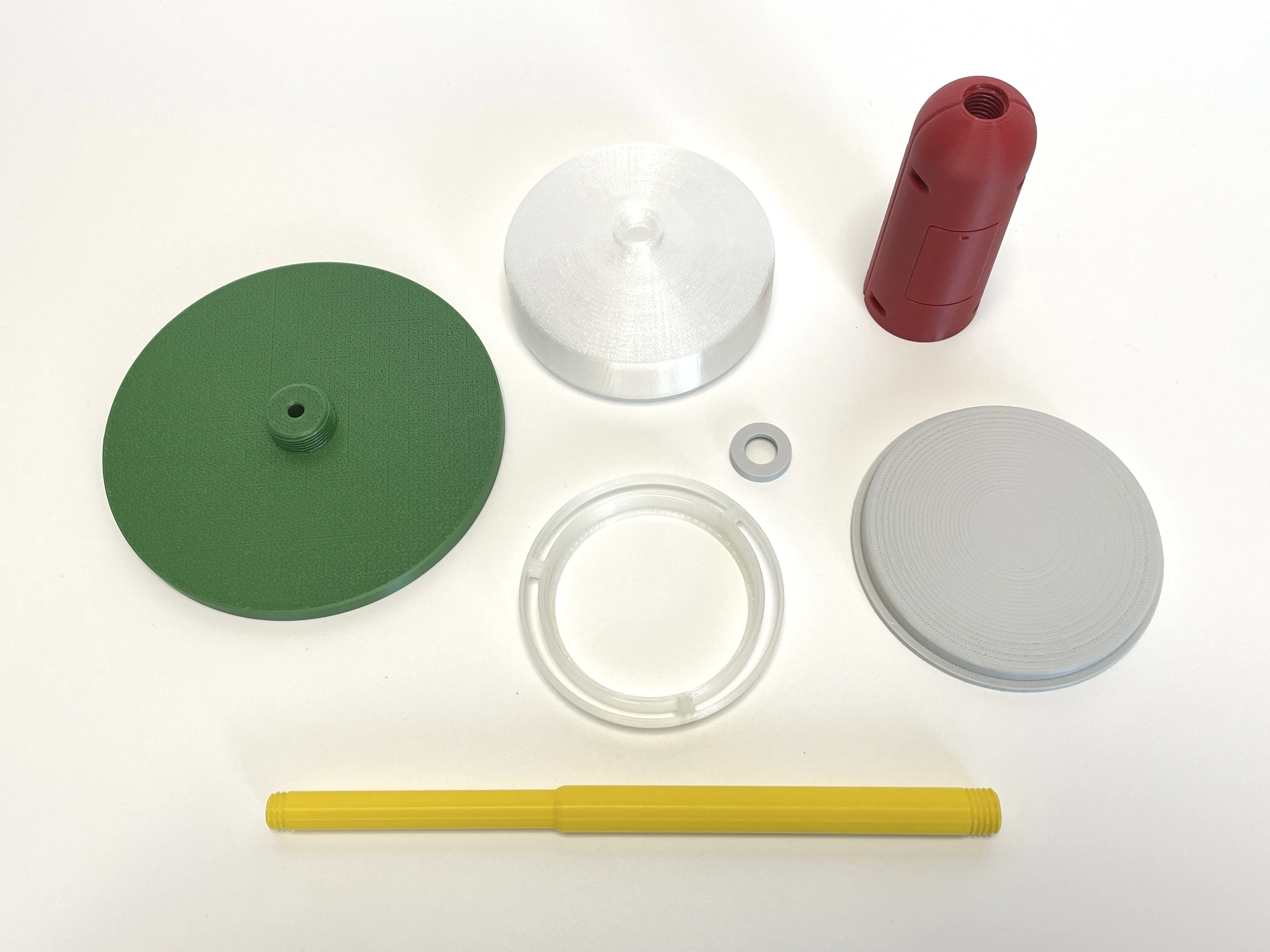

• Print all the parts. You can select the color of the parts according to your preference.

• Remove the support and clean the parts.

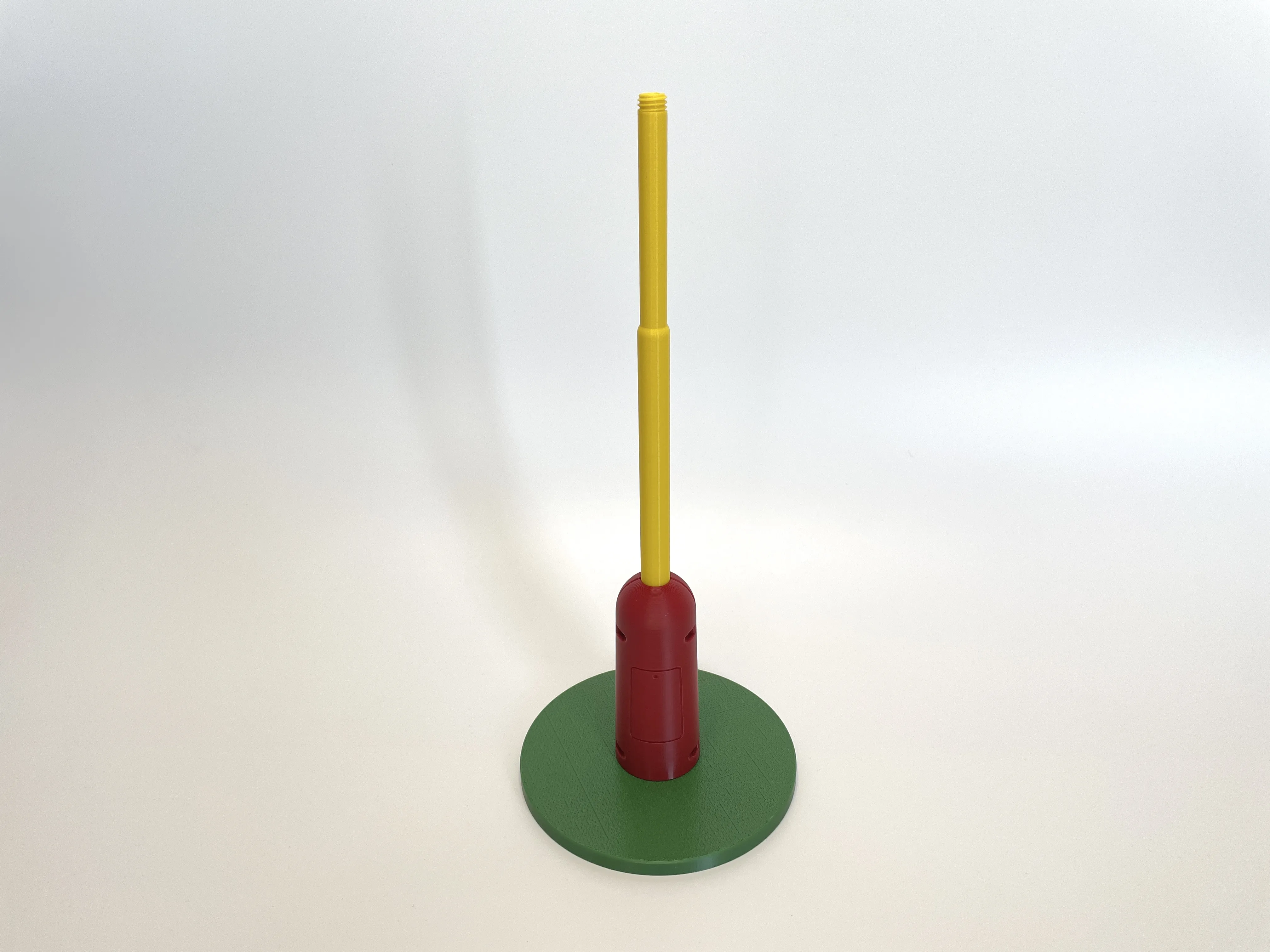

• Screw together Sadovka_Tyc, Sadovka_Spodni_Kryt, Sadovka_Zem.

• Glue Sadovka_Lampa_B2 into the Sadovka_Lampa_B3.

• Glue Sadovka_Lampa_B4 to Sadovka_Lampa_B3

• Screw the two parts together.

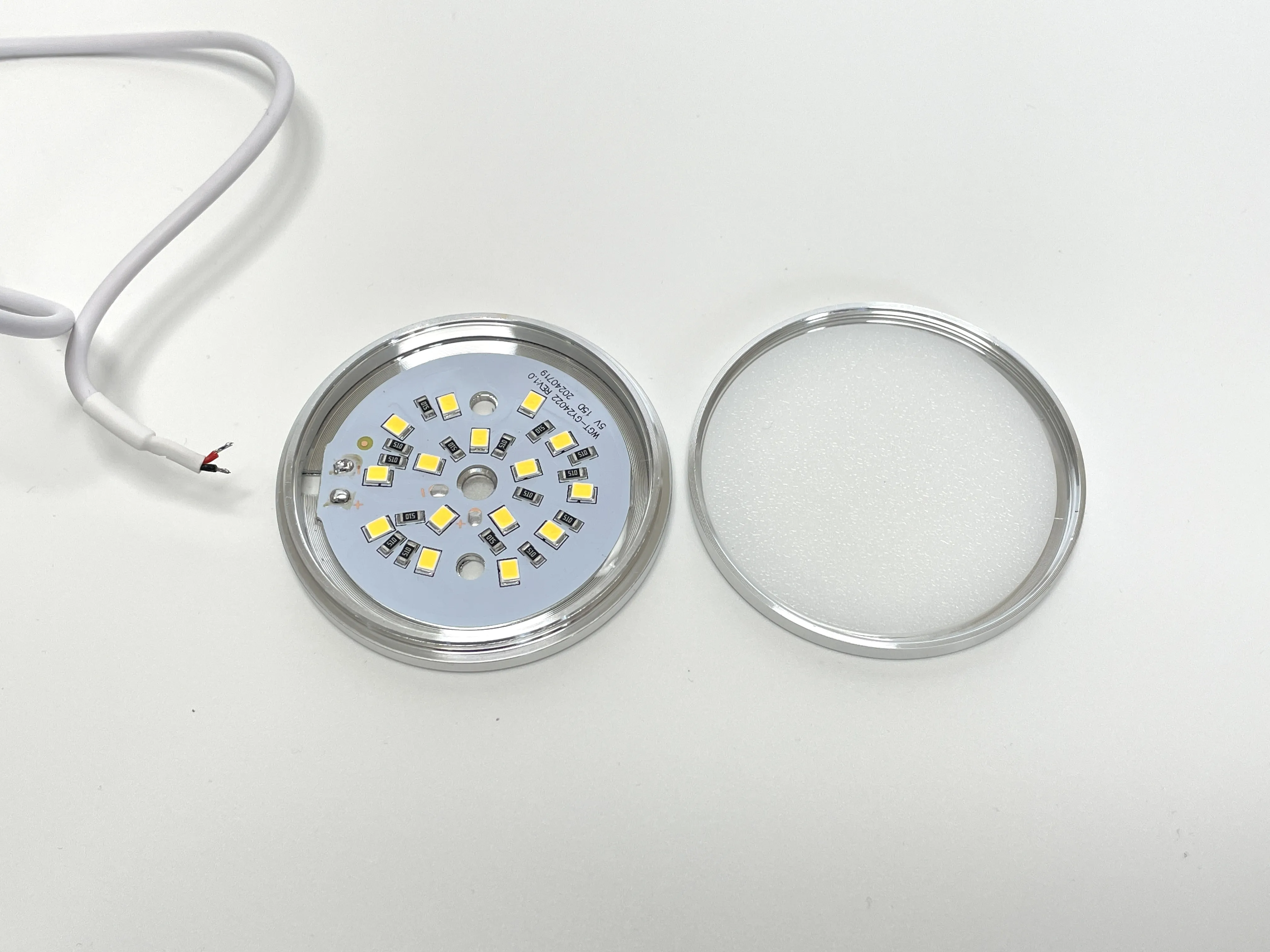

• Unscrew the LED lamp and desolder the wires. Remember the wires positions!

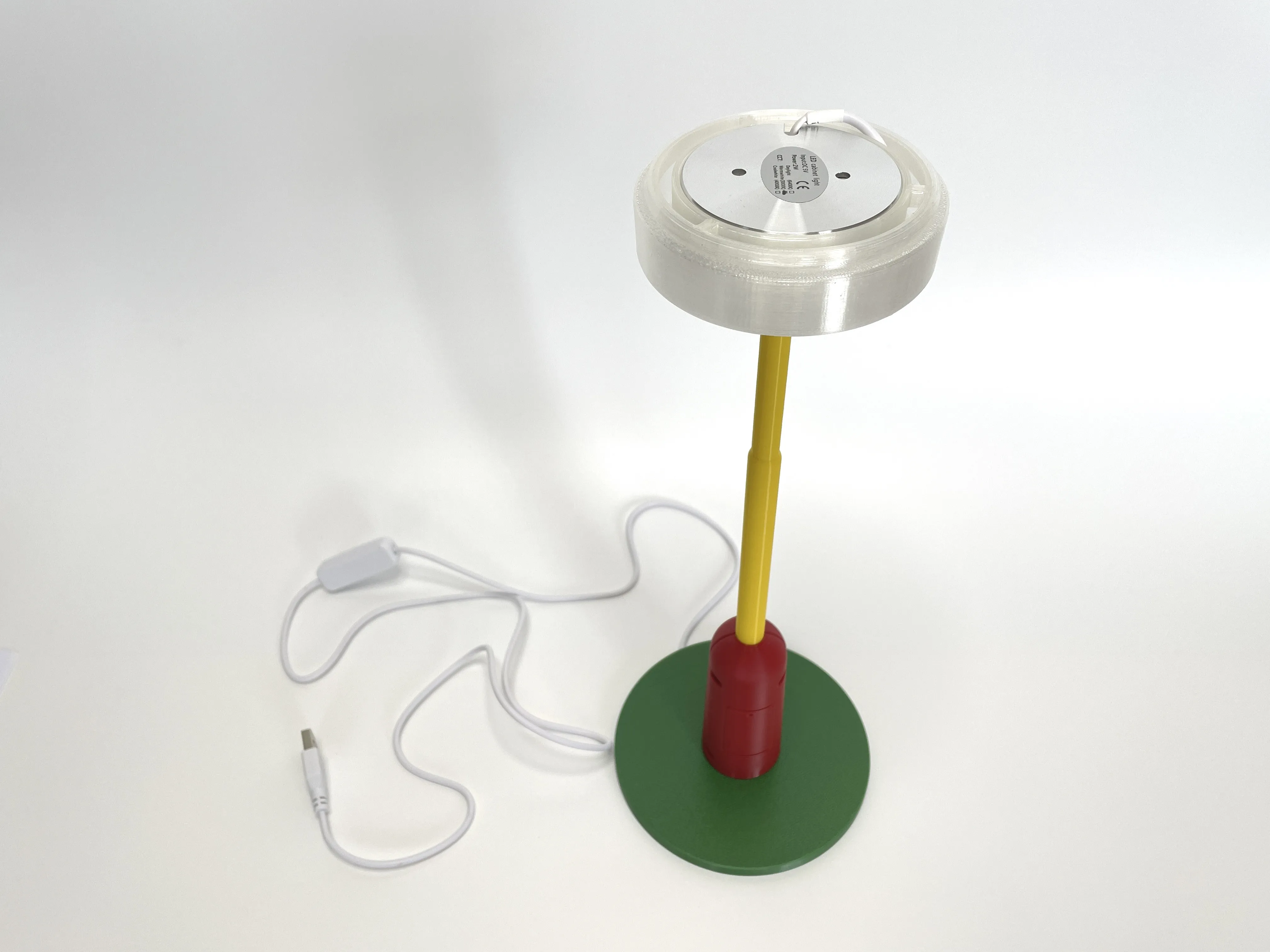

• Pull the cable through the entire model.

• Solder the wires back to the LED lamp.

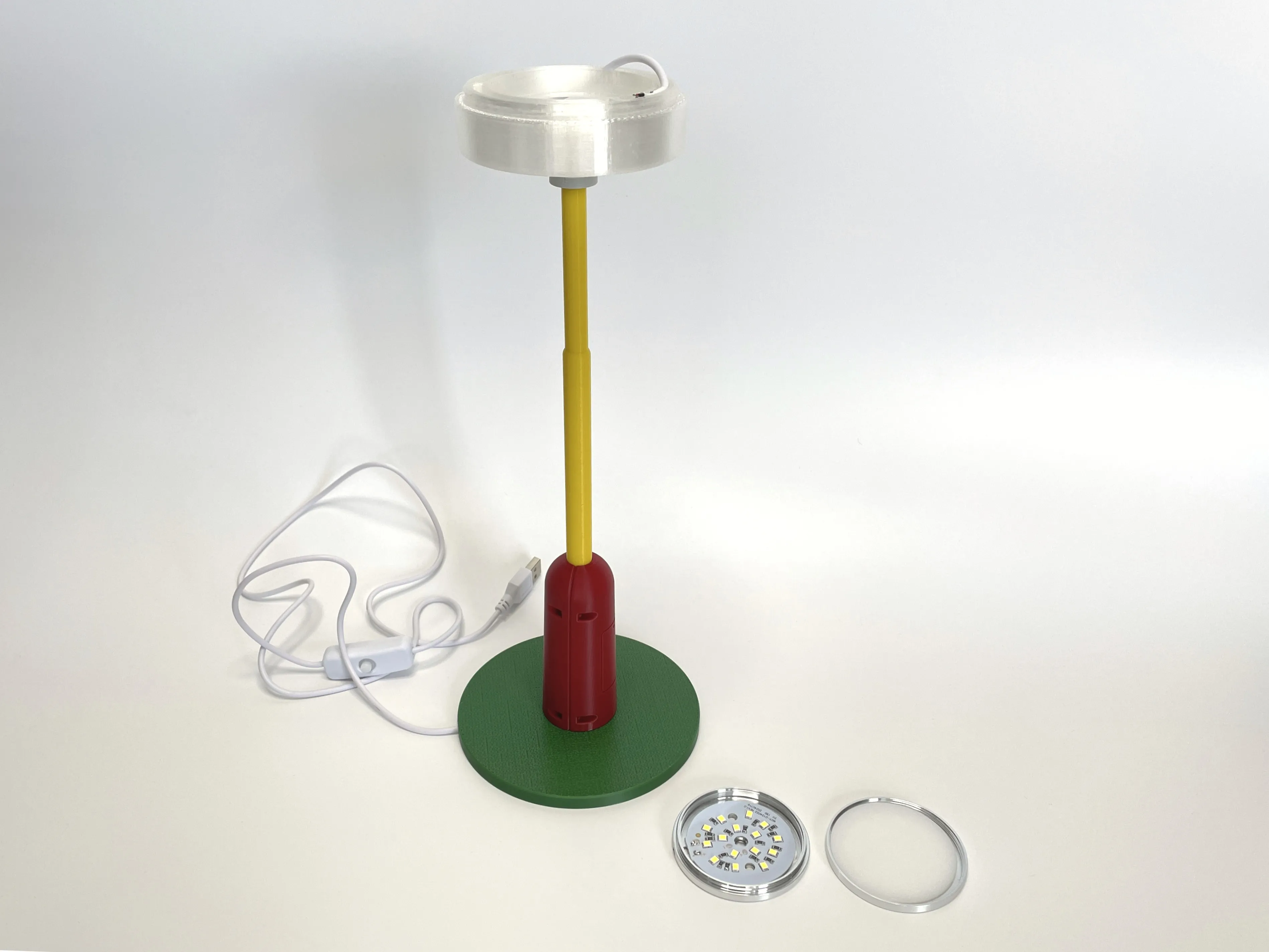

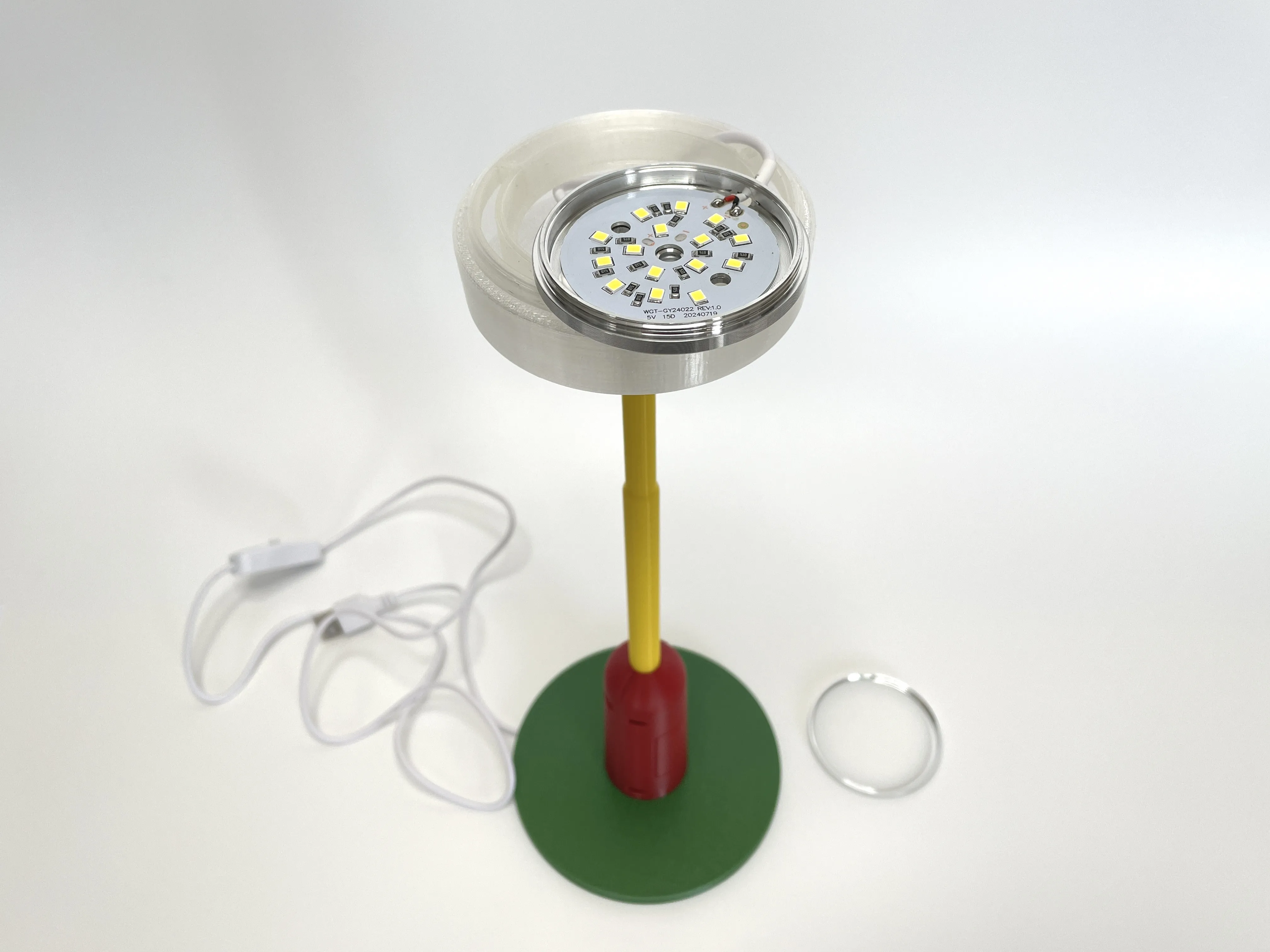

• Screw the LED lamp and place it in the body.
• Adjust the cable length.

• Screw the Sadovka_Lampa_B1 on the top.
