Description

Boost Me (for free)

If you like the mount, please consider boosting :-)

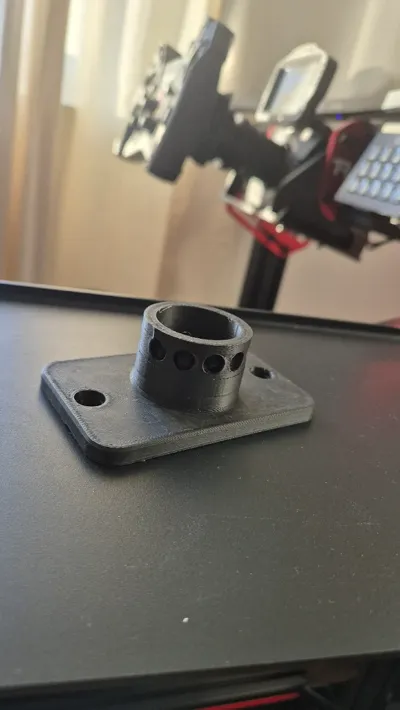

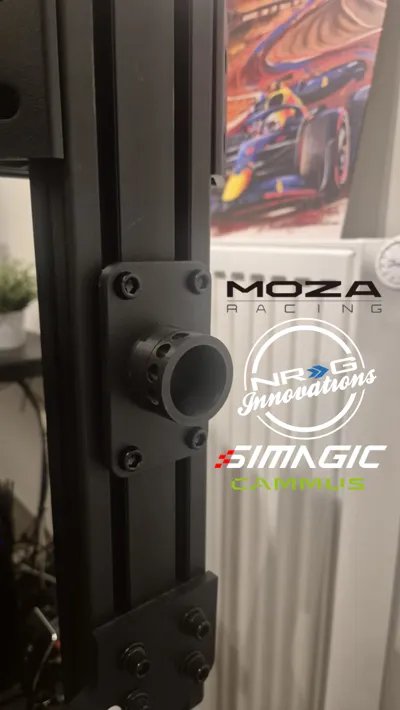

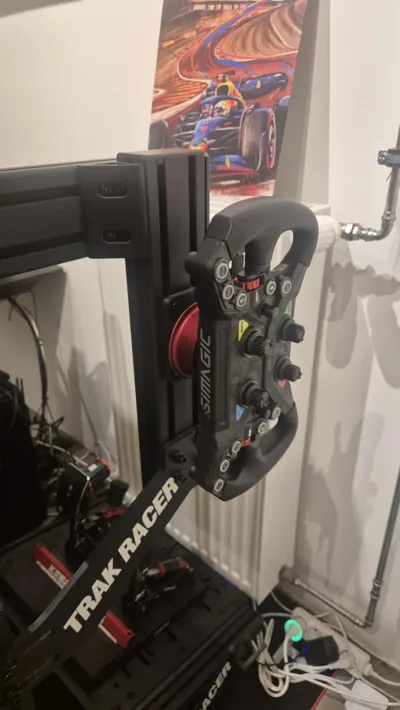

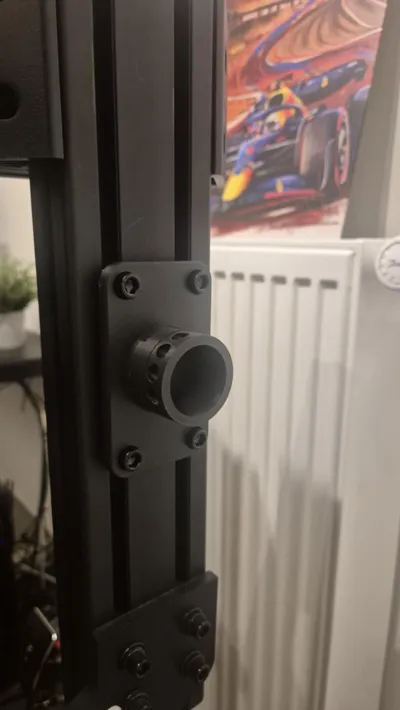

Multiple mounts for various simracing wheels that fit directly onto your alurig.

Remixed:

I created a Ø32*20mm hole in the middle to protect the pins on your wheel - Im not saying the original is messing with the pins, but i've seen models which have destroyed the pins in the wheel. So this is just a safety precaution for me.

I also created a little reccession in the base for better fit of the bolts i used.

Last model is a 2 hole version which can be used on single profile aluminium if prefered. (i only made this in the horisontal version)

Thank you to K3NPrusa for the original models.

Comment & Rating (59)

@tojicha

Print Profile

0.16mm layer, 2 walls, 15% infill

worked perfectly, thanks! could you upload a version without the recess for the bolts as well? the bolts that came with my rig are too big for the recess anyways and i feel it would be a bit more stable without the cutout underneath. for now i’ll probably just put a washer with the bolt.

The profile uploader has replied

@mbtrqk

Added it to the print profile on plate 4 :-) STL is also available.

(Edited)

@nick_nack

Print Profile

0.16mm layer, 2 walls, 15% infill

World's most boring print. It printed perfectly and does exactly what it's supposed to do. Thanks!

@user_2261702881

Print Profile

0.16mm layer, 2 walls, 15% infill

perfect, printed clean, no issue. I wanted it for the wall not on the rig but works well. Thanks

@P1t3r

usefull

@vItsBryy

printed 2 fit perfectly M8 Bolt Thank you Next Level Racing GT Elite Lite

@ZeruThe_Wolf

Print Profile

0.16mm layer, 2 walls, 15% infill

this print came out nice. but I couldn’t use it because when you attach the wheel, it locks too tightly to the mount, to the point the print broke. it seems like a very good idea though.

The profile uploader has replied

@mbtrqk

How did it break? I have no issues with both my Moza and Simagic wheel?

@ZeruThe_Wolf

Replying to @mbtrqk :

I attached the bracket to the mount, and put the wheel on it (moza ES wheel) it clicks in nicely, but it suddenly just got super stuck on the mount. the quick release was super stuck on the mount. not sure why, but maybe I will try printing in PETG instead

@mbtrqk

@ZeruThe_Wolf hmm - you can try scale it down 2-3%

(Edited)

@user_2376961608

would this take a 6mm screw

The designer has replied

@mbtrqk

The holes are 8mm, so depends on the head on your 6mm

@user_2376961608

Replying to @mbtrqk :

ta for reply got mixed up, it was for another item my mate had asked not these sorry

@bracaboy

Printed well, my moza wheels fit but the quick release does not lock

The designer has replied

@mbtrqk

make sure you orient it correctly, top and bottom is not interchangeable, and push it firmly all the way in

@Benutzer_584671

Print Profile

0.16mm layer, 2 walls, 15% infill

Great work my parts no longer lie around in the rig

Show original

@RazedEdge

Print Profile

0.16mm layer, 2 walls, 15% infill

printed 2 to replace the old ones i had for my drift wheel and gt neo and worked perfectly! nice work
