Crank Boot for MTB bikes
IP Report
Print Profile(1)
0.2mm layer, 4 walls, 25% infill
Designer
48 min
1 plate
Open in Bambu Studio
Boost
7
9
0
1
10
1
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
Bambu Filaments
Select all
List other parts
- 1 x 1: Tiewrap
Description
While trying to fit my dual Wahoo Blue SC Speed and Cadence Sensor (the same apply in dual Garmin Speed & Cadence Sensor, Gsc-10) in some cases its impossible to fit the magnet on crank arm due to pedal fitting screw. So it came to me the idea to design a boot that could fit an 12x3 magnet inside and make the job.

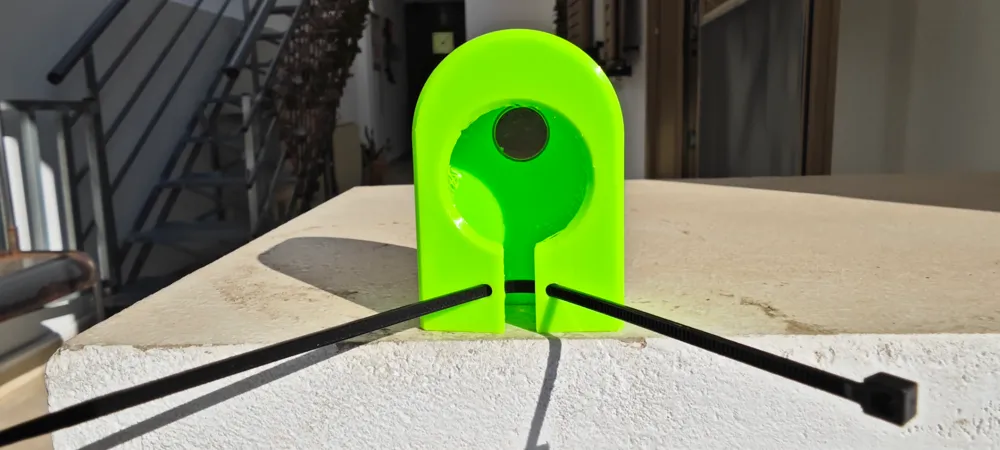

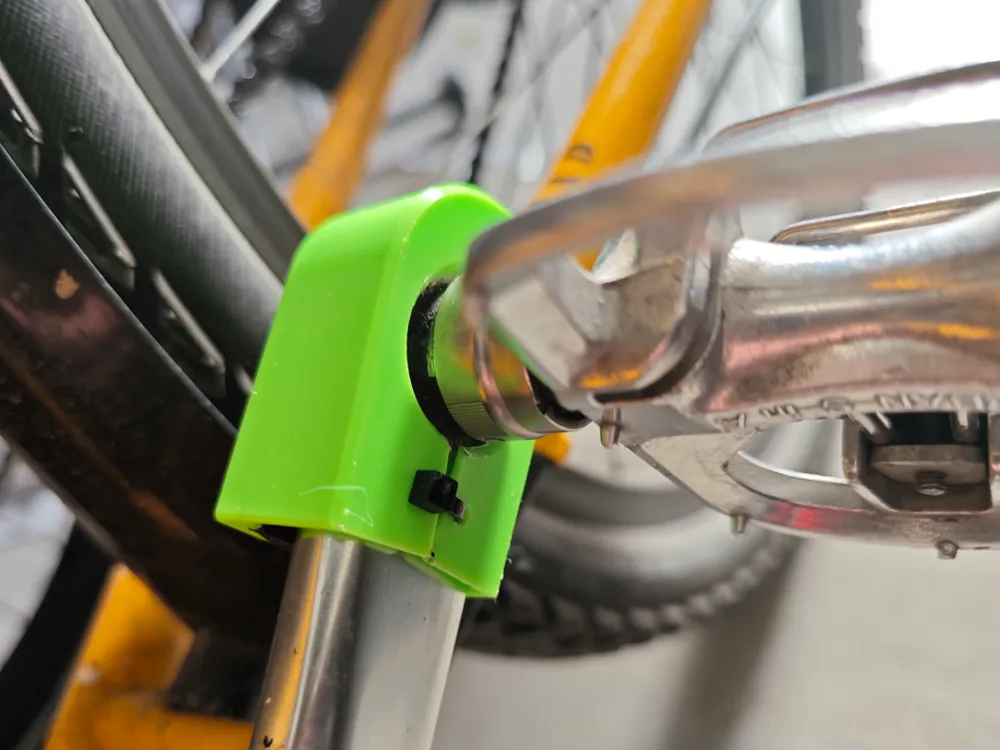

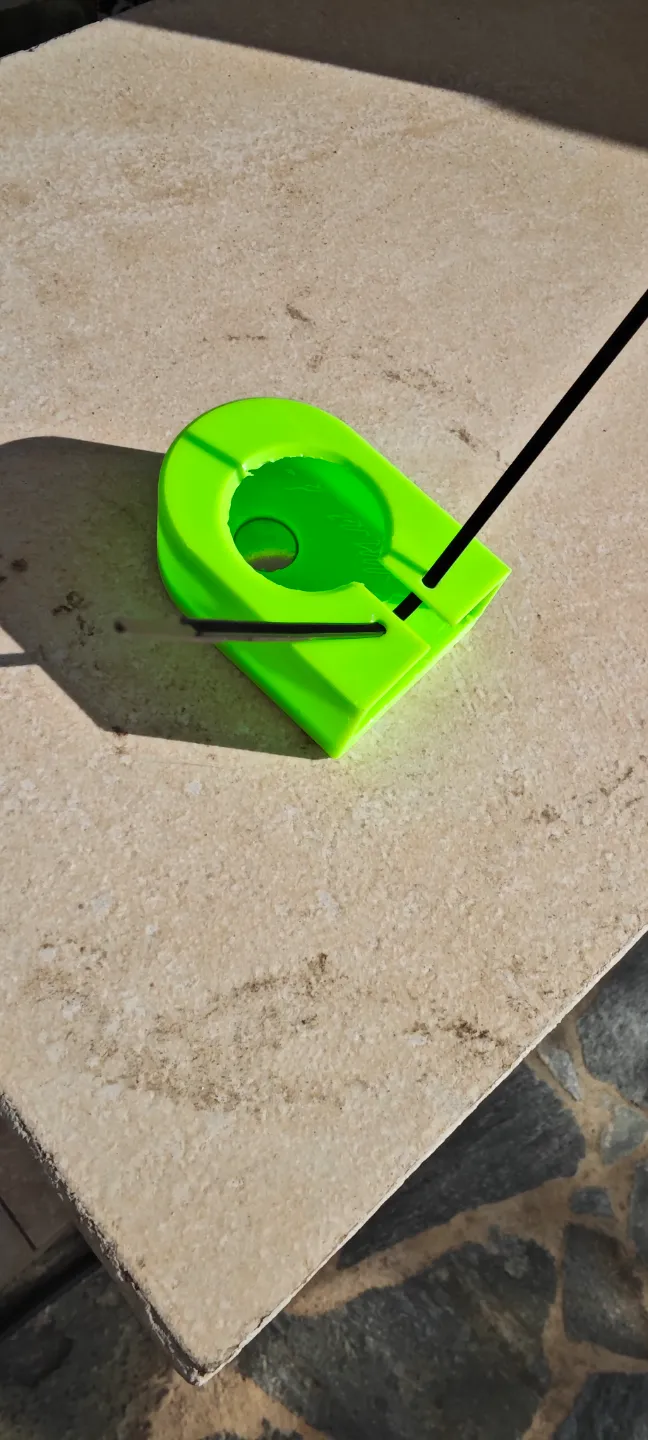

The boot is made with hard TPU (the new TPU for AMS) and i have made a slot for easy pedal pass through (without removing the pedal) and I have included small holes to pass a tie wrap as optional security.
The profile is customised for accuracy and strength of the bike part.
