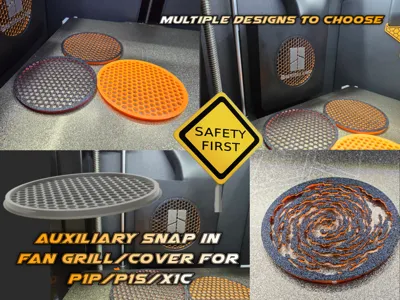

Snap in Auxiliary Fan Grill/Cover for P1P/P1S/X1C
Print Profile(5)
Bill of Materials
Description
IF YOU LIKE THIS MODEL GIVE ME A “THUMBS-UP” or “BOOST” SO MORE PEOPLE CAN DISCOVER THIS MODEL.
Boost Me (for free)
Want more mods or models? Give me a boost to help with filament purchases.

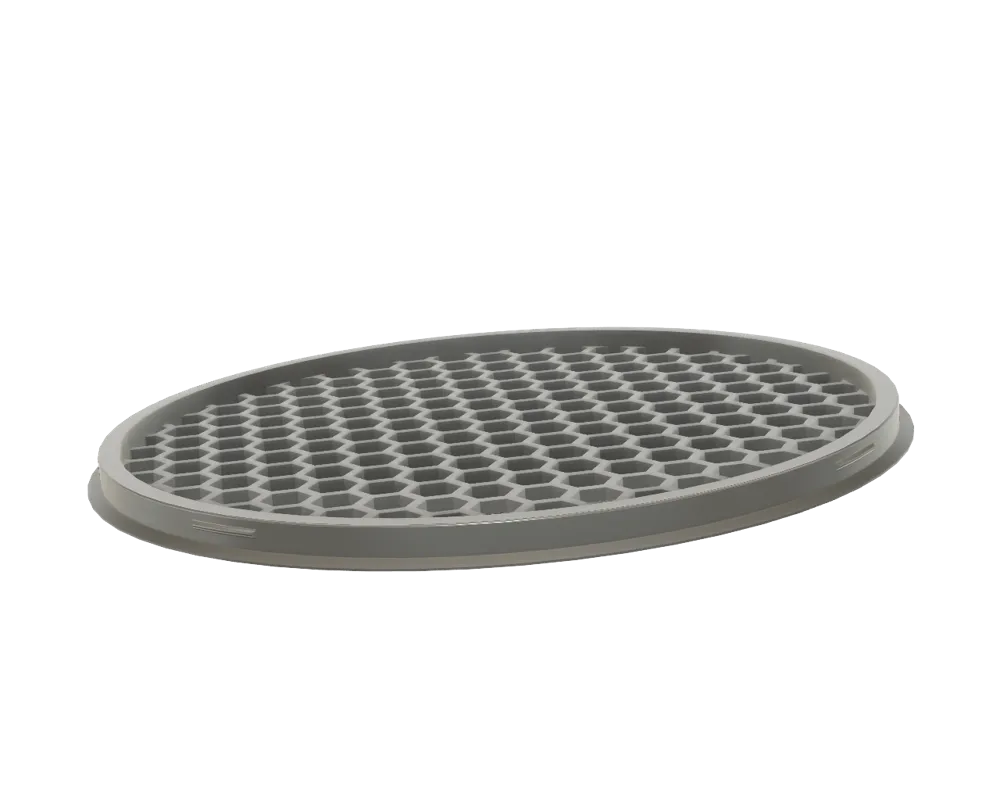

This version uses four tight fitting clips in doing so it sits tight against the shell vs being loose. Being this fits so snug and tight it is a tight fit that'll require some force to install. This was done in case chamber temps are high enough to cause warping. If you need to remove it you can take factory supplied allen wrench the short end through the hex to pop a slide loose.
*RECOMMENDED TO PRINT IN PETG OR ASA/ABS (CLIPS CAN BREAK WITH PLA DUE TO THE LOW HEAT-RESISTANT TEMP)*
3/29/25 Updated design with better clips for install and remove. Width was also increased to reduce warping with higher chamber temps

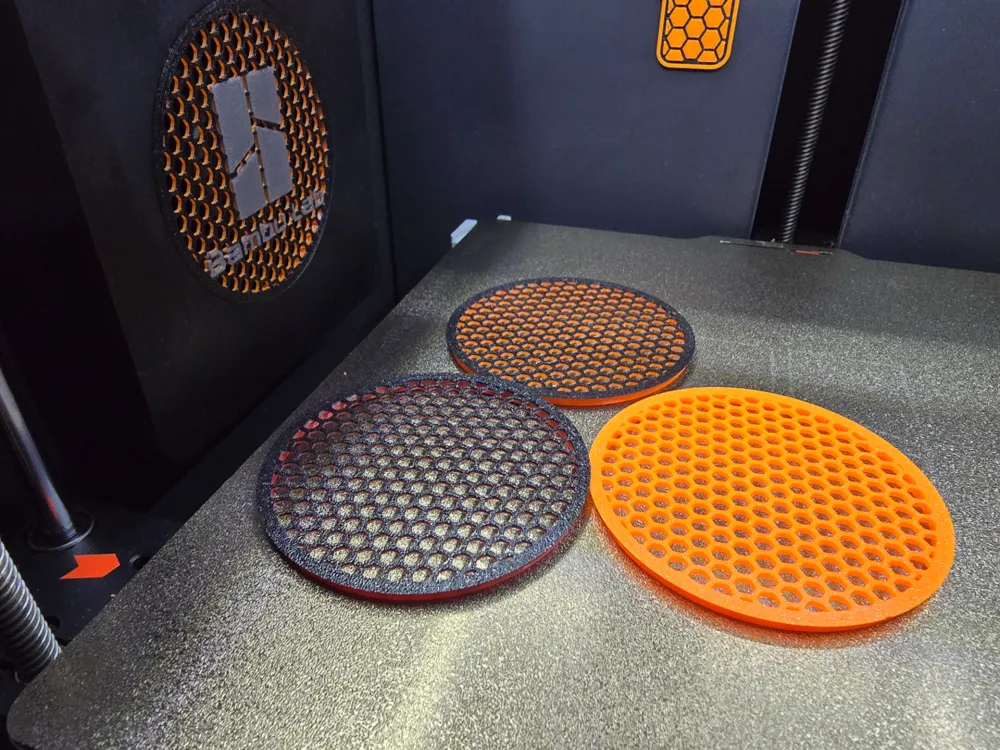

There are five Versions:
Honeycomb Single Color
Honeycomb Dual Color

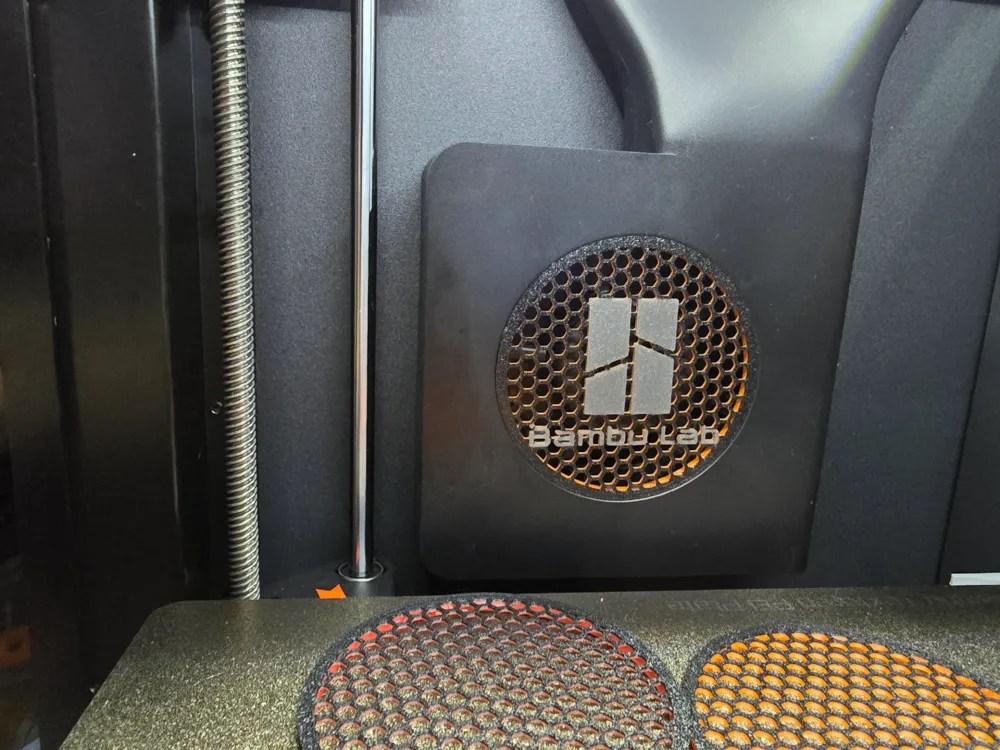

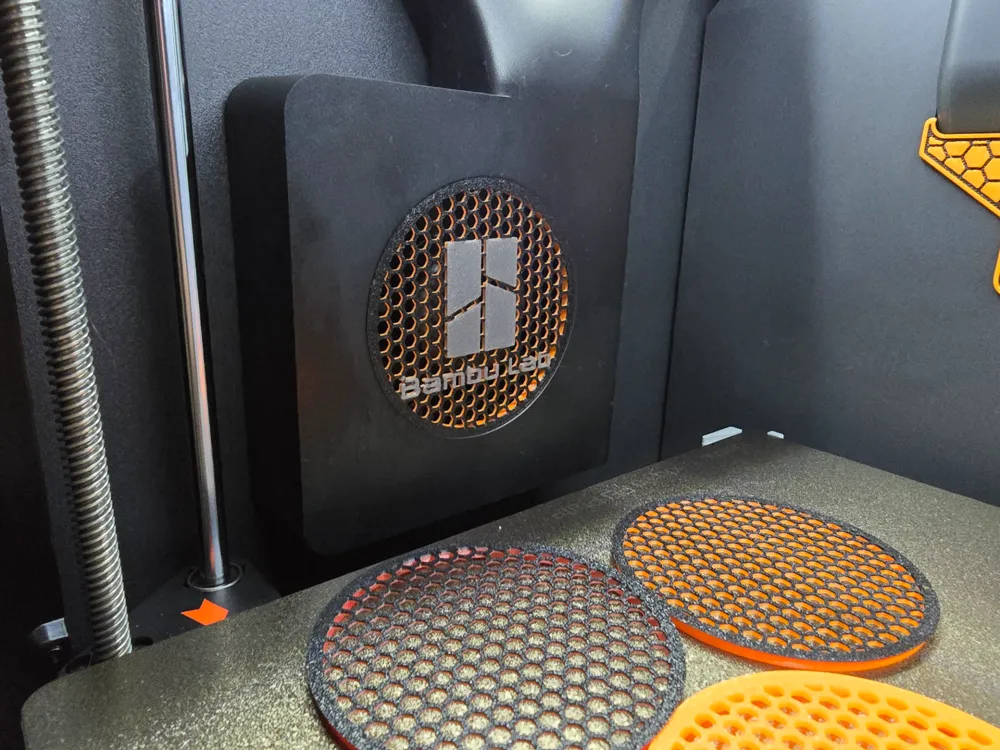

Honeycomb Three Color with Bambu logo
Rick & Morty Portal Single Color
Rick & Morty Portal Dual Color
Rick & Morty Portal might have slight line gaps as the design is on the limit of detail with a .4 nozzle
They have they're own profiles so please pick the correct one
If you want another design or something custom just ask and I can make it up real quick more than likely.
Note the hex size will match match my tool head size as well
Printing:
Please make sure your bed is clean, mainly for the hex variant.
Ams Colors are as such:
Color #1 is the main face color
Color #2 is the rear hex color
Color #3 is the logo color
For easier coloring just change the filament colors under filament in the slicer. You'll need to slice to get a actual visual color view due to modifiers.
For other dust covers and p1p/p1s/x1c mods check my profile or the below links:
Snap in Toolhead Fan Grill/Cover for P1P/P1S/X1C
Stepper Motor Debris Cover for P1P, P1S & X1c
Snap in Poop Chute Cover for P1P/P1S/X1C
https://makerworld.com/en/models/1225871-snap-in-poop-chute-cover-for-p1p-p1s-x1c#profileId-1243605
Snap in Belt Dust Cover for P1P, P1S & X1C
https://makerworld.com/en/models/1211357-snap-in-belt-dust-cover-for-p1p-p1s-x1c#profileId-1226249
