80 Series Land Cruiser Side Mirror Bolt Post Fix

Print Profile(1)

All
P1S
P1P
X1
X1 Carbon
X1E
A1
A1 mini
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
48 min
1 plate

Open in Bambu Studio
Boost
27
88
0
1
62
30
Released

Description

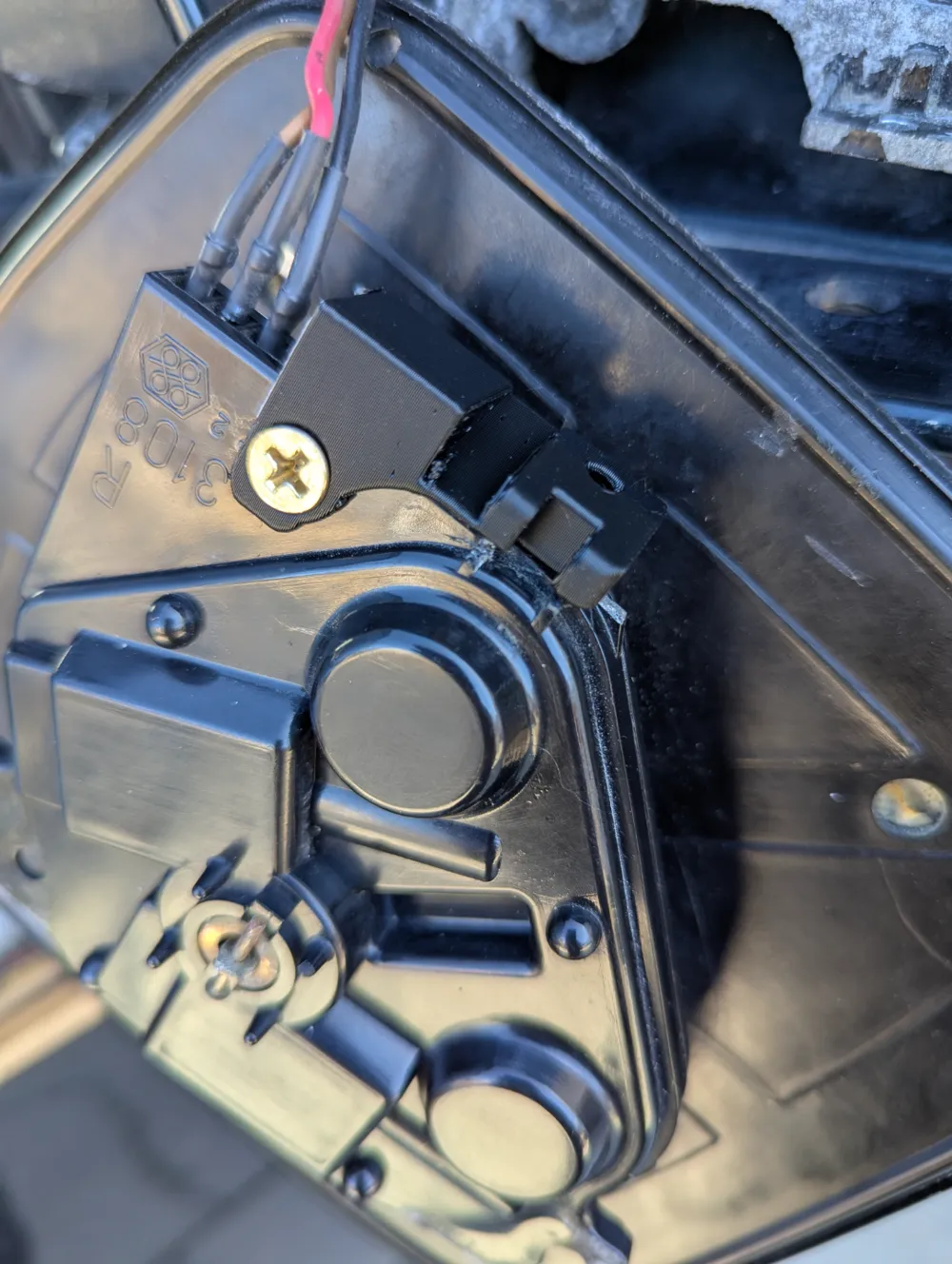

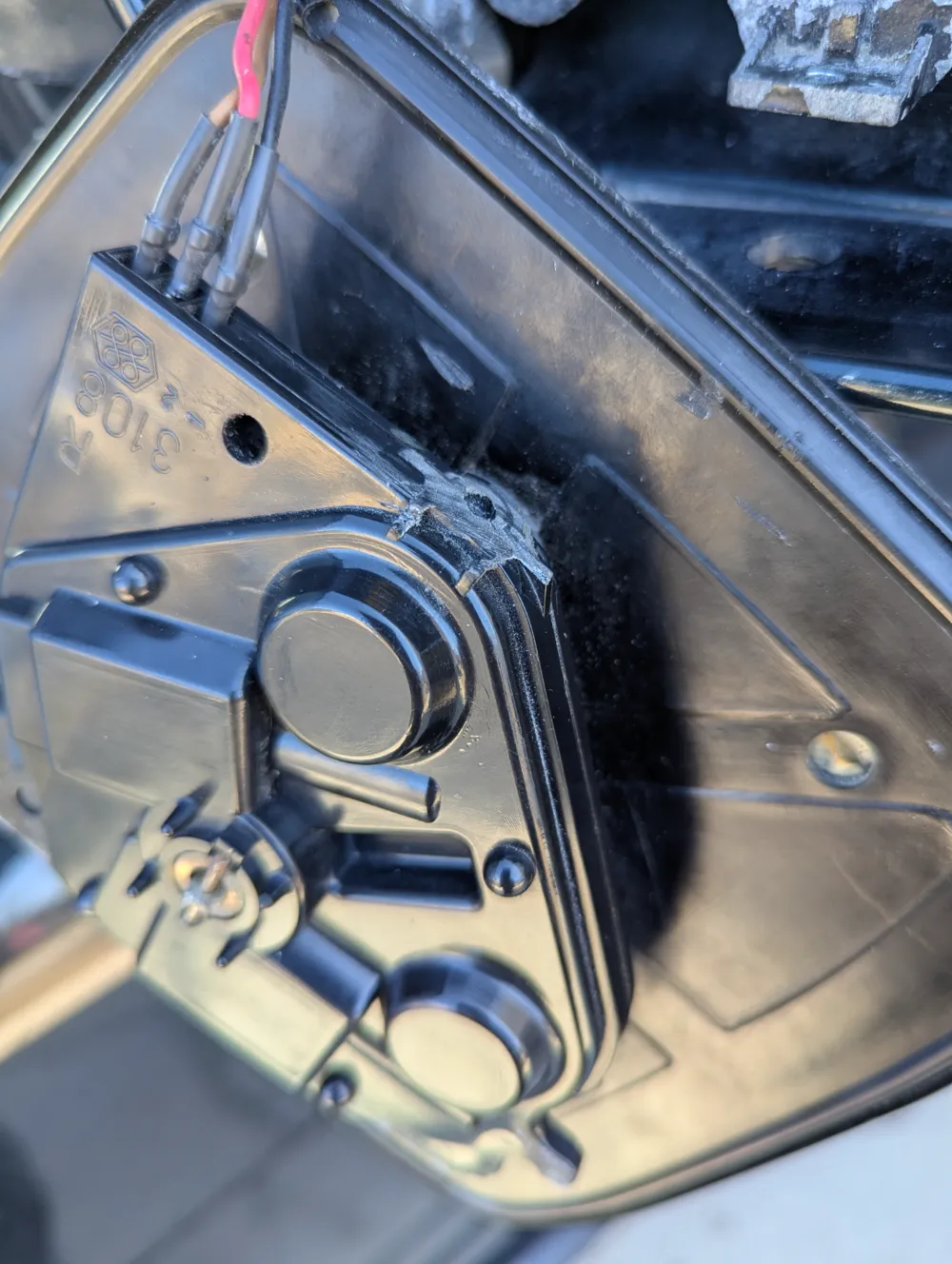

Is the side mirror in your 80 series shaking around because of a broken bottom screw post?  This will replace the broken bits using an existing hole in the mirror assembly.  Cut off the broken pieces of the post, attach this piece using a screw and reinstall the mirror.



Modeled using a '94 FZJ80.

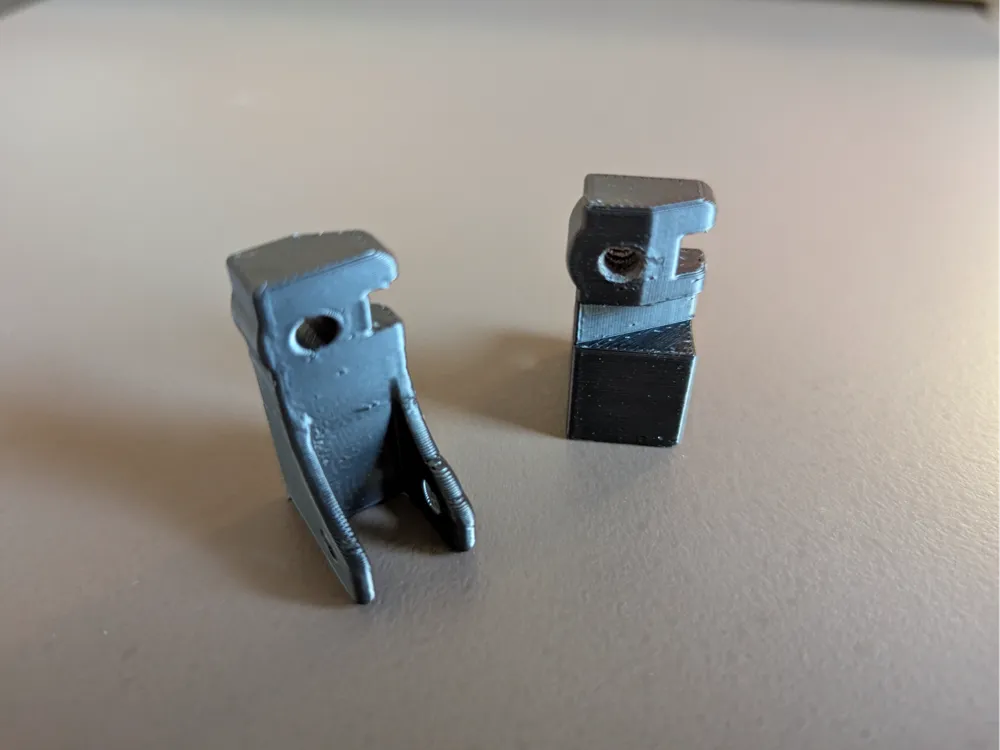

Left and right side included.  Print the one you need.  I used ABS since it'll never see daylight, but ASA would work as well.  The print profile includes supports.  I decided the strength of running the layers from top to bottom of the parts outweighed no supports and the layers running across the parts.
