Description

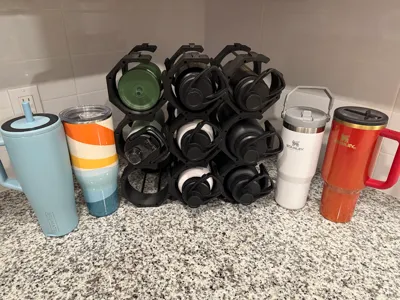

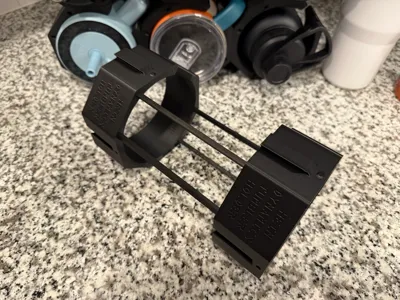

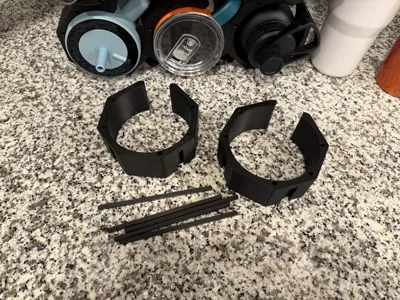

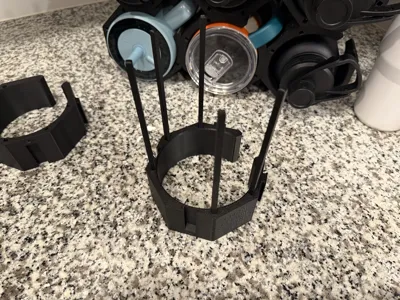

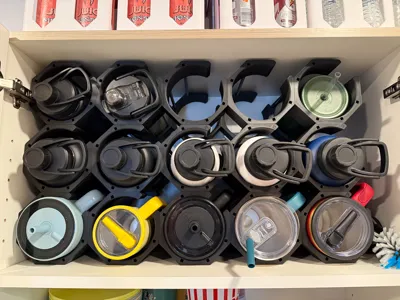

Meet the Hein Dynamics Modular Tumbler Holder. Designed to fit the most popular cups and water bottles up to 40oz in size from major brands like Stanley, HydroFlask, BruMate and more! For assembly it is best to put the connecting rods in the side of the holder that prints on the build plate, then attach the other side of the holder to complete the assembly. To link the holders together fully assemble them, then slide them together. The fit is precise, slide the completed assemblies together and “walk” the two main pieces together slowly alternating between the different connections until all pieces are flush.

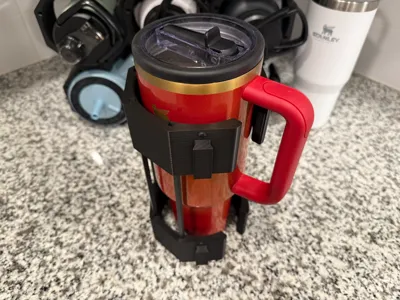

The Holder is capable of holding cups up to 105mm in diameter.

Comment & Rating (102)

@KimK

Boosted

worked wonderfully! it’s so much easier to get these in and out then when I had them standing up and have to reach behind. I used ends and bits and pieces of leftover rolls so mine are all a variety of colors. I decided to put them together in groups of four in case I decide to move these to a different shelf than I can still use them they fit extremely tight and I did have to sand down at least one hole on every one of them to be able to get the rod to go in but it did not deter me at all because I really like the design and shape of these.

(Edited)

@Emraven15

this is so beautiful!!!

@AnarexicHippo

I reduced from 50mm to 25mm, worked out great. Half the time and material.

@OgburnFam

Boosted

care to share that profile? we've got a ton of tumblers, so being able to cut down print time would be huge for the smaller/lighter ones

@user_3267702327

can you share the file. im new and dont know how to resize

@Moonanites

Print Profile

0.2mm layer, 3 walls, 8% adaptive cubic infill

My guy! Your a legend for coming up with and designing these! Now we have a solution for all these damn cups 🤣. Flawless print on P2S with Bambu PLA.

The profile uploader has replied

@OgburnFam

Boosted

credit to the OP for the design. I just chopped material out so it wasn't such a long and costly print.

@ByteSize

Printed great on my A1 mini. I made 13 of these in a couple days and they fit together tightly and hold the Brumate 40oz well. Thanks for sharing this great design!

@Trignus

Boosted

Print Profile

0.2mm layer, 3 walls, 10% infill

prints perfectly. I didn’t even realize we had this many tumblers. Thank you for sharing. I need 2 more to finally be done with this project. lmao

@Letcher77

Boosted

Print Profile

0.2mm layer, 3 walls, 10% infill

works perfect

@davidtran16

Print Profile

0.2mm layer, 3 walls, 10% infill

perfect print

@Joe2727

Print Profile

0.2mm layer, 3 walls, 10% infill

the small and the large work great together. make organizing the cupboard a lot easier. we can now access multiple cups at a time, instead of just the front row

@user_2963358183

great design, just has to be glued together. I did mine in petg but learned it takes twice as long. im still learning, so 40 hrs later I can hold 6 cups lol.

@user_354042619

Print Profile

0.2mm layer, 3 walls, 10% infill
