0.2mm layer, 2 walls, 15% infill

Designer

1.1 h

1 plate

Open in Bambu Studio

Boost

Released

Description

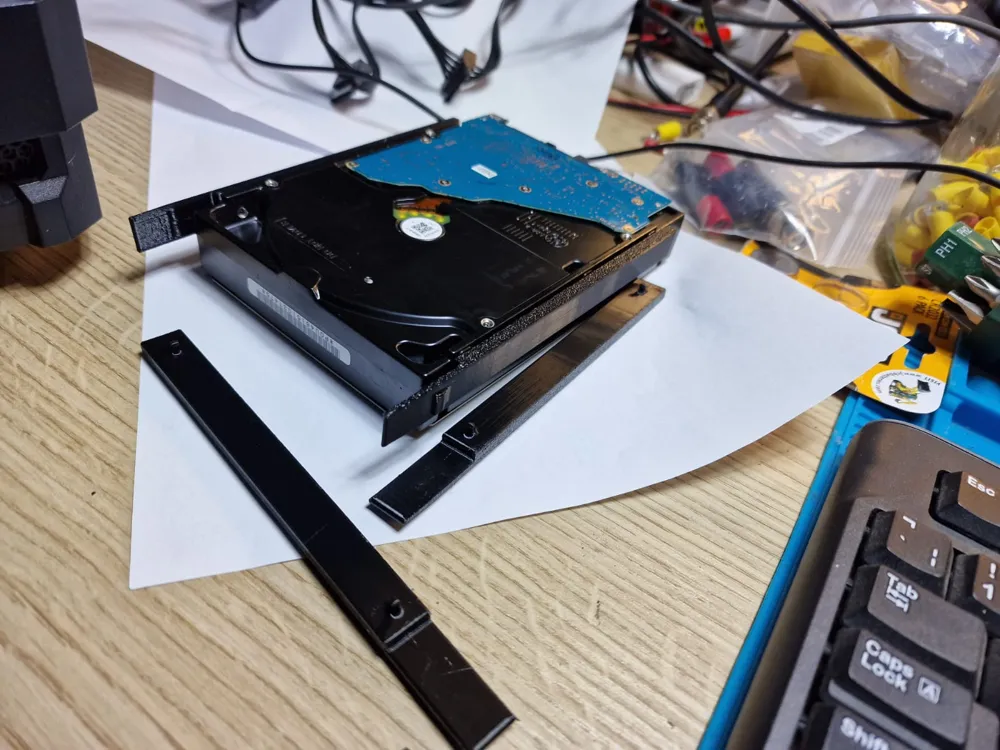

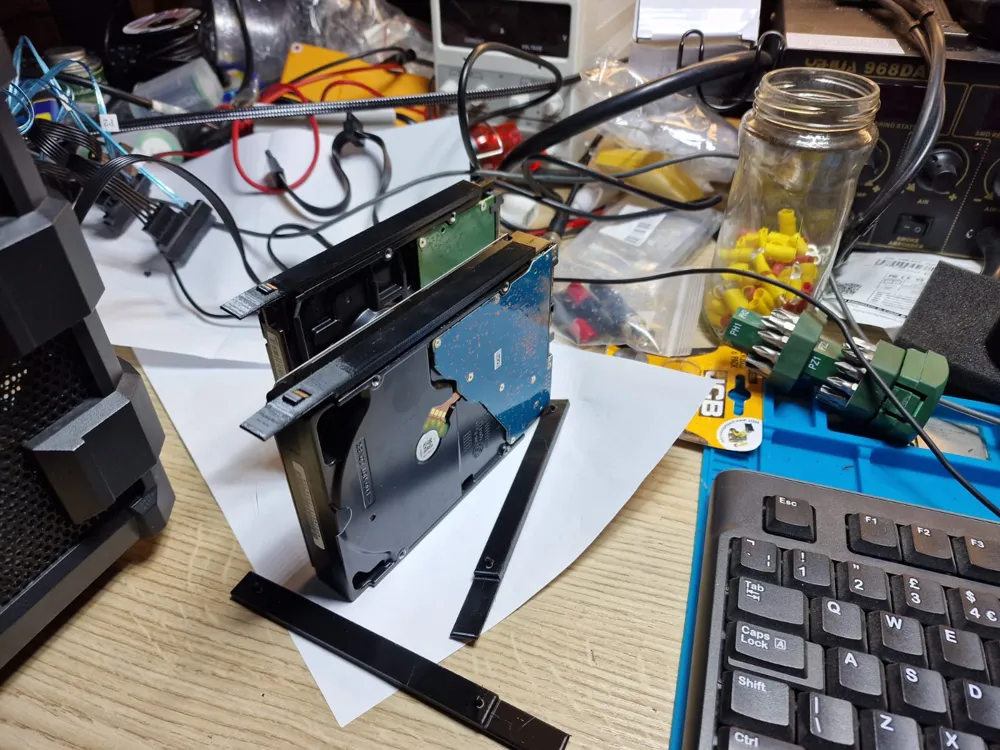

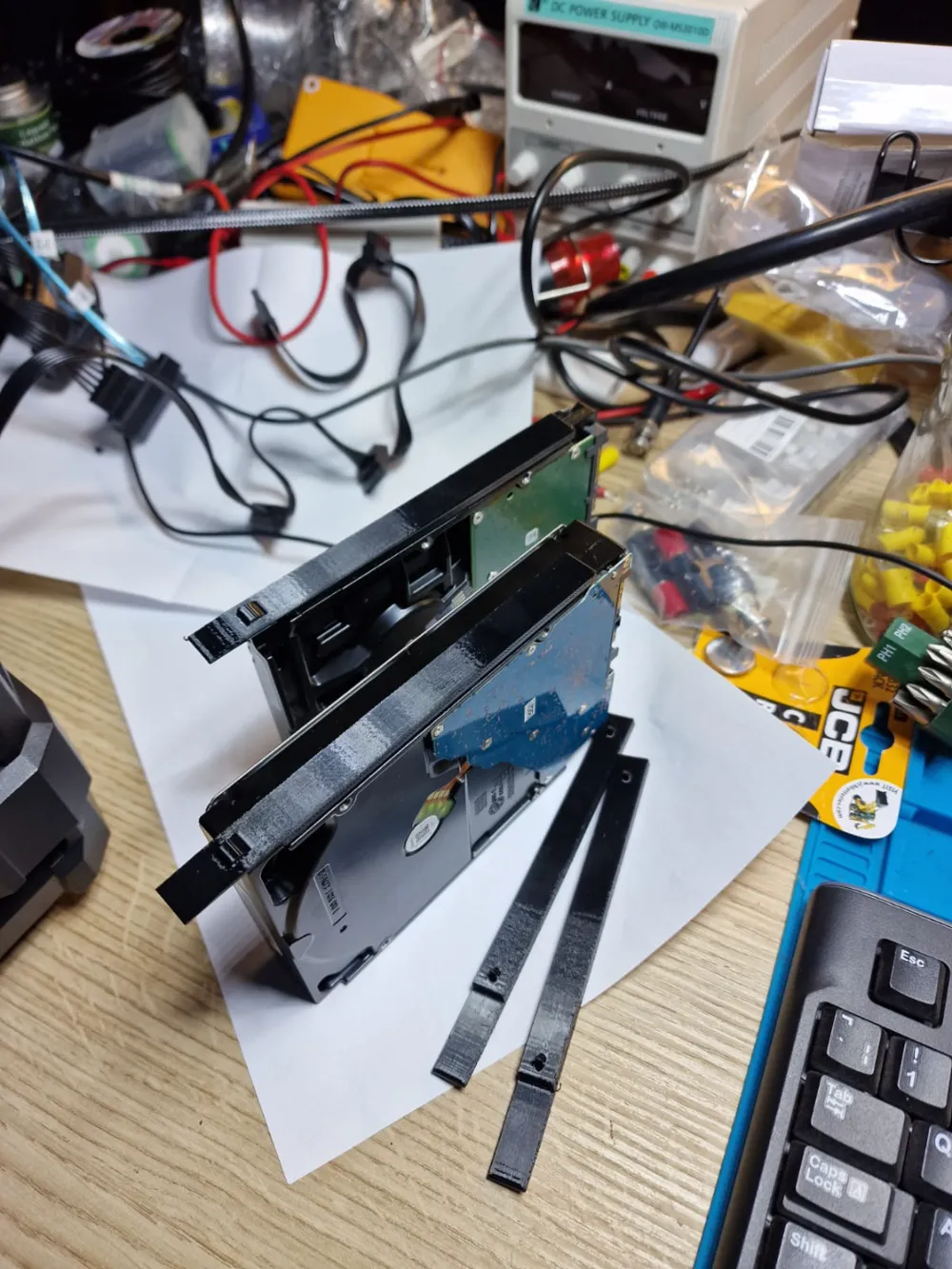

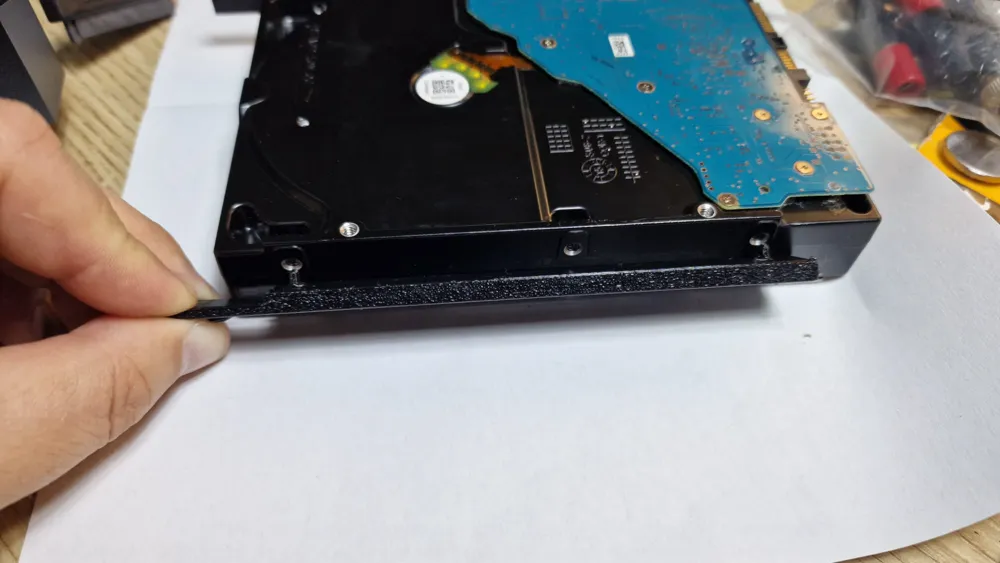

This rails are fully drawn by me and compatible with any 3.5" SATA/SAS HDD end holes and should fit to any PC case that permit installing this type of hdd's on rails.

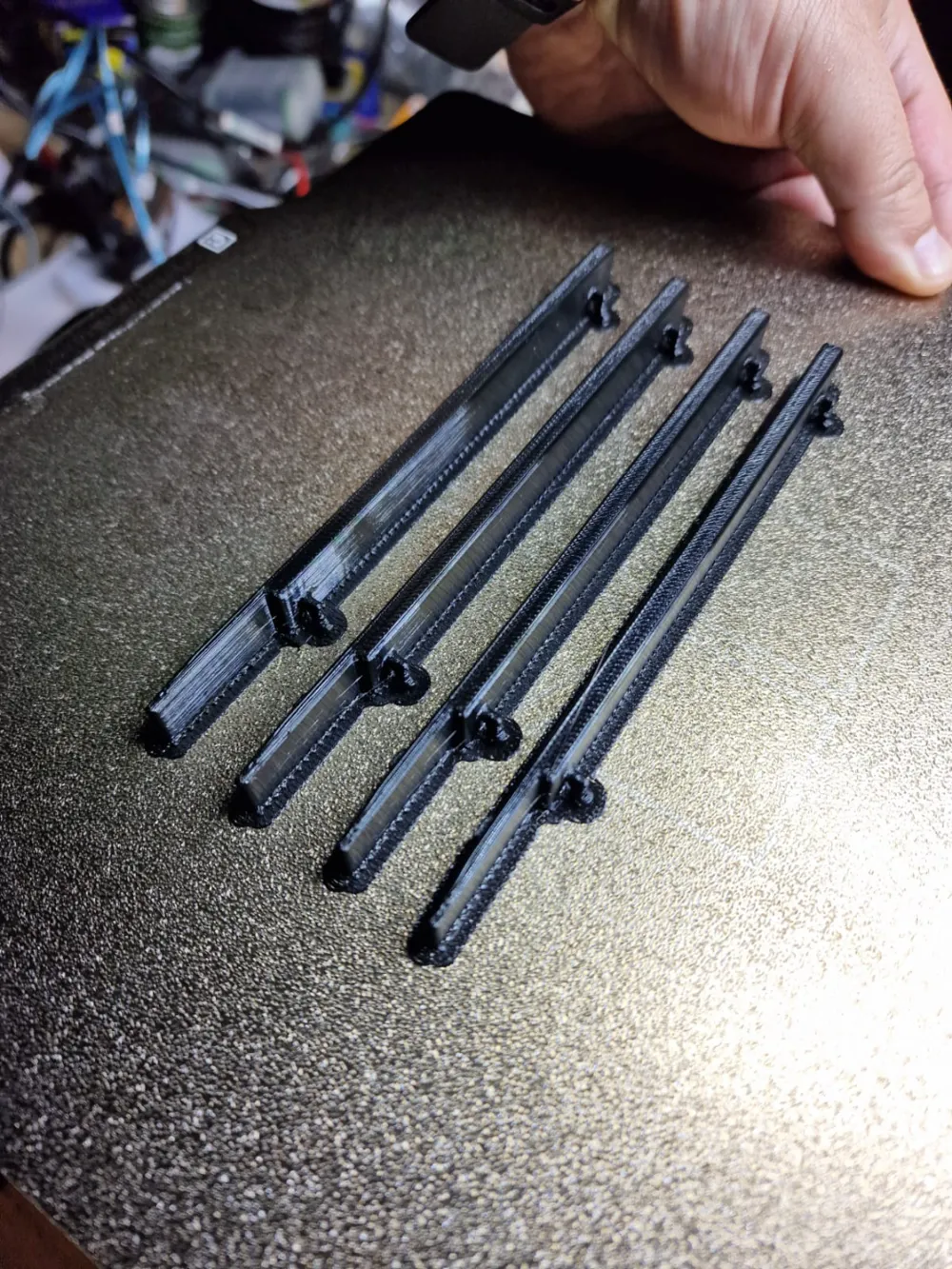

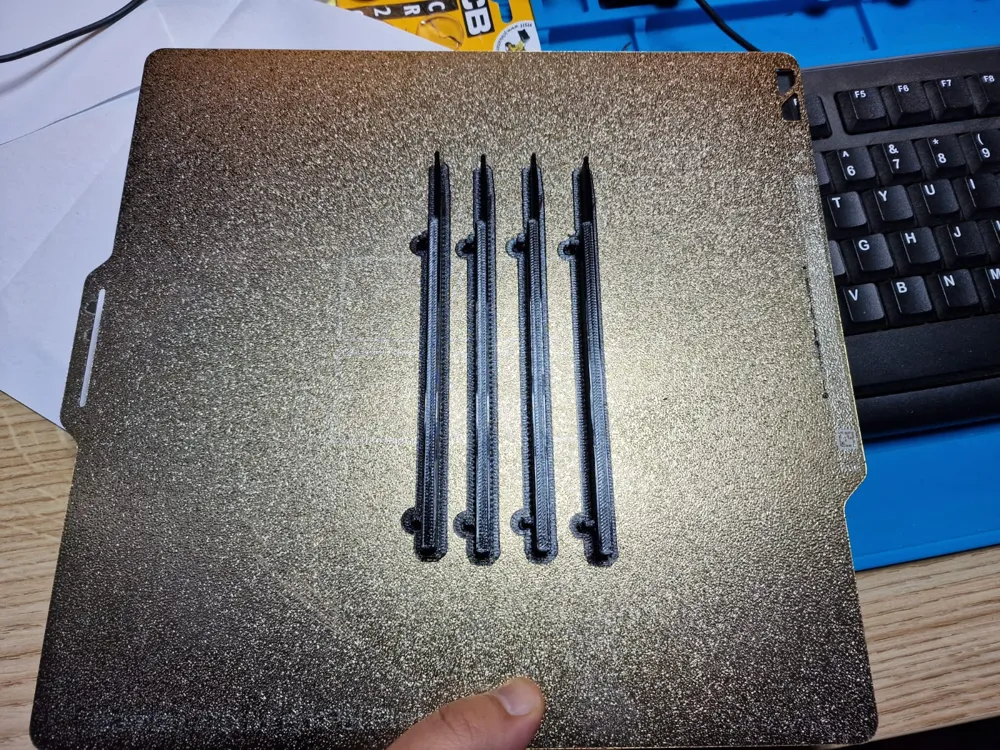

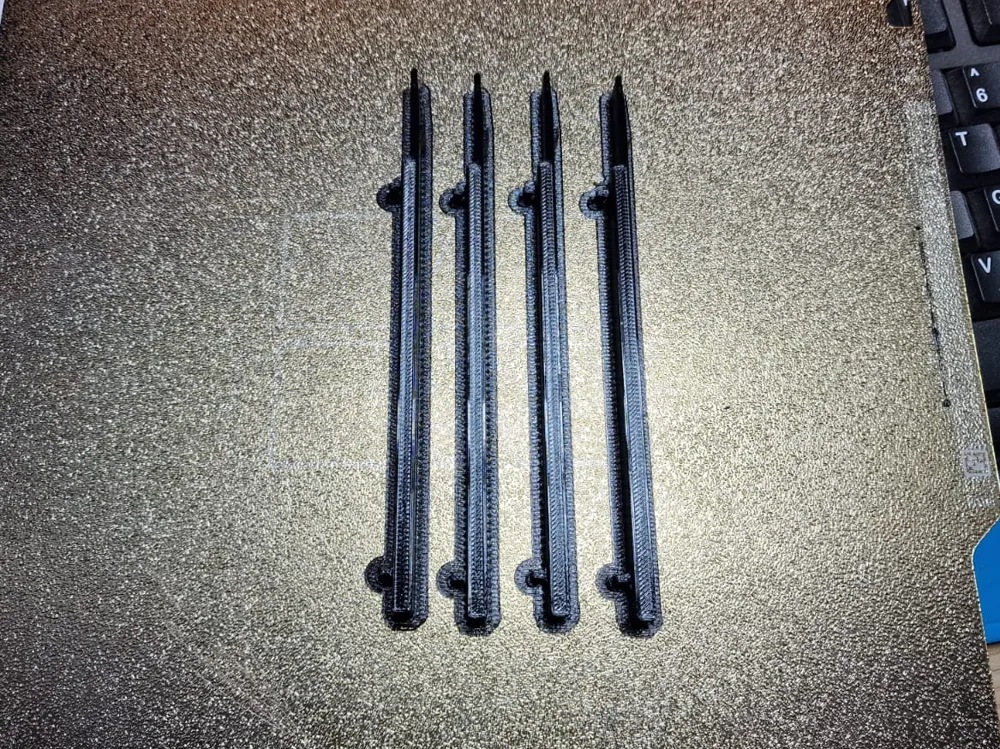

I printed using PETG filament on A1 printer with AMS and 0.4 mm nozzle and using auto tree support. I know the design is far from perfect but it's practical and if anyone want to improve it, I've added Fusion360 file for download.

I share this model because the aren't any good rails posted till now to fit hdd holes.
