76mm Soffit Vent - Anti Insect Grill
Print Profile(1)
Description

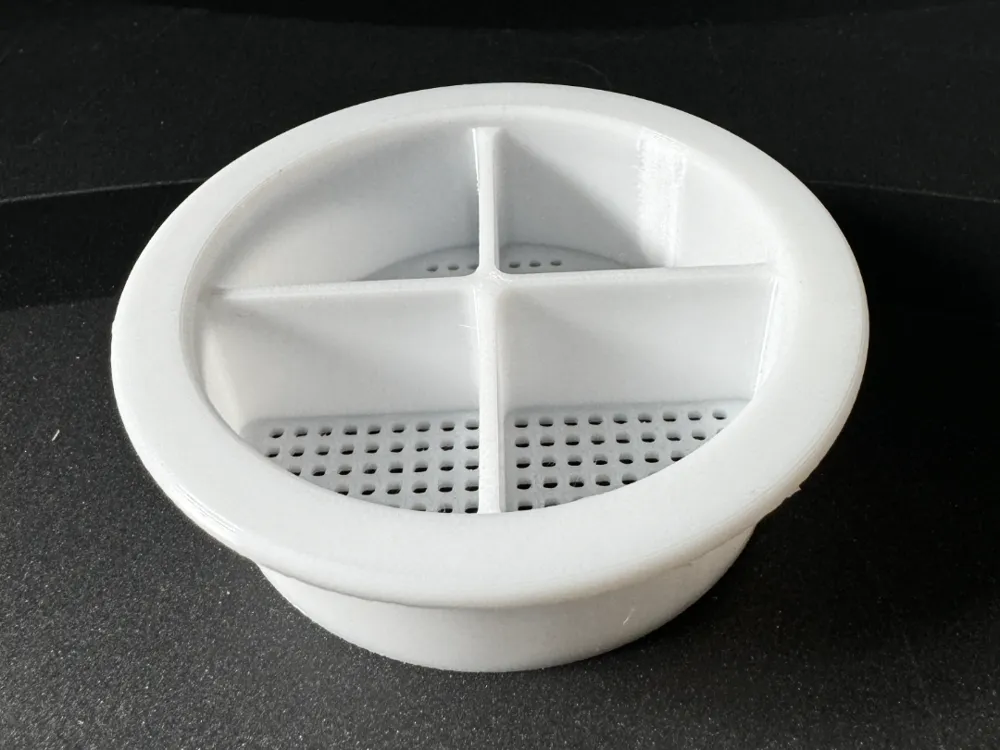

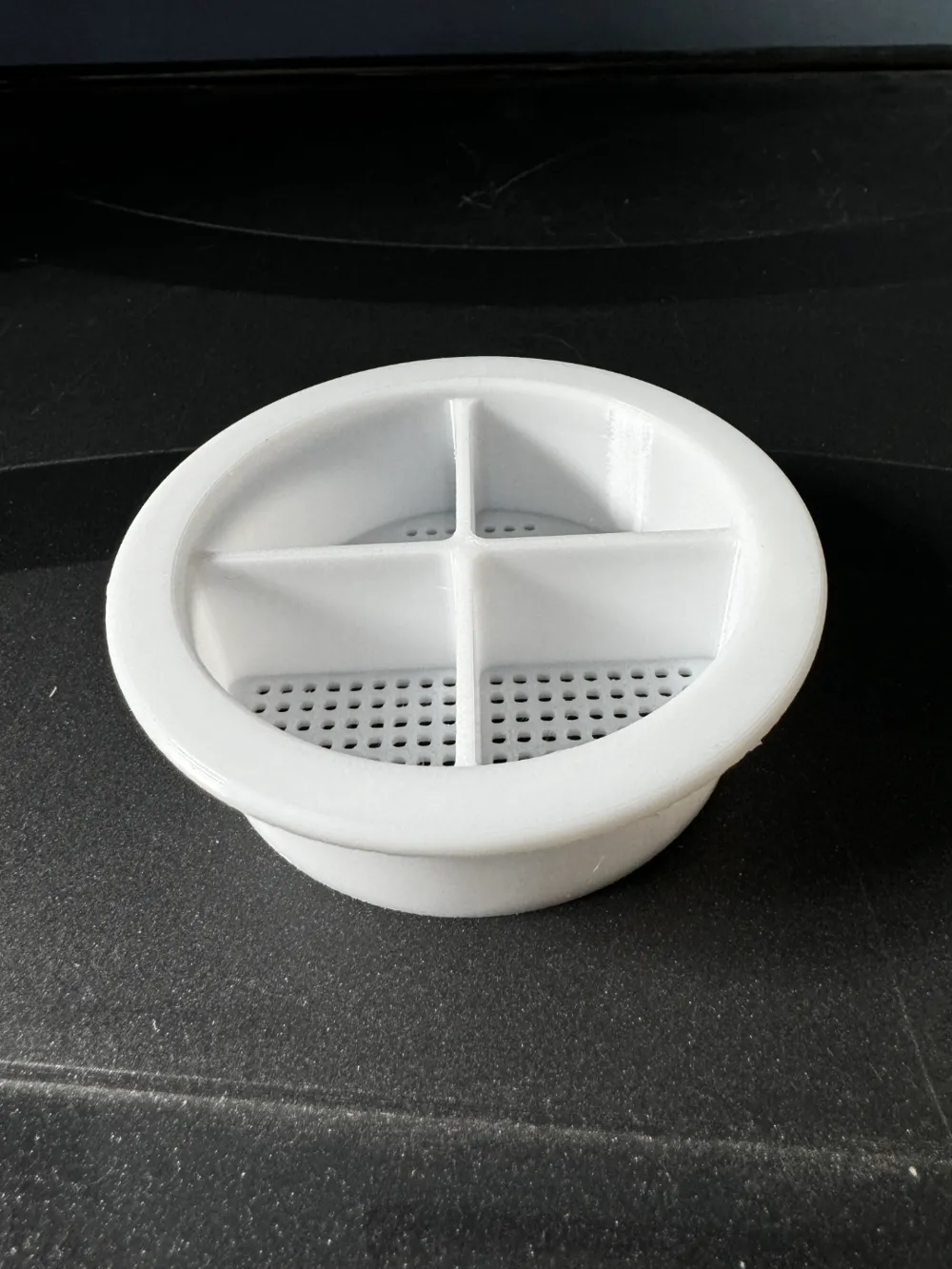

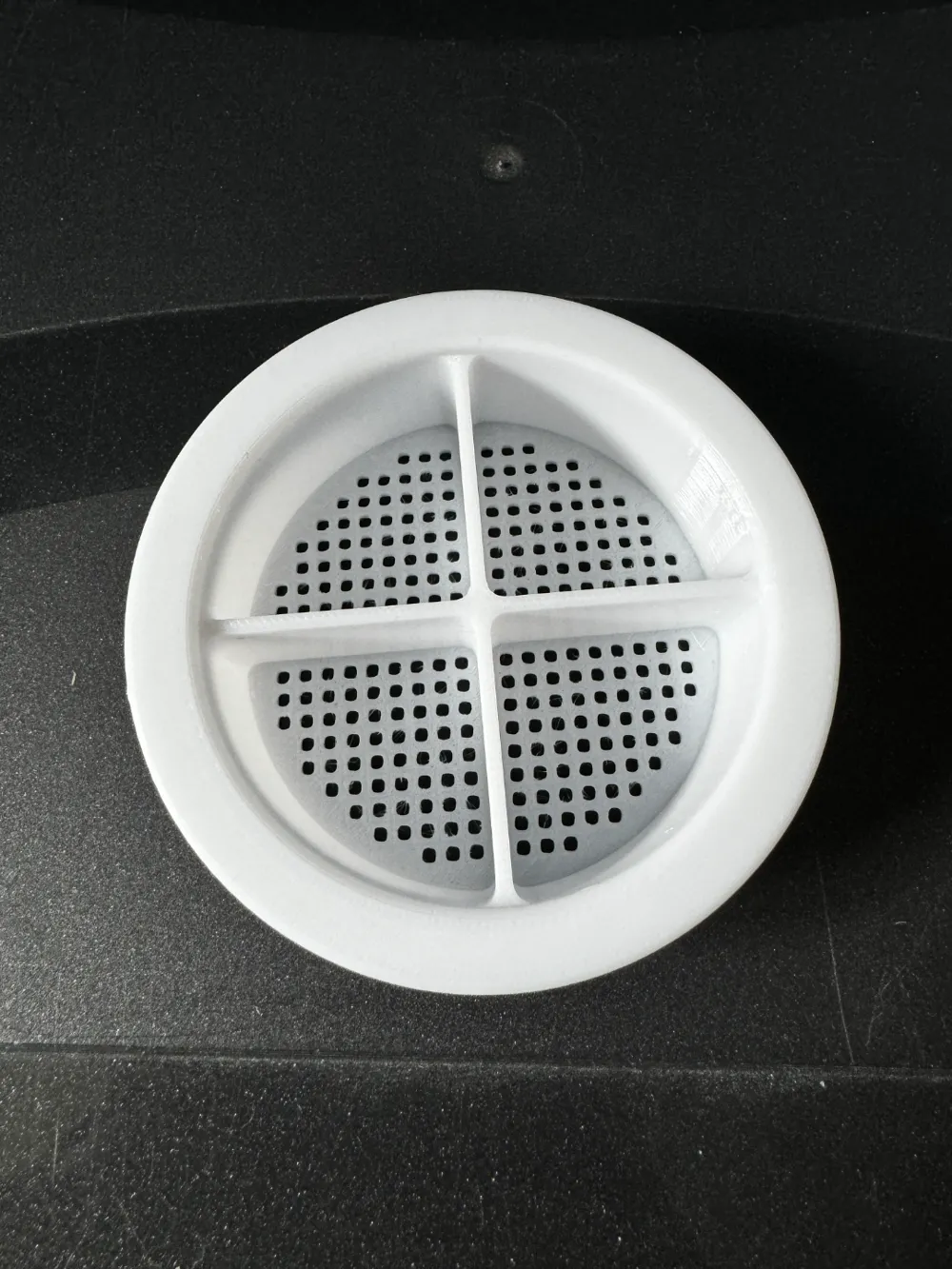

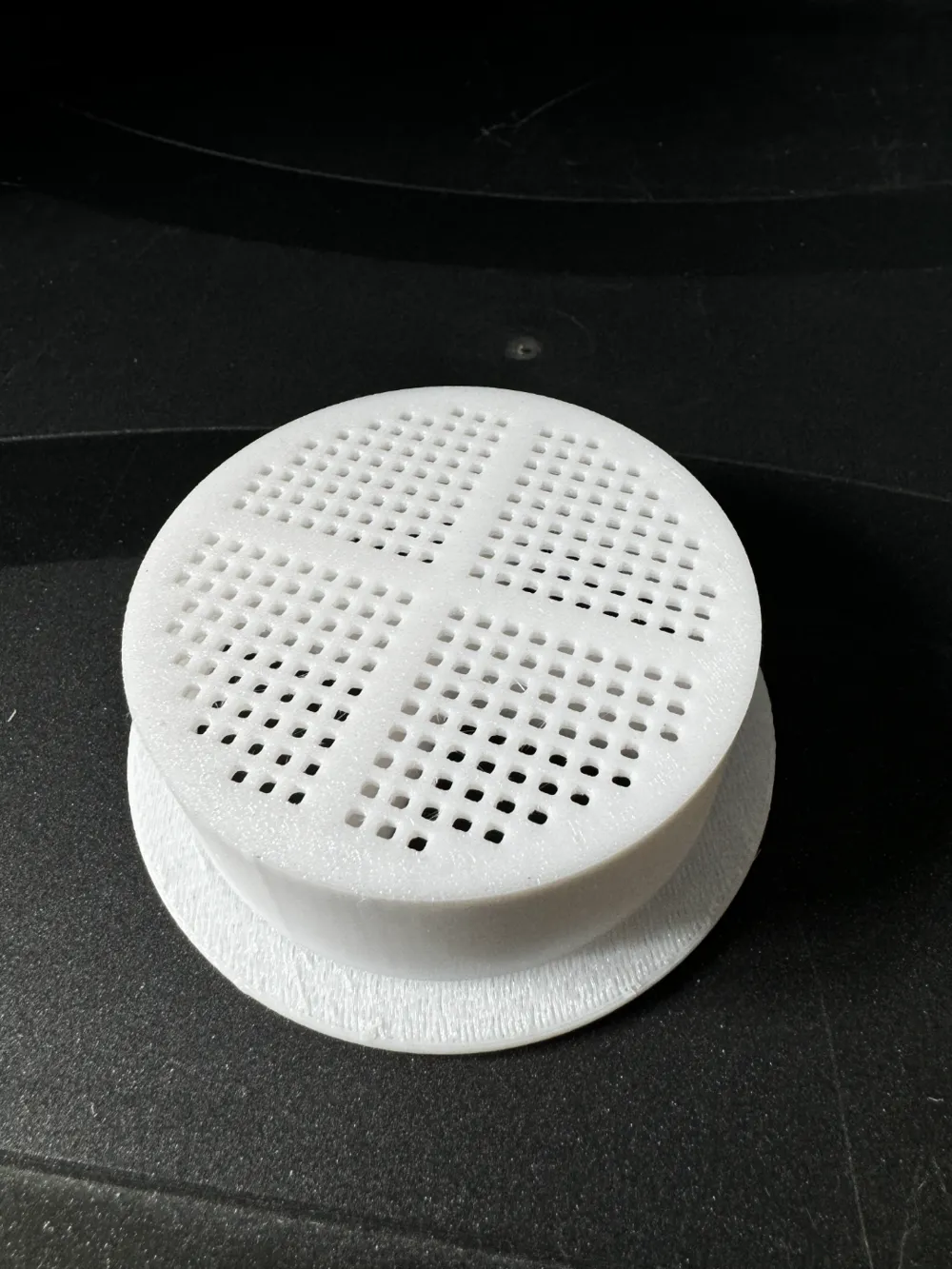

76mm* Soffit Vent with Anti-Insect grill to prevent unwanted entry of insects into your loft or attic space.
For use in Soffits only to improve airflow into your loft or attic. Most ones i have come across previously either need an alternative mesh or have large openings for insects to enter and nest. This model has 2mm holes.
When installed in my own house I used white silicon sealant to hold them in to the holes without ruining the look of the soffit boards installed.
Product has 25mm of insertable length into the hole so should get through soffits that have had PVC trims applied over the existing wooden ones and a 7mm rim to reduce the footprint required while still allowing for space to apply the
Advise it is printed using PETG as this will be exposed to the elements and moisture.
Supports will be required for the rim.
*Measurements may differ slightly depending on printer and material used.
