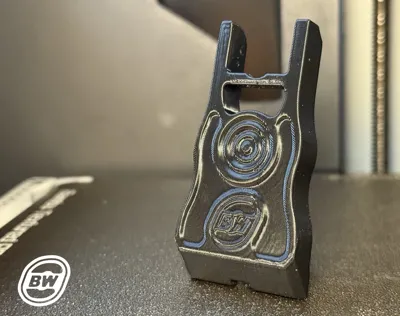

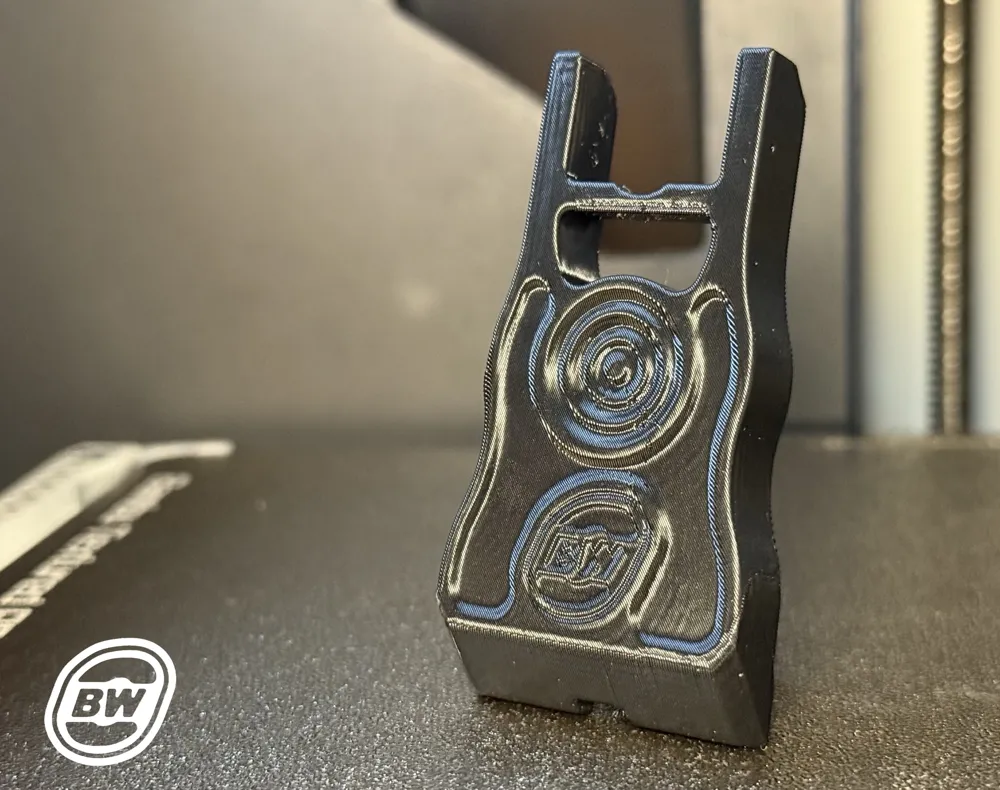

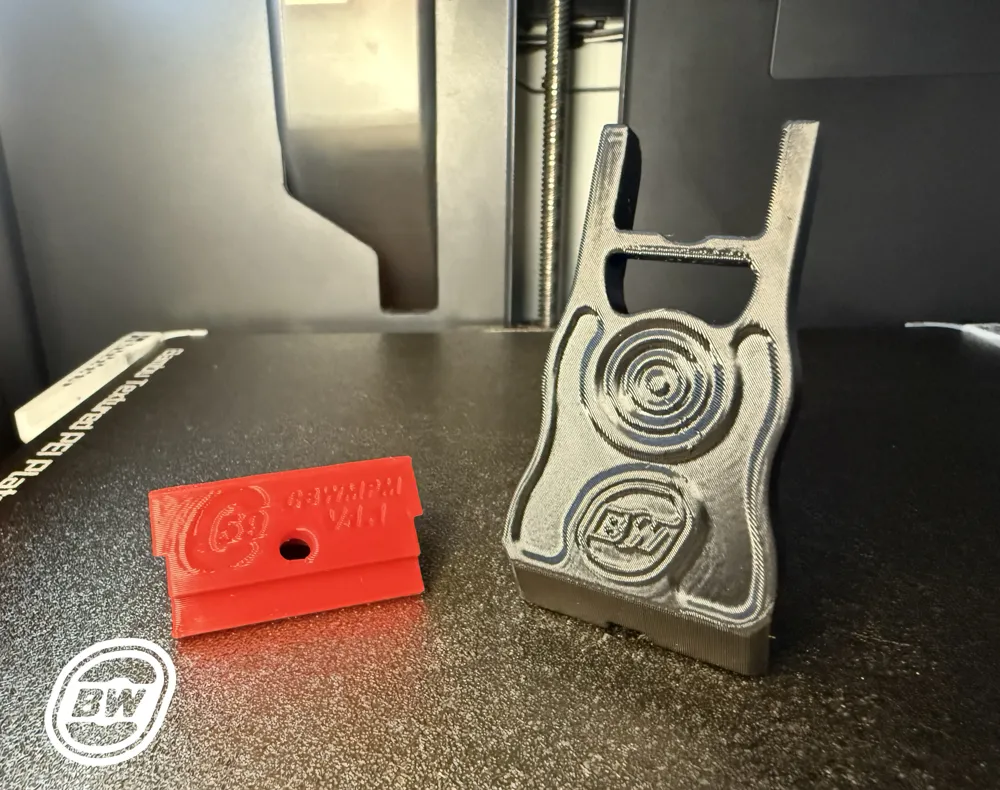

Eureka Mignon Paddle Switch Upgrade Kit (CBWMP + CBWMPM)

From C59 BrewWorks – High-Performance Espresso Accessories.

This kit is designed to fit various models of the Eureka Mignon coffee grinders, specifically those with the switch at the front.

The paddle switch makes workflow a breeze by eliminating the need for precise alignment with the small button. Alongside the paddle, I also have a universal dosing cup, premium tamper and a Zero retention stand for the Eureka Mignon grinder series coming soon. While these Eureka aren't perfect, I was considering alternatives, but I decided to stick with what I have and customize it to suit my needs. I’m sharing my adventure to help others.

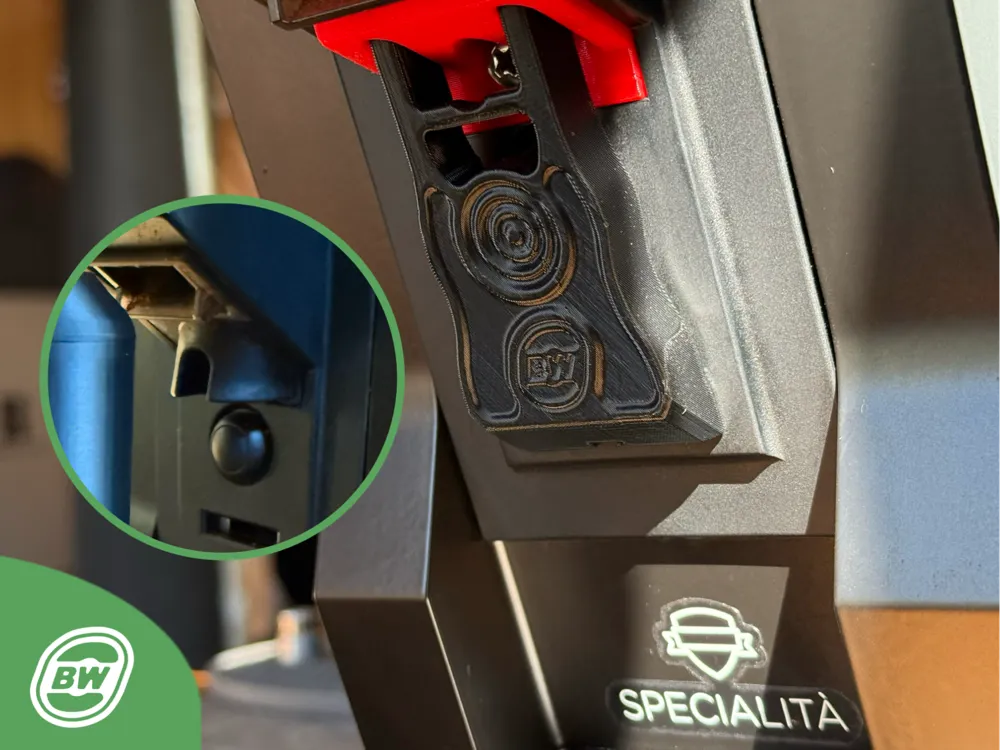

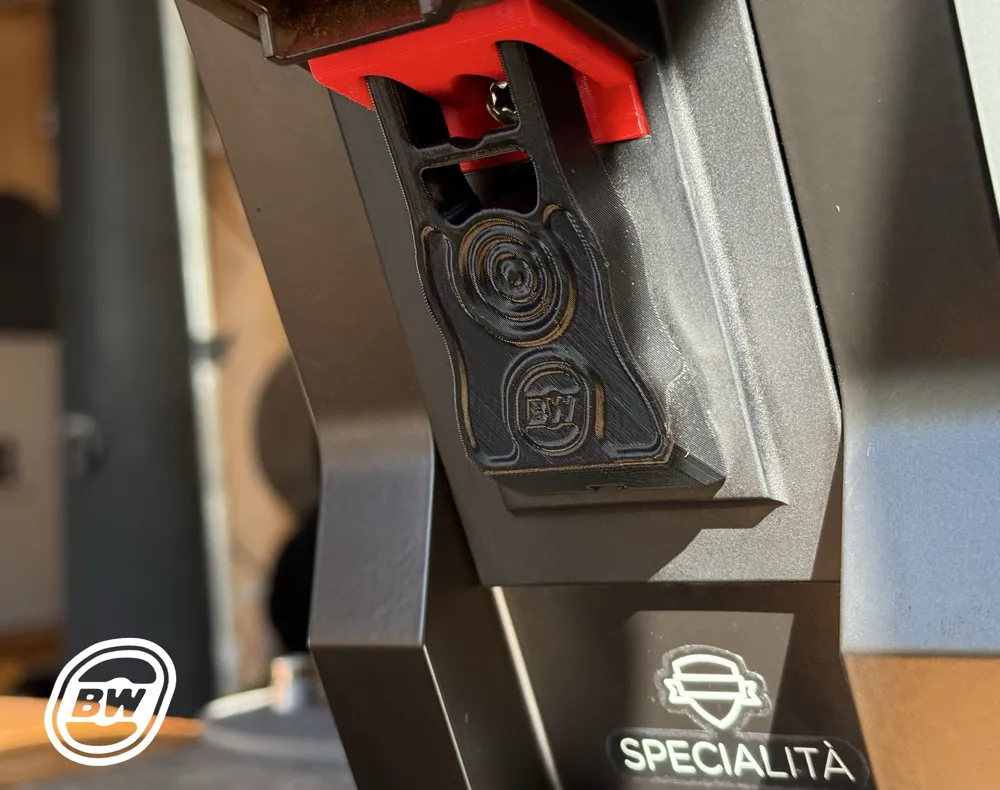

Effortlessly Activate Your Mignon

Forget the stress of pressing a button. Enjoy the ease of use!

Assembly Instructions

1. Disassembly:

Empty the beans (remove the doser or hopper if preferred).
UNPLUG the grinder from the power source.
Remove the Eureka badge located at the back of the grinder.
Gently pull backward while lifting the top portion of the grinder.
Remove the front accessories, portafilter rack, and unscrew the Phillips screw above the push button.
Locate and remove the two Phillips screws at the front top portion.
If your grinder has a screen, be cautious during the next steps, and pay attention to the switch/ screen wire.
Carefully pull upward and forward simultaneously to remove the front panel. Take care not to damage the coffee chute.

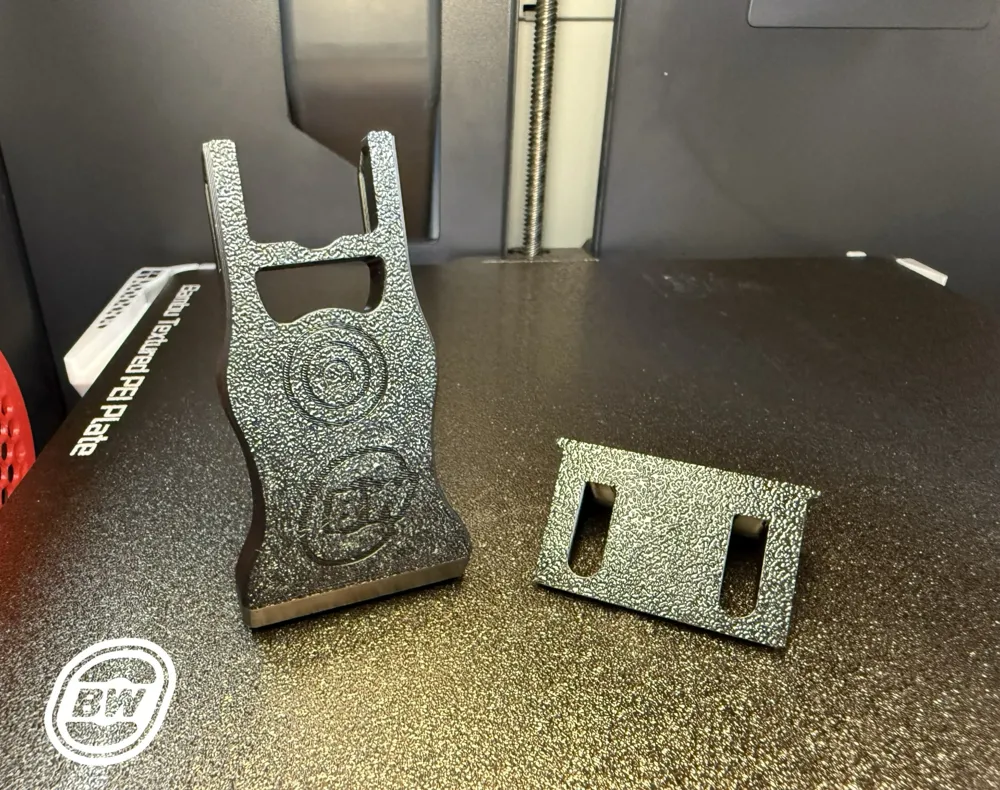

Remove the original portafilter guide and replace it with the CBW parts kit.

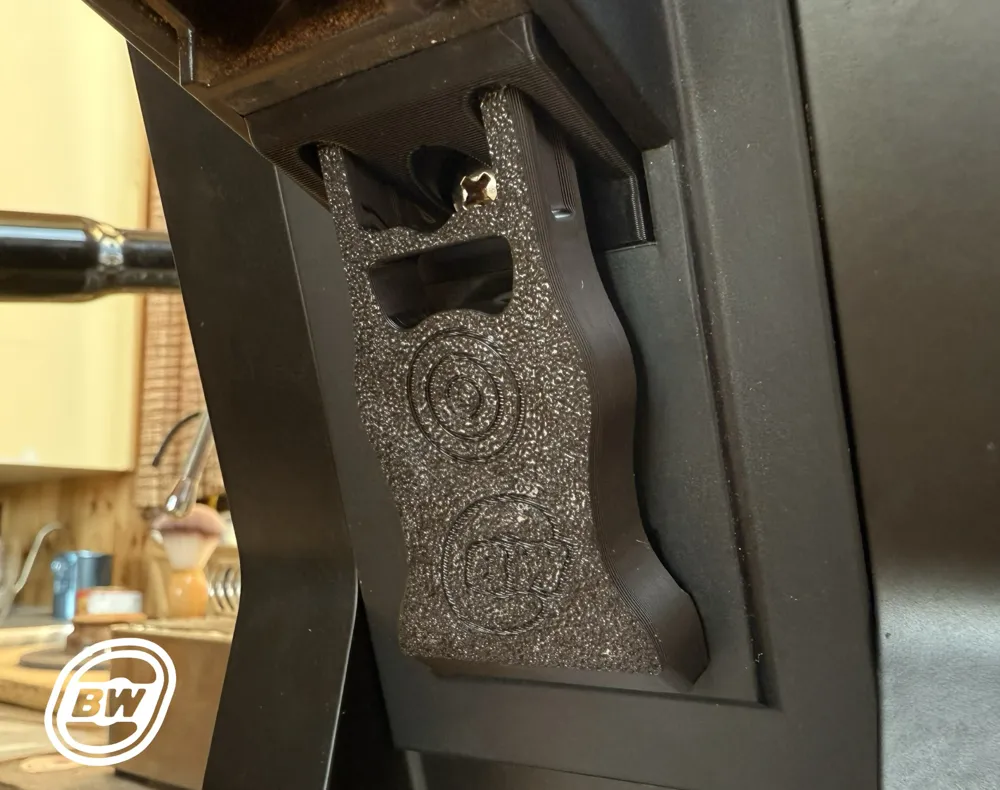

Insert the CBWMP into the front panel and secure it in place before reattaching.

2. Reassembly:

Reassemble the grinder by following the steps above in reverse, now equipped with the ultimate Mignon setup.

Enjoy effortless grinder activation and an enhanced workflow!

Action HD Shorts: Keep on Grinding

Install Action HD VIDEO:

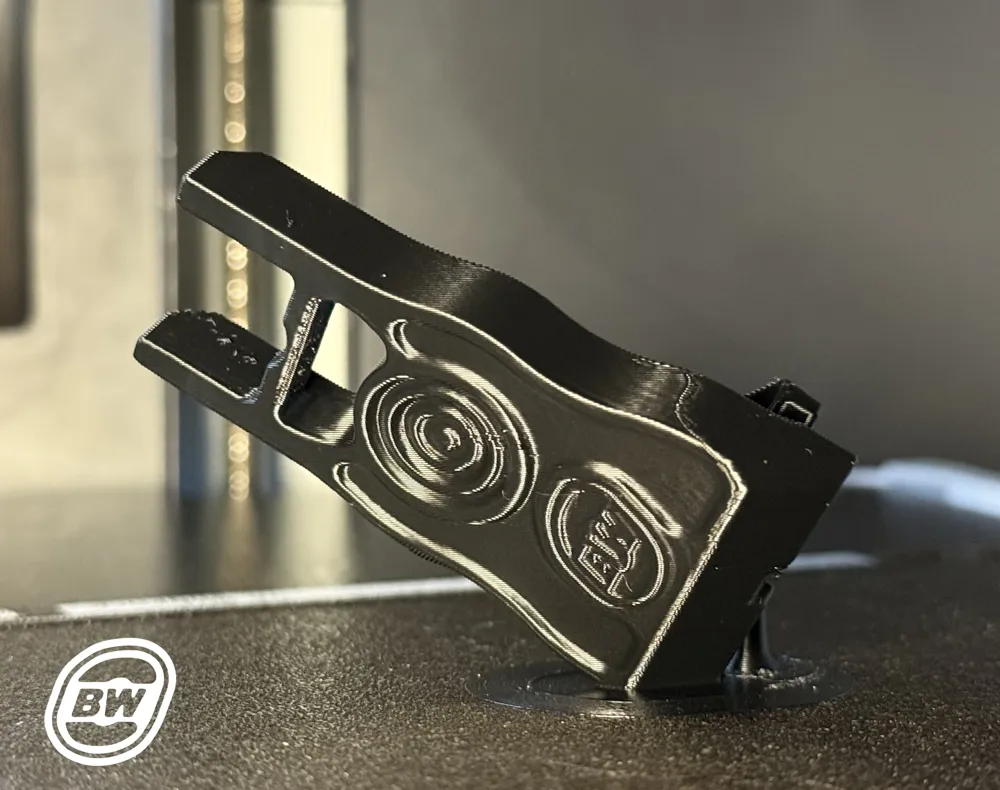

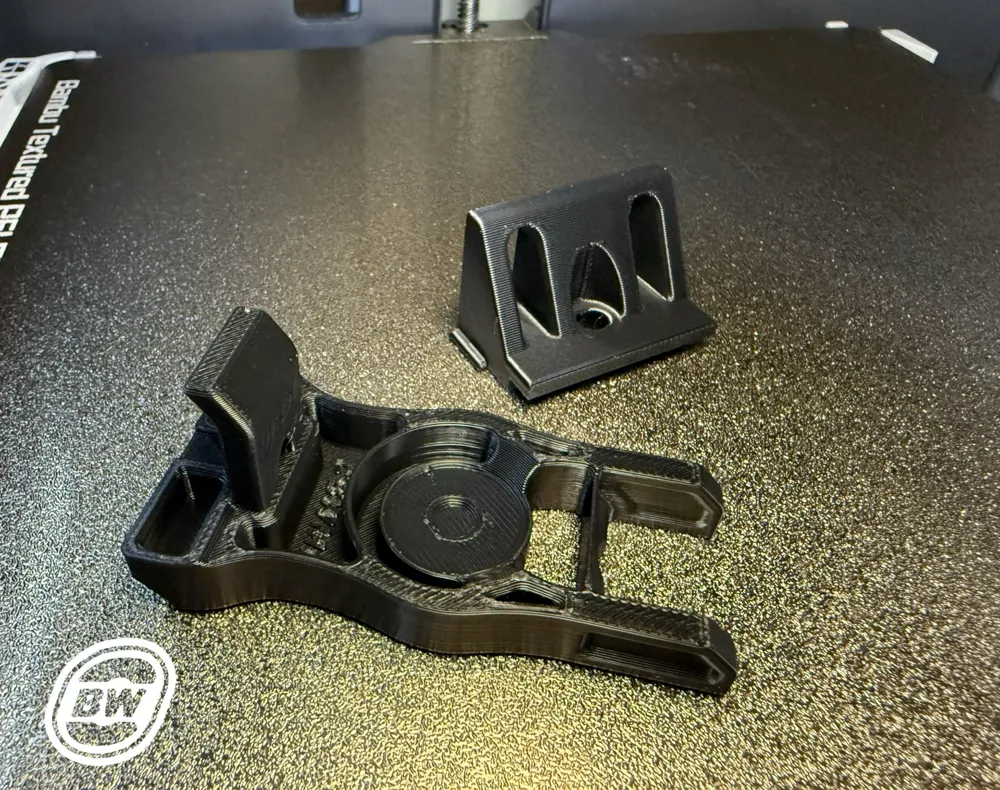

v1.0 Print Specifications

Material: Whatever you like !

Printer Settings:

Profile: Strength
Layer Height: 0.20 mm
Material used: PETG
Mode: CERTIFIED LUDICROUS
Infill: 25%
Walls: 4
Bottom Layers: 3
Top Layers: 5

Printing Details:

Supports: Not required
Print Time: 00:55:5 (00:39:00 -/+ Ludicrous)
Filament Usage: 0.68 oz
Estimated Cost: ~$0.58 (based on a $26 PETG spool)

Boost Me (for free)

🚀 Boost Your Project! 🚀

If you love what I'm working on, hit the Boost button! Your support helps me continue to create, improve, and share even more exciting designs. Thank you for being part of this journey!

Membership

C59 Commercial Membership Start selling your printed creations anywhere — at markets, or in local shops! Upgrade your tier anytime to unlock the Custom Branded Print-Only License, giving you the right to sell prints under your own brand. Your membership keeps your license active, your business growing, and your ideas turning into income — all while C59 originals stay protected. Print. Profit. Personalize — with C59.

Join

Enjoy your printing journey, and remember—keep your fingers away from the poop chute, she's angry!

"I’ll be sure to keep you updated with any future developments. If you come across any issues or need assistance, don’t hesitate to reach out—I’m here to help!"

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

Current ver.1.1_10/07/2025
