Cardboard Box Resizer

GIF

Print Profile(2)

All
P1S
P1P
X1
X1 Carbon
X1E
A1
A1 mini
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
57 min
1 plate
5.0(51)

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
10 min
1 plate
5.0(2)

Open in Bambu Studio
Boost
429
1433
60
30
575
490
Released

Description

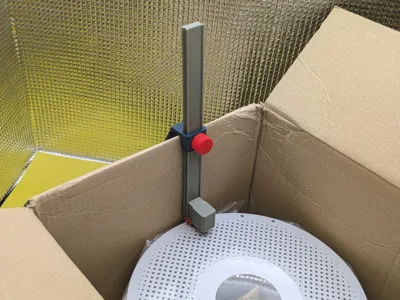

This handy tool makes it easy to resize cardboard boxes. You can quickly and neatly adjust box sizes by up to 180mm.

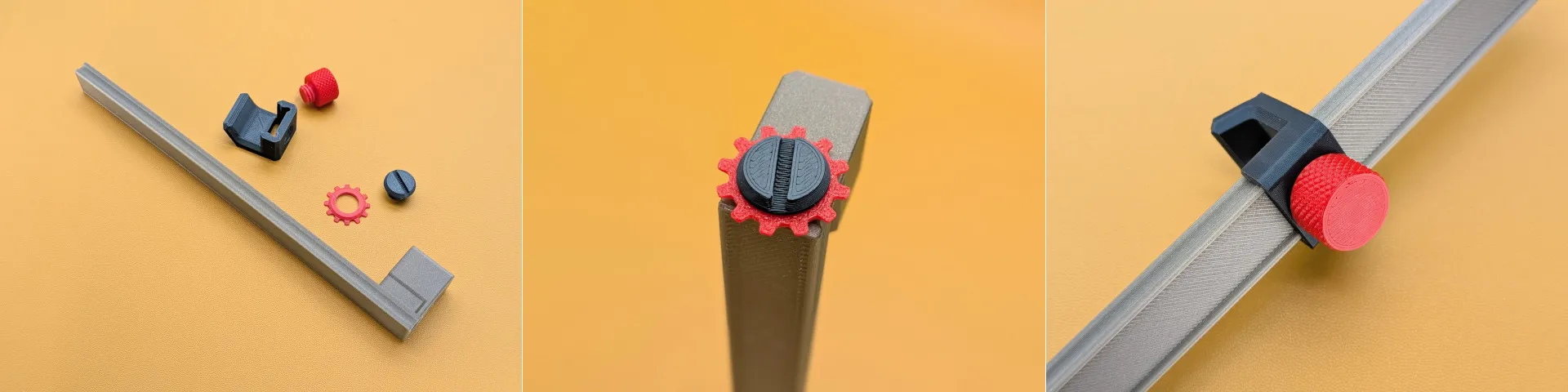

Assembly:
1. Attach the "Wheel" to the "Body" using the "Screw" and make sure the "Wheel" can rotate.
2. Insert the "Ledge" into the "Body" and attach the “Knob.”

How to Use:

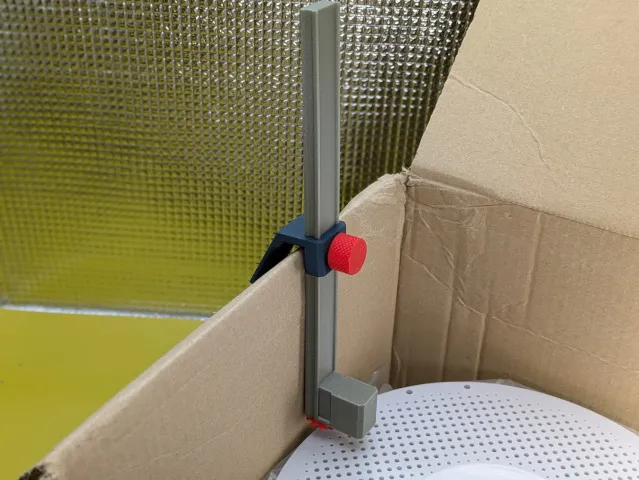

1. Set the desired cutting depth and tighten the knob to secure the ledge in place.

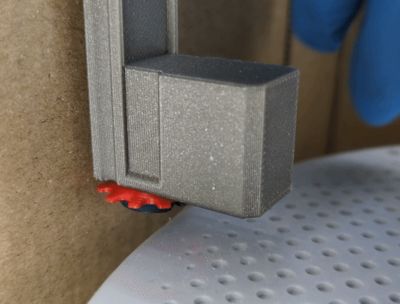

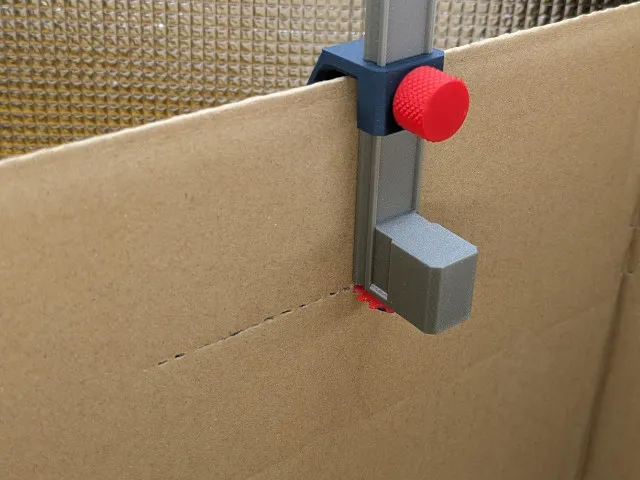

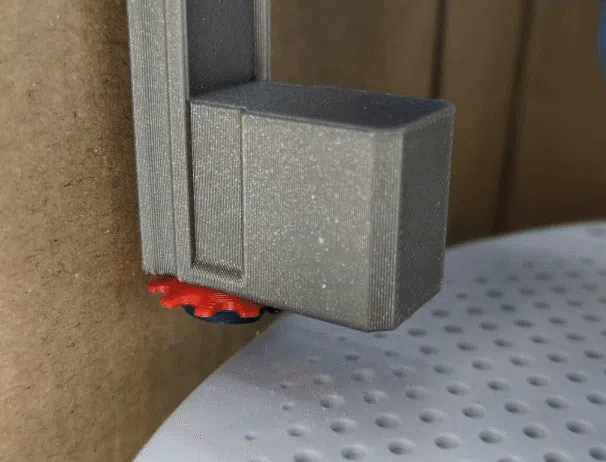

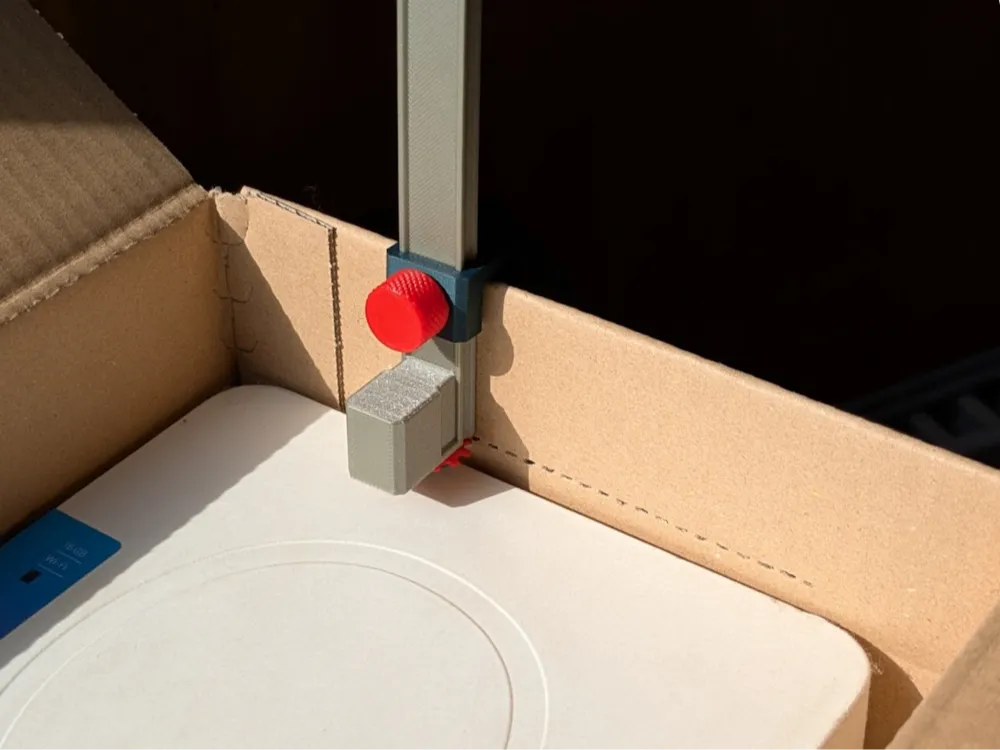

2. Place the tool against the cardboard and move it along the edge to score a fold line. Repeat this for all four sides. Placing your hand on the opposite side of the cardboard while moving the tool helps create a more effective fold line.

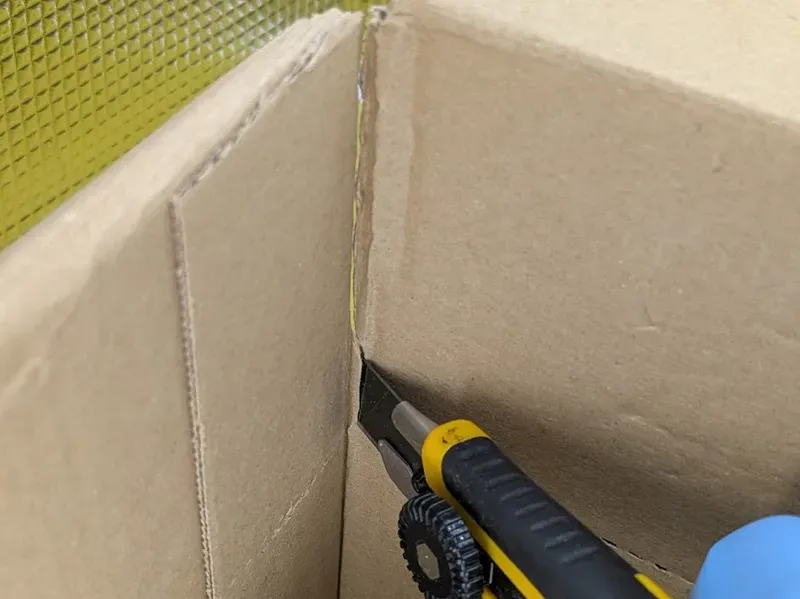

3. Make cuts with a knife up to the fold lines at all four corners.

4. Fold the cardboard along the scored line

Notes:

  • Cardboard is quite tough, so it's important to support it from the opposite side when scoring fold lines.
