Simple N64 Cartridge Organizer
Print Profile(2)
Bill of Materials
Description

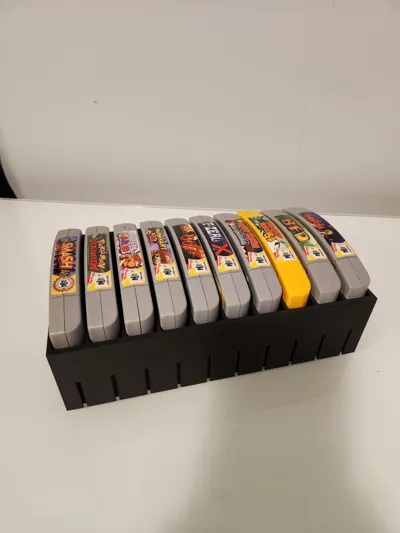

A simple organizer made to hold Nintendo 64 cartridges.

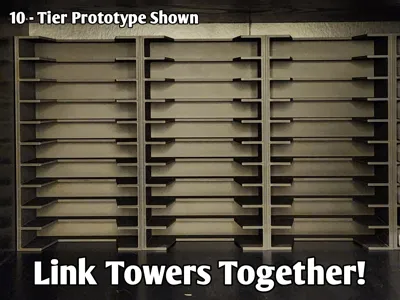

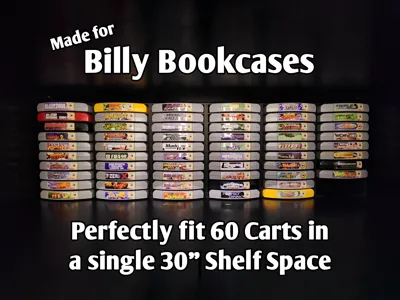

The compartments have been sized to fit carts without dust covers. Multiple towers can be linked together and are designed to fit perfectly inside a standard 30" Ikea Billy Bookcase shelf space. This allows you to place a total of 6 vertical towers allowing storage for up to 60 carts on a single shelf.

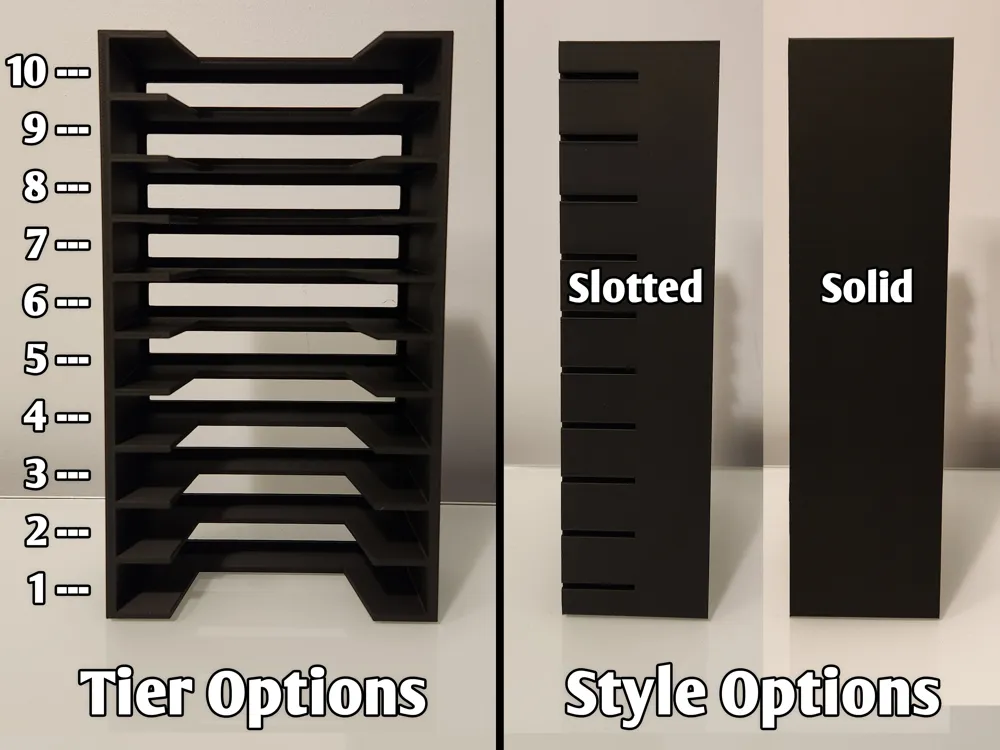

There are two versions of the tower:
- Slotted - Ribbed side walls used with fasteners to link the towers together. A slot is provided for each height tier to allow for more customizable options. It is recommended to use 2 fasteners to join towers with one of each in the top and bottom slots for the sturdiest assembly.
- Solid - Solid side walls for those who prefer a cleaner look. This version does not fastened together.
Dimensions:
- Both versions provide 1 - 10 tier configurations measuring (126.531 mm / 4.98") wide and (58.3947 mm / 2.3") deep. The chart below outlines the heights across all tiers.
| Tier | Height (mm/inch) |
| 10-Cart | 219.593 mm / 8.65" |
| 9-Cart | 197.811 mm / 7.78" |
| 8-Cart | 176.03 mm / 6.93" |
| 7-Cart | 154.248 mm / 6.07" |
| 6-Cart | 132.467 mm / 5.21" |
| 5-Cart | 110.685 mm / 4.35" |
| 4-Cart | 89.0943 mm / 3.5" |
| 3-Cart | 67.5033 mm / 2.65" |
| 2-Cart | 45.9123 mm / 1.80" |
Print Profile
Printer: A1
Nozzle: 0.4mm
Layer Height: 0.2mm
Infill Pattern: Gyroid
Infill Density: 10%
Brim type: No-brim
