Model Railway Bridge TT/N 242.5mm, endlessly extendable
Print Profile(1)
Description

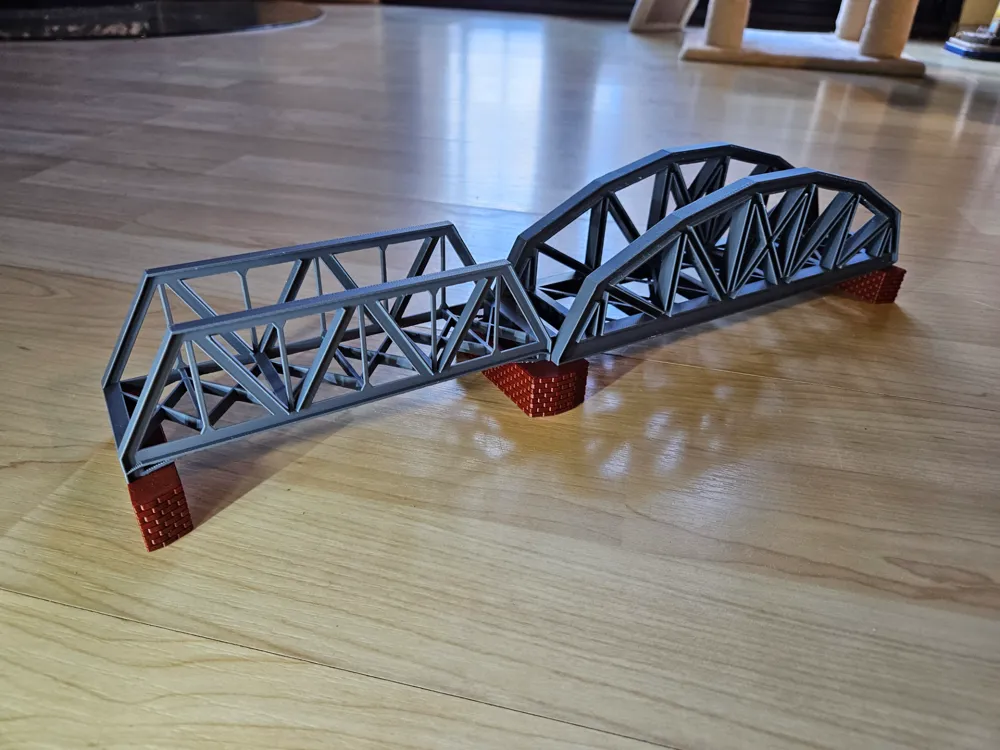

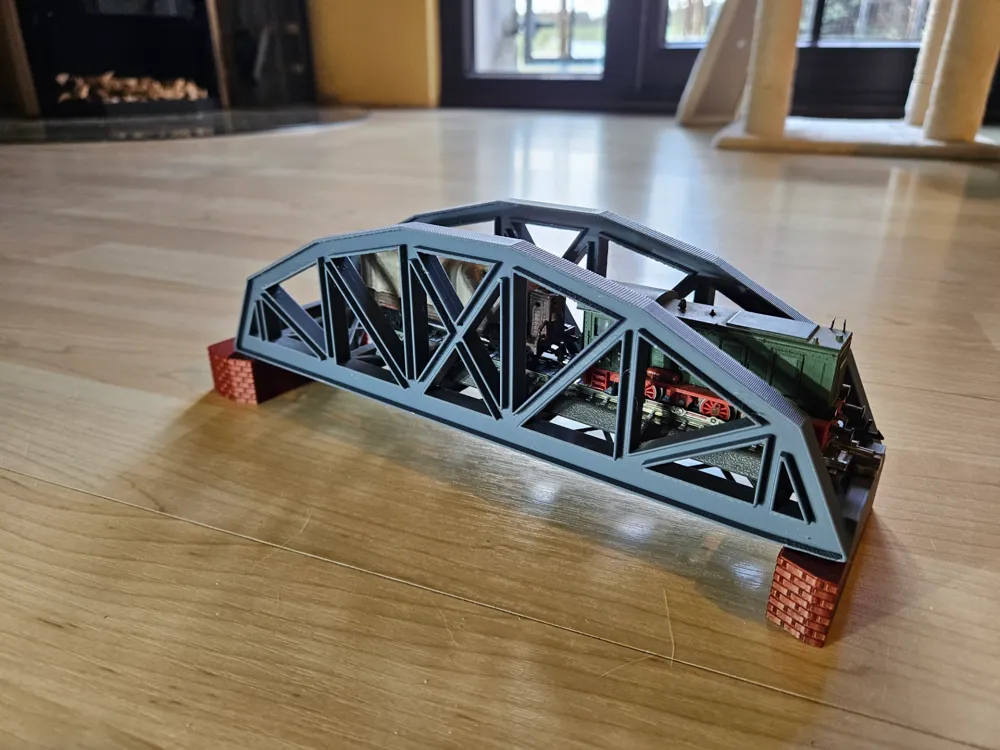

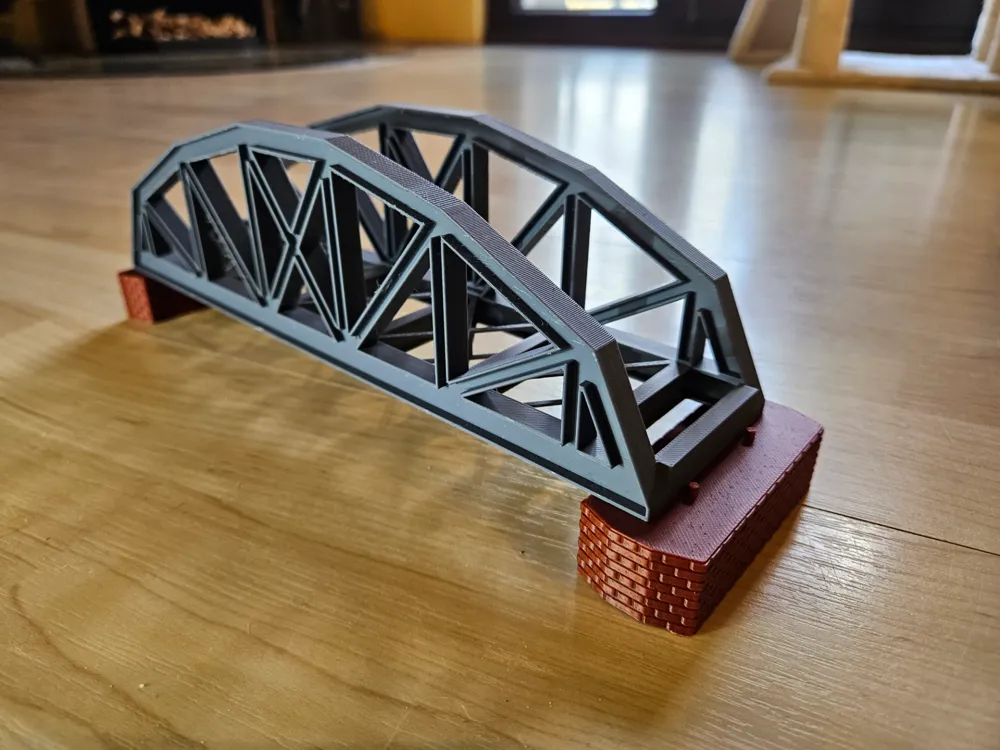

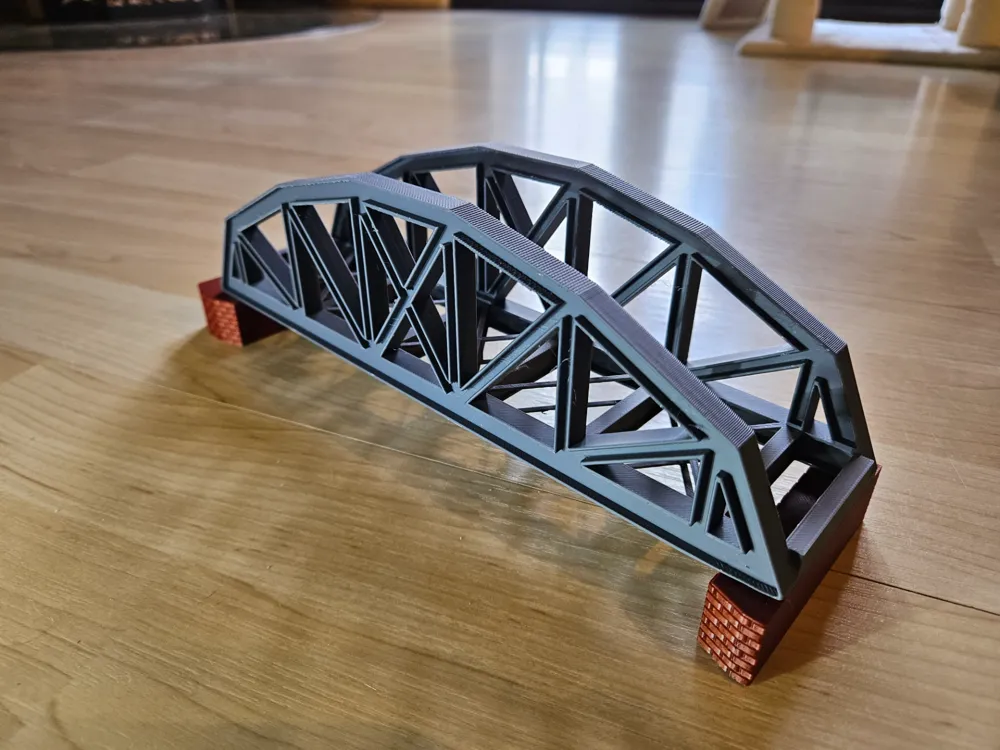

The bridge measures 242.5mm in length, 45mm in internal width, and 67mm in height. It can be integrated into the layout individually or in conjunction with the abutments. These are connected to the bridge via dowels. They are 20mm high and can be extended endlessly, as there are matching holes on the underside. Endlessly many bridges can be connected using the “abutment-center” piece.
This bridge TT/N scale model railway bridge 166mm, endlessly extendable by LT Design - MakerWorld is also compatible with the abutments and can be connected to this one.
As there have been difficulties with the STL file, here are the dimensions of the individual parts again

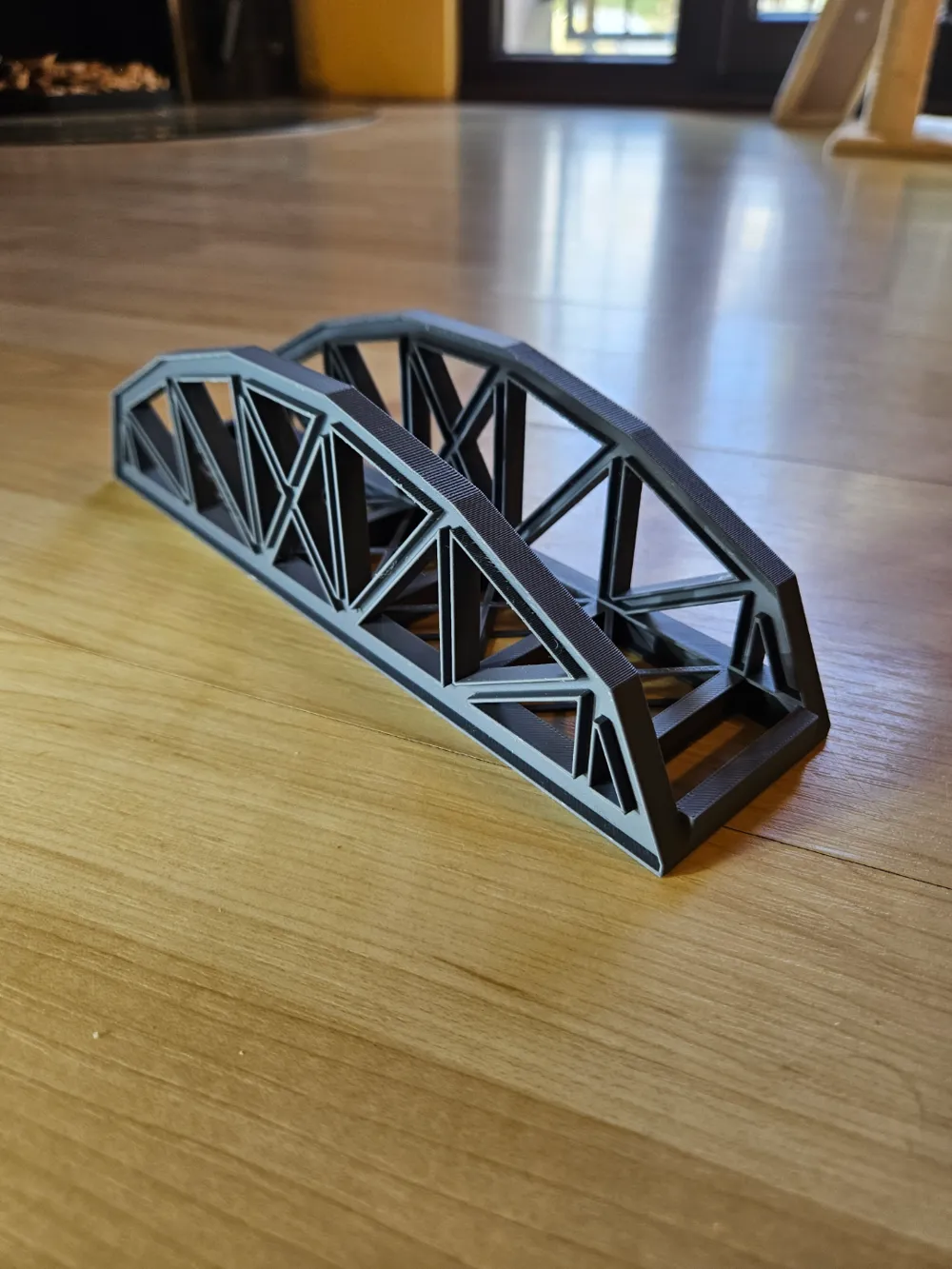

- Bridge: - 242.5mm long; 67mm high; 61mm wide

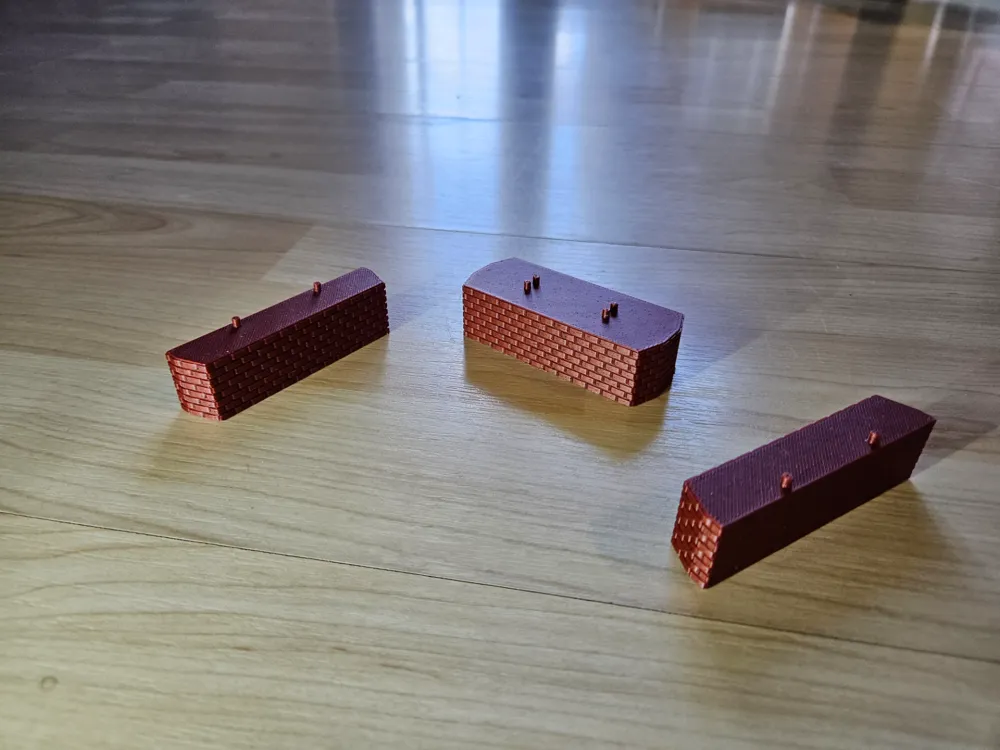

- Abutment-Side: - 75mm wide; 22.5mm high; 15mm deep
- Abutment-Center: - 75mm wide; 22.5mm high; 30mm deep
