TT/N scale model railway bridge 166mm, endlessly extendable
Print Profile(1)
Description

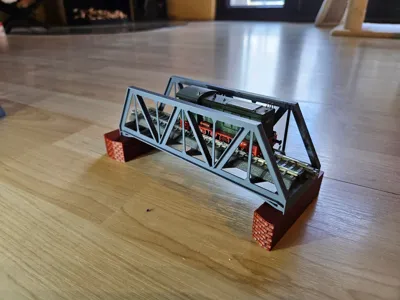

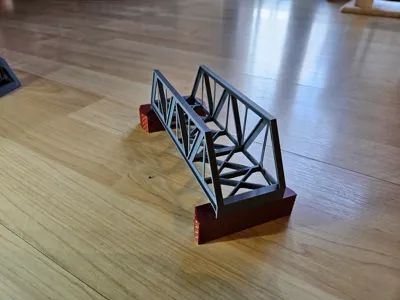

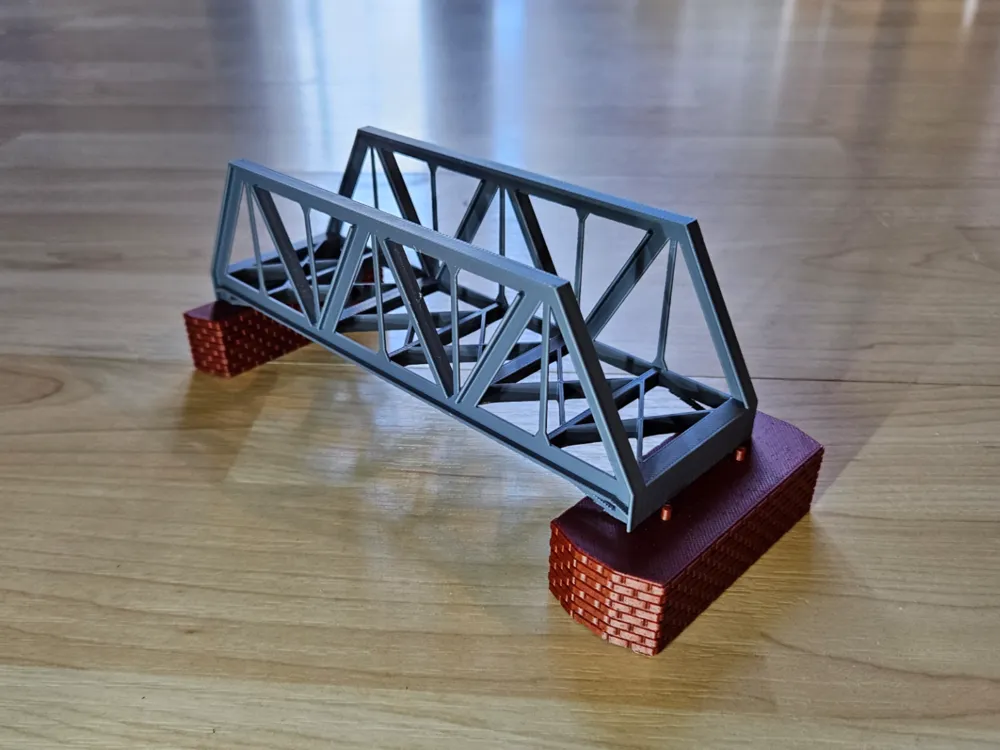

The bridge is 166mm long, 41mm wide inside, and 50mm high. It can be integrated into the layout individually or in conjunction with the pillars. These are connected to the bridge via dowels. They are 20mm high and can be extended endlessly, as there are matching holes on the underside. Endlessly many bridges can be connected with the “pillar-center”.

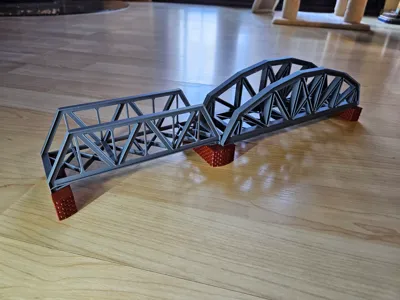

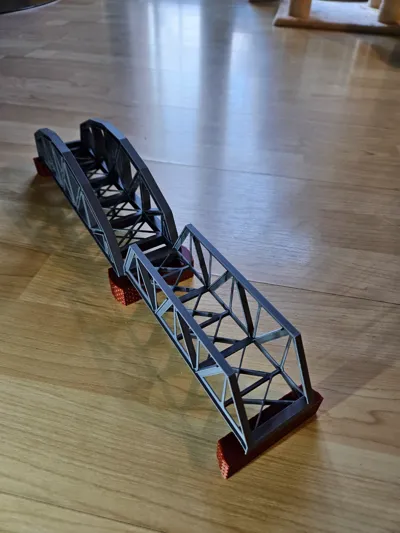

This bridge Bridge Model Railway TT/N 242mm, endlessly possible by LT Design - MakerWorld is also compatible with the pillars and can be connected with this one.
Since there have been difficulties with the STL file, here are the dimensions of the individual parts again

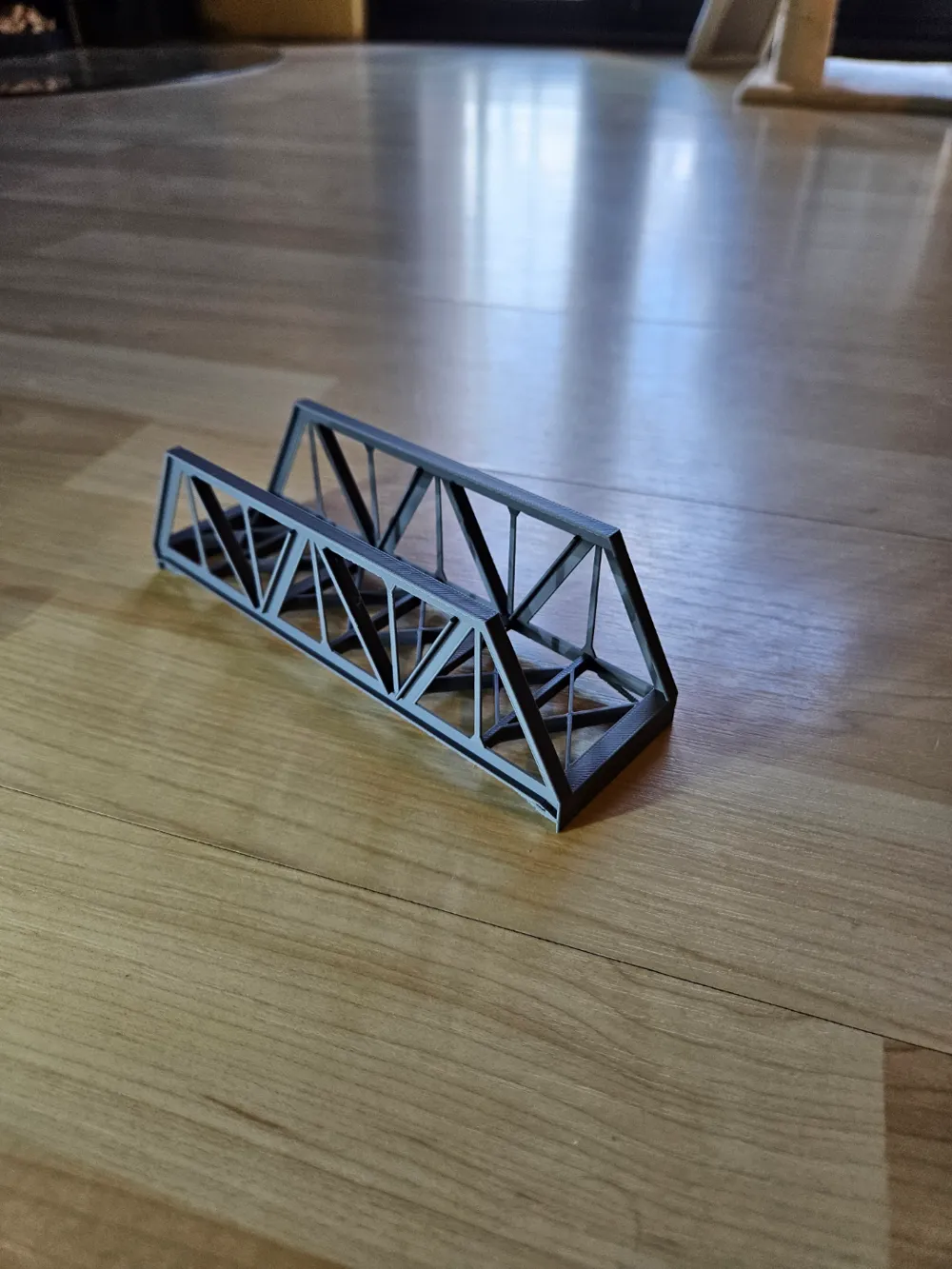

- Bridge: - 166mm long; 50mm high; 52mm wide

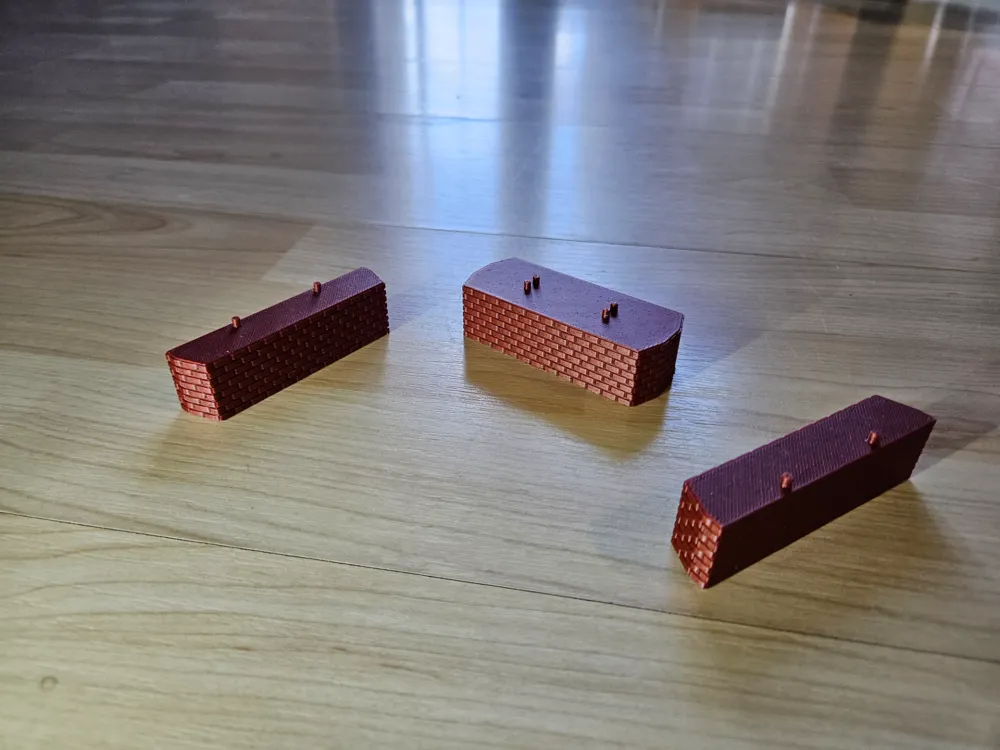

- Pillar-side: - 75mm wide; 22.5mm high; 15mm deep
- Pillar-center: - 75mm wide; 22.5mm high; 30mm deep
