support FANATEC DD/DD PRO playseat
Print Profile(3)
Description
Boost Me (for free)
Hello, feel free to leave a review, happy printing👍

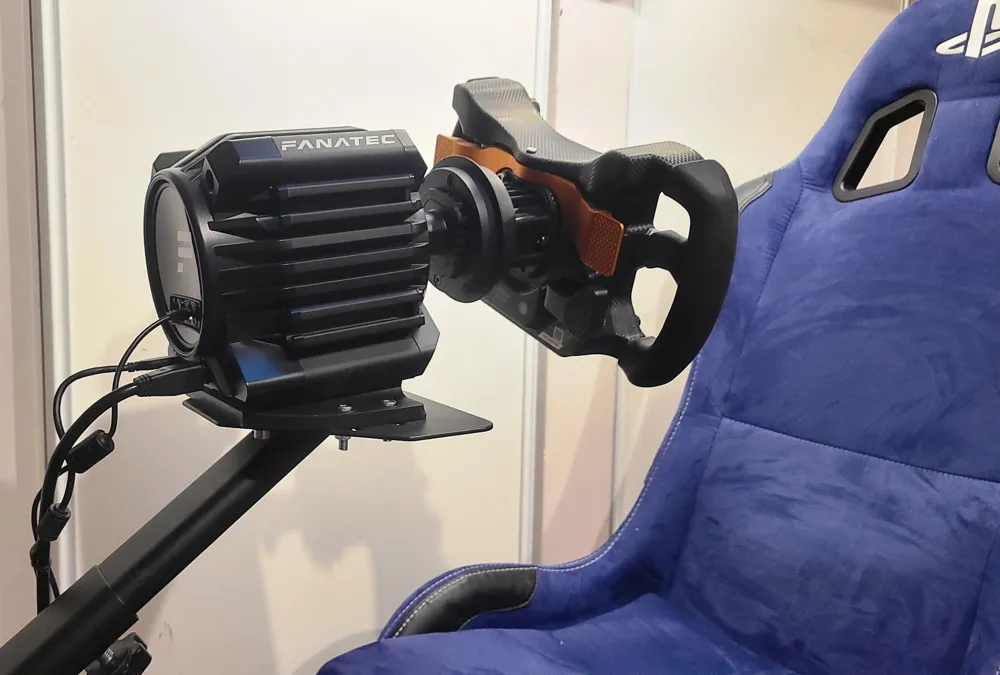

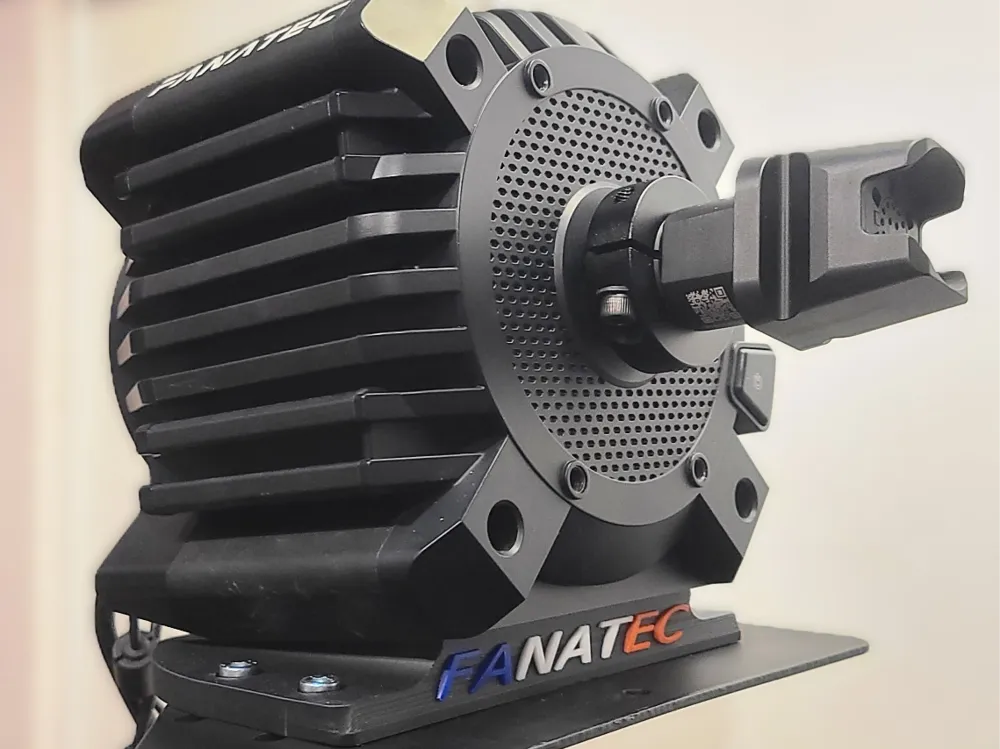

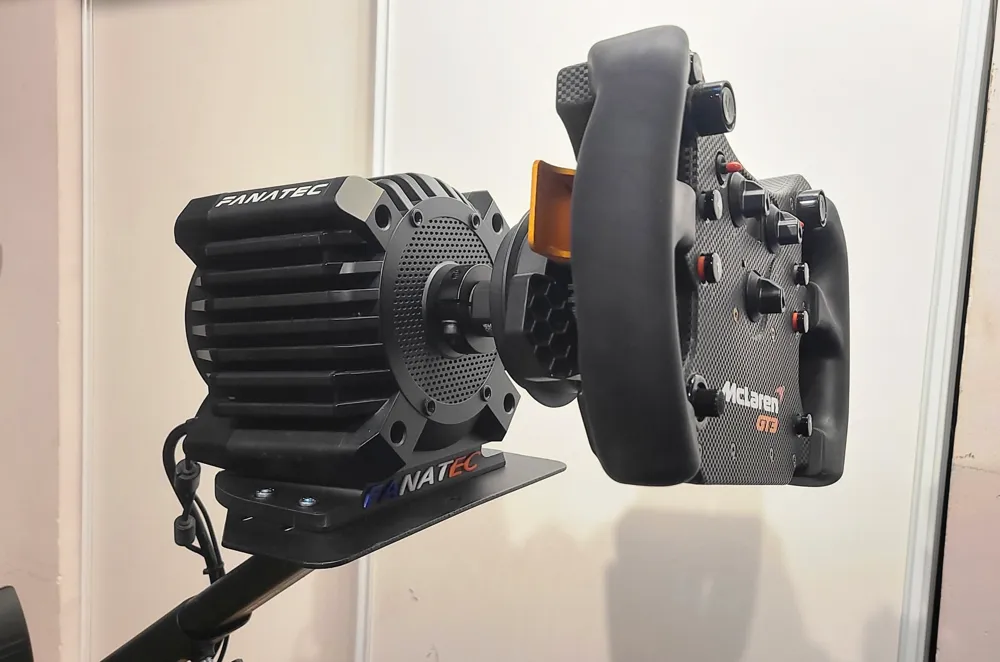

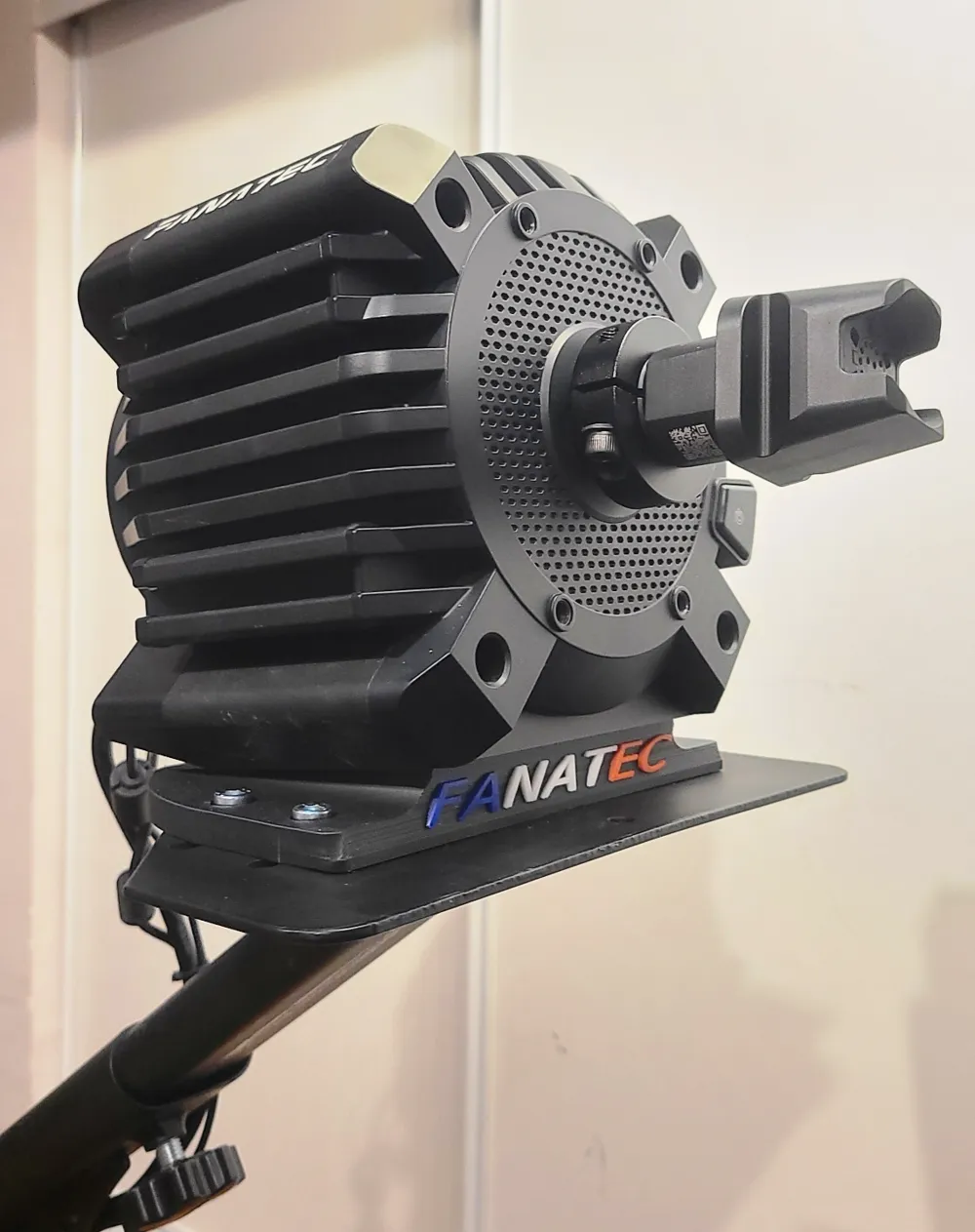

FANATEC DD/DD PRO playseat support

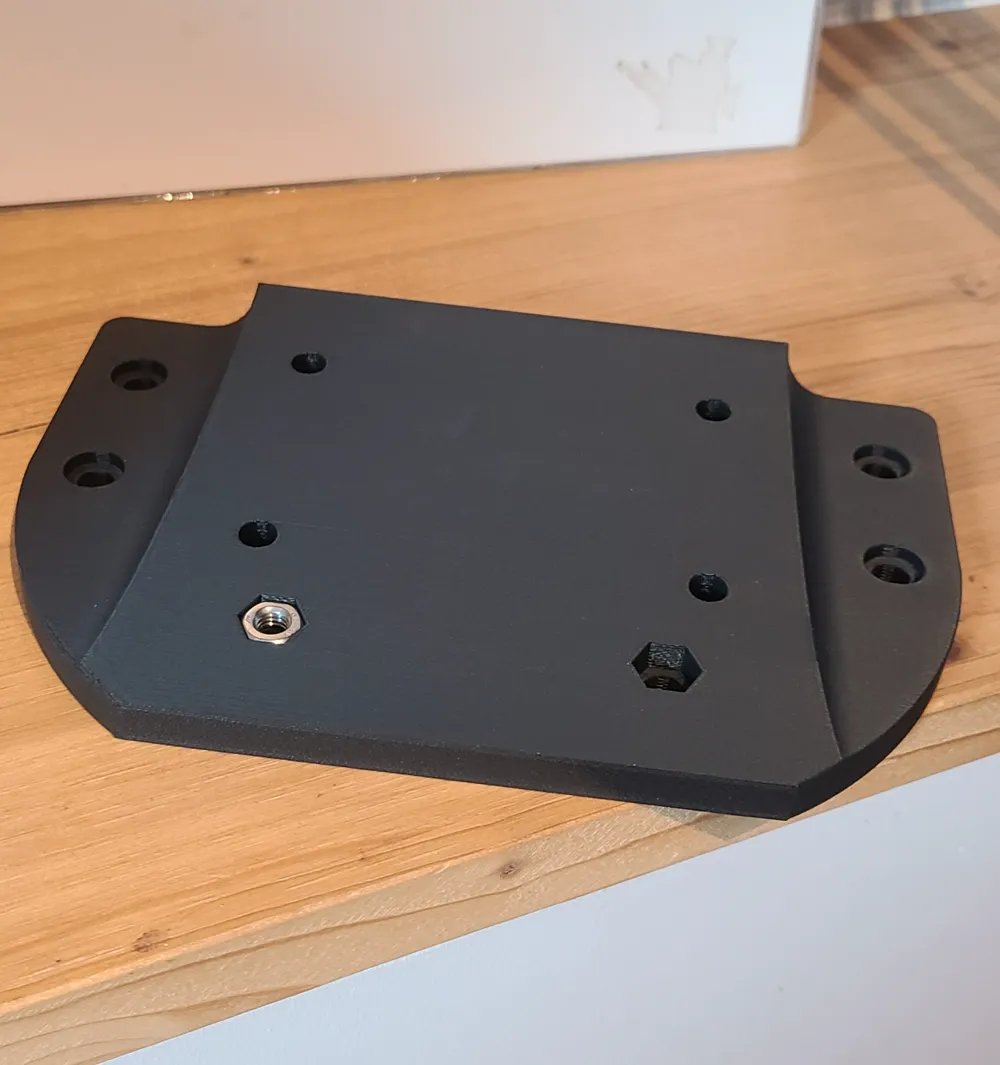

Support designed to fit the Fanatec DD and DD PRO wheel and the Playseat Evolution chassis
Print vertically for enhanced strength
Hardware:
10 M6 x 20mm screws
6 M6 nuts
4 M6 T-nuts
10 M6 washers

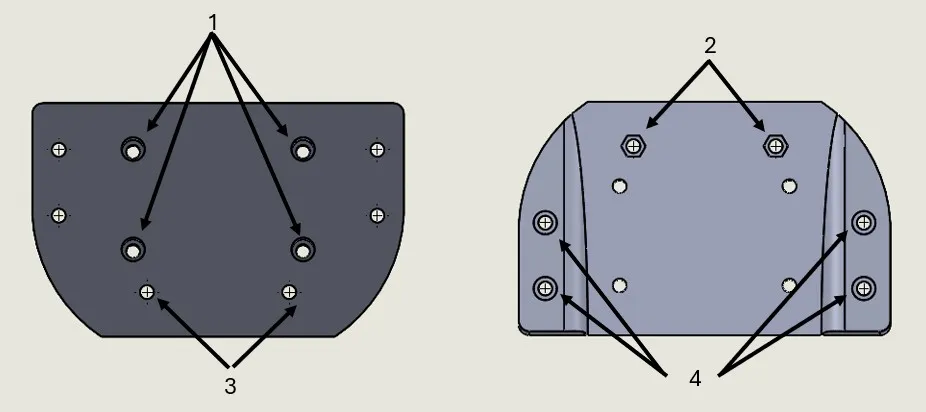

Assembly instructions:
1.Mount the support using the 4 M6 screws and 4 M6 T-nuts to the FANATEC base
2.Position the base on the chassis, place the two M6 nuts into the recesses
3.Fasten the two M6 screws with washers if needed

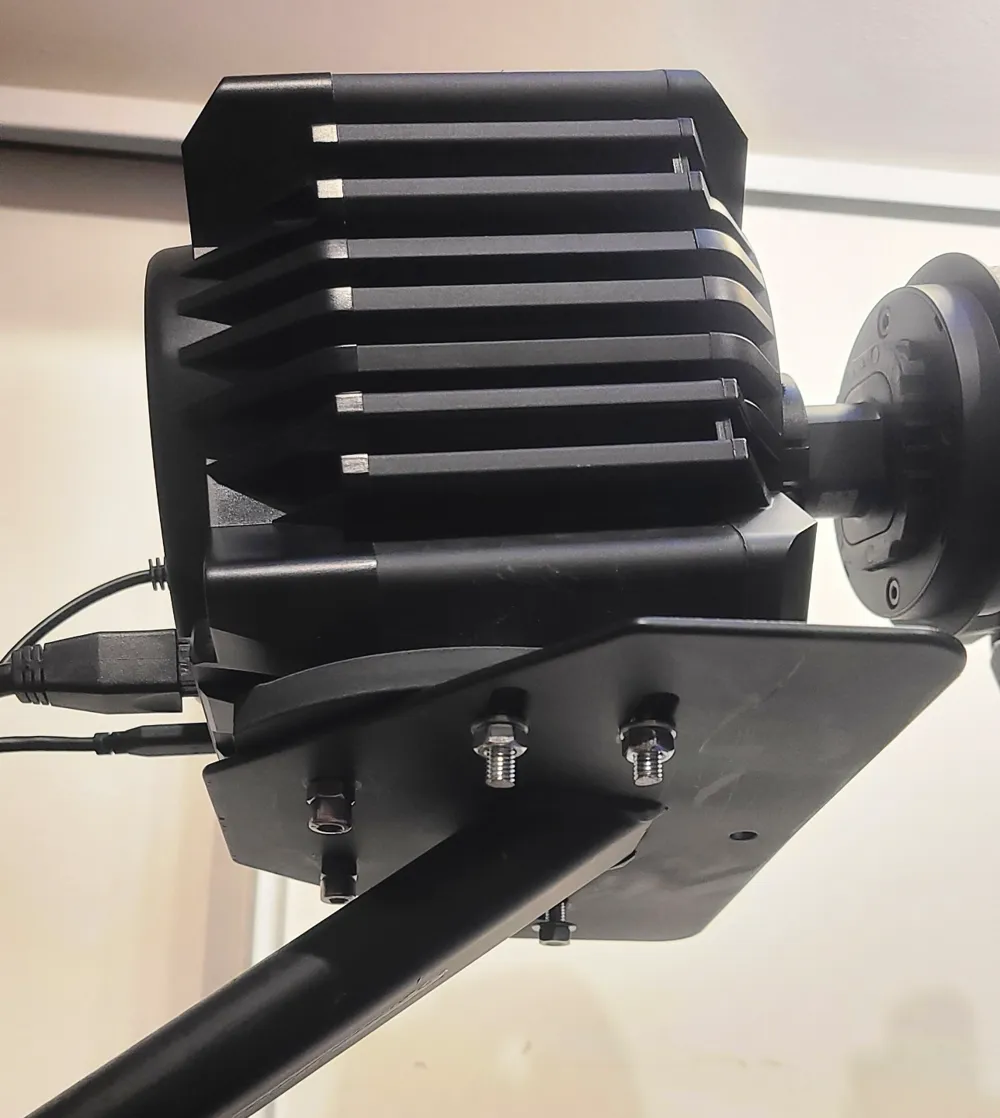

4.Insert the 4 remaining M6 screws and fasten the bolts with washers if needed
5.Tighten the 2 screws and 4 nuts
