Quiet Wheel for Roborock Xiaomi Roomba Robot Vacuum
Print Profile(3)
Bill of Materials
- Gummi-Ring x 1: ca. 20x3 mm
Description
Boost Me (for free)
Thank you for your support! 🥰

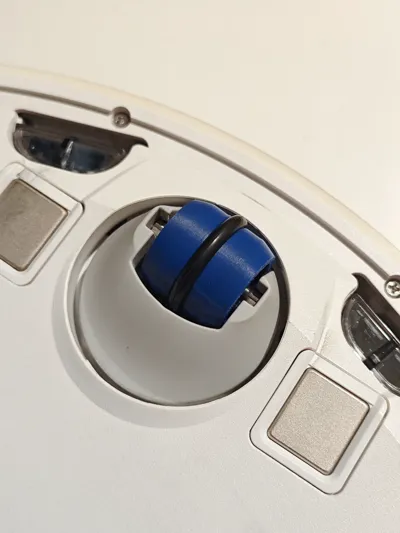

I wanted to get rid of the annoying noise my Roborock S5 Max makes when passing over tiles and carpet edges

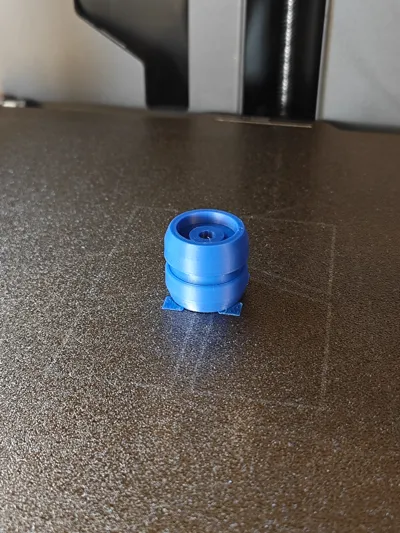

So I decided to print this improved version of a wheel with a rubber ring - and it really works well!
It fits various models of iRobot Roomba, Roborock, and Miija / Xiaomi robot vacuum cleaners
The wheel has a width of 22 mm and a diameter of 24 mm. Please compare the dimensions
List of known compatible models:
- Roborock Qrevo (MaxV/Pro/Curv)
- Roborock S4 (Max)
- Roborock Q5 (+)
- Roborock S5 (Max)
- Roborock S6 (MaxV/Pure)
- Roborock S7 (Max/Pro/+)
- Roborock Q7 (+/Max/Max+)
- Roborock S8 (+/Pro/MaxV)
- Roborock QV 35s
- Dreame L10 (Prime/Pro/Ultra)
- Dreame L20
- Dreame D10
- Dreame D9
- Dreame D10
- Dreame Z10
- Mi Robot Vacuum X10 Plus
- Mi Robot Vacuum X20 Plus
... and other models
You will also need a rubber sealing ring approximately 20 x 3 mm: Rubber Sealing Ring
In most cases, the exact dimensions may vary, and you can stretch the rubber ring a little
** I have now also added a version without a notch to be able to print the wheel entirely from TPU. However, this is experimental. Your feedback helps me with further development
