cover




Short Finger

Long finger


Print according to the print configuration

0.2mm layer, 2 walls, 15% infill


Mid-length finger

1x mid size mechanism

1x small size mechanism


1x small claw with dowels


thin or snug fasteners


TheMarwin

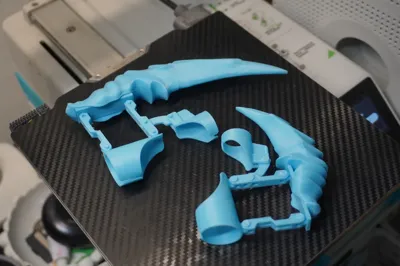

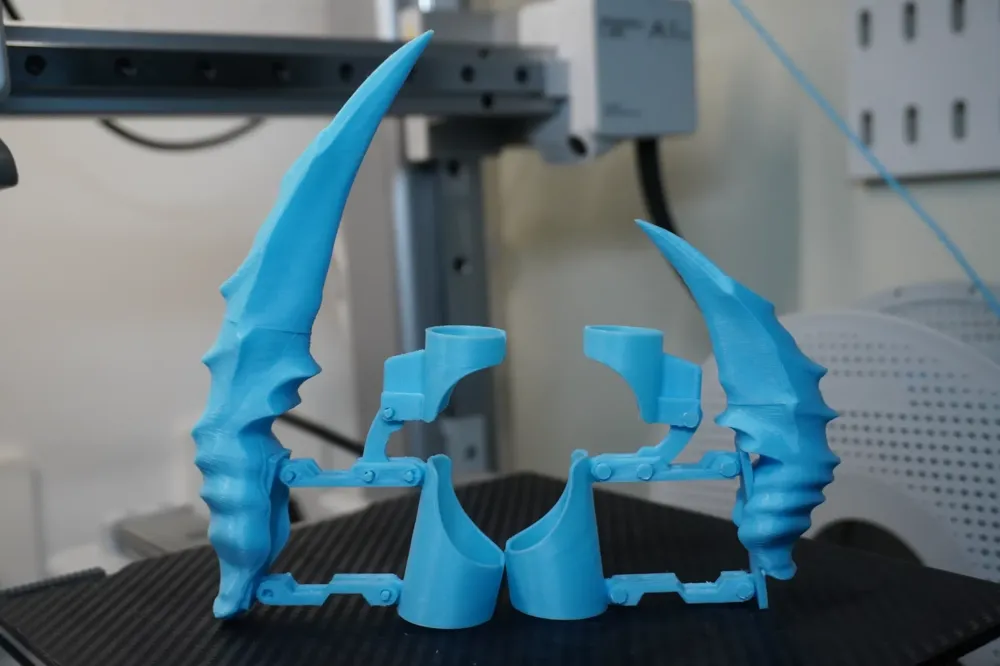

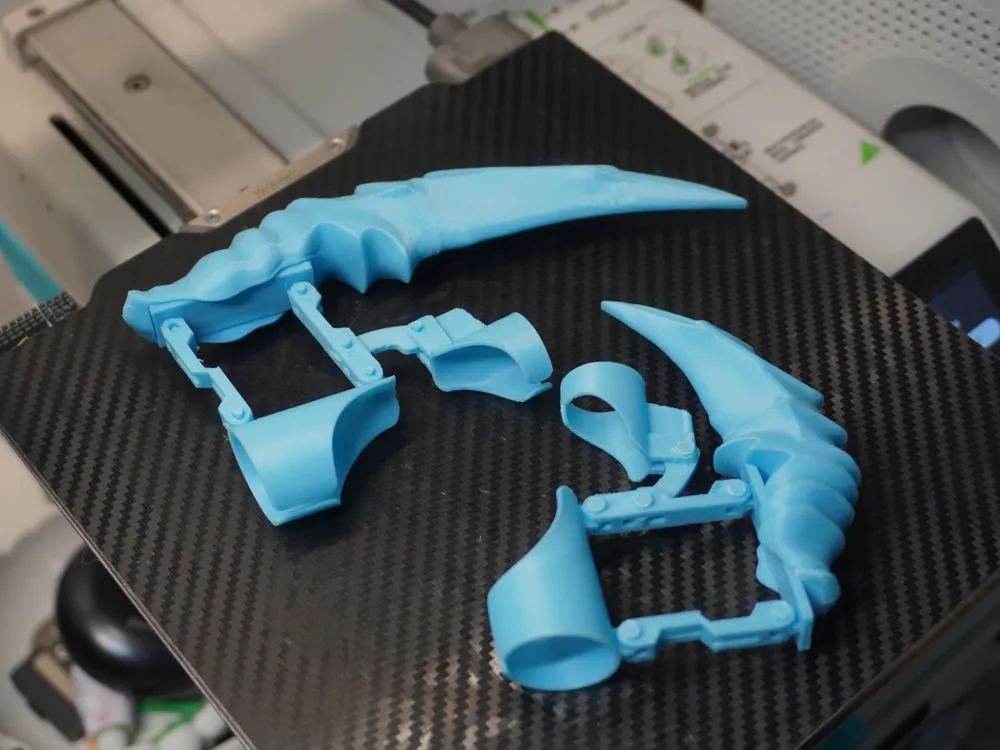

This profile is a complete CAD remodeling (not slicer scaling) of the mechanism to better fit on small hands and to withstand rough handling. The following QoL improvements are included:<ul><li>Claw<ul><li>some collision points are removed from the claw model and the tip is blunt(er) to make it safer for kids.</li><li>two claw segments now contain holes that can be used to better align and glue together the two parts using included pins / dowels.</li></ul></li><li>Mechanism<ul><li>the mechanism comes in two variants: <ul><li>mid size (14 and 18 mm inner diameter of finger “sleeves”), </li><li>small size (13 and 16 mm inner diameter of finger “sleeves”).</li></ul></li><li>all parts of the mechanism are made thicker and more robust to not break as easily.</li><li>the mounting plate dimensions are adjusted so the claw is better supported and the plate does not extend beyond the claws edge.</li></ul></li><li>Fasteners<ul><li>improved and better calibrated fasteners come in two sizes: <ul><li>thinner (used by default on plate 1 and 2),</li><li>snug (use this variant if the default fasteners are too loose).</li></ul></li><li>the “cap” was changed to a ring that clips snug on top of the pin. </li><li>small drop of glue can be used to make the connection permanent while the ring holds everything in place while the glue dries.</li></ul></li></ul>Updates:<ul><li>Version 2 (25/11/22)<ul><li>Added small chamfer under big sleeve overhangs</li><li>Enable supports so small sleeve prints without visual defects</li></ul></li></ul>

Short Finger robust and optimized for smaller hands

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

<boostme><boosttitle>为我助力</boosttitle></boostme>根据图示组装

<boostme><boosttitle>Boost Me</boosttitle></boostme>Assemble according to the diagram
