Manta 5 SE Side Plates
IP Report
Print Profile(1)
Good Quality: 0.16mm layer
Designer
1.4 h
1 plate
Open in Bambu Studio
Boost
21
57
8
4
106
44
Released
Description

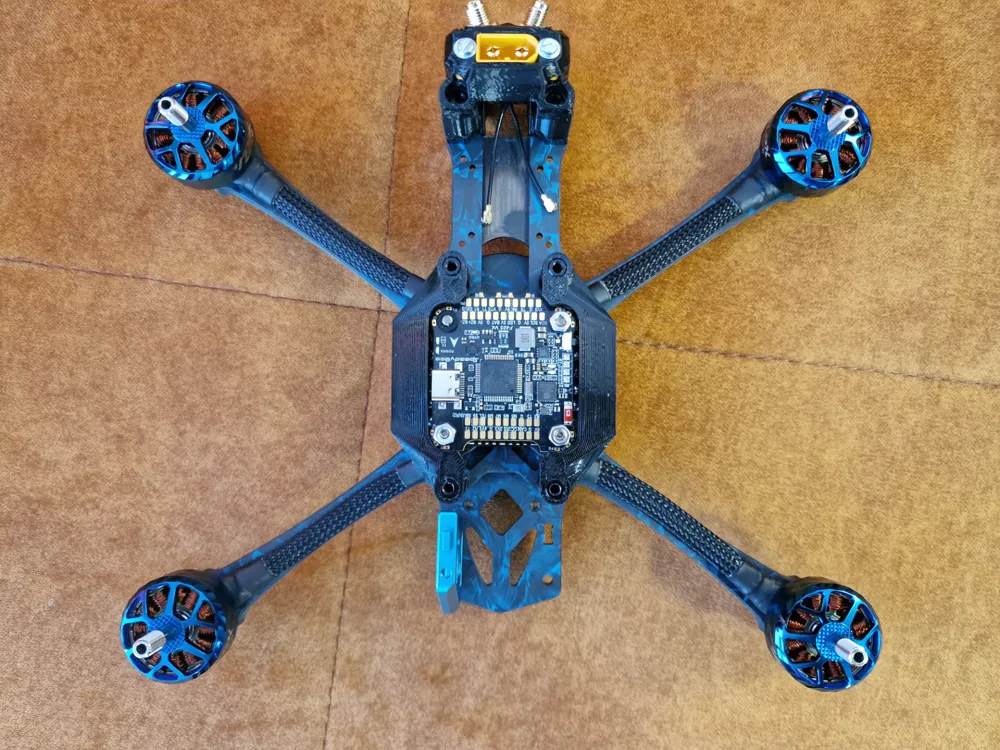

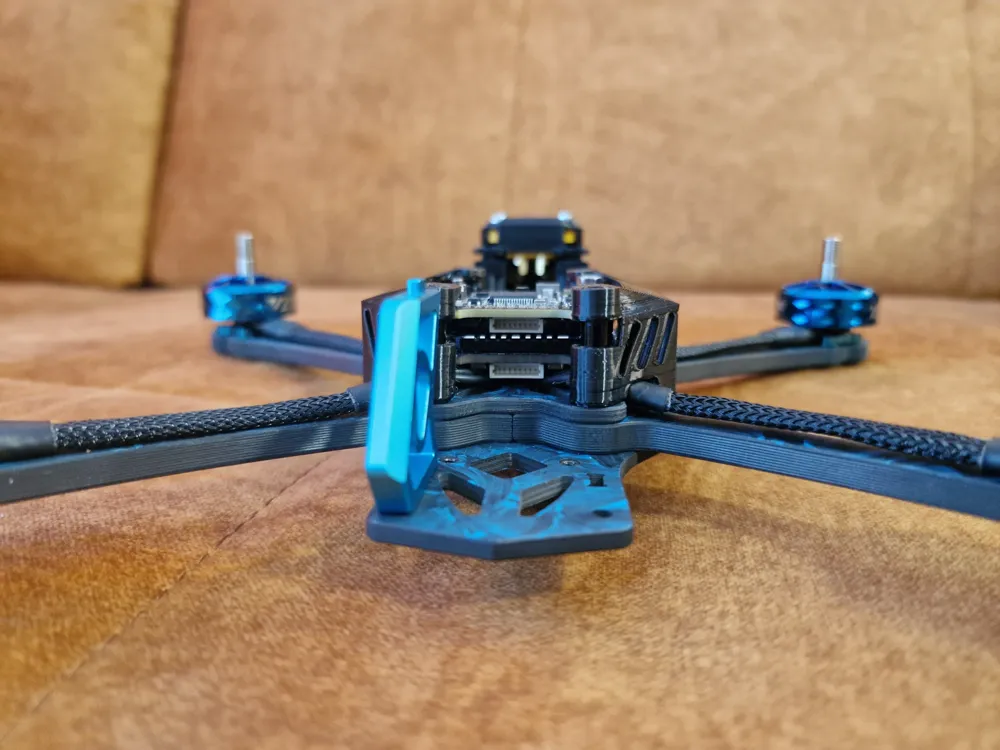

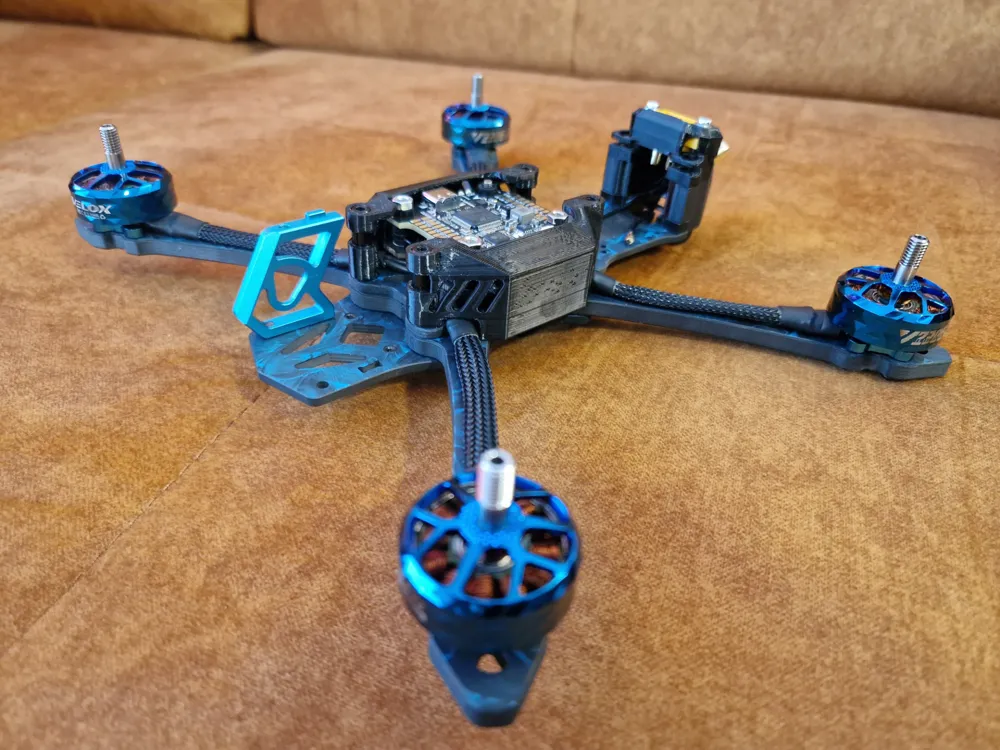

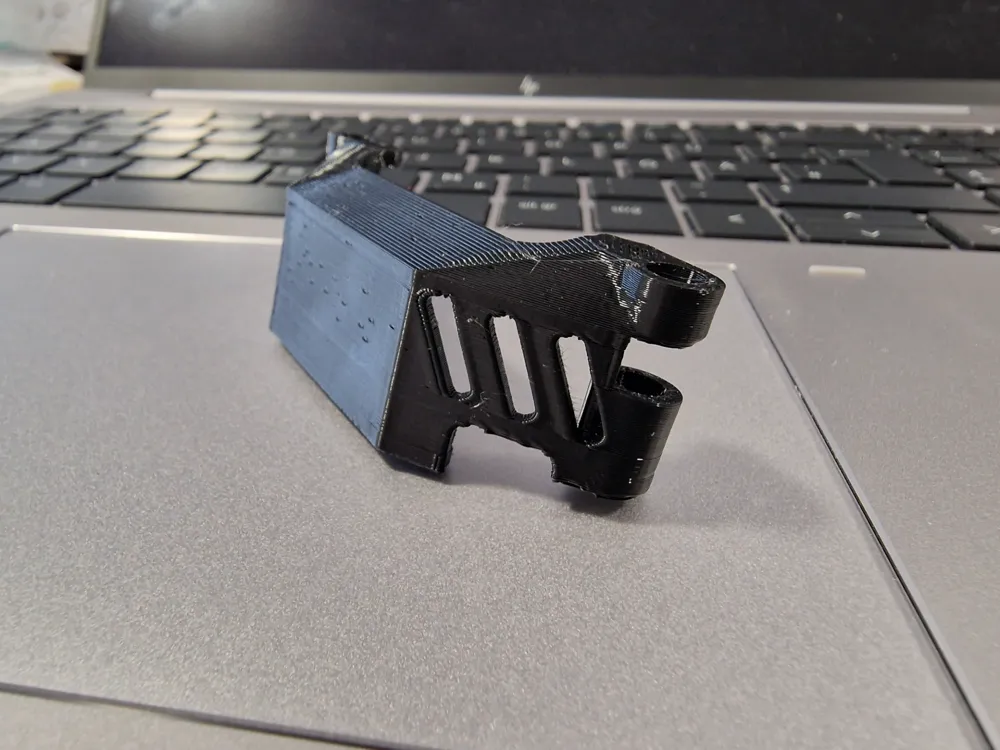

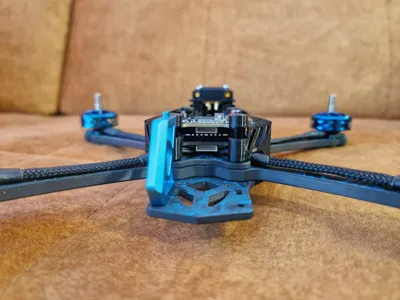

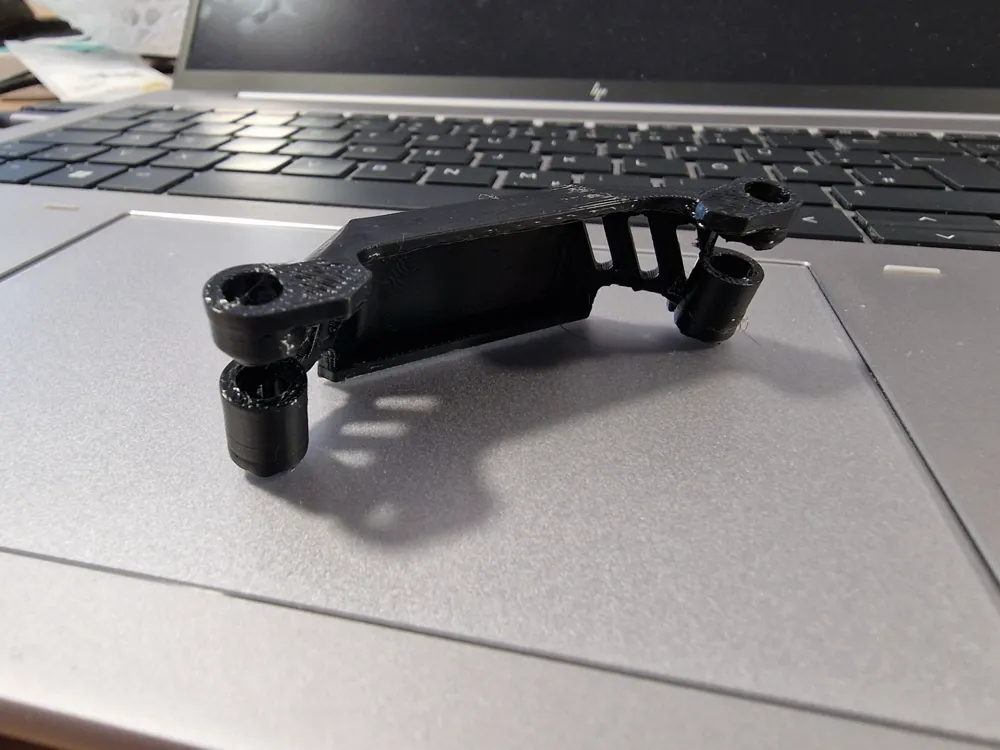

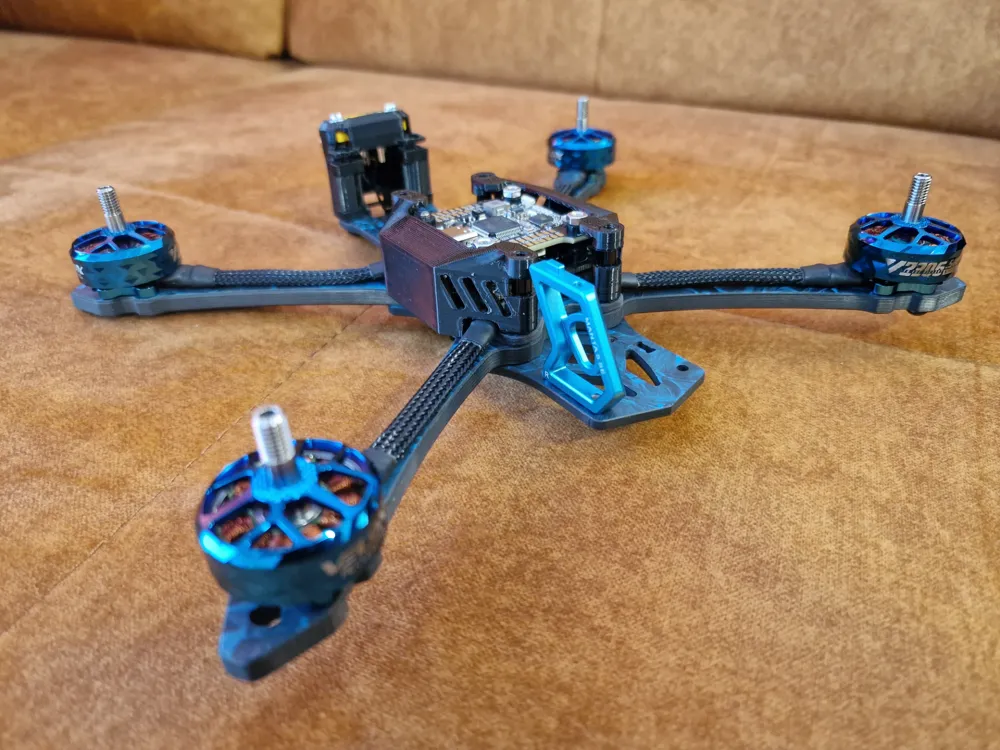

I designed Side Plates for my Manta 5 SE Frame. It should also work with the standard Manta 5.
It may also work with other frames. Please let me know which other frames are compatible!
Dimensions
- Distance between standoff holes: 59mm
- Standoff diameter: 5mm (+0.1mm “clearance”)
- Standoff height: 20mm
- Width (from center of standoffs to outer wall): 16mm
- Main wall thickness: 2mm

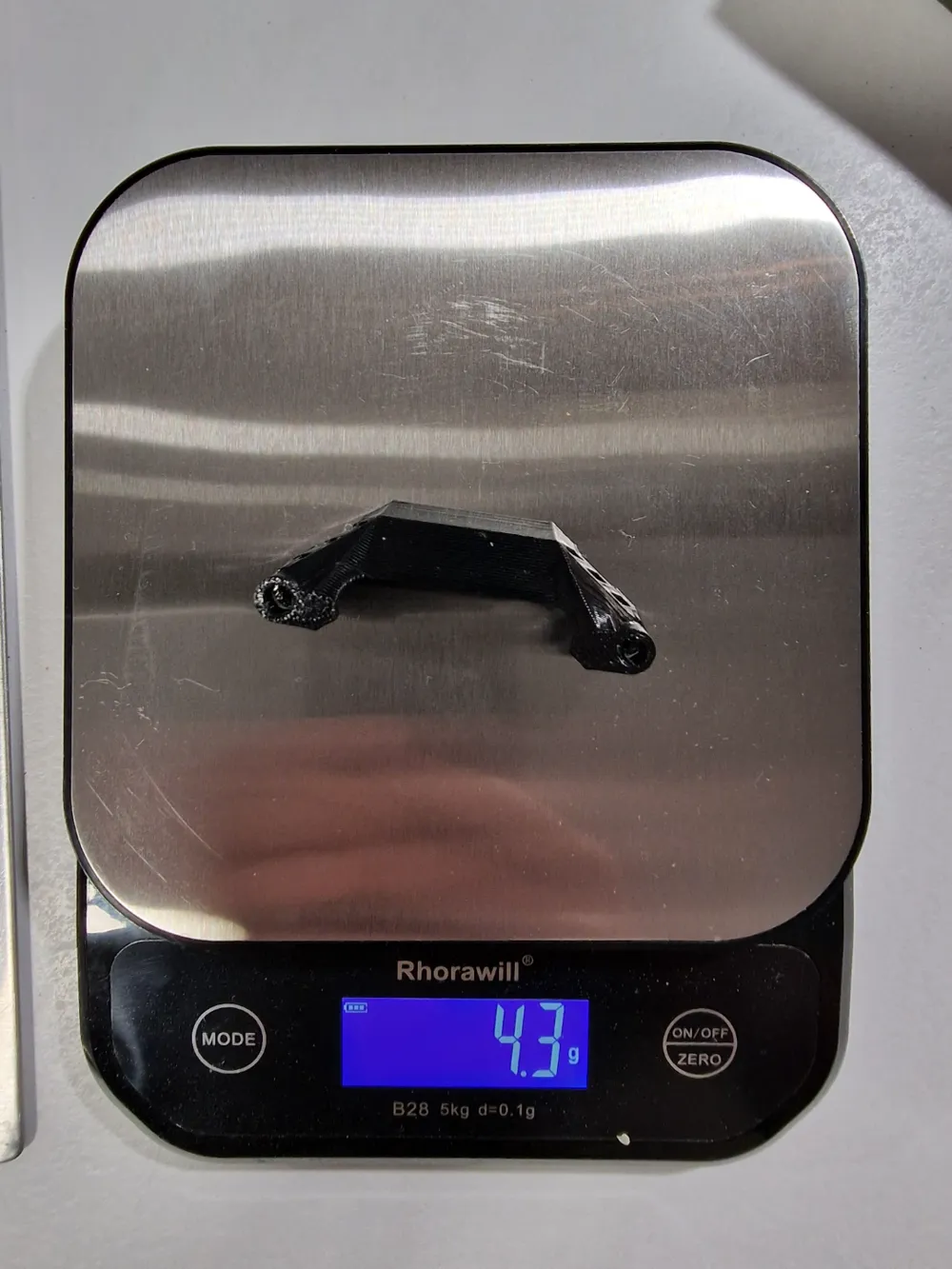

- Weight: 4.3g per side (8.6g in total)
