Faucet shelf
Print Profile(5)
Description
** March 24th: New version release with improved clamping mechanism **

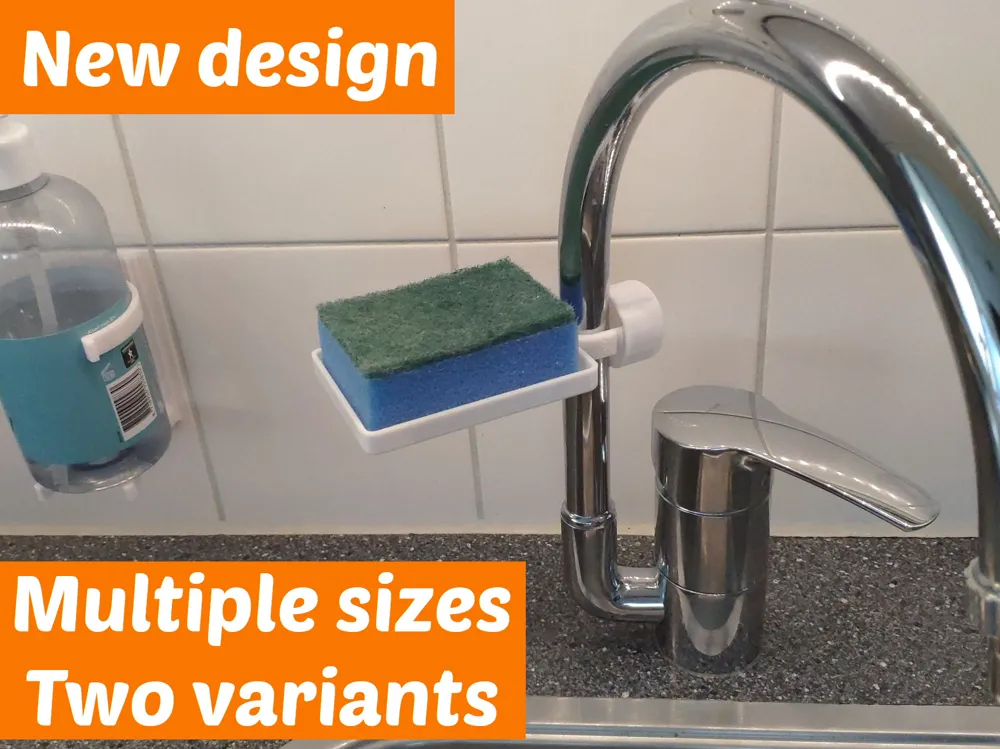

A shelf which can be attached to your faucet. For storing a sponge for example.

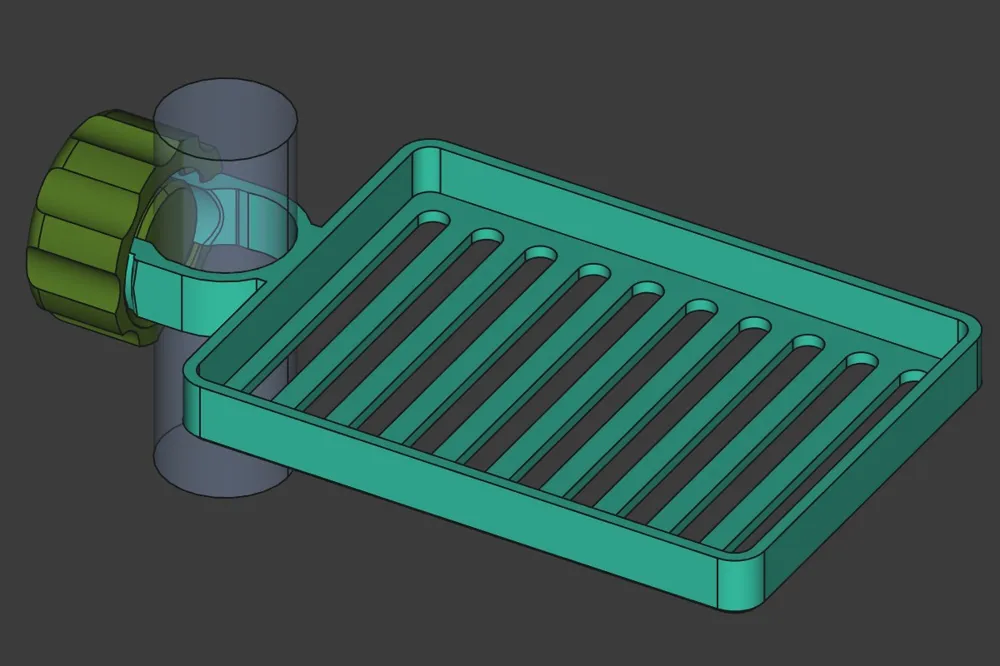

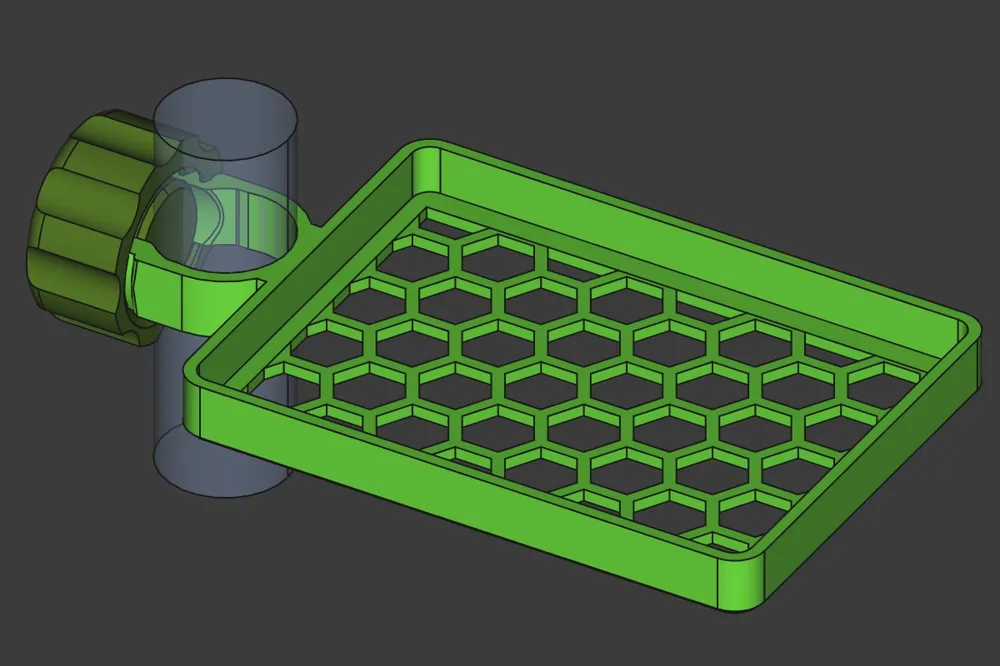

Two variants for the shelf one with slotted holes and one with hexagon pattern.
If one shelf is not enough and you need more space see my double shelf model.
If you also want a hanger to dry your dishcloth see my faucet shelf and dishcloth hanger model.
Dimensions
Inner dimensions shelf: 93 x 68mm
Available in three different faucet diameters (they should fit on slightly smaller diameter faucets):
- 19 mm
- 21 mm
- 25 mm
- 28 mm
- 43,5 mm
Print instructions

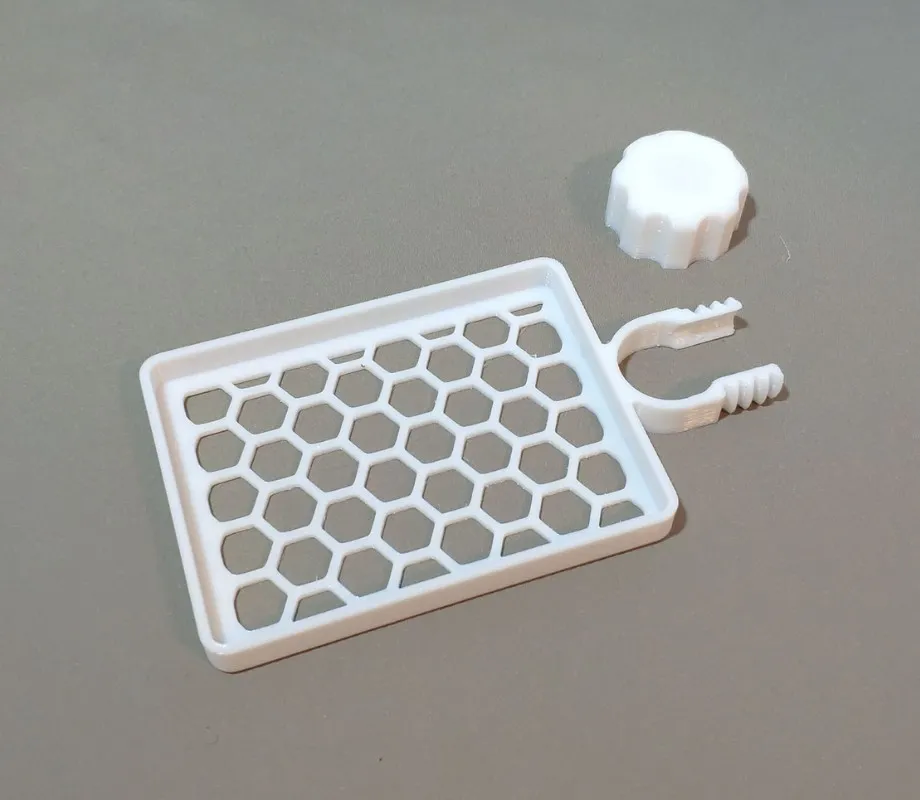

Nothing special. Print the knob without supports and the screw thread facing downwards.
History
2025 02 19 initial public release of v2
2025 03 01 added an optional 2mm ring/washer so it can fit on a slightly smaller diameter faucet. You could scale this in the z-direction to be thicker if needed.
2025 03 17 added a version for a faucet size of 25mm
2025 03 24 released new version v3 with improved clamping mechanism for more firm grip on the faucet (not backwards compatible) and added a 28 mm variant
2025 05 30 added a 19 mm version
2025 07 13 added a 43.5 mm version
