Shrinkage Test - Calibration - ABS - ASA - PA - CF
Print Profile(1)
Description
Hello, with this print file you can determine the shrinkage of various materials.

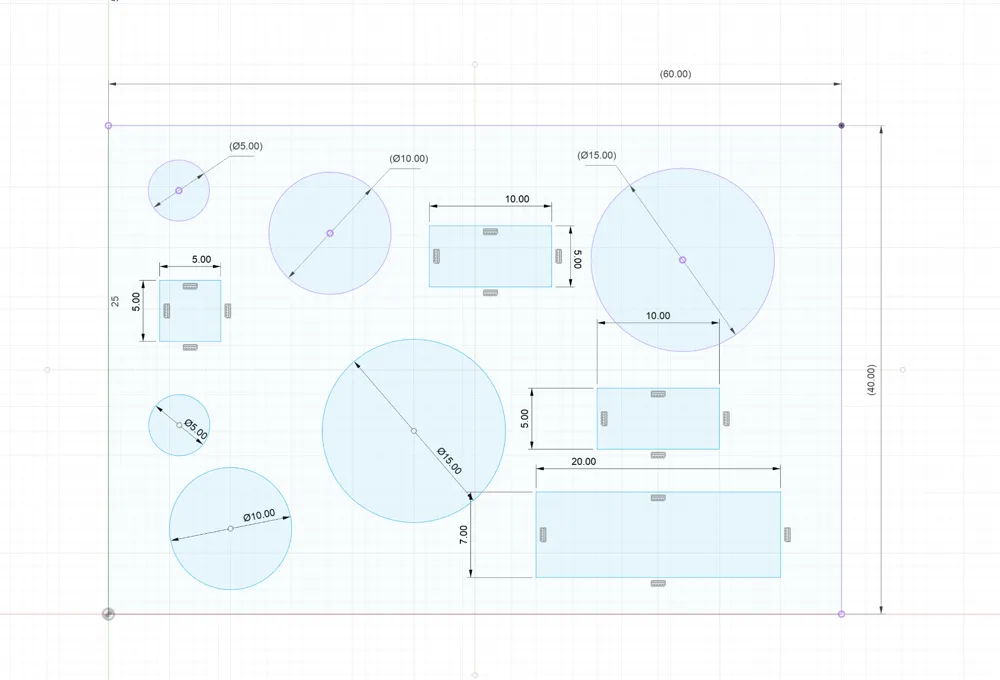

The plate itself z = 3mm
For example, PLA has at x = 30mm and y = 40mm
ABS has at x = 29.8mm and y = 39.8mm

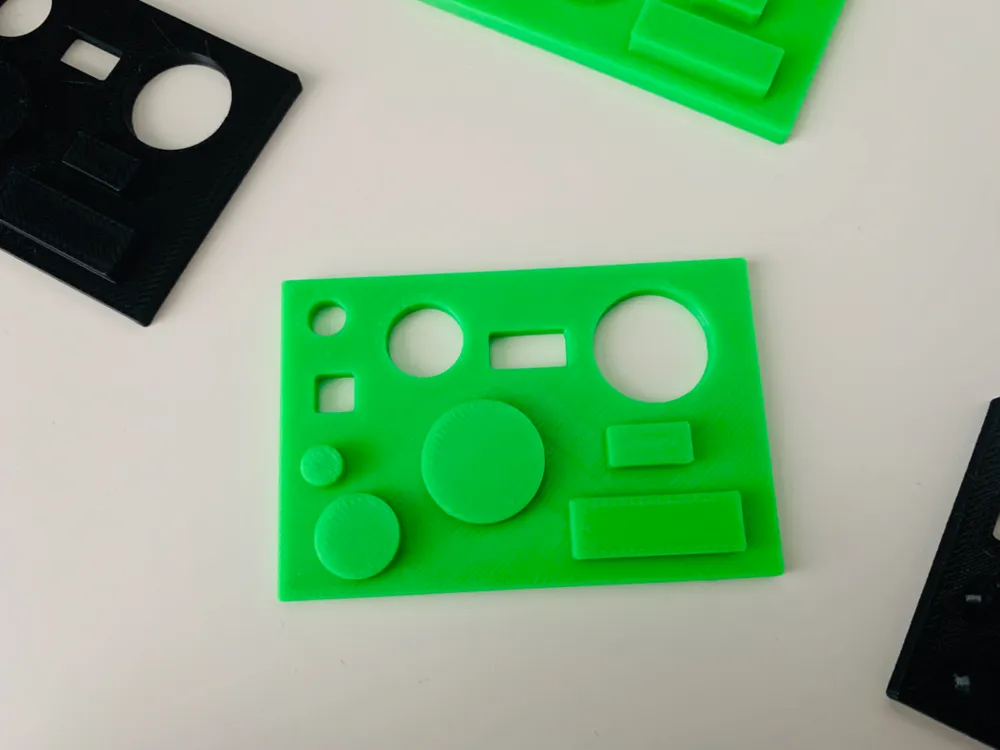

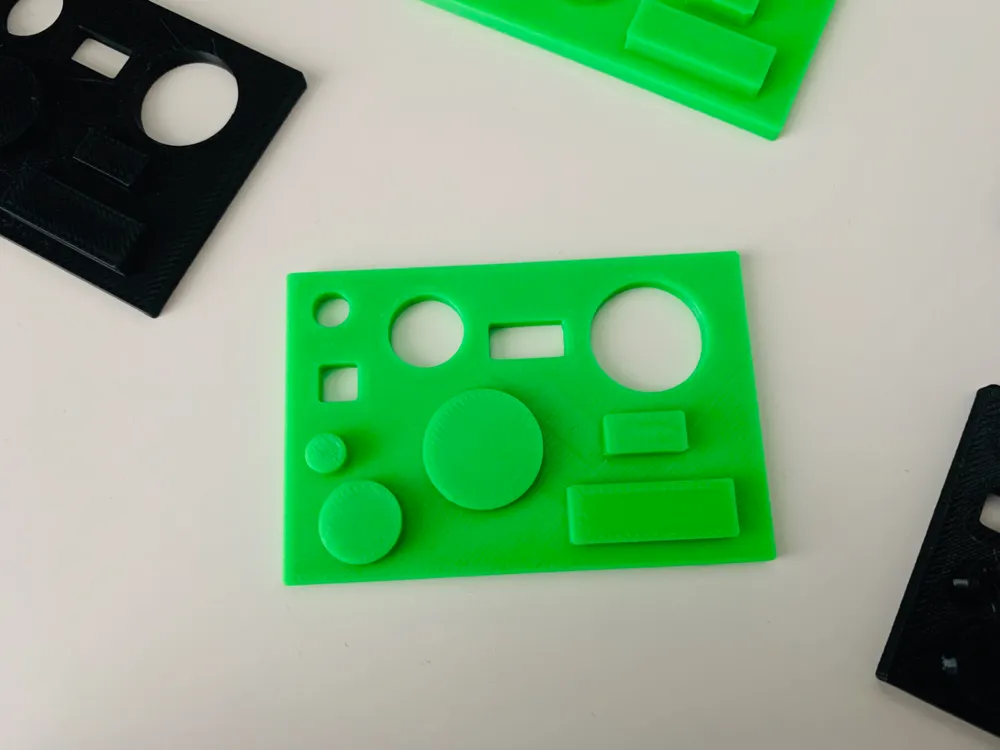

The holes and square parts also serve to detect shrinkage.
Then you can determine the difference and before slicing, upscale the ABS model by 0.2mm in the x and y axes.
Independently! Without scaling the z-axis.

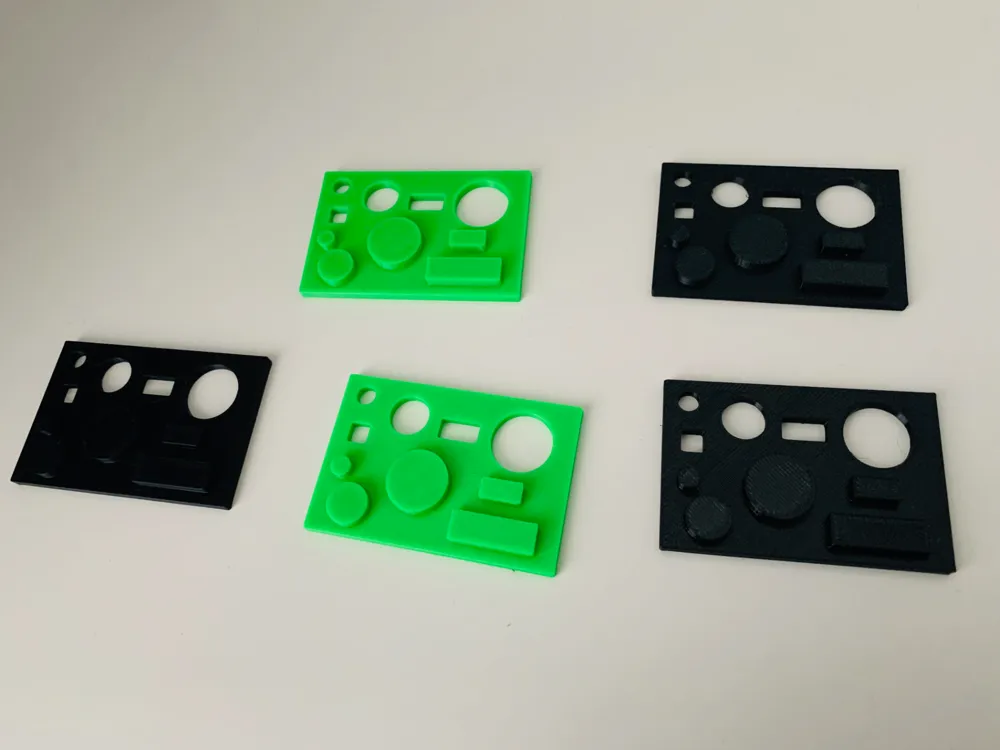

I have performed the test and adjusted the difference values for the ABS print in the slicer.
The second ABS print was astonishingly accurate.
So before you get frustrated why certain dimensions do not fit, etc., I recommend carrying out this print.
Have fun, and the few minutes it takes are worth it.
