8-Port Switch Mount (Fits Netgear/TP-Link & More)
Print Profile(2)
Description
New & Improved Design - changed screw mounting holes as I was never happy with the way the original came out.

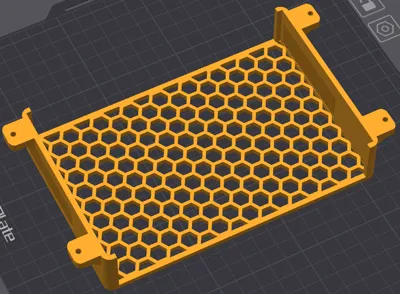

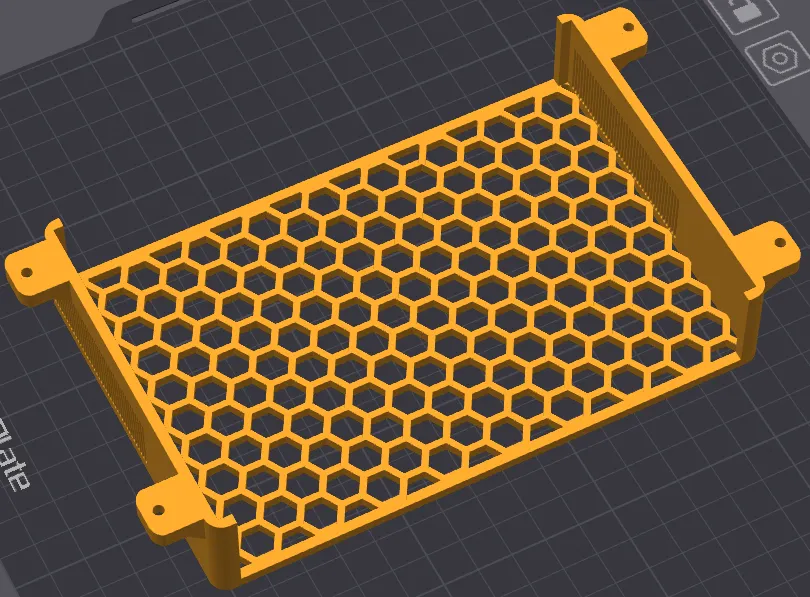

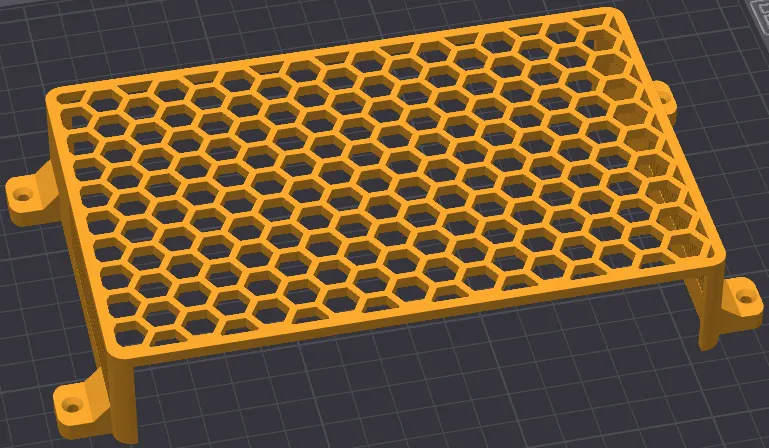

See 8 Port Switch Mount V2.step file for the new version. See Images (in Orange) as an example of the new model.
Fits Width 158mm x Depth 101mm x Height 25mm Switches
2hr Print when printed on the P1S / P2S (in PLA) with 0.28mm Extra Draft Quality (V1 Model)
2hr+ Print on the P2S in .24mm Standard (V2 Model with supports)
Utilizing the following Settings:
PLA / PLA+ (or your desired filament type)
3 Walls (V1 & V2)
Sparse Infill at 15% (V1 & V2)
No Supports needed (angle for screw mounts is at 45 degrees) (For V1 Model ONLY)
Supports Required for V2 Model - recommend:
- On Build Plate Only
- Support Critical Regions Only
- Support Type (Your Choice - print times vary with various support settings)
No Skirt or Brim needed (V1 & V2)
