Headphone / Headset Holder
Print Profile(3)
Description

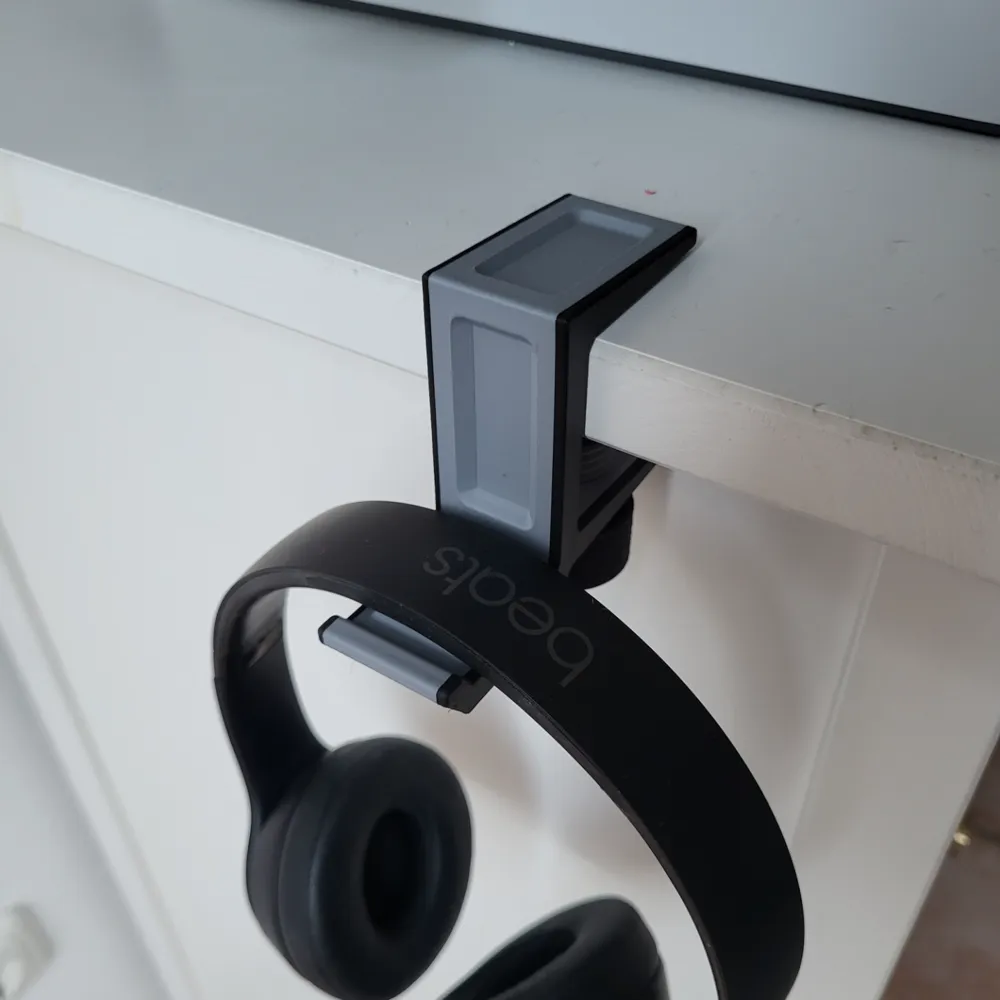

Desk-mounted Headphone Holder.
The screw and thread are size M20 (the screw is already scaled to x 0.95 and should fit well)
Possible Desk Thicknesses: 18-32 mm

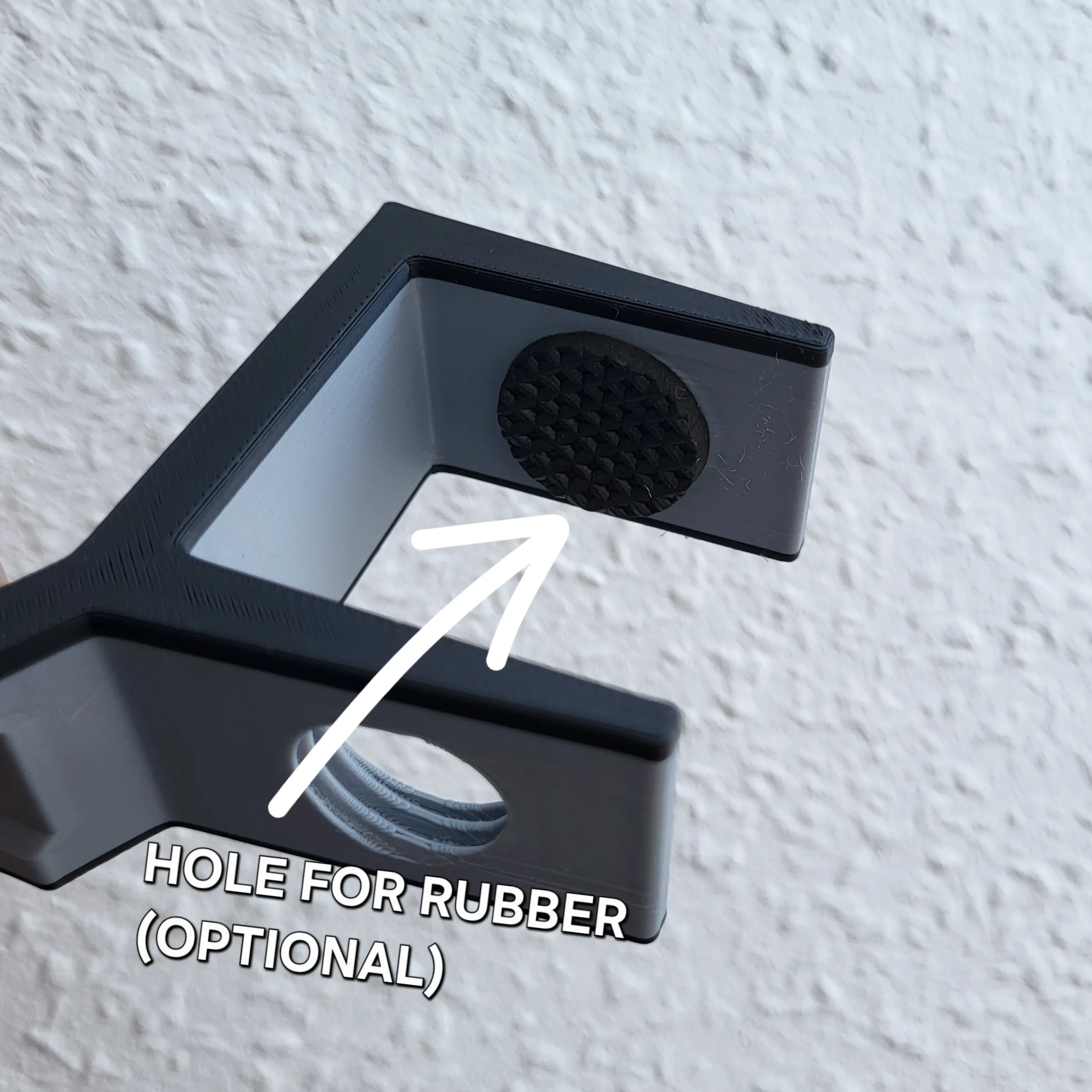

The holder and the cover each have recesses for felt glides or rubber stoppers (20x2.5mm). These can also be omitted :)
I have created several print profiles. One monochrome (I only set the color change from layer 10 and again from layer 140 in my print). One as a Multicolor - AMS version and one with all parts individually.

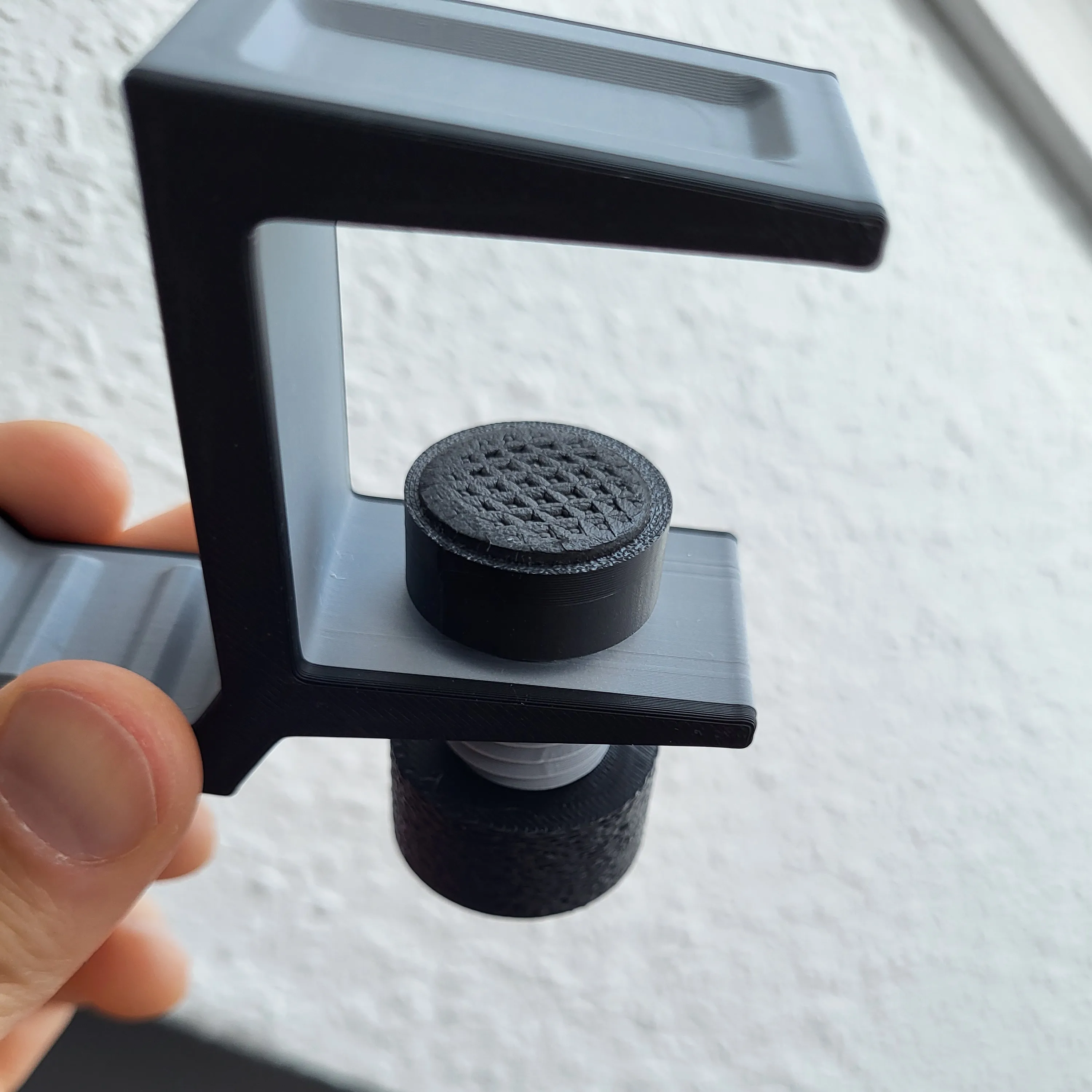

The bottom screw is printed with fuzzyskin. This provides a little more grip. - Included in the print profile
I printed the thread of the screw and the cover with smaller layers (variable layer height). The result was very good! - Included in the print profile
Due to the raised areas on the headphone rest itself, the holder can also be used very well for cables
Have fun with it :)
