The Eternal Pivot: Snap-Fit 3D-Printed Hinge
Print Profile(1)
Description

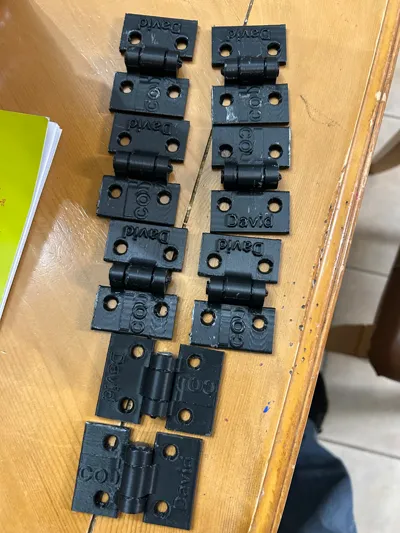

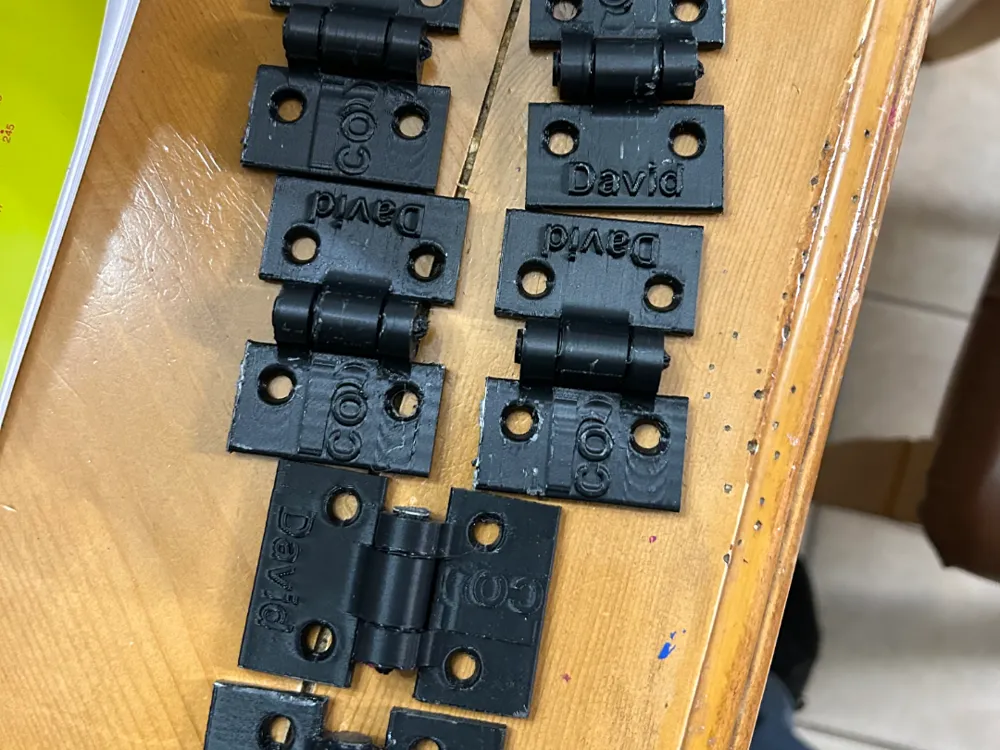

3D-Printed Snap-Fit Hinge (3-Part Assembly)
A minimalist, glue-free hinge designed for easy assembly and smooth rotation. Comprising two interlocking side plates and a self-retaining center pin, this modular system combines durability with user-friendly installation.
Components:
- Side Plates (x2):
- Symmetric halves with integrated knuckles for alignment.
- Features mounting holes/slots (customizable for screws, pins, or adhesive).
- Printed flat for optimal layer strength.
- Center Pin:
- Cylindrical shaft with a top-expanded relief cut (snap-fit design).
- The flared head compresses during insertion and locks into place post-assembly, eliminating the need for glue.
- Easily removable for disassembly or maintenance.
Key Features:
✅ No Glue Required: The relief cut ensures a secure, friction-based hold.
✅ Tool-Free Assembly: Parts snap together in seconds.
✅ Customizable: Scale or modify hole sizes for specific loads/materials.
✅ Reusable: Disassemble and reassemble without damage.
Applications:
- Light-duty cabinets, boxes, or decorative panels.
- Prototyping, cosplay, or functional models.
- Educational kits (STEM/engineering).
Recommended Materials:
- PLA, PETG, or ABS for balance of strength and flexibility.
- Print pin vertically for smooth layer alignment.
Note: Optimize clearance tolerances (±0.2mm recommended) for snap-fit reliability.
