Description

OUT NOW: Version 2 is avaliable: https://makerworld.com/en/models/1287874-pipe-bracket-for-shelves-v2#profileId-1317465

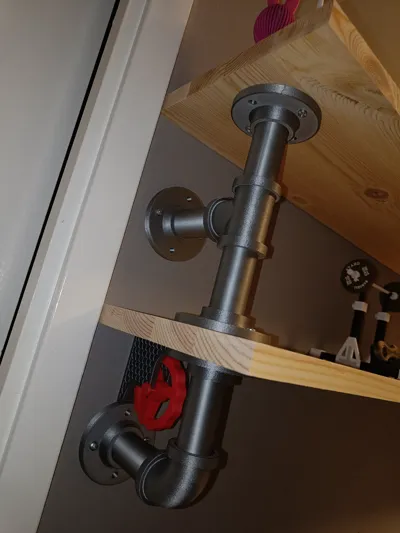

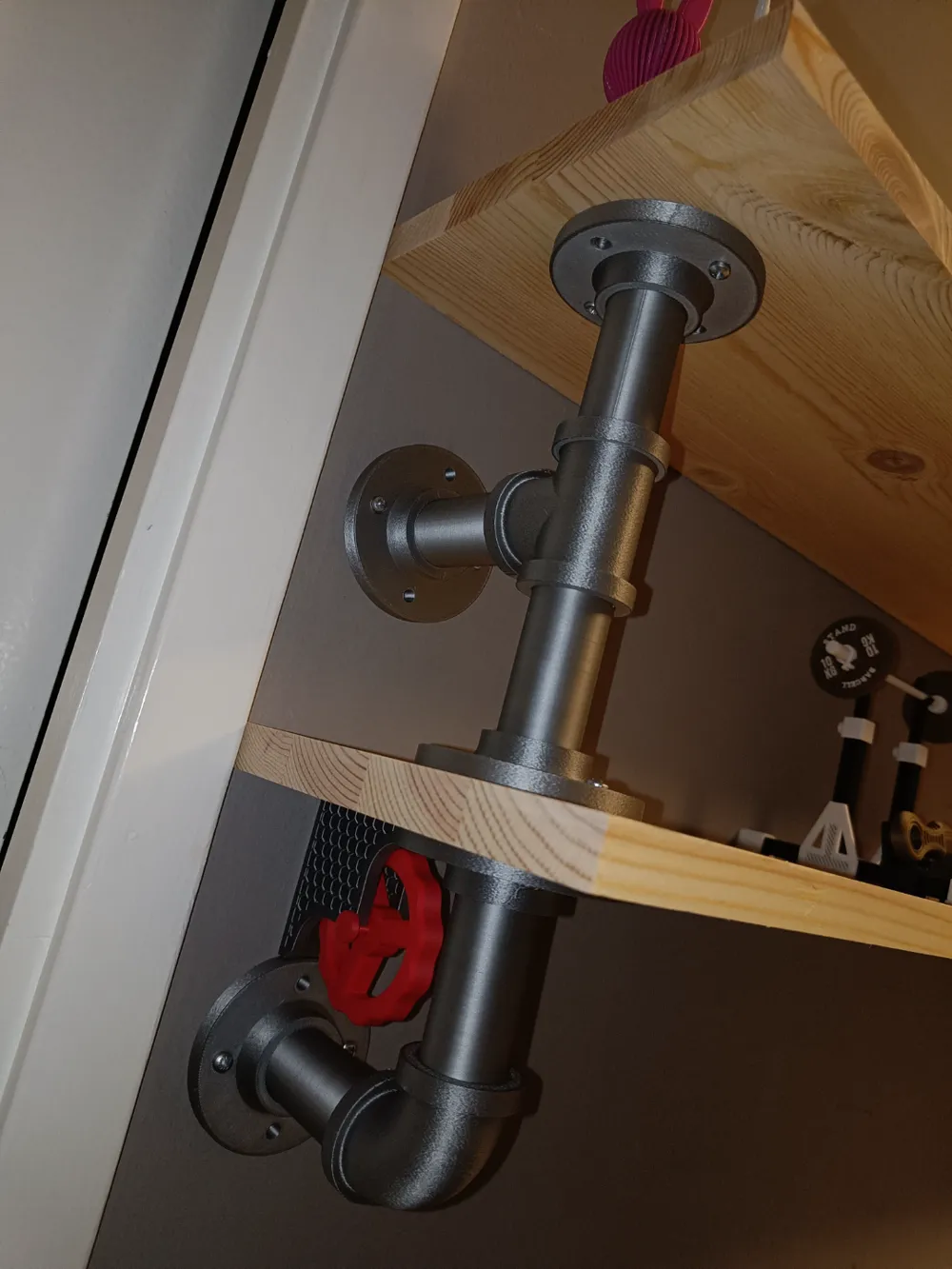

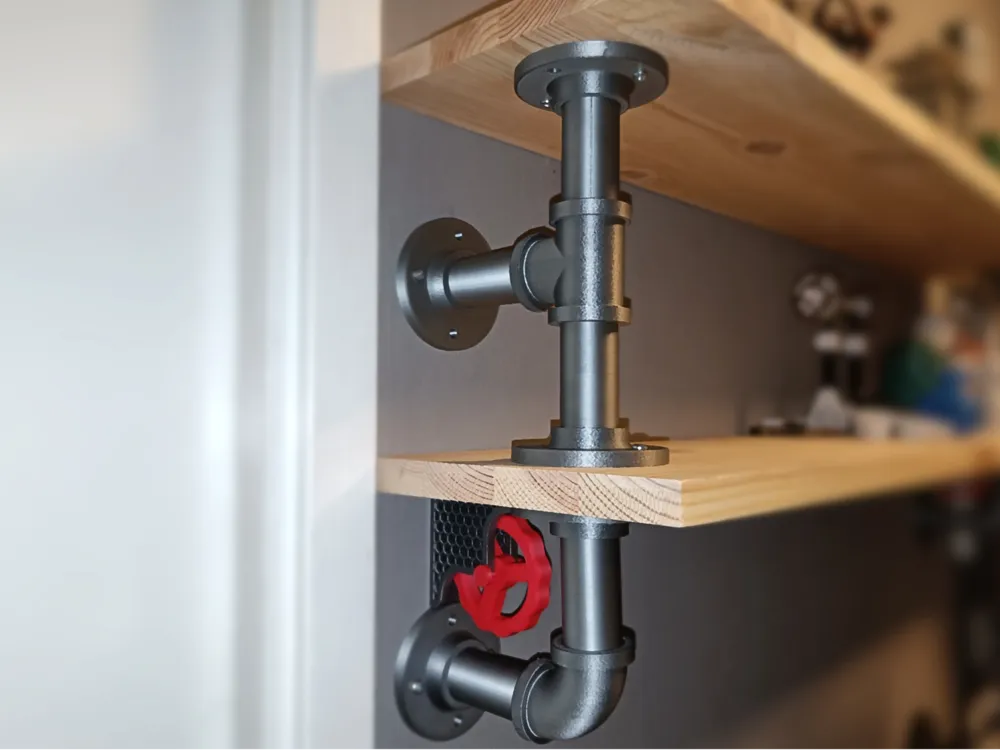

Pipe bracket for displaying prints and other, lighter stuff. (Not to be used for heavy objects)

Some assembly required, depending on filament used it might require some glue.



I would recommend PETG and up the infill to 20-25% if you want more sturdy!
(My model was tried with 10kgs on top the bracket itself and held)


I wanted a little cool shelf to place my prints, and I thought some pipes would be a fun project.

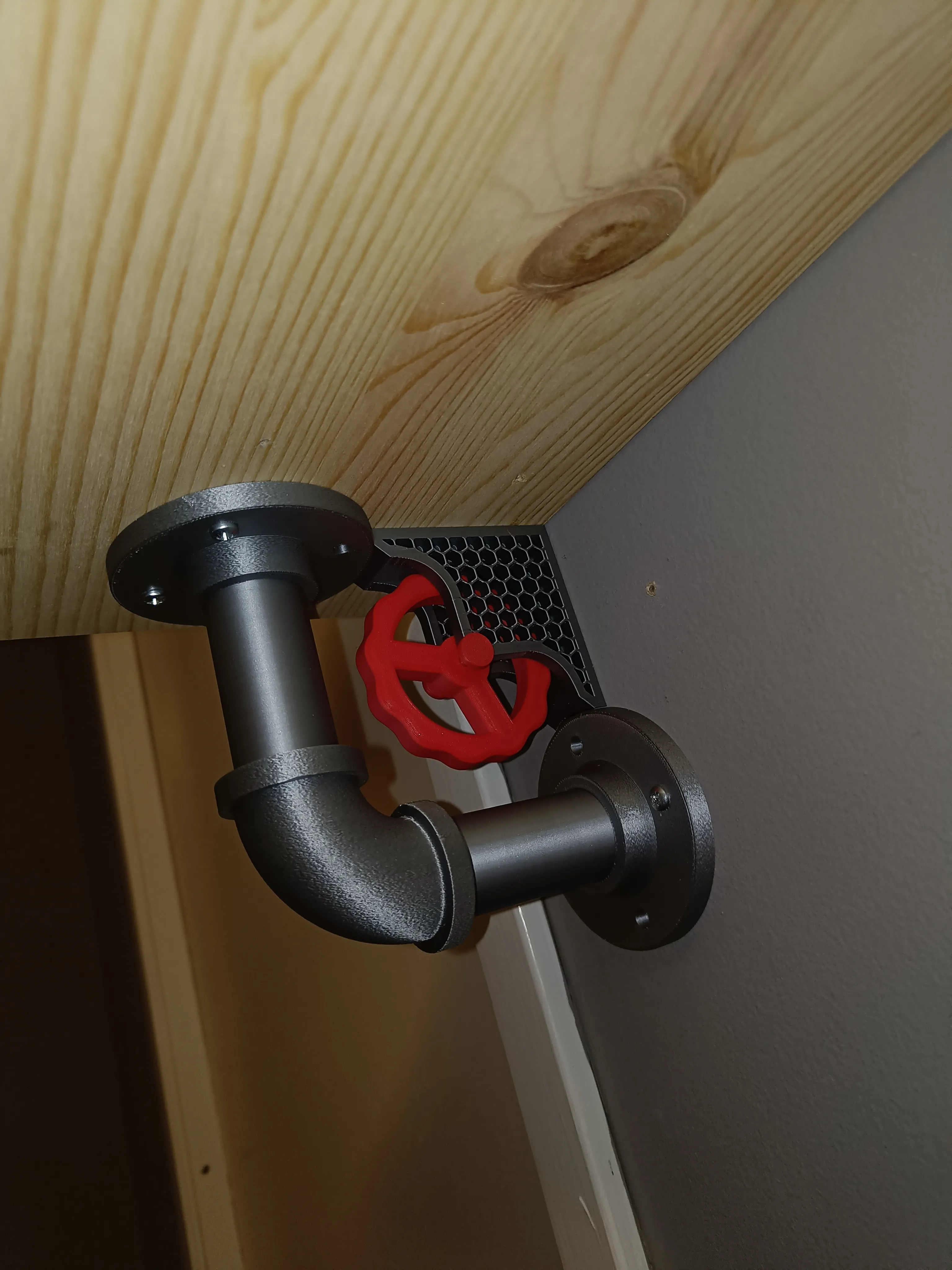

Bends, connectors and main fasteners have a small amount of fuzzy skin for a little more rugged look.

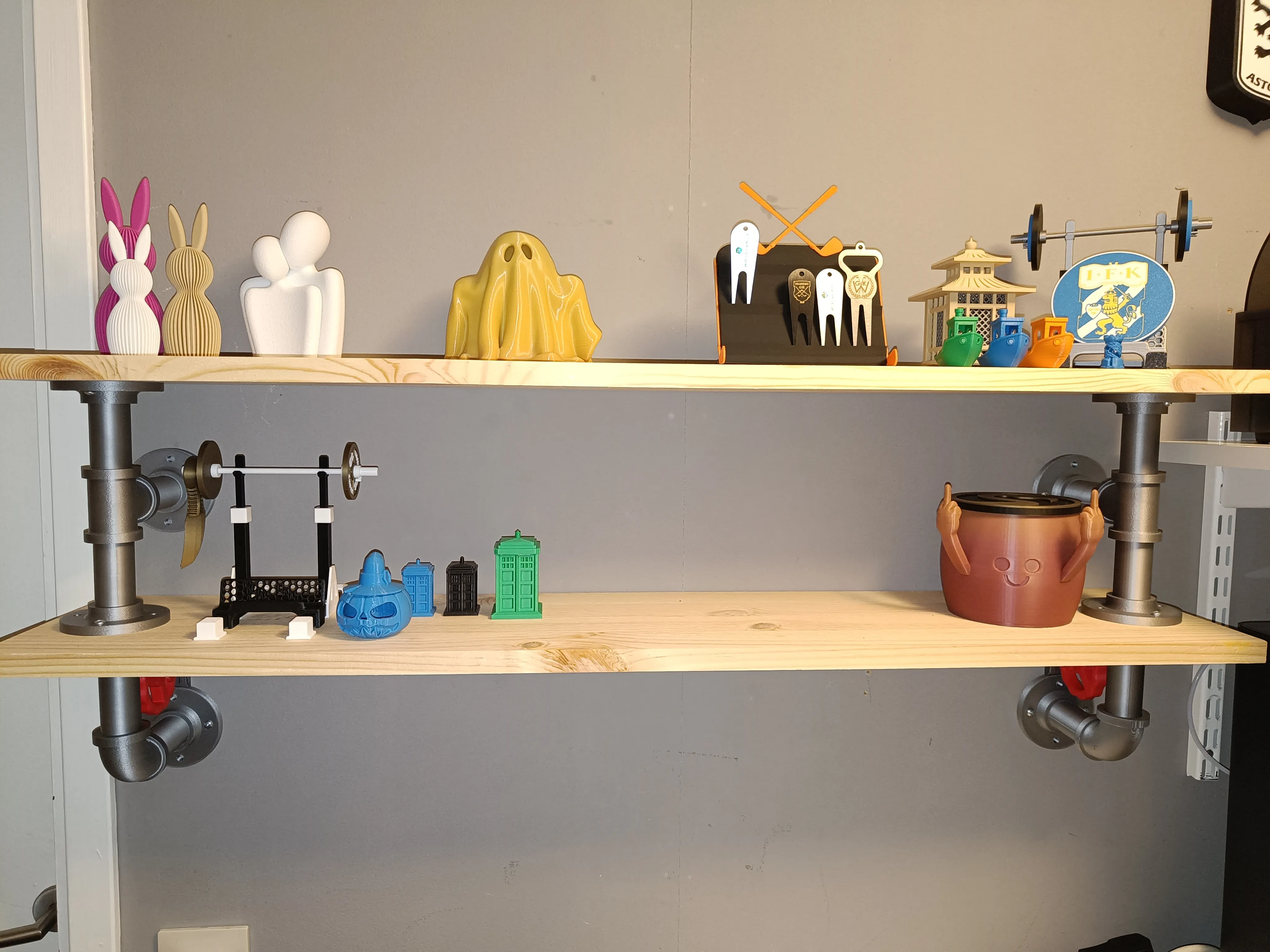

Shelves on pictures are 1000x200x18 mm.




Some of my lastest prints, both my own and found on MW.
